NSN 5945-00-803-9535 BR12675A126V, BR12-675A1-26V, RP7641G8
Product Details | ELECTROMAGNETIC RELAY
5945-00-803-9535 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: BR12675A126V, BR12-675A1-26V, RP7641G8, RP7641G8TYPEF, VR2C675D24, 1093191, 109319-1, 21809271, 2180927-1, 5945-00-803-9535, 00-803-9535, 5945008039535, 008039535
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-803-9535 | 32512 ( RELAY, ELECTROMAGNETIC ) |

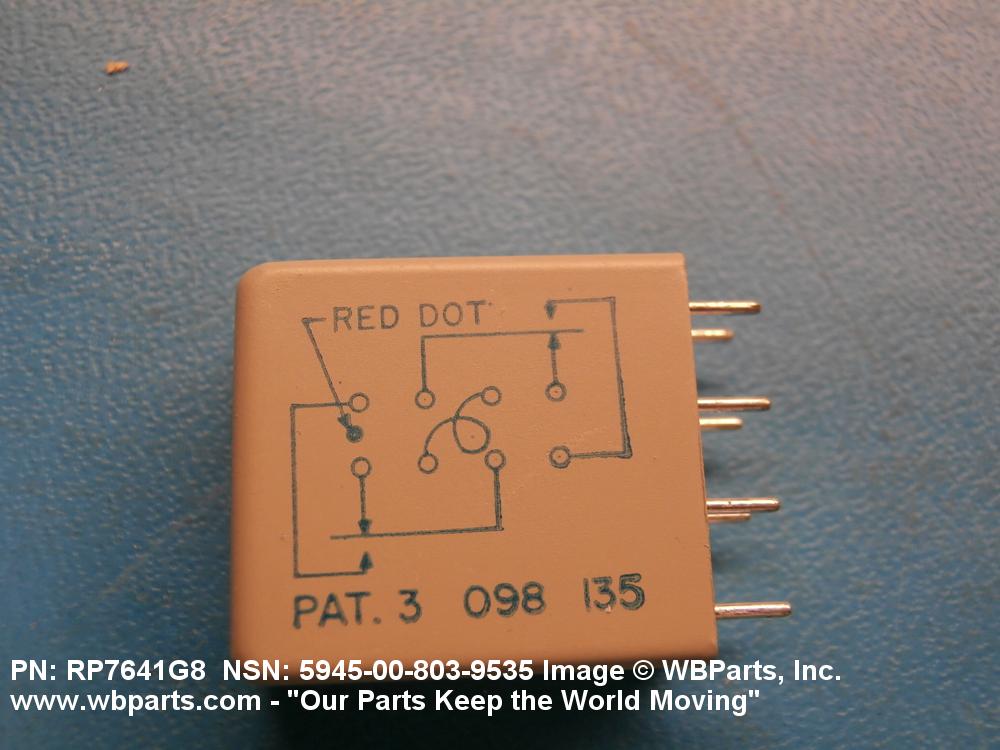

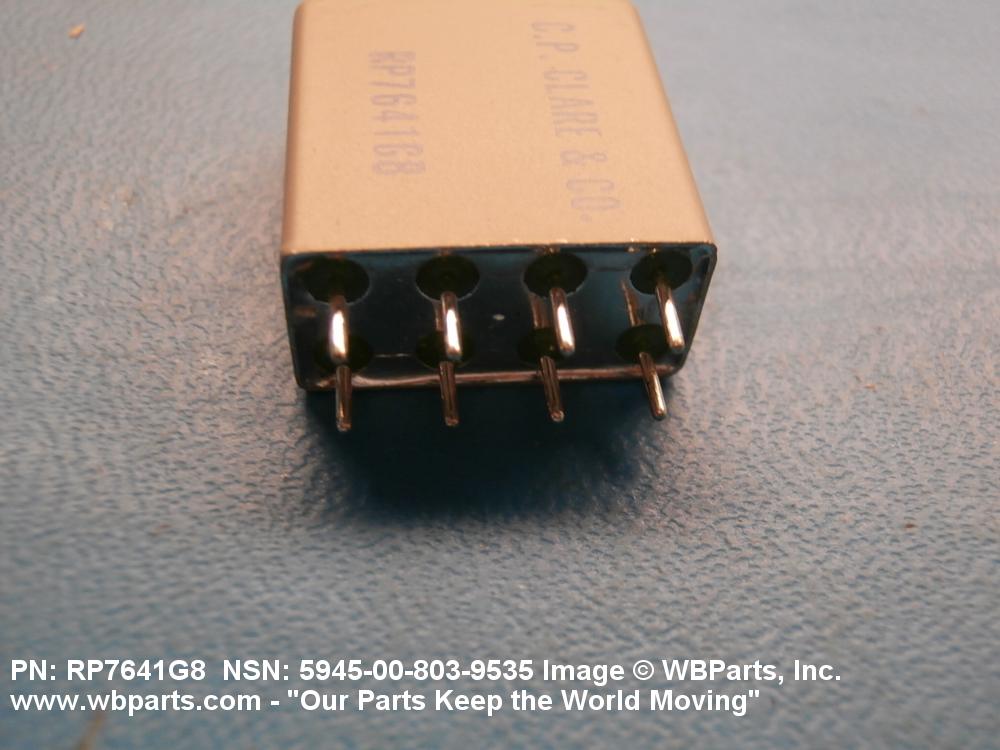

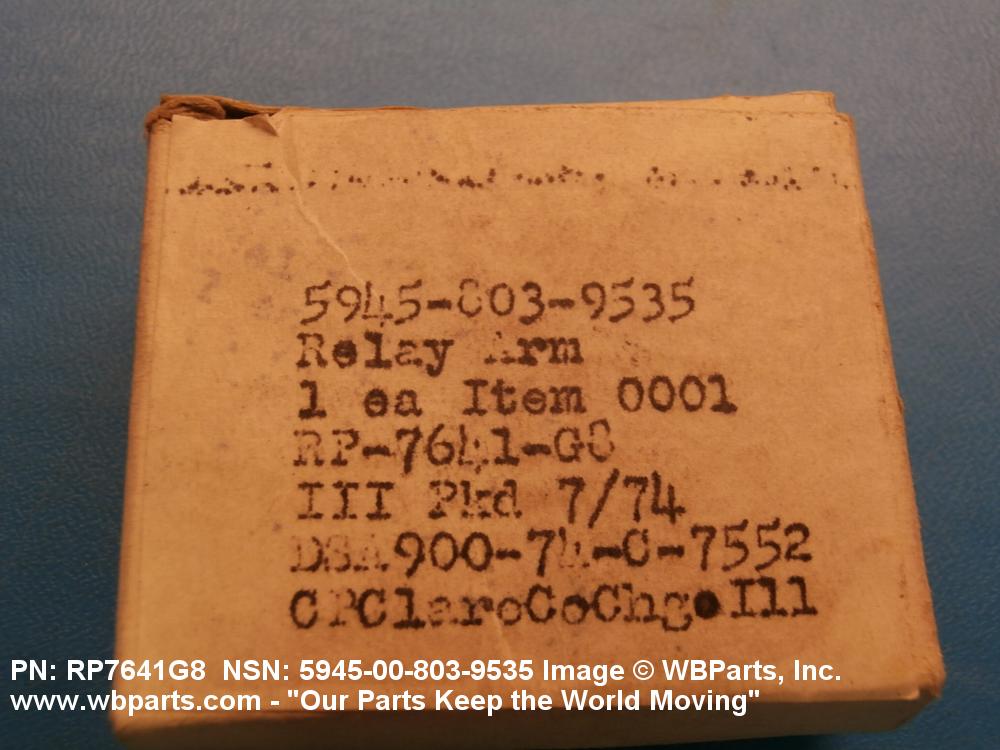

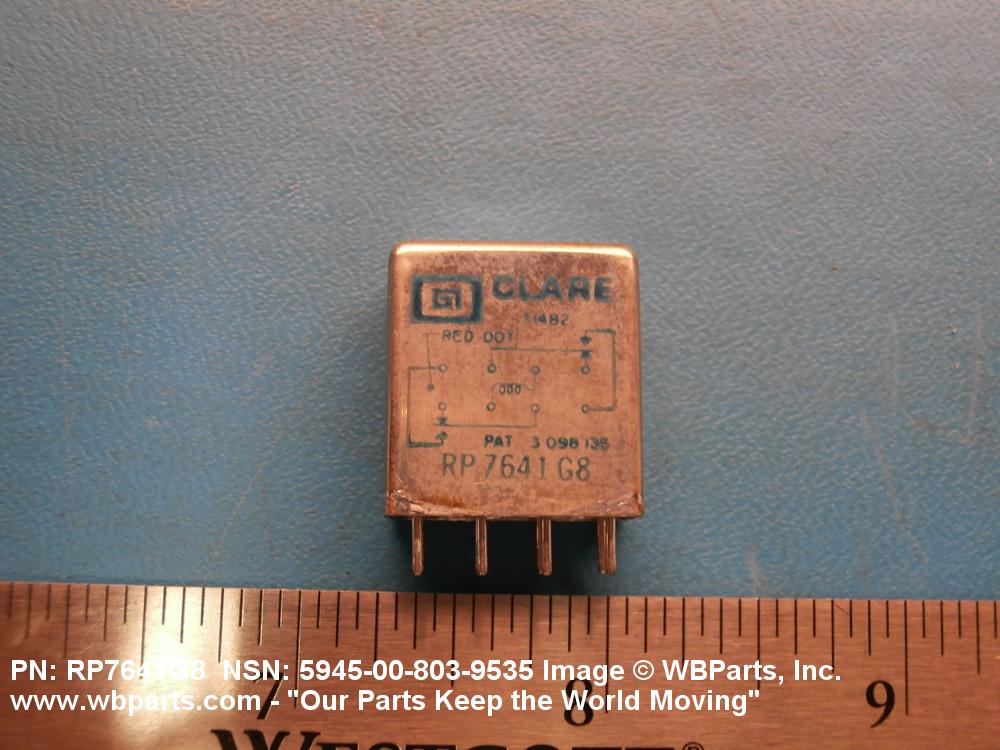

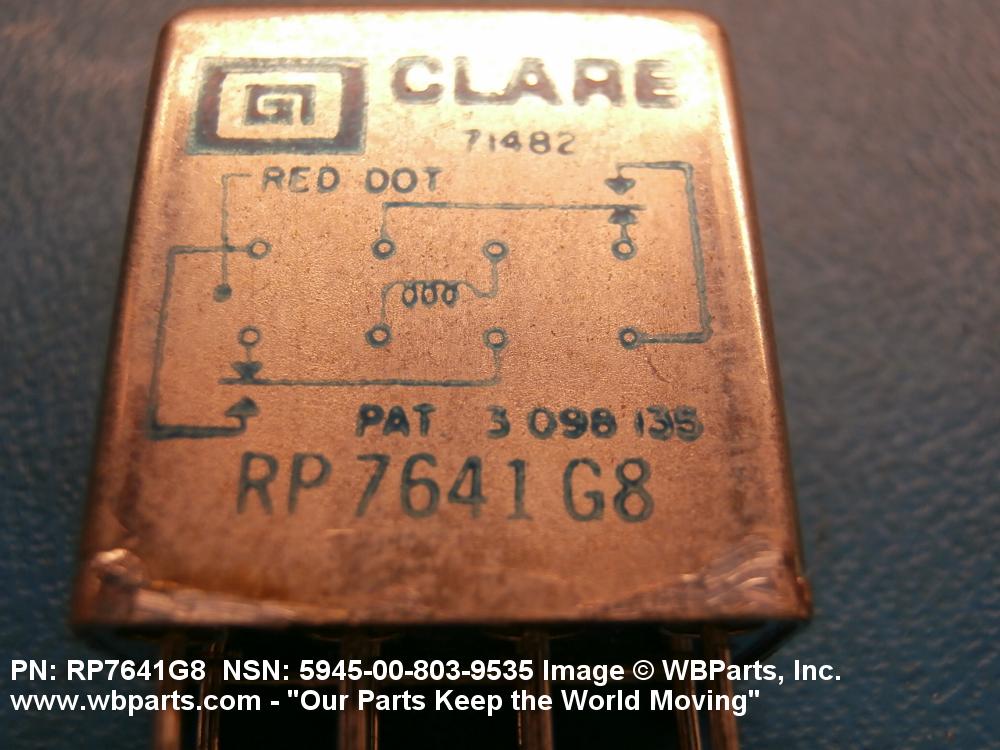

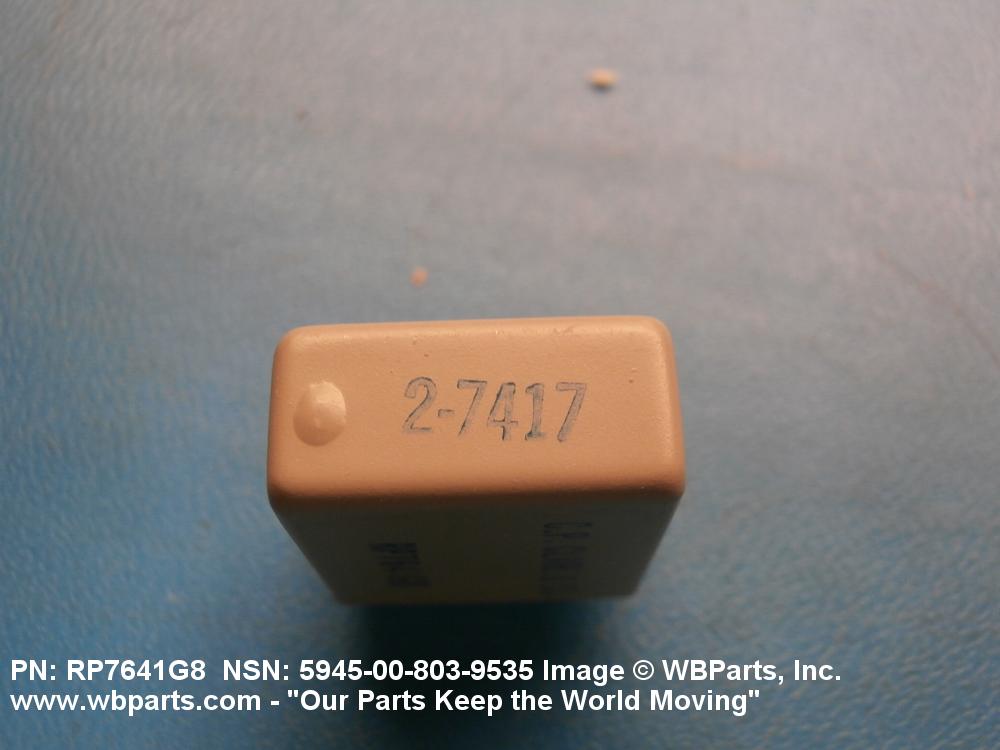

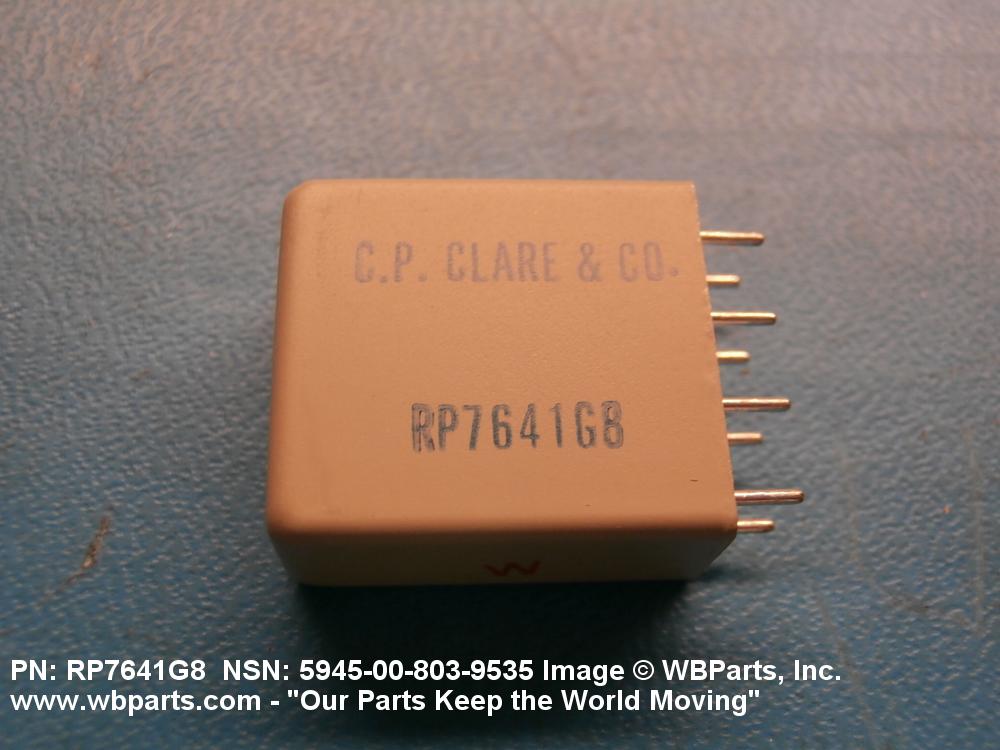

Drawings & Photos | NSN 5945-00-803-9535
Demand History | NSN 5945-00-803-9535
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| RP7641G8 | 2012-10-303 | 10 | United States |
| 5945-00-803-9535 | 2012-08-220 | 2 | United States |
Cross Reference | NSN 5945-00-803-9535
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 109319-1 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 109319-1 | C1834 | KONTRON AG |
| 2180927-1 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| BR12-675A1-26V | 56623 | MICROSEMI CORP.-POWER MANAGEMENT GROUP |
| RP7641G8 | 00779 | TYCO ELECTRONICS CORPORATION |
| RP7641G8 | 58614 | TYCO ELECTRONICS CORPORATION DBA CII TECHNOLOGIES |
| RP7641G8 | 71482 | CP CLARE CORP NORTH AMERICAN SALES OPERATIONS |
| RP7641G8 | D0080 | LEACH INTERNATIONAL GERMANY GMBH |
| RP7641G8 | K0999 | BAE SYSTEMS |
| RP7641G8TYPEF | 00779 | TYCO ELECTRONICS CORPORATION |
| RP7641G8TYPEF | 58614 | TYCO ELECTRONICS CORPORATION DBA CII TECHNOLOGIES |
| RP7641G8TYPEF | 71482 | CP CLARE CORP NORTH AMERICAN SALES OPERATIONS |
| VR2C675D24 | 94696 | SE RELAYS LLC MAGNECRAFT DIV SE RELAYS LLC MAGNECRAFT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-803-9535
Related Products | NSN 5945-00-803-9535
Technical Data | NSN 5945-00-803-9535
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 2.0 AMPERES AC AND 3.0 AMPERES DC RESISTIVE LOAD |
| ARC QUENCHING METHOD | AIR |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 675.0 OHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 26.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| TERMINAL TYPE AND QUANTITY | 8 PIN ALL FUNCTIONS |
| TIME DELAY | 0.005 SECONDS MAXIMUM FIXED OPERATE AND RELEASE TIME |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | DUSTPROOF |
| OVERALL LENGTH | 0.800 INCHES MAXIMUM |
| OVERALL WIDTH | 0.400 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.087 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PLUG-IN TERMINAL SINGLE MOUNTING FACILITY |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
| III CUBIC MEASURE | 0.347 CUBIC INCHES |
| III UNPACKAGED UNIT WEIGHT | 1.300 OUNCES |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III CONTACT MATERIAL | SILVER |
| III CASE MATERIAL | METAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
Restrictions/Controls & Freight Information | NSN 5945-00-803-9535
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-803-9535
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
