NSN 5945-00-808-6345 MS25271A1, MS25271-A1, M25271A1

Product Details | ELECTROMAGNETIC RELAY

5945-00-808-6345 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS25271A1, MS25271-A1, M25271A1, M25271-A1, M5757/18-005, M575718005, MCS1001EC, MILPRF6106, MIL-PRF-6106, MILR575718, MILR5757-18, MILR6106, MIL-R-6106, FC400130, FC400-130, FC4002, FC400-2, FC40062, FC400-62, G370033S1, 10000914, 16600369002, 16600369-002, 348831, 352250029372, 3955771, 395577-1, 40070272 , 4170600030, 4170600-030, 5757/18-005, 90895100, 908951-00, 92244076, 9224-4076, 92245779, 9224-5779, 9465981, 946598-1, 5945-00-808-6345, 00-808-6345, 5945008086345, 008086345, 575718005

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-808-6345	32512 ( RELAY, ELECTROMAGNETIC )

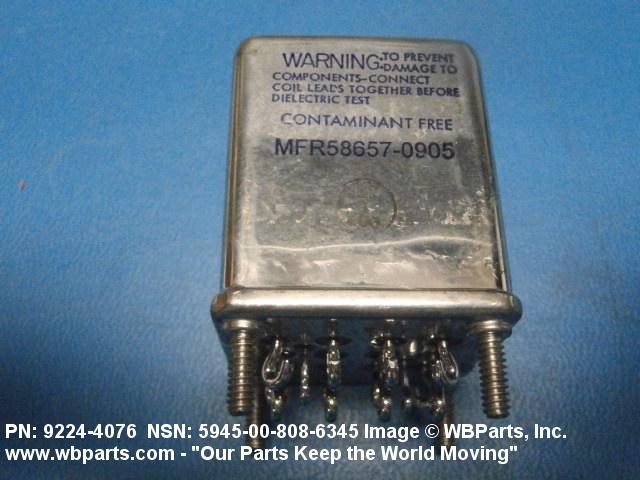

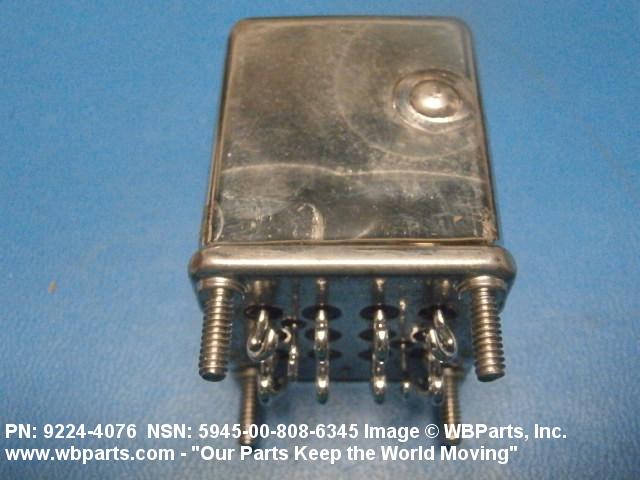

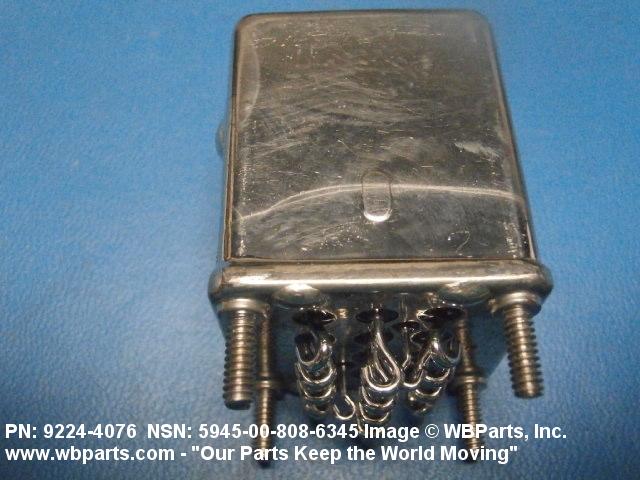

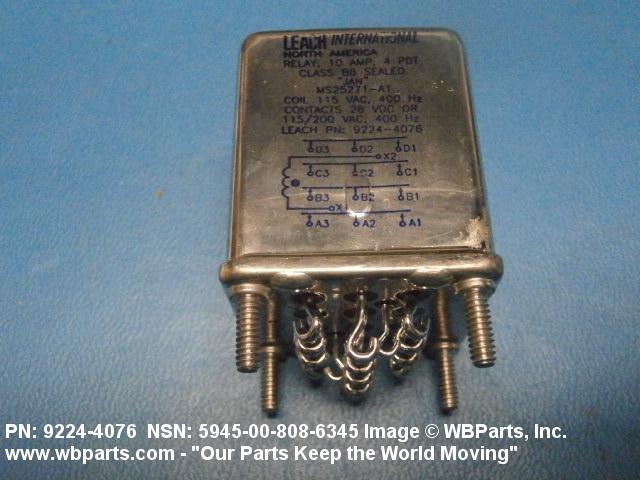

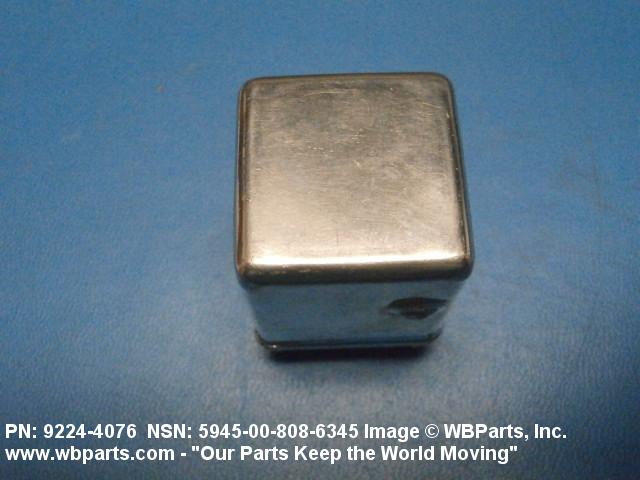

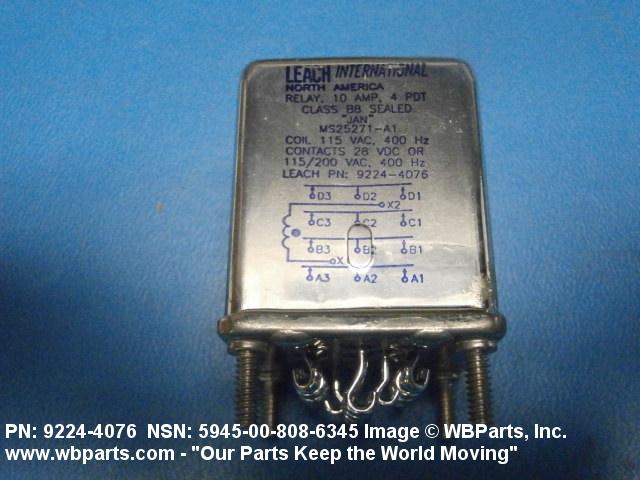

Drawings & Photos | NSN 5945-00-808-6345

Part Number	Request Date	QTY	Origin
5945-00-808-6345	2025-07-195	2	United States
5945-00-808-6345	2025-06-178	18	DIBBS
5945-00-808-6345	2025-06-156	18	DIBBS
5945-00-808-6345	2025-02-37	24	DIBBS
5945-00-808-6345	2024-06-179	12	United States
5945-00-808-6345	2024-02-51	50	US
5945-00-808-6345	2024-01-25	29	DIBBS
5945-00-808-6345	2023-10-276	1	United States
5945-00-808-6345	2023-09-256	12	United States
5945-00-808-6345	2023-08-213	20	DIBBS
5945-00-808-6345	2023-03-68	42	DIBBS
5945-00-808-6345	2022-09-272	75	DIBBS
5945-00-808-6345	2022-06-158	75	DIBBS
5945-00-808-6345	2022-05-125	16	DIBBS
5945-00-808-6345	2021-08-236	1	NL
5945-00-808-6345	2021-08-224	2	US
5945-00-808-6345	2021-08-216	2	GU
5945-00-808-6345	2021-07-188	27	DIBBS
5945-00-808-6345	2021-06-154	27	DIBBS
5945-00-808-6345	2021-05-127	4	us
5945-00-808-6345	2021-02-32	38	DIBBS
5945-00-808-6345	2021-01-21	38	DIBBS
5945-00-808-6345	2020-10-293	34	DIBBS
5945-00-808-6345	2020-10-282	2	United States
5945-00-808-6345	2020-10-282	34	DIBBS
5945-00-808-6345	2020-08-244	30	DIBBS
5945-00-808-6345	2020-08-230	30	DIBBS
5945-00-808-6345	2020-08-223	27	DIBBS
MS25271A1	2020-07-211	1	United States
5945-00-808-6345	2020-07-203	27	DIBBS
5945-00-808-6345	2020-06-163	21	DIBBS
5945-00-808-6345	2019-05-148	52	DIBBS
5945-00-808-6345	2019-05-136	52	DIBBS
5945-00-808-6345	2019-01-10	33	DIBBS
5945-00-808-6345	2018-08-235	30	DIBBS
5945-00-808-6345	2018-05-144	11	DIBBS
5945-00-808-6345	2017-03-64	40	DIBBS
5945-00-808-6345	2016-07-195	24	DIBBS
5945-00-808-6345	2015-11-334	1	DIBBS-RFPs
92244076	2015-04-118	2	United States
MS25271-A1	2015-04-111	2	United States
MS25271A1	2015-02-55	1000	US
5945-00-808-6345	2014-12-336	28	DIBBS
MCS1001EC	2011-07-186	5	MX
MS25271A1	2011-02-54	1	United States
MCS1001EC	2008-08-227	117	US
MILR575718	2006-02-38	20	Spain

Cross Reference | NSN 5945-00-808-6345

Part Number	Cage Code	Manufacturer
10000914	18876	U S ARMY AVIATION AND MISSILE COMMAND
16600369-002	28009	SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC -
348831	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
352250029372	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
395577-1	00752	EDO CORPORATION DIV EDO CORPORATION AP&T
4170600-030	05869	RAYTHEON COMPANY DBA RAYTHEON
5757/18-005	82340	EDO CORPORATION DIV DEFENSE SYSTEMS
908951-00	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
9224-4076	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
9224-4076	D0080	LEACH INTERNATIONAL GERMANY GMBH
9224-4076	F0219	LEACH INTERNATIONAL EUROPE SA
9224-5779	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
946598-1	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
FC400-130	78290	STRUTHERS-DUNN INC
FC400-2	78290	STRUTHERS-DUNN INC
FC400-62	00341	LEXAN INDUSTRIES INC DIV STRUTHERS ELECTRONICS
G370033S1	24930	EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA
M25271-A1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M5757/18-005	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MCS1001EC	17238	PALL CORPORATION DBA PALL TRINITY MICRO
MIL-PRF-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILR5757-18	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25271-A1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-808-6345

Compare

Related Products | NSN 5945-00-808-6345

5945-00-808-6555, 5945-00-808-6680, 5945-00-808-7175, 5945-00-808-7446, 5945-00-808-7467

Technical Data | NSN 5945-00-808-6345

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD 6.0 AMPERES AC AND 6.0 AMPERES DC INDUCTIVE LOAD 2.0 AMPERES AC AND 2.0 AMPERES DC LAMP LOAD 4.0 AMPERES AC AND 4.0 AMPERES DC MOTOR LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	1
WINDING QUANTITY	1
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	115.0 VOLTS AC 25 DEG CELSIUS SINGLE WINDING
FREQUENCY IN HERTZ	400.0 NOMINAL

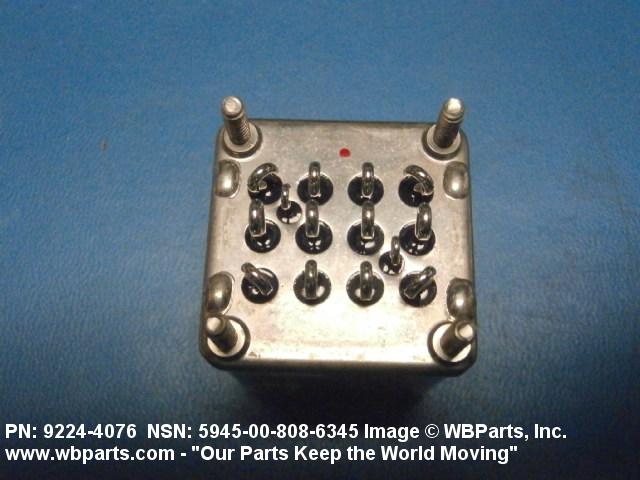

TERMINAL TYPE AND QUANTITY	14 WIRE HOOK ALL FUNCTIONS
TIME DELAY	0.025 SECONDS MAXIMUM FIXED OPERATE TIME 0.05 SECONDS MAXIMUM FIXED RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC
OVERALL LENGTH	1.531 INCHES MAXIMUM
OVERALL WIDTH	1.531 INCHES MAXIMUM
OVERALL HEIGHT	2.249 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	4 THREADED STUD SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	RECTANGULAR SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.187 INCHES NOMINAL SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	1.187 INCHES NOMINAL SINGLE MOUNTING FACILITY
THREAD SERIES DESIGNATOR	UNC SINGLE MOUNTING FACILITY
NOMINAL THREAD SIZE	0.138 INCHES SINGLE MOUNTING FACILITY
THREAD CLASS	2A SINGLE MOUNTING FACILITY
THREAD QUANTITY PER INCH	32 SINGLE MOUNTING FACILITY
THREAD DIRECTION	RIGHT-HAND SINGLE MOUNTING FACILITY
TEST DATA DOCUMENT	81349-MIL-R-6106 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS25271 GOVERNMENT STANDARD
III PURPOSE FOR WHICH DESIGNED	GENERAL
III CUBIC MEASURE	5.271 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	0.450 POUNDS
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-6106
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS25271-A1

Restrictions/Controls & Freight Information | NSN 5945-00-808-6345

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-00-808-6345

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
