NSN 5945-00-815-3494 MS2527101, MS25271-01, MS25271D

Product Details | ELECTROMAGNETIC RELAY

5945-00-815-3494 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS2527101, MS25271-01, MS25271D, MS25271D1, MS25271-D1, NA5782022, NA5-7820-22, NA5782034, NA5-7820-34, FC4001, FC-400-1, FC400131, FC400-131, FC400151, FC400-151, FC40022, FC400-22, FC40022IAWNA5782034, FC400-22IAWNA5-7820-34, MILPRF6106, MIL-PRF-6106, MIL-R-5757/18, MILR575718, MILR6106, MIL-R-6106, MILR6106FASG1MS25271, 16600369001, 16600369-001, 352250029371, 3956331, 395633-1, 4575977, 457-5977 , 6136061, 613606-1 , 77C705824P1, 825RL0157, 915793 , 92243823, 9224-3823, 92244019, 9224-4019 , 92244091, 9224-4091, 9465982, 946598-2, 5945-00-815-3494, 00-815-3494, 5945008153494, 008153494

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1960	00-815-3494	32512 ( RELAY, ELECTROMAGNETIC )

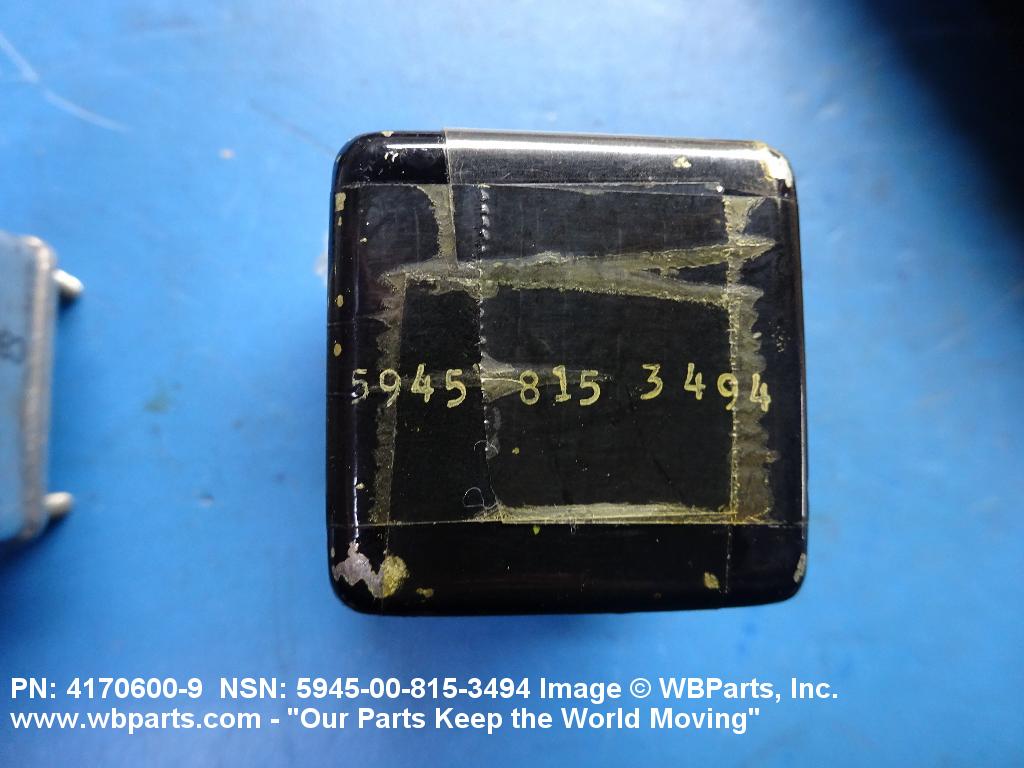

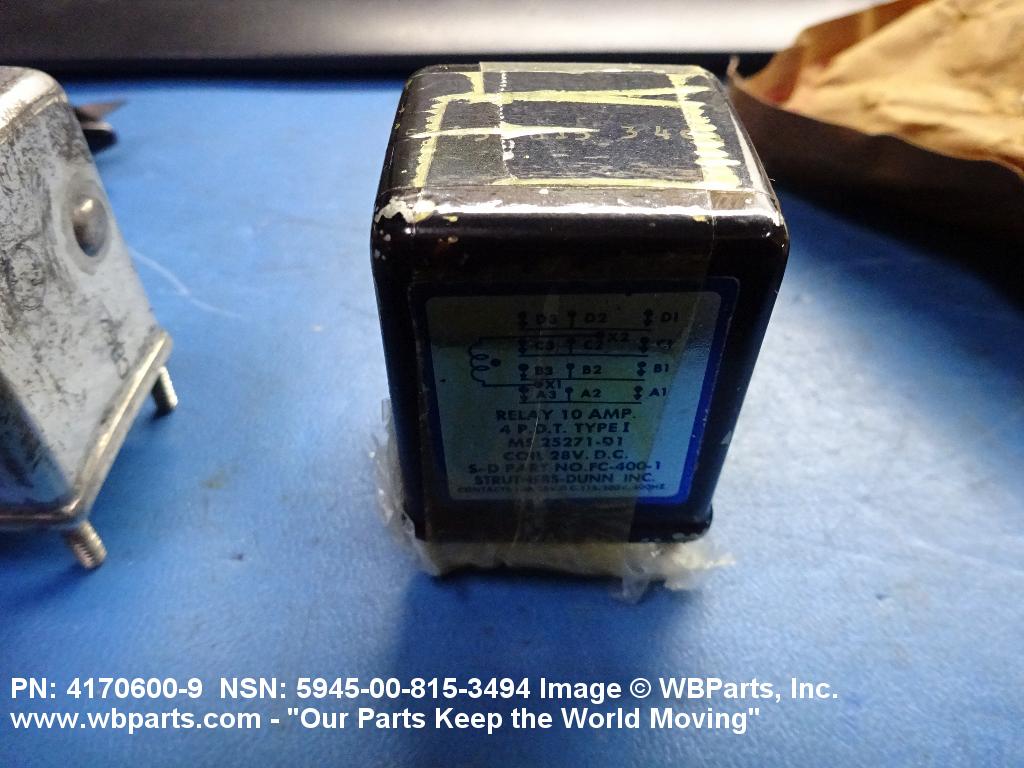

Drawings & Photos | NSN 5945-00-815-3494

Part Number	Request Date	QTY	Origin
5945-00-815-3494	2025-11-318	1	US
5945-00-815-3494	2024-10-277	10	DIBBS
5945-00-815-3494	2024-08-222	18	DIBBS
5945-00-815-3494	2024-06-170	2	United States
5945-00-815-3494	2024-05-143	18	DIBBS
5945-00-815-3494	2024-03-64	66	DIBBS
5945-00-815-3494	2024-02-53	66	DIBBS
5945-00-815-3494	2023-08-236	27	DIBBS
5945-00-815-3494	2023-08-215	27	DIBBS
5945-00-815-3494	2023-04-102	70	Taiwan
5945-00-815-3494	2022-11-311	27	DIBBS
5945-00-815-3494	2022-10-300	27	DIBBS
5945-00-815-3494	2022-07-209	4	United Kingdom
5945-00-815-3494	2022-07-208	4	United Kingdom
5945-00-815-3494	2022-04-103	2	United States
5945-00-815-3494	2022-03-76	24	DIBBS
5945-00-815-3494	2021-09-273	5	TW
MS25271D1	2021-09-265	1	United States
5945-00-815-3494	2021-08-214	50	DIBBS
5945-00-815-3494	2021-07-203	50	DIBBS
5945-00-815-3494	2021-07-200	17	US
5945-00-815-3494	2021-06-165	33	TW
5945-00-815-3494	2021-05-151	18	South Korea
5945-00-815-3494	2021-04-116	35	DIBBS
5945-00-815-3494	2021-04-105	35	DIBBS
MS25271D1	2021-03-83	120	France
5945-00-815-3494	2020-10-293	20	DIBBS
5945-00-815-3494	2020-10-282	20	DIBBS
5945-00-815-3494	2020-09-261	5	DIBBS
5945-00-815-3494	2020-09-247	4	DIBBS
5945-00-815-3494	2020-08-237	6	Korea
5945-00-815-3494	2020-08-217	67	DIBBS
5945-00-815-3494	2020-07-203	67	DIBBS
5945-00-815-3494	2020-06-153	73	DIBBS
5945-00-815-3494	2020-05-142	73	DIBBS
5945-00-815-3494	2020-03-63	21	KR
5945-00-815-3494	2019-10-303	10	United States
MS2527101	2015-09-246	1	Philippines
5945-00-815-3494	2013-05-128	35	DIBBS
5945-00-815-3494	2013-04-92	64	DIBBS
5945-00-815-3494	2012-08-237	47	DIBBS
5945-00-815-3494	2012-06-160	28	DIBBS
5945-00-815-3494	2012-04-100	15	DIBBS
5945-00-815-3494	2012-03-81	37	DIBBS
5945-00-815-3494	2012-02-46	20	DIBBS
5945-00-815-3494	2012-02-45	2	US
5945-00-815-3494	2011-09-244	17	DIBBS
MS25271D1	2011-04-108	120	Taiwan
5945-00-815-3494	2011-04-107	120	TW
5945-00-815-3494	2011-02-38	1	US
5945-00-815-3494	2011-01-24	13	DIBBS
352250029371	2010-11-326	2	United States
5945-00-815-3494	2010-11-305	4	US
5945-00-815-3494	2010-07-190	140	Taiwan
MS25271D1	2010-07-187	140	Taiwan
5945-00-815-3494	2010-07-183	17	DIBBS
MS25271D1	2010-05-145	140	US
5945-00-815-3494	2010-05-131	28	DIBBS
MS25271D1	2010-03-83	158	Taiwan
5945-00-815-3494	2009-10-299	80	South Korea
NA5782034	2009-09-268	1	Canada
5945-00-815-3494	2009-08-219	38	DIBBS
5945-00-815-3494	2009-06-169	33	DIBBS
5945-00-815-3494	2009-05-122	20	DIBBS
5945-00-815-3494	2009-01-29	20	DIBBS
MS25271D1	2008-11-331	2	US
MS25271D1	2008-11-318	2	US
5945-00-815-3494	2008-11-317	1	JP
5945-00-815-3494	2008-11-316	20	DIBBS
5945-00-815-3494	2008-10-291	24	DIBBS
5945-00-815-3494	2008-08-239	20	DIBBS
5945-00-815-3494	2008-08-220	12	DIBBS
5945-00-815-3494	2008-05-137	21	DIBBS
5945-00-815-3494	2008-05-122	10	DIBBS
MS25271D	2008-04-93	2	US
5945-00-815-3494	2007-04-95	14	DIBBS
5945-00-815-3494	2007-02-47	30	DIBBS
MILR575718	2006-02-38	20	Spain
5945-00-815-3494	2006-01-26	40	Turkey

Cross Reference | NSN 5945-00-815-3494

Part Number	Cage Code	Manufacturer
16600369-001	28009	SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC -
352250029371	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
395633-1	00752	EDO CORPORATION DIV EDO CORPORATION AP&T
613606-1	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
77C705824P1	03538	LOCKHEED MARTIN CORPORATION DIV MST
825RL0157	A0199	OTO MELARA SPA
915793	34228	L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO
9224-3823	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
9224-4019	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
9224-4091	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
946598-2	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
FC-400-1	78290	STRUTHERS-DUNN INC
FC400-131	78290	STRUTHERS-DUNN INC
FC400-151	78290	STRUTHERS-DUNN INC
FC400-22	78290	STRUTHERS-DUNN INC
FC400-22IAWNA5-7820-34	78290	STRUTHERS-DUNN INC
MIL-PRF-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-5757/18	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILR6106FASG1MS25271	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25271-01	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25271-D1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25271D	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25271D1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NA5-7820-22	43999	BOEING COMPANY, THE DBA BOEING
NA5-7820-34	43999	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-815-3494

Compare

Related Products | NSN 5945-00-815-3494

5945-00-815-3511, 5945-00-815-3579, 5945-00-815-3674, 5945-00-815-4423, 5945-00-815-4426

Technical Data | NSN 5945-00-815-3494

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD 6.0 AMPERES AC AND 6.0 AMPERES DC INDUCTIVE LOAD 2.0 AMPERES AC AND 2.0 AMPERES DC LAMP LOAD 4.0 AMPERES AC AND 4.0 AMPERES DC MOTOR LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	1
WINDING QUANTITY	1
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING

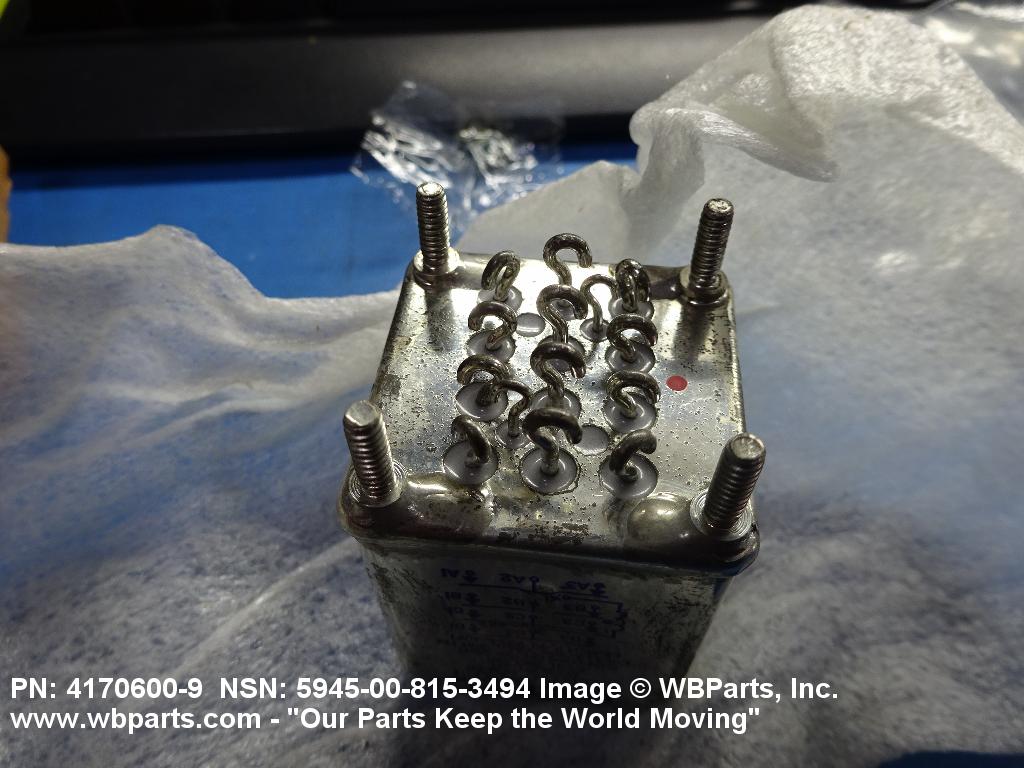

TERMINAL TYPE AND QUANTITY	14 WIRE HOOK ALL FUNCTIONS
TIME DELAY	0.02 SECONDS MAXIMUM FIXED OPERATE AND RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC

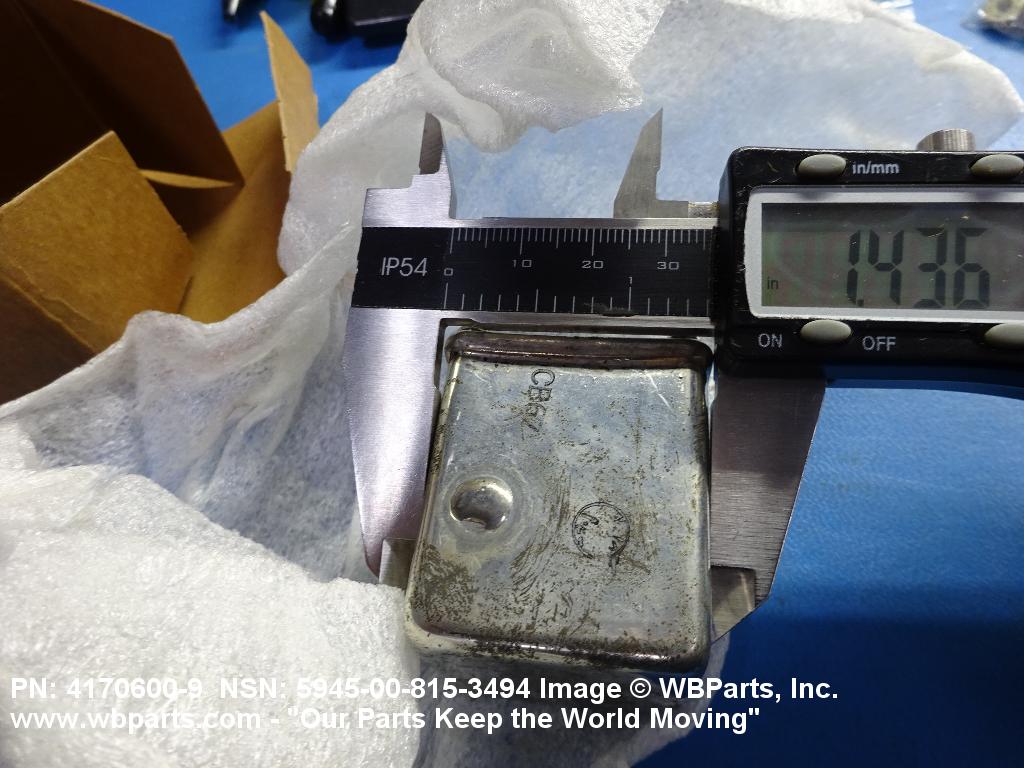

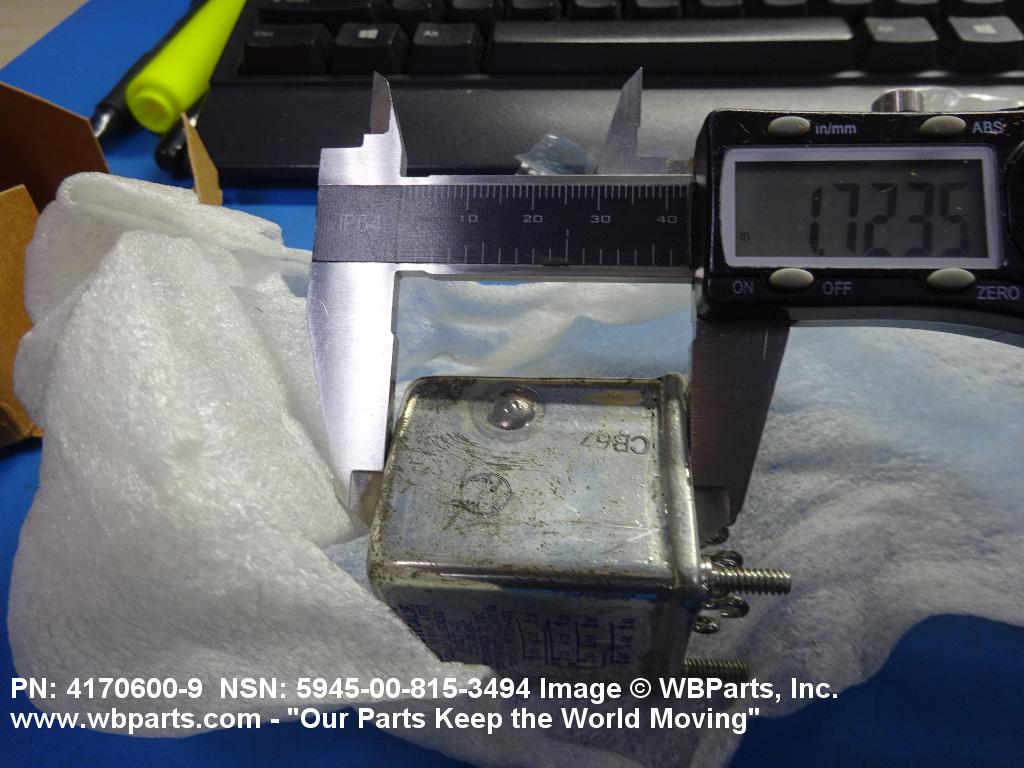

OVERALL LENGTH	1.531 INCHES MAXIMUM

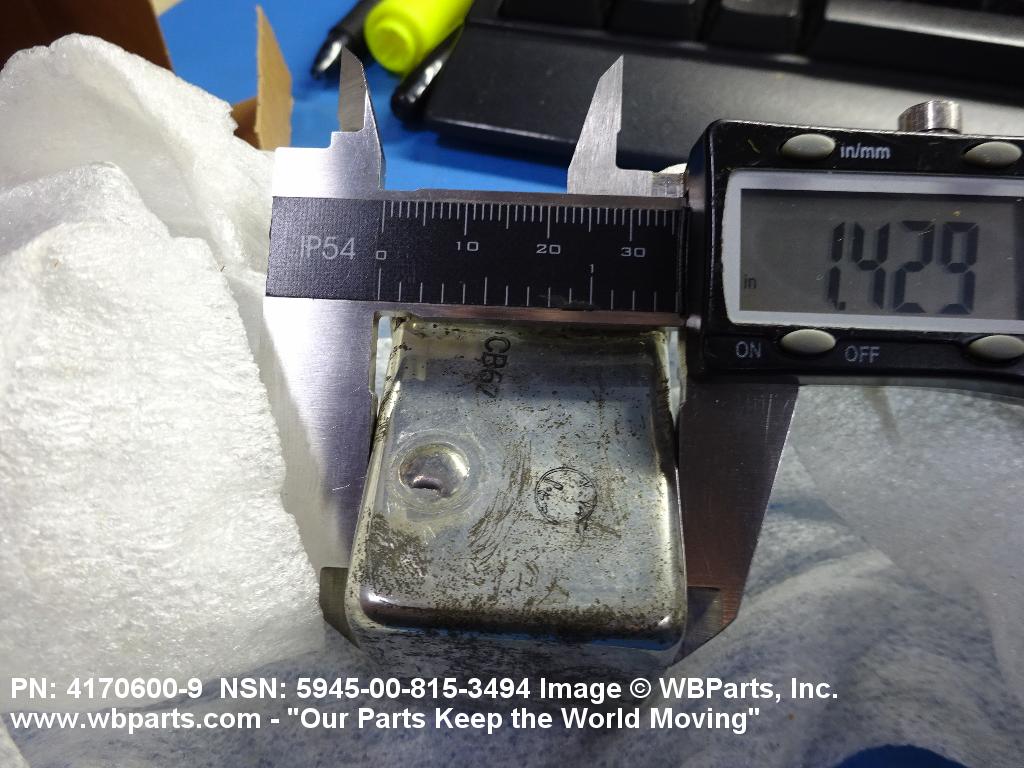

OVERALL WIDTH	1.531 INCHES MAXIMUM

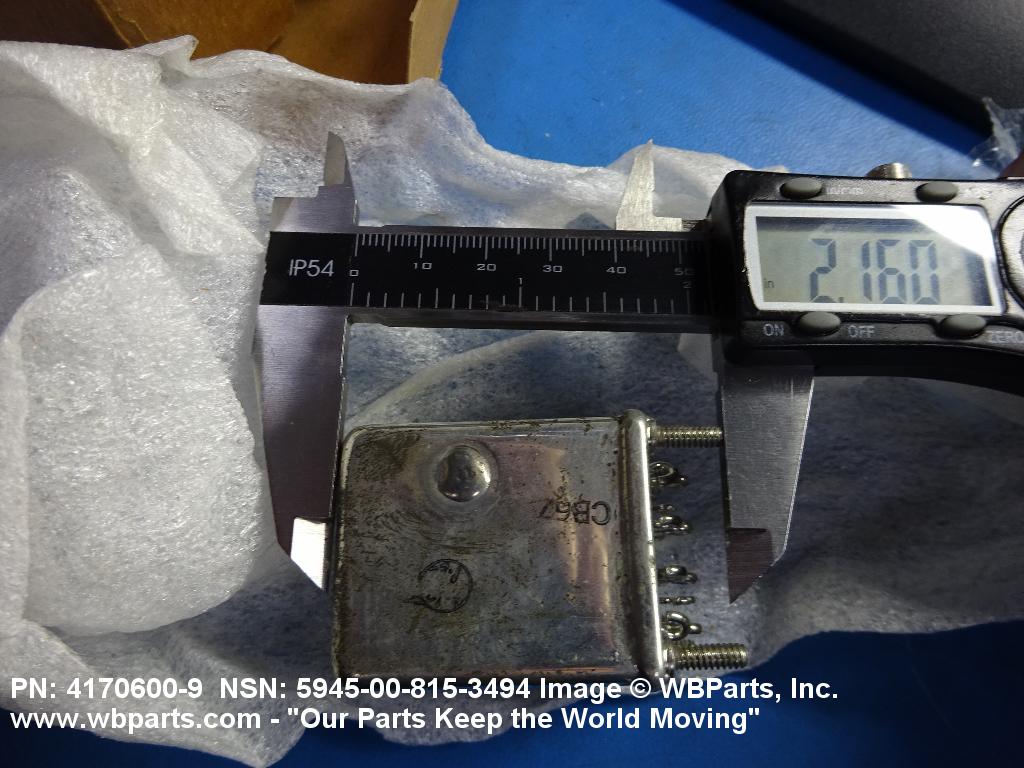

OVERALL HEIGHT	2.249 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	4 THREADED STUD SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	RECTANGULAR SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.187 INCHES NOMINAL SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	1.187 INCHES NOMINAL SINGLE MOUNTING FACILITY
THREAD SERIES DESIGNATOR	UNC SINGLE MOUNTING FACILITY
NOMINAL THREAD SIZE	0.138 INCHES SINGLE MOUNTING FACILITY
THREAD CLASS	2A SINGLE MOUNTING FACILITY
THREAD QUANTITY PER INCH	32 SINGLE MOUNTING FACILITY
THREAD DIRECTION	RIGHT-HAND SINGLE MOUNTING FACILITY
TEST DATA DOCUMENT	81349-MIL-R-6106 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS25271 GOVERNMENT STANDARD
III PURPOSE FOR WHICH DESIGNED	GENERAL
III UNPACKAGED UNIT WEIGHT	0.450 POUNDS
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-6106
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS25271-D1

Restrictions/Controls & Freight Information | NSN 5945-00-815-3494

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-00-815-3494

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
