NSN 5945-00-818-8904 MS25267A1, MS25267-A1, M1LR575715005

Product Details | ELECTROMAGNETIC RELAY

5945-00-818-8904 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS25267A1, MS25267-A1, M1LR575715005, M1LR5757-15-005, M575715005, M5757-15-005, MILPRF6106, MIL-PRF-6106, MILR6106, MIL-R-6106, FC4042, FC404-2, G370039S2, 92204186, 9220-4186, 1730479, 1730-479, 3975-99004, 41061, 4106-1, 438640447329, 438-6404473-29, 438-6726443 FIND 8, 4386726443FIND8, 4S163967, 4S1639-67, 5945-00-818-8904, 00-818-8904, 5945008188904, 008188904, 397599004

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-818-8904	32512 ( RELAY, ELECTROMAGNETIC )

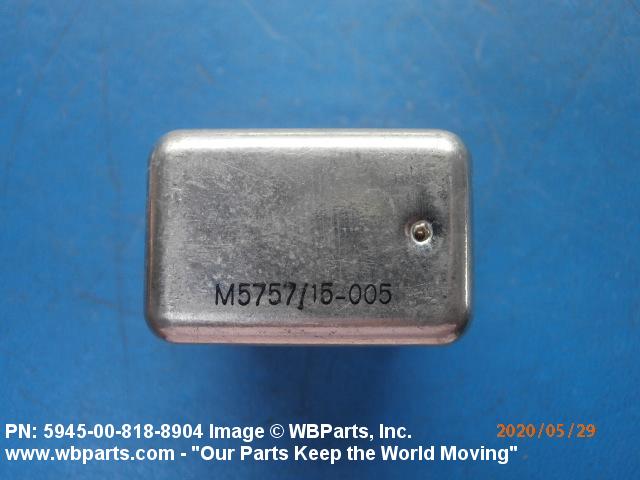

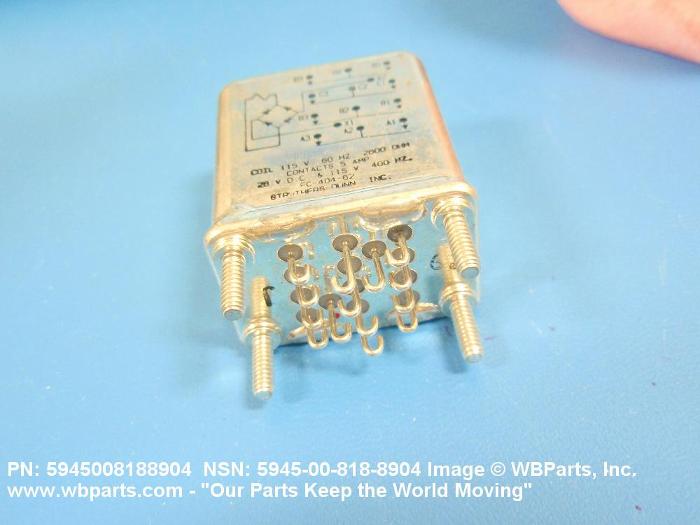

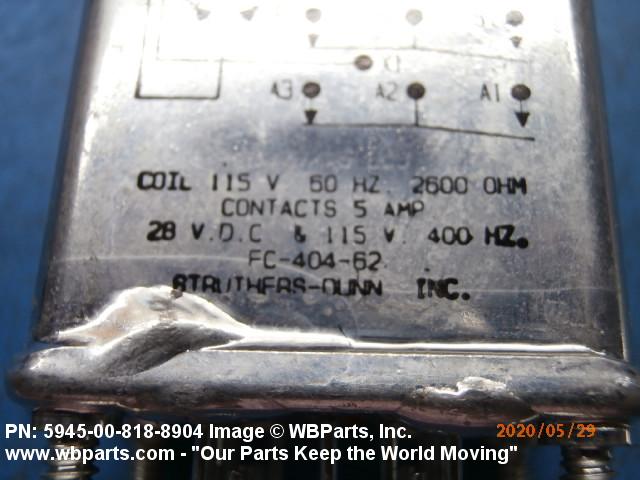

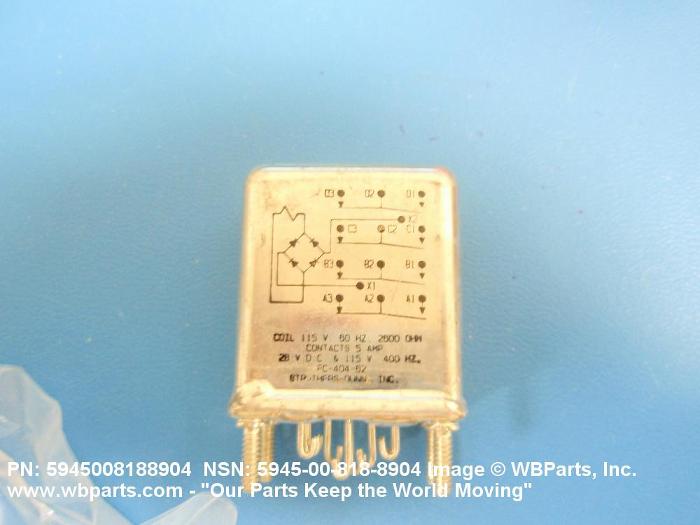

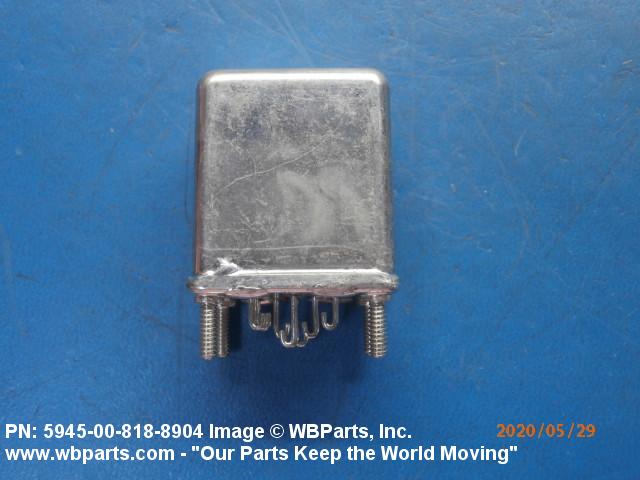

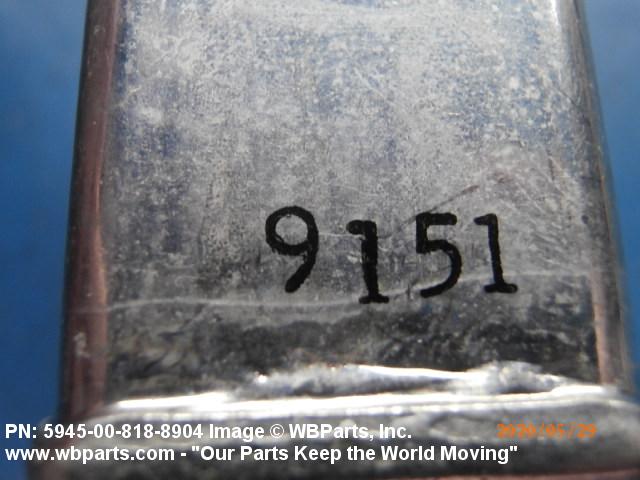

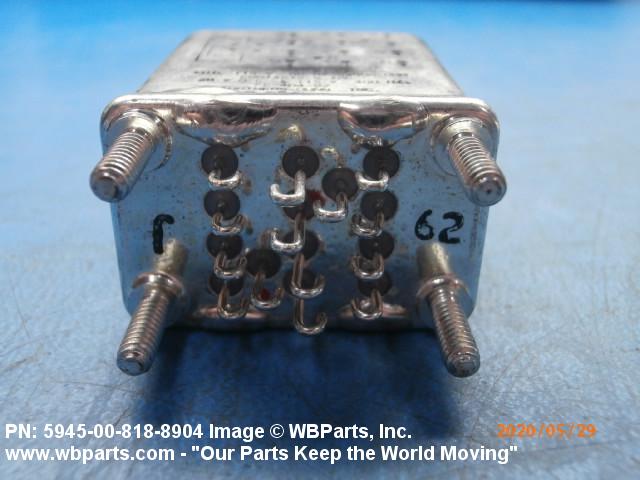

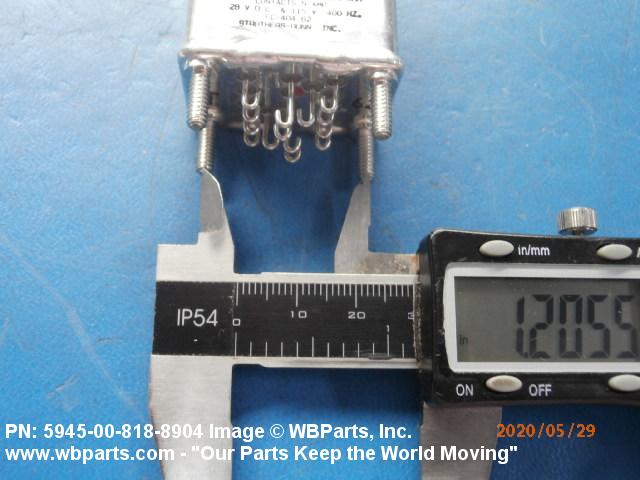

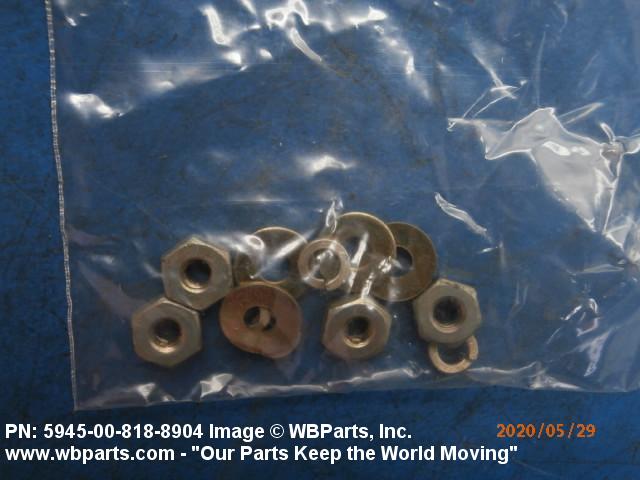

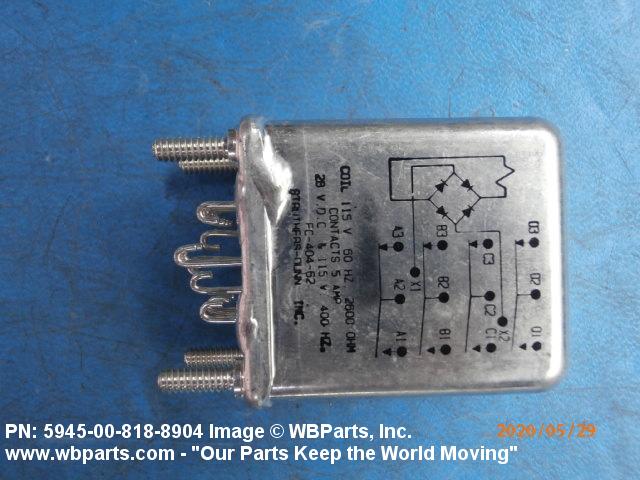

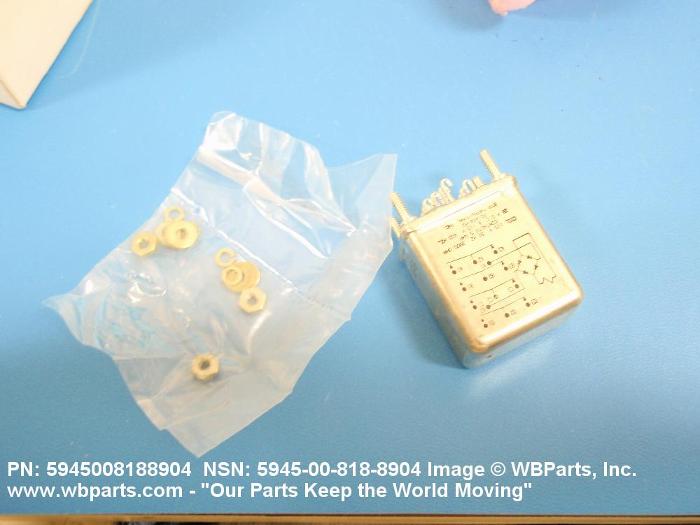

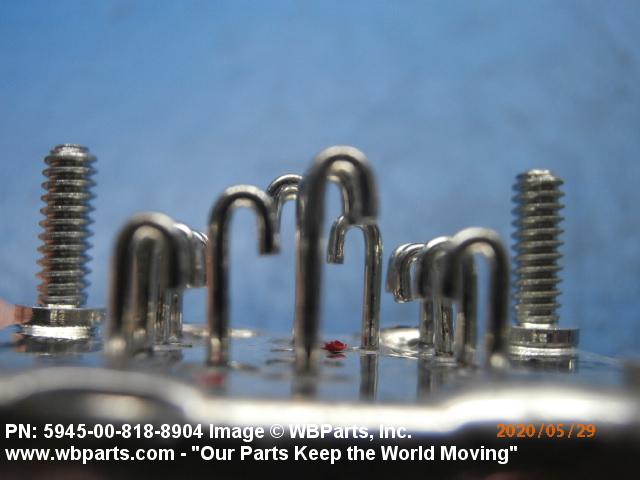

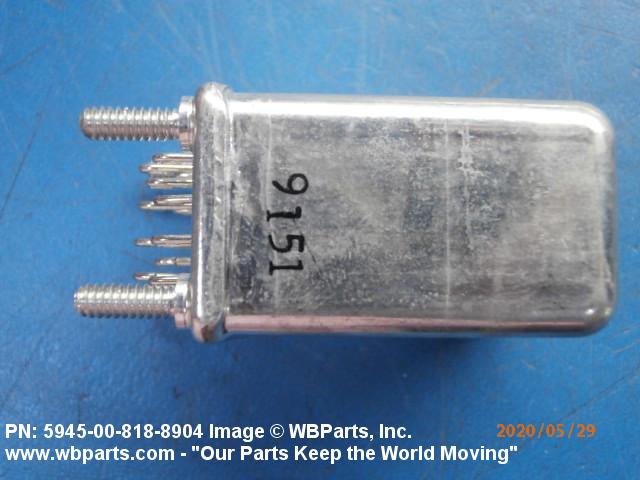

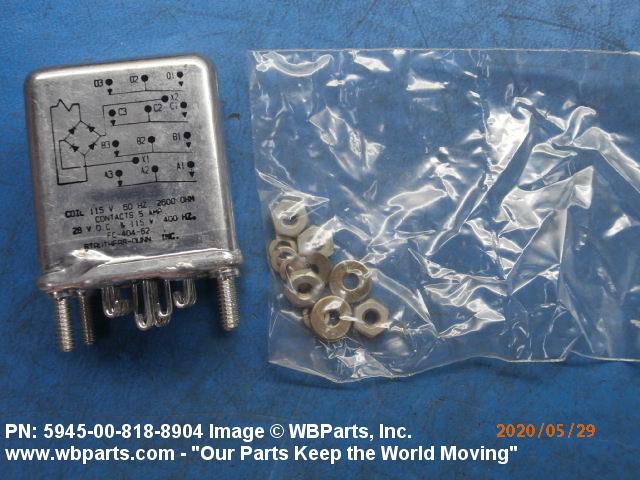

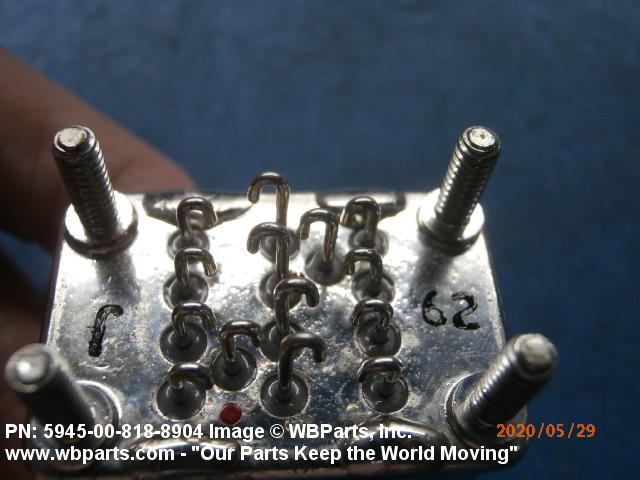

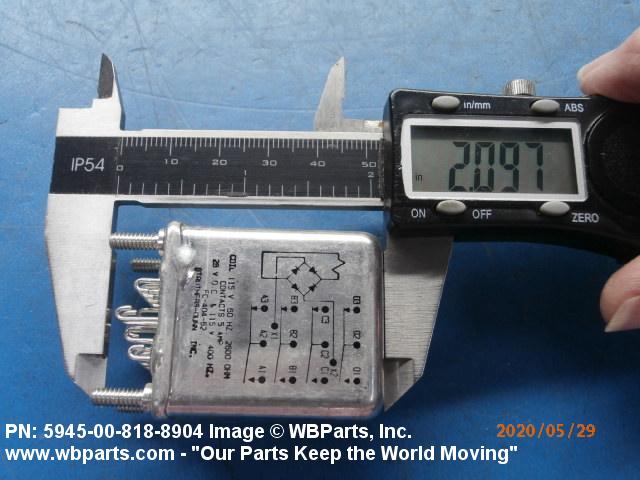

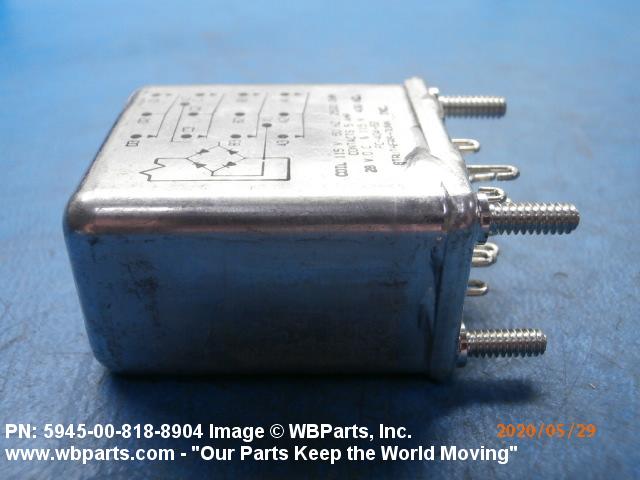

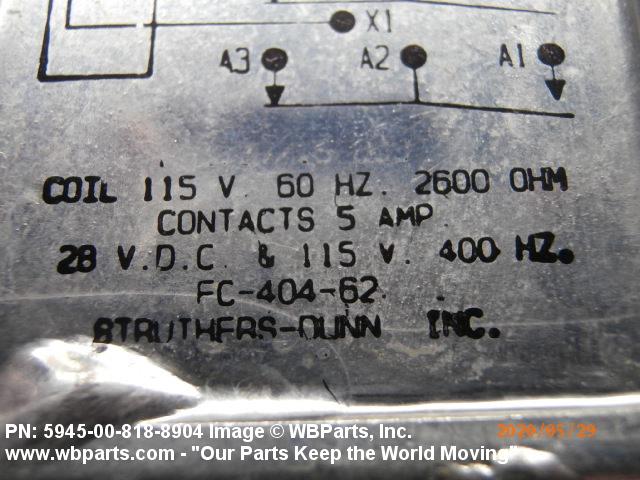

Drawings & Photos | NSN 5945-00-818-8904

Part Number	Request Date	QTY	Origin
5945-00-818-8904	2025-10-288	48	DIBBS
5945-00-818-8904	2025-10-287	31	DIBBS
5945-00-818-8904	2025-08-233	17	DIBBS
5945-00-818-8904	2024-07-200	58	DIBBS
5945-00-818-8904	2024-02-39	58	DIBBS
5945-00-818-8904	2023-12-351	14	DIBBS
5945-00-818-8904	2023-05-131	1	DIBBS
5945-00-818-8904	2022-11-329	51	DIBBS
5945-00-818-8904	2022-11-317	51	DIBBS
5945-00-818-8904	2022-08-234	73	DIBBS
5945-00-818-8904	2022-08-222	73	DIBBS
5945-00-818-8904	2022-08-214	1	US
5945-00-818-8904	2022-06-173	1	US
5945-00-818-8904	2022-05-144	39	DIBBS
5945-00-818-8904	2022-05-132	39	DIBBS
5945-00-818-8904	2022-03-87	34	DIBBS
5945-00-818-8904	2022-03-76	34	DIBBS
5945-00-818-8904	2022-02-56	91	DIBBS
5945-00-818-8904	2022-02-45	91	DIBBS
5945-00-818-8904	2021-07-187	29	DIBBS
5945-00-818-8904	2021-06-175	29	DIBBS
5945-00-818-8904	2020-10-293	62	DIBBS
5945-00-818-8904	2020-10-282	62	DIBBS
5945-00-818-8904	2020-05-141	1	United States
5945-00-818-8904	2019-10-288	45	DIBBS
5945-00-818-8904	2019-10-276	45	DIBBS
5945-00-818-8904	2019-07-183	29	DIBBS
5945-00-818-8904	2019-06-171	29	DIBBS
5945-00-818-8904	2019-01-07	32	DIBBS
5945-00-818-8904	2018-10-303	32	DIBBS
5945-00-818-8904	2018-10-284	28	DIBBS
5945-00-818-8904	2018-08-239	1	DIBBS-RFPs
41061	2014-09-261	1	South Africa
5945-00-818-8904	2013-07-204	31	DIBBS
397599004	2013-05-127	40	US
5945-00-818-8904	2013-04-112	40	DIBBS
5945-00-818-8904	2013-03-64	41	DIBBS
5945-00-818-8904	2009-03-79	5	United States
5945-00-818-8904	2008-12-357	1	United States

Cross Reference | NSN 5945-00-818-8904

Part Number	Cage Code	Manufacturer
1730-479	31361	WOODWARD, INC. DBA INDUSTRIAL PRODUCTS GROUP
3975-99004	19823	HURLETRONALTAIR INC
3975-99004	24727	SEACON BRANTNER & ASSOCIATES DBA SEACON GIANNINI
4106-1	97536	WING CORP
438-6404473-29	53711	NAVAL SEA SYSTEMS COMMAND
438-6726443 FIND 8	53711	NAVAL SEA SYSTEMS COMMAND
4S1639-67	03481	BFGOODRICH CO THE AEROSPACE DIV
9220-4186	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
FC404-2	78290	STRUTHERS-DUNN INC
G370039S2	24930	EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA
M1LR5757-15-005	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M5757-15-005	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25267-A1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-818-8904

Compare

Related Products | NSN 5945-00-818-8904

5945-00-818-9571, 5945-00-818-9573, 5945-00-819-0169, 5945-00-819-0178, 5945-00-819-0181

Technical Data | NSN 5945-00-818-8904

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	5.0 AMPERES AC AND 5.0 AMPERES DC RESISTIVE LOAD 3.0 AMPERES AC AND 3.0 AMPERES DC INDUCTIVE LOAD 800.0 MILLIAMPERES AC AND 800.0 MILLIAMPERES DC LAMP LOAD 1.5 AMPERES AC AND 1.5 AMPERES DC MOTOR LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	1
WINDING QUANTITY	1
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	115.0 VOLTS AC 25 DEG CELSIUS SINGLE WINDING
FREQUENCY IN HERTZ	400.0 NOMINAL
TERMINAL TYPE AND QUANTITY	14 WIRE HOOK ALL FUNCTIONS
TIME DELAY	0.02 SECONDS MAXIMUM FIXED OPERATE AND RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC

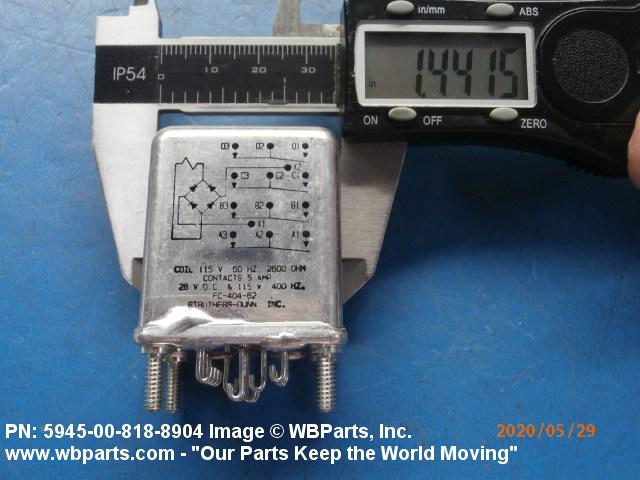

OVERALL LENGTH	1.531 INCHES MAXIMUM

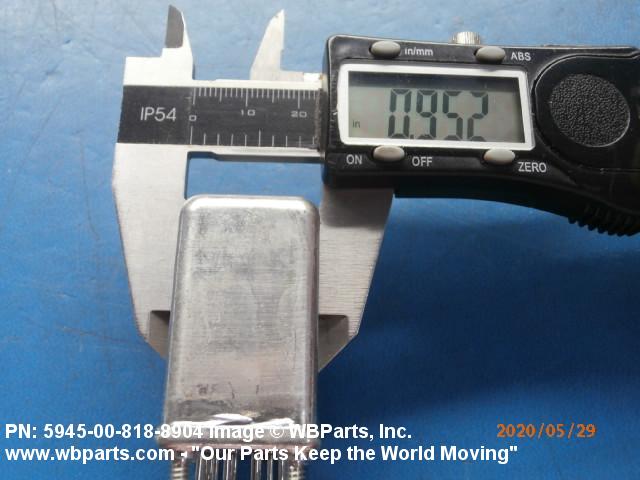

OVERALL WIDTH	1.130 INCHES MAXIMUM
OVERALL HEIGHT	2.187 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	4 THREADED STUD SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	RECTANGULAR SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.187 INCHES NOMINAL SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	0.687 INCHES NOMINAL SINGLE MOUNTING FACILITY
THREAD SERIES DESIGNATOR	UNC SINGLE MOUNTING FACILITY
NOMINAL THREAD SIZE	0.138 INCHES SINGLE MOUNTING FACILITY
THREAD CLASS	2A SINGLE MOUNTING FACILITY
THREAD QUANTITY PER INCH	32 SINGLE MOUNTING FACILITY
THREAD DIRECTION	RIGHT-HAND SINGLE MOUNTING FACILITY
TEST DATA DOCUMENT	81349-MIL-R-6106 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS25267 GOVERNMENT STANDARD
III PURPOSE FOR WHICH DESIGNED	GENERAL
III CUBIC MEASURE	3.783 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	0.320 POUNDS
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-6106
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS25267-A1
