NSN 5945-00-833-8948 L3653, L-3653, 8338948
Product Details | ELECTRICAL SOLENOID
5945-00-833-8948 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: L3653, L-3653, 8338948, 5945-00-833-8948, 00-833-8948, 5945008338948, 008338948
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-833-8948 | 00310 ( SOLENOID, ELECTRICAL ) |
Drawings & Photos | NSN 5945-00-833-8948
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-00-833-8948
Technical Data | NSN 5945-00-833-8948
| Characteristic | Specifications |
|---|---|

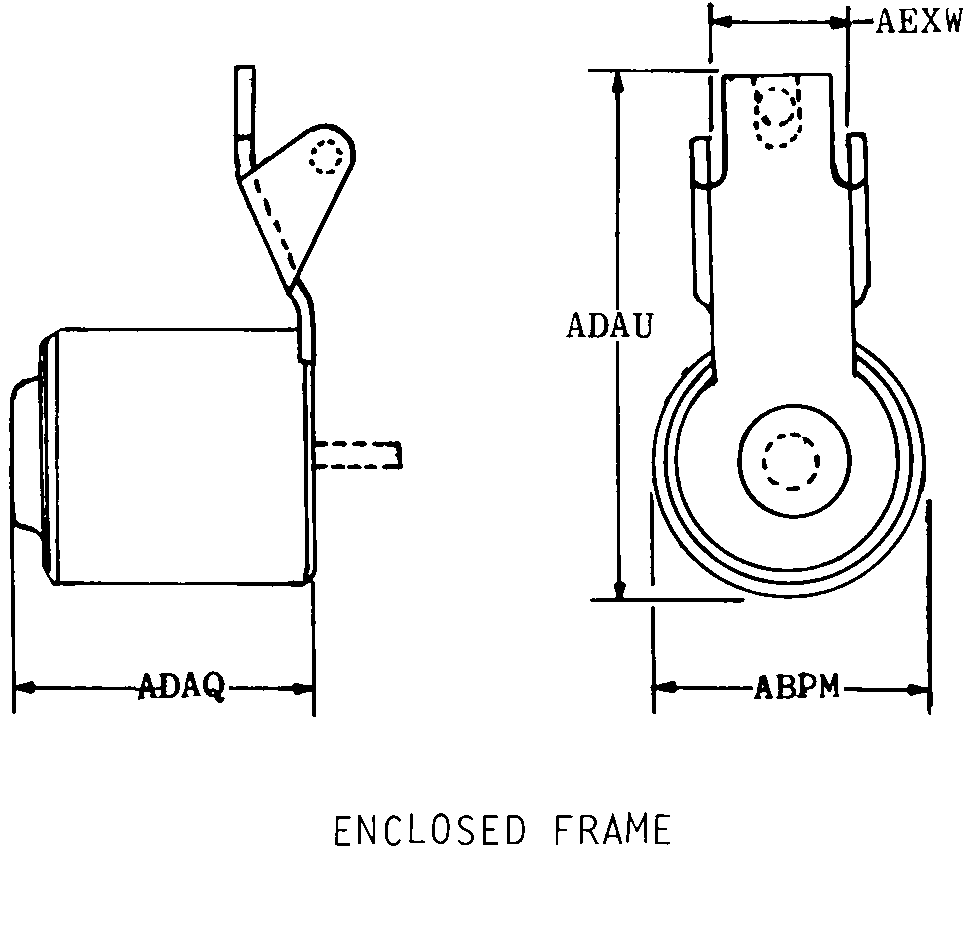

| BODY STYLE | 20 ENCLOSED FRAME |
| BODY DIAMETER | 1.625 INCHES NOMINAL |
| BODY LENGTH | 2.000 INCHES NOMINAL |
| BODY HEIGHT | 3.750 INCHES NOMINAL |
| MOUNTING BASE WIDTH | 1.000 INCHES NOMINAL |
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 24.0 DC NOMINAL |
| CURRENT RATING | 4.5 AMPERES NOMINAL |
| DUTY TYPE | INTERMITTENT |
| ACTUATOR STROKE TYPE | PULL |
| LINEAR FORCE DELIVERED | 18.00 POUNDS |
| POWER TAKEOFF CONNECTION TYPE | FLATTED END |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BRACKET |
| TERMINAL TYPE AND QUANTITY | 1 CABLE W/CONNECTOR |
| TERMINAL LOCATION | CIRCUMFERENCE |
| INCLOSURE TYPE | FULLY INCLOSED |
| CASE MATERIAL | METAL |
