NSN 5945-00-904-5300 KHS11A11120, KHS11A11-120, KHS17A11

Product Details | ELECTROMAGNETIC RELAY

5945-00-904-5300 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: KHS11A11120, KHS11A11-120, KHS17A11, KHS17A11115, KHS17A11-115, KHS17A11115VAC, KHS17A11120, KHS17A11-120, 1802211, 2661454, 3800038002, 380-0038-002, 53428147, 534281-47, 67A32A358, 5945-00-904-5300, 00-904-5300, 5945009045300, 009045300

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1960	00-904-5300	32512 ( RELAY, ELECTROMAGNETIC )

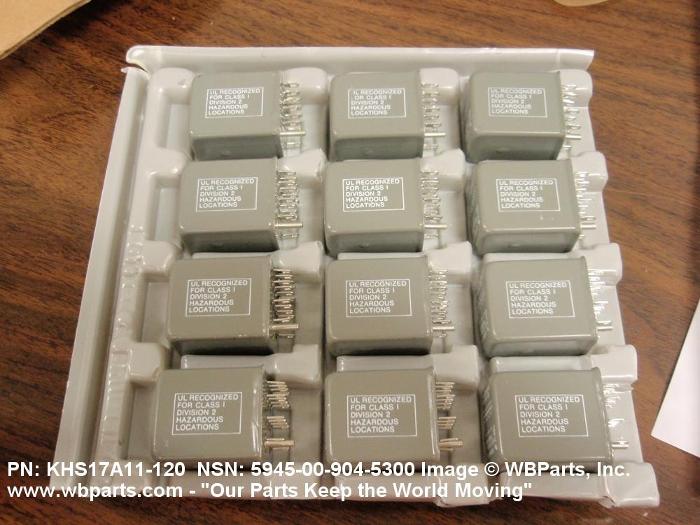

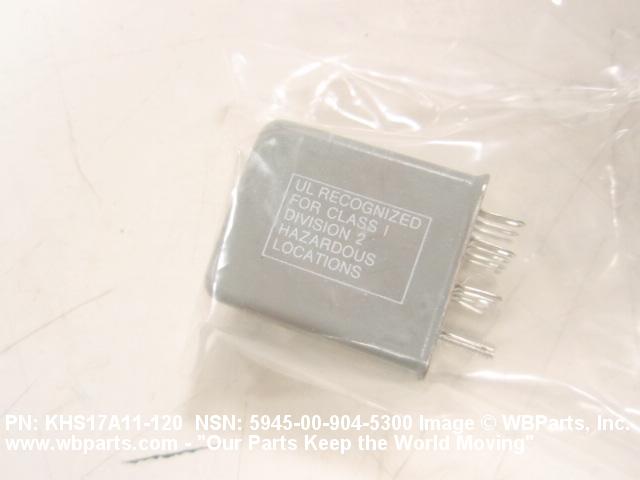

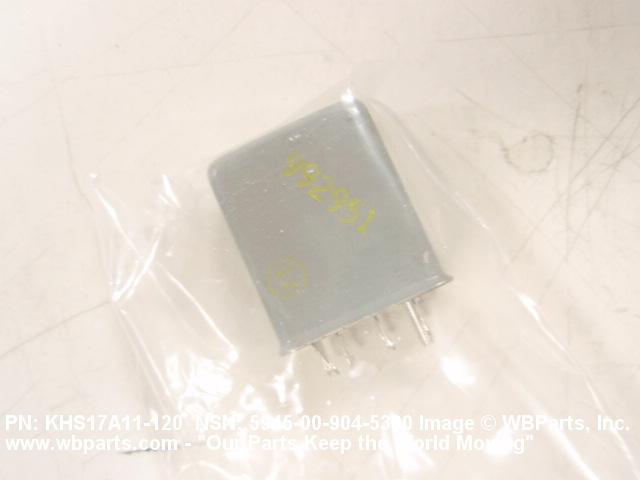

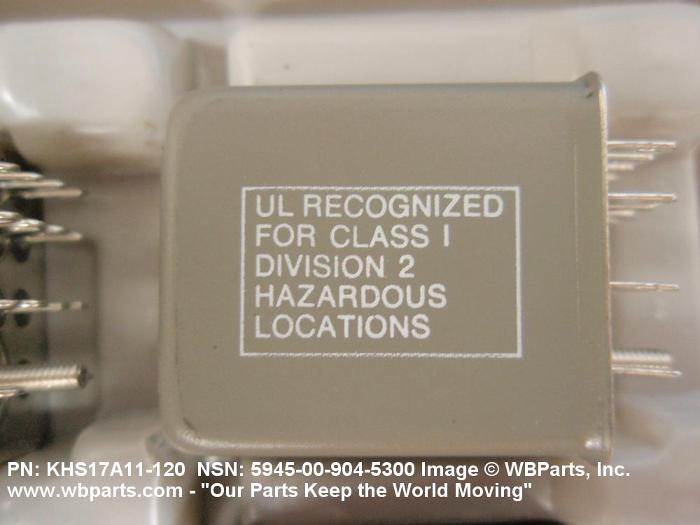

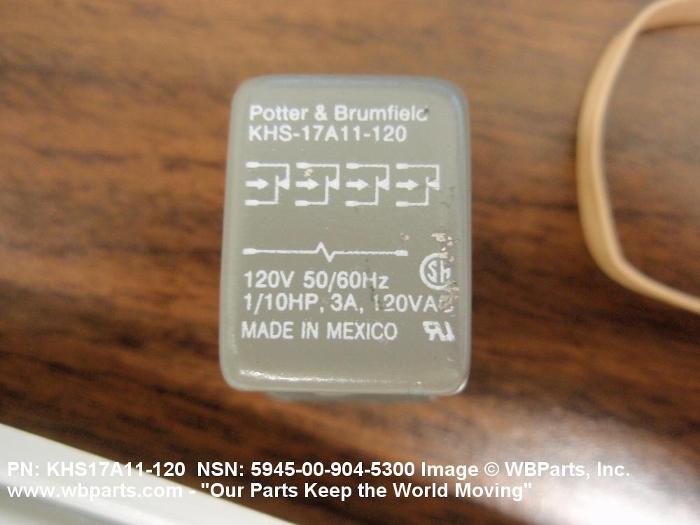

Drawings & Photos | NSN 5945-00-904-5300

Part Number	Request Date	QTY	Origin
1802211	2025-10-281	1	DIBBS
380-0038-002	2025-10-281	1	DIBBS
534281-47	2025-10-281	1	DIBBS
1802211	2019-03-78	2	DIBBS
380-0038-002	2019-03-78	2	DIBBS
534281-47	2019-03-78	2	DIBBS
1802211	2019-03-65	2	DIBBS
380-0038-002	2019-03-65	2	DIBBS
534281-47	2019-03-65	2	DIBBS
5945-00-904-5300	2018-11-333	2	DIBBS
5945-00-904-5300	2018-09-253	2	DIBBS
5945-00-904-5300	2018-08-242	2	DIBBS
5945-00-904-5300	2017-08-229	1	DIBBS
5945-00-904-5300	2016-03-91	6	DIBBS
5945-00-904-5300	2015-02-47	5	DIBBS
5945-00-904-5300	2014-07-194	5	DIBBS
5945-00-904-5300	2013-02-32	5	DIBBS
5945-00-904-5300	2012-11-309	5	DIBBS
5945-00-904-5300	2012-08-244	5	DIBBS
5945-00-904-5300	2012-02-39	5	DIBBS
5945-00-904-5300	2011-05-143	12	Thailand
5945-00-904-5300	2010-11-305	5	DIBBS
5945-00-904-5300	2010-10-302	6	Thailand
5945-00-904-5300	2009-11-310	9	DIBBS
5945-00-904-5300	2009-10-292	10	DIBBS
5945-00-904-5300	2009-06-165	11	DIBBS

Cross Reference | NSN 5945-00-904-5300

Part Number	Cage Code	Manufacturer
1802211	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
2661454	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
380-0038-002	97896	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
534281-47	96214	RAYTHEON COMPANY DBA RAYTHEON
67A32A358	30003	NAVAL AIR SYSTEMS COMMAND
KHS11A11-120	77342	TYCO ELECTRONICS CORPORATION
KHS17A11	77342	TYCO ELECTRONICS CORPORATION
KHS17A11-115	12300	POTTER AND BRUMFIELD DIV AMF CANADA LTD
KHS17A11-115	53397	NUMAX ELECTRONICS INC
KHS17A11-120	77342	TYCO ELECTRONICS CORPORATION
KHS17A11115VAC	77342	TYCO ELECTRONICS CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-904-5300

Compare

Related Products | NSN 5945-00-904-5300

5945-00-904-5340, 5945-00-904-5343, 5945-00-904-6318, 5945-00-904-6437, 5945-00-904-6438

Technical Data | NSN 5945-00-904-5300

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	120.0 AC AND 30.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	3.0 AMPERES AC AND 3.0 AMPERES DC RESISTIVE LOAD
COIL QUANTITY	1
WINDING QUANTITY	1
WINDING DC RESISTANCE RATING	3.9 KILOHMS NOMINAL SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	120.0 VOLTS AC 25 DEG CELSIUS SINGLE WINDING
NOMINAL OPERATING CURRENT RATING AND TYPE	11.0 MILLIAMPERES AC SINGLE WINDING
ENERGIZING ELEMENT POWER RATING	1.2 VOLTS-AMPERES
FREQUENCY IN HERTZ	50.0 MINIMUM AND 60.0 MAXIMUM

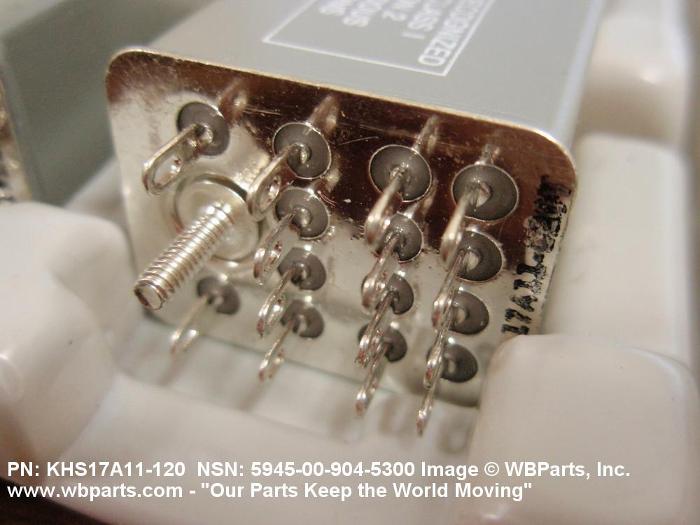

TERMINAL TYPE AND QUANTITY	14 TAB, SOLDER LUG ALL FUNCTIONS
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC
OVERALL LENGTH	1.156 INCHES MAXIMUM
OVERALL WIDTH	0.910 INCHES MAXIMUM
OVERALL HEIGHT	1.593 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED STUD SINGLE MOUNTING FACILITY
THREAD SERIES DESIGNATOR	UNC SINGLE MOUNTING FACILITY
NOMINAL THREAD SIZE	0.099 INCHES SINGLE MOUNTING FACILITY
THREAD CLASS	2A SINGLE MOUNTING FACILITY
THREAD QUANTITY PER INCH	48 SINGLE MOUNTING FACILITY
THREAD LENGTH	0.312 INCHES NOMINAL SINGLE MOUNTING FACILITY
THREAD DIRECTION	RIGHT-HAND SINGLE MOUNTING FACILITY
III UNPACKAGED UNIT WEIGHT	1.600 OUNCES
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CONTACT MATERIAL	SILVER
III CONTACT SURFACE TREATMENT	GOLD FLASH
III CASE MATERIAL	METAL
III PRECIOUS MATERIAL	SILVER AND GOLD
III PRECIOUS MATERIAL AND LOCATION	CONTACTS SILVER AND CONTACT SURFACES GOLD

Restrictions/Controls & Freight Information | NSN 5945-00-904-5300

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	C	Item contains two or more precious metals
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-00-904-5300

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
