NSN 5945-00-932-5219 MS274181A, MS27418-1A, MILPRF6106
Product Details | ELECTROMAGNETIC RELAY

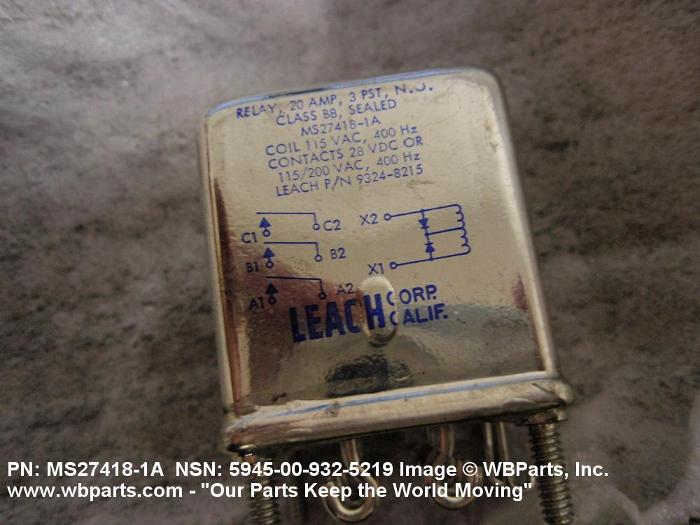

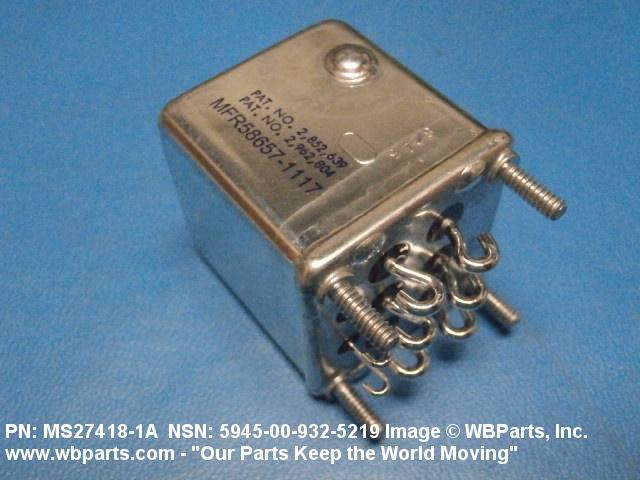

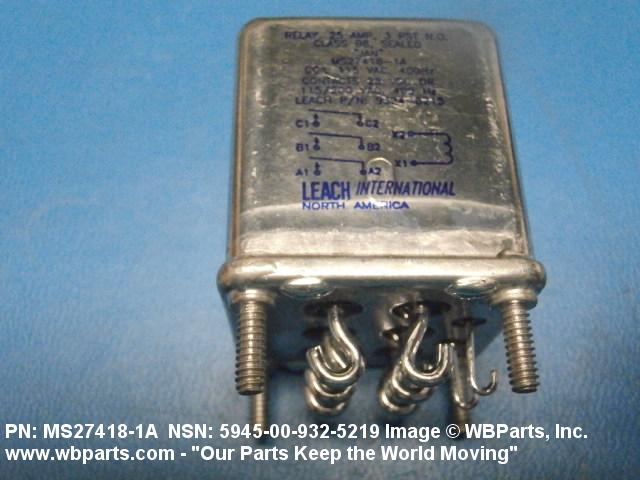

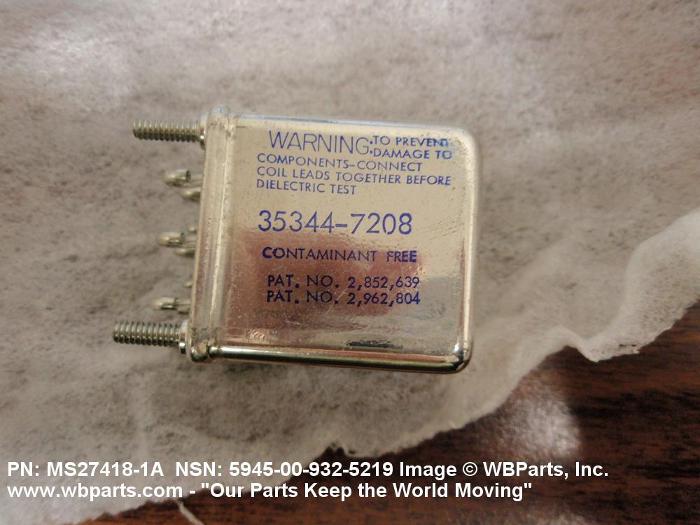

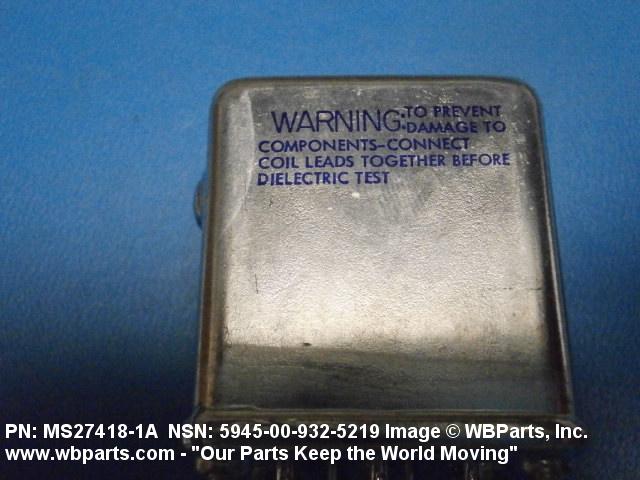

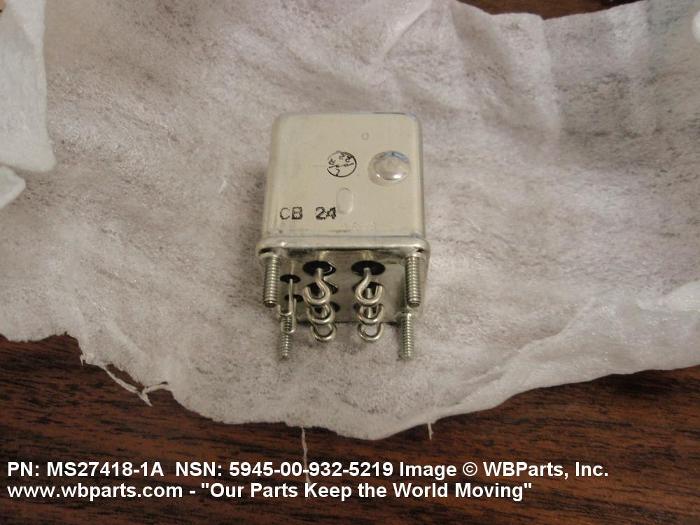

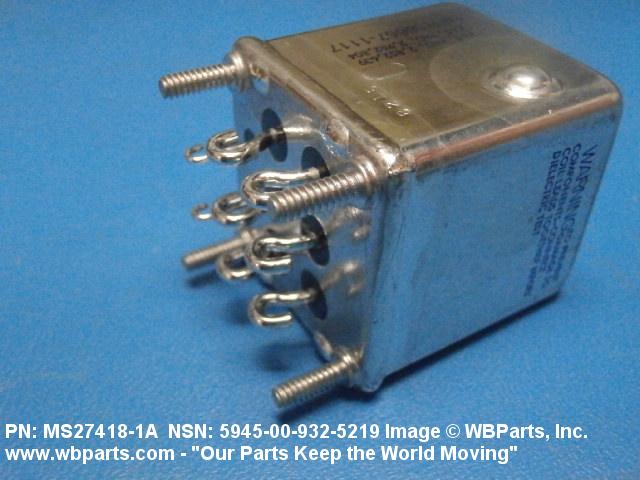

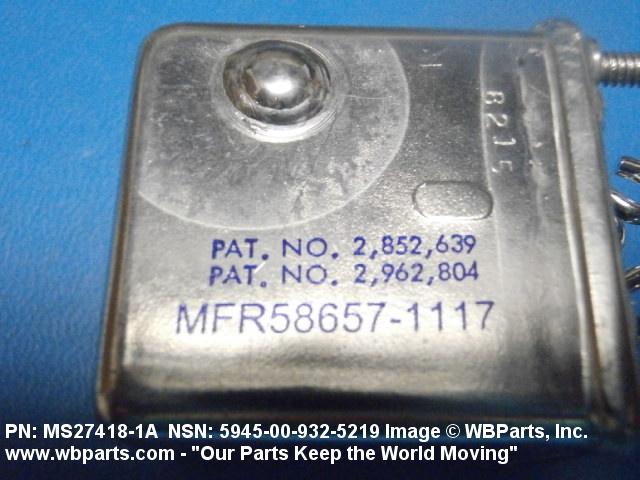

5945-00-932-5219 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
