NSN 5945-00-938-1016 M575/10, M57510, AP114427
Product Details | ELECTROMAGNETIC RELAY
5945-00-938-1016 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: M575/10, M57510, AP114427, AR9622, AR-9622, E20.5ND, E205ND, KS104519, KS10451-9, 2BR1E215, 825RL0010, 5945-00-938-1016, 00-938-1016, 5945009381016, 009381016
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 MAR 1967 | 00-938-1016 | 32512 ( RELAY, ELECTROMAGNETIC ) |

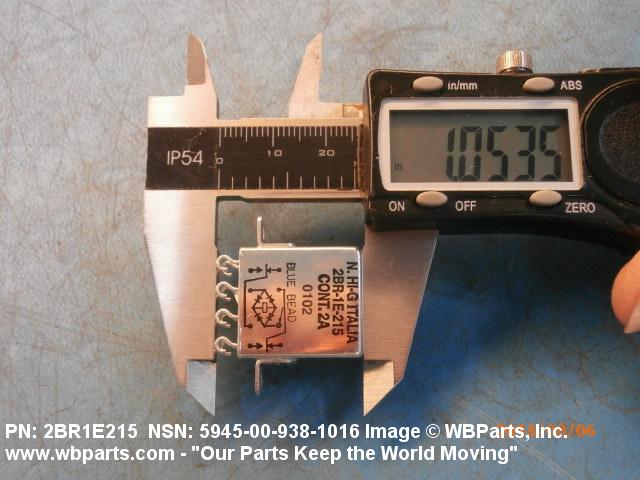

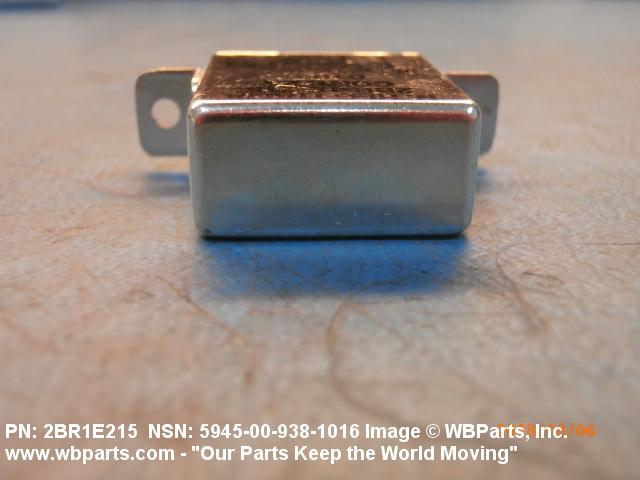

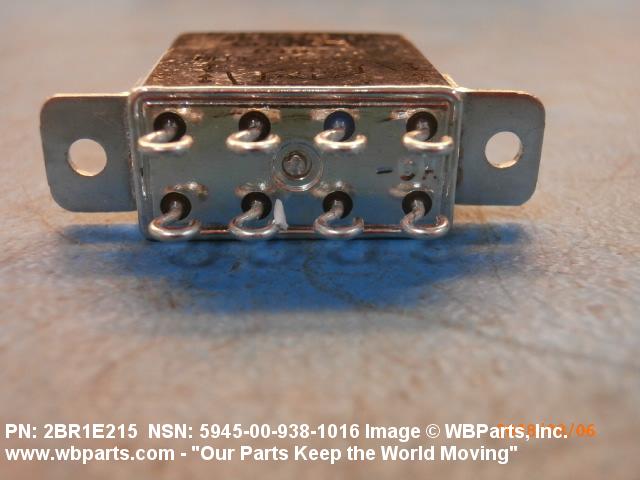

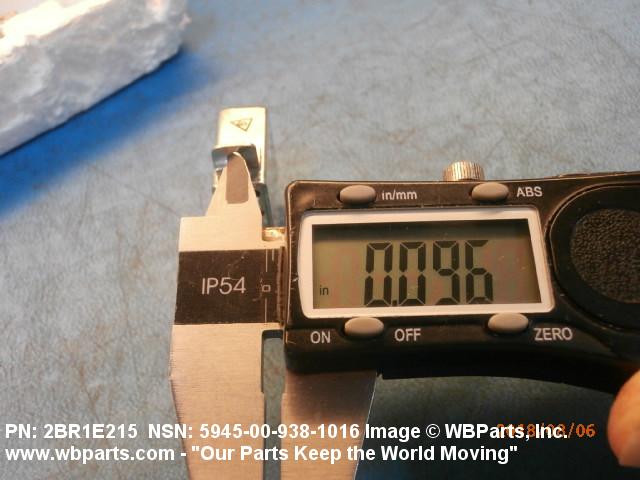

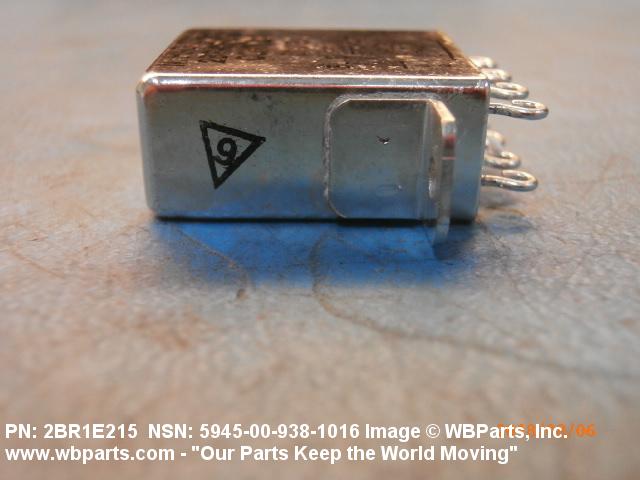

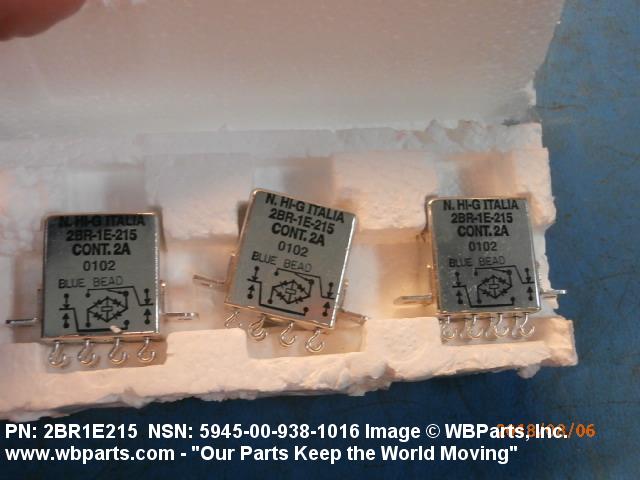

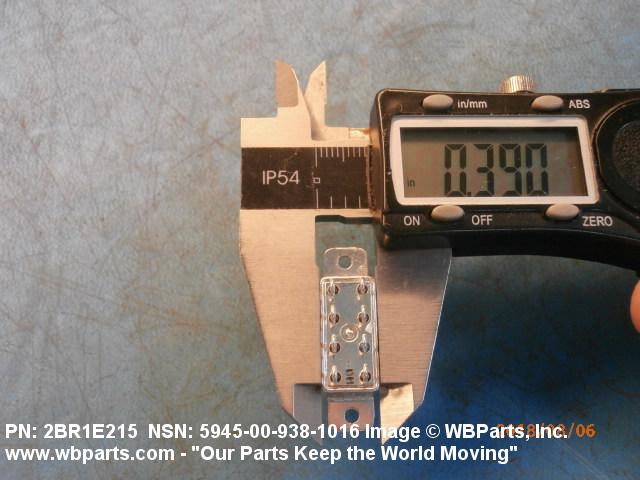

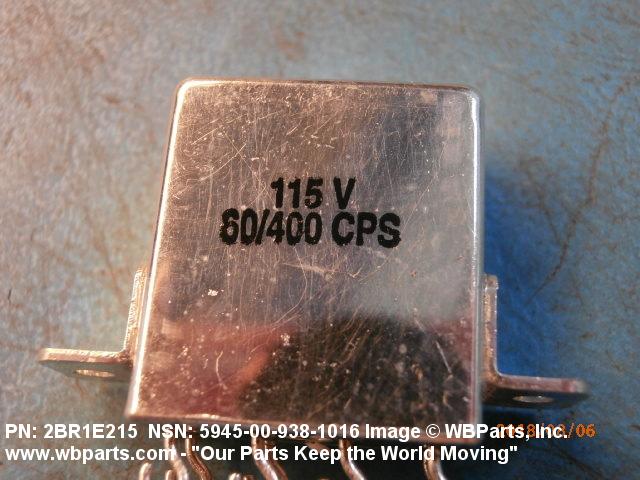

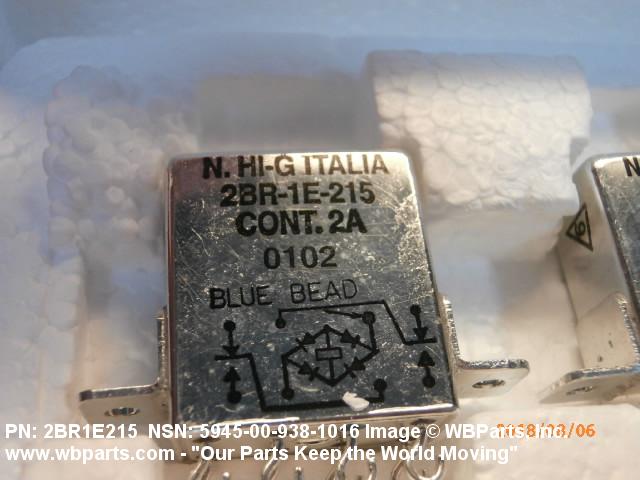

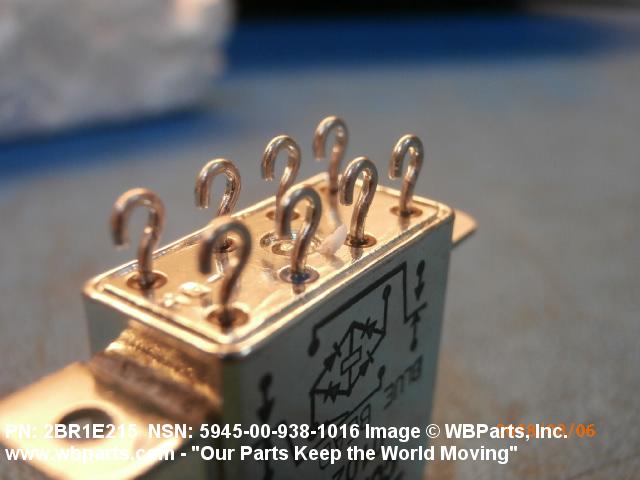

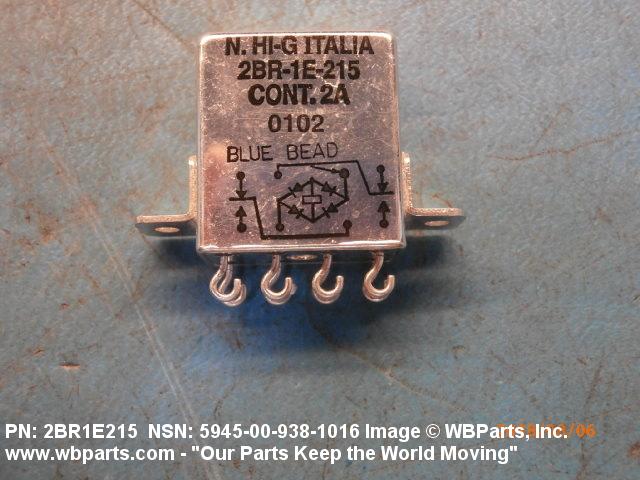

Drawings & Photos | NSN 5945-00-938-1016
