NSN 5945-00-950-4237 MS25267D1, MS25267-D1, M5757/15-001

Product Details | ELECTROMAGNETIC RELAY

5945-00-950-4237 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS25267D1, MS25267-D1, M5757/15-001, M575715001, B33924, BL8486, FC40414, FC-404-14, G114054001, G11-405-4001, MILPRF6106K, MIL-PRF-6106K, MILR575715001, MILR5757-15-001, 128AV121581, 128AV12158-1, 4170800005, 4170800-005, 9350480001, 935048-0001, 95207861, 9520-7861, 9741073000, 974-1073-000, 5945-00-950-4237, 00-950-4237, 5945009504237 , 009504237

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-950-4237	32512 ( RELAY, ELECTROMAGNETIC )

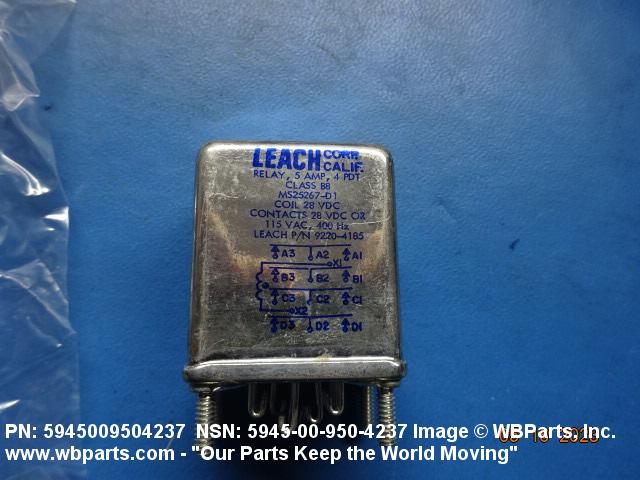

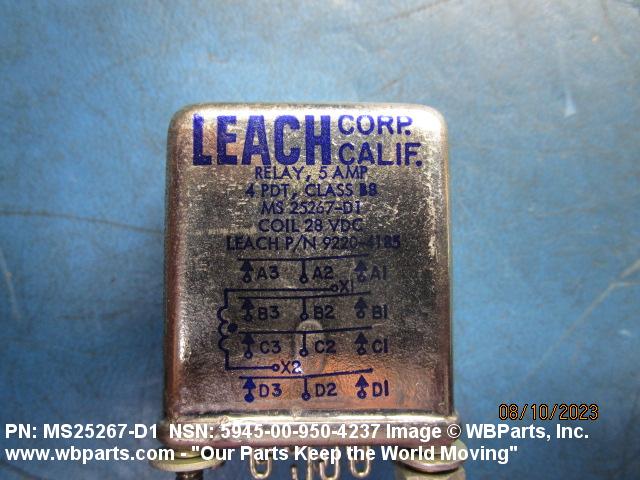

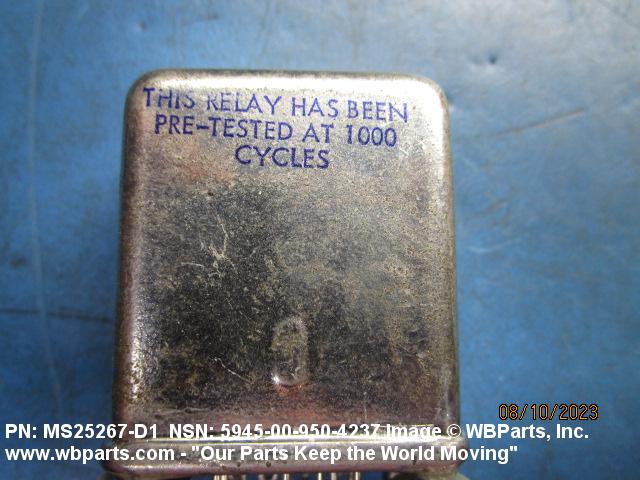

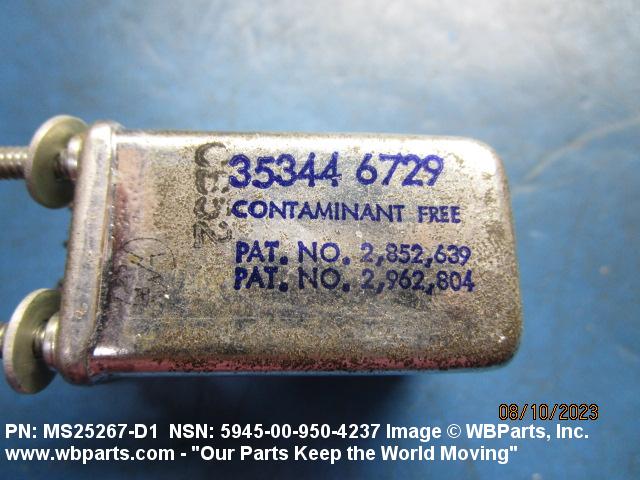

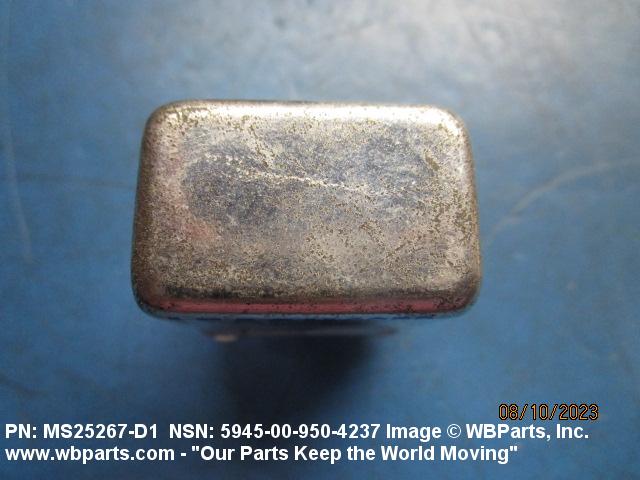

Drawings & Photos | NSN 5945-00-950-4237

Part Number	Request Date	QTY	Origin
5945-00-950-4237	2025-12-351	40	United States
5945-00-950-4237	2025-10-282	74	DIBBS
MS25267D1	2025-03-85	18	Taiwan
5945-00-950-4237	2025-03-79	164	DIBBS
5945-00-950-4237	2025-03-67	164	DIBBS
5945-00-950-4237	2025-01-23	32	DIBBS
5945-00-950-4237	2024-08-228	88	DIBBS
5945-00-950-4237	2024-07-205	44	DIBBS
5945-00-950-4237	2023-08-243	44	DIBBS
5945-00-950-4237	2023-08-214	5	Taiwan
5945-00-950-4237	2023-05-124	43	Taiwan
5945-00-950-4237	2023-05-122	57	Taiwan
5945-00-950-4237	2022-07-186	38	DIBBS
5945-00-950-4237	2022-06-174	38	DIBBS
5945-00-950-4237	2021-10-285	79	DIBBS
5945-00-950-4237	2021-06-165	79	DIBBS
5945-00-950-4237	2021-05-137	20	United States
5945-00-950-4237	2021-05-123	58	DIBBS
5945-00-950-4237	2021-04-112	58	DIBBS
5945-00-950-4237	2020-12-349	89	DIBBS
5945-00-950-4237	2020-12-338	89	DIBBS
5945-00-950-4237	2020-10-293	35	DIBBS
5945-00-950-4237	2020-10-293	54	DIBBS
5945-00-950-4237	2020-10-282	54	DIBBS
5945-00-950-4237	2020-10-280	35	DIBBS
5945-00-950-4237	2020-09-274	8	DIBBS
5945-00-950-4237	2020-08-237	27	DIBBS
5945-00-950-4237	2020-08-225	27	DIBBS
5945-00-950-4237	2020-08-217	27	DIBBS
5945-00-950-4237	2020-07-203	27	DIBBS
5945-00-950-4237	2020-06-160	31	DIBBS
5945-00-950-4237	2020-05-149	31	DIBBS
MS25267D1	2019-08-220	20	UA
5945-00-950-4237	2012-02-53	1	DIBBS
5945-00-950-4237	2012-02-37	1	United States
5945-00-950-4237	2011-10-278	187	DIBBS
5945-00-950-4237	2010-05-139	69	DIBBS
M575715001	2009-09-257	1	US
5945-00-950-4237	2009-08-219	60	DIBBS
5945-00-950-4237	2008-09-261	350	DIBBS
5945-00-950-4237	2008-07-192	60	DIBBS
5945-00-950-4237	2008-01-25	236	DIBBS
5945-00-950-4237	2007-07-205	322	DIBBS

Cross Reference | NSN 5945-00-950-4237

Part Number	Cage Code	Manufacturer
128AV12158-1	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
4170800-005	05869	RAYTHEON COMPANY DBA RAYTHEON
5945009504237	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
935048-0001	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
9520-7861	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
974-1073-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
B33924	78290	STRUTHERS-DUNN INC
BL8486	08484	BREEZE-EASTERN CORPORATION

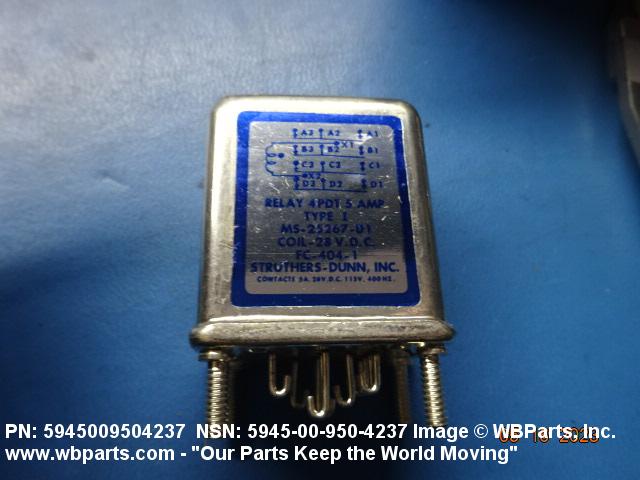

FC-404-14	78290	STRUTHERS-DUNN INC
G11-405-4001	24727	SEACON BRANTNER & ASSOCIATES DBA SEACON GIANNINI
M5757/15-001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-6106K	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILR5757-15-001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25267-D1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-950-4237

Compare

Related Products | NSN 5945-00-950-4237

5945-00-950-4306, 5945-00-950-4834, 5945-00-950-5395, 5945-00-950-5467, 5945-00-950-5469

Technical Data | NSN 5945-00-950-4237

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	120.0 AC AND 29.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	5.0 AMPERES AC AND 5.0 AMPERES DC RESISTIVE LOAD
COIL QUANTITY	1
WINDING QUANTITY	1
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
NOMINAL OPERATING CURRENT RATING AND TYPE	150.0 MILLIAMPERES DC SINGLE WINDING

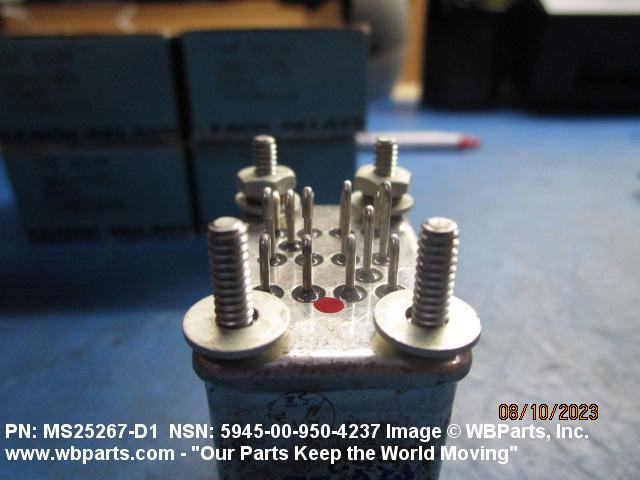

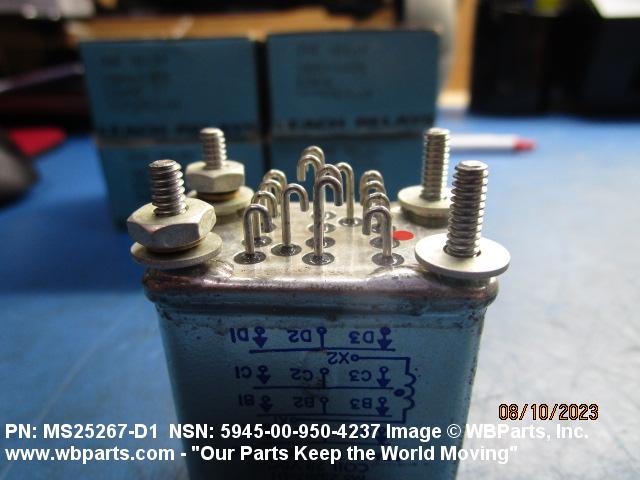

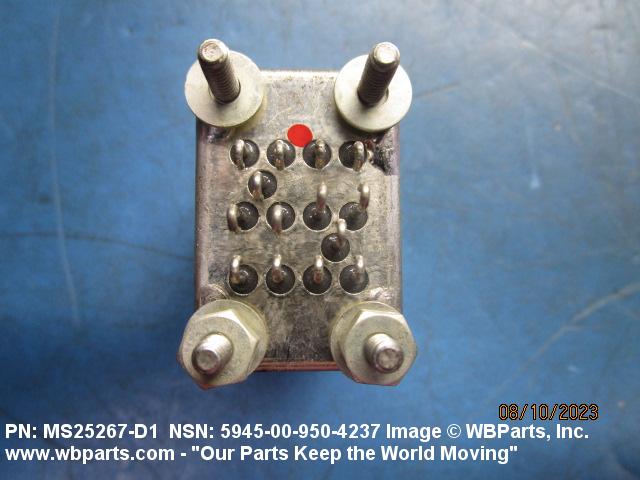

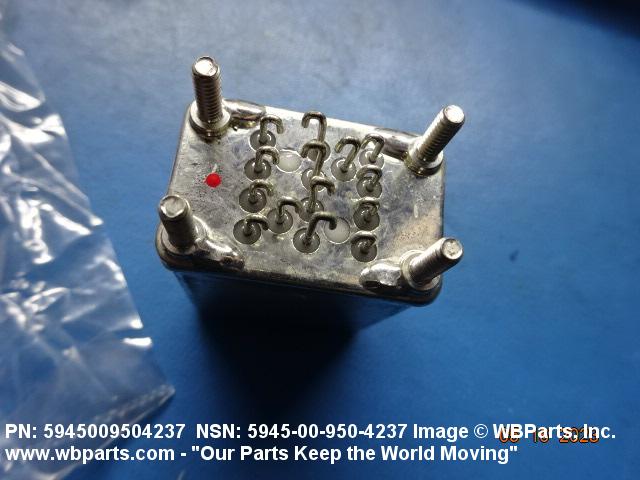

TERMINAL TYPE AND QUANTITY	14 PIN ALL FUNCTIONS
TIME DELAY	0.02 SECONDS NOMINAL FIXED OPERATE AND RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC

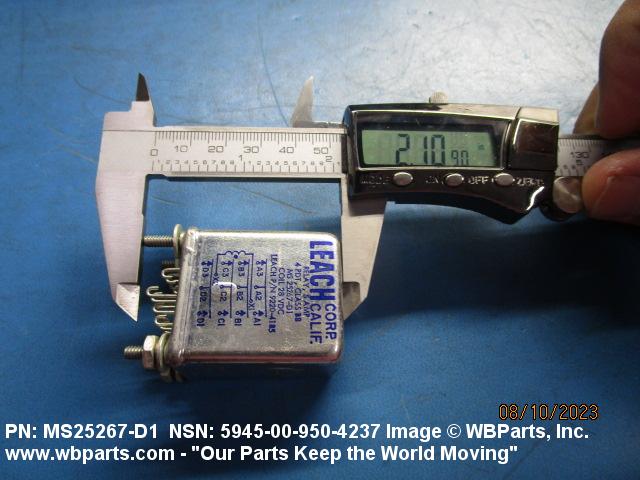

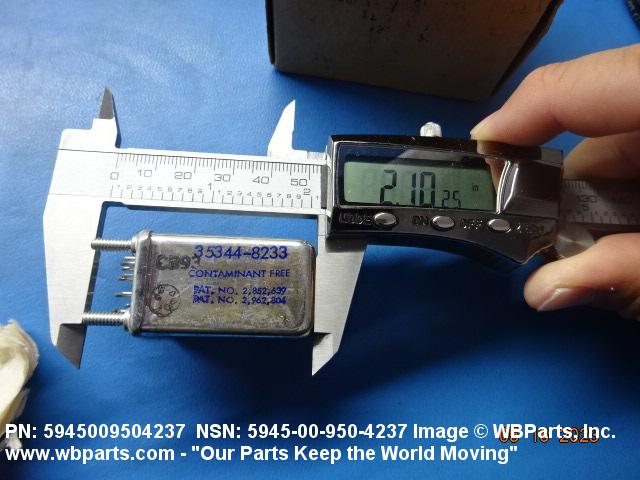

OVERALL LENGTH	2.120 INCHES NOMINAL

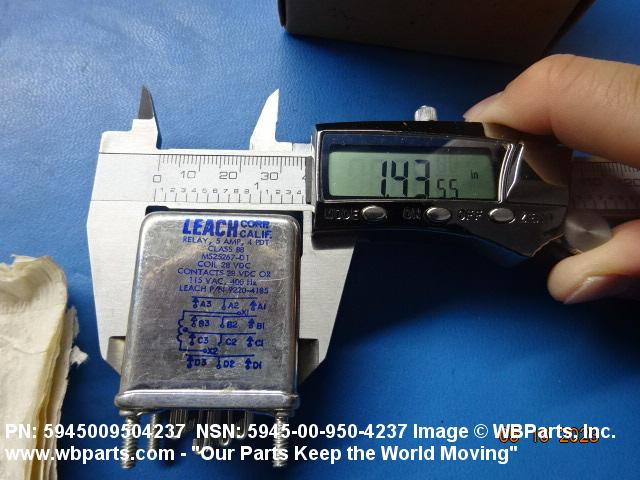

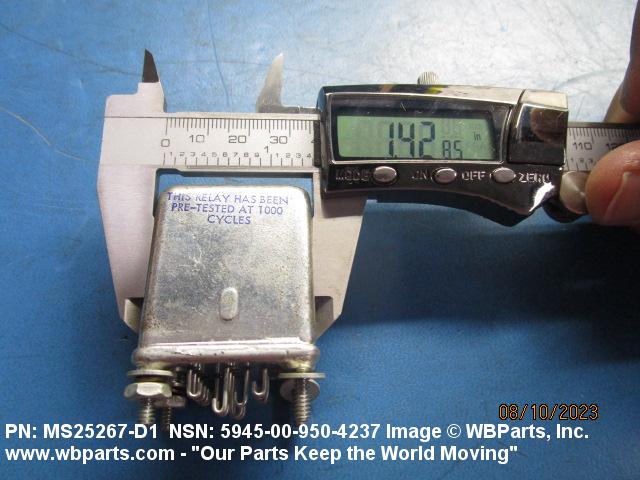

OVERALL WIDTH	1.530 INCHES NOMINAL

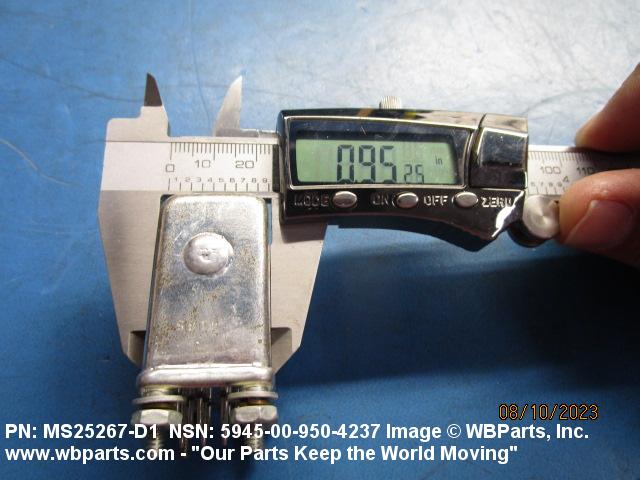

OVERALL HEIGHT	1.130 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY	4 THREADED STUD SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	RECTANGULAR SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.187 INCHES NOMINAL SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	0.687 INCHES NOMINAL SINGLE MOUNTING FACILITY
THREAD SERIES DESIGNATOR	UNC SINGLE MOUNTING FACILITY

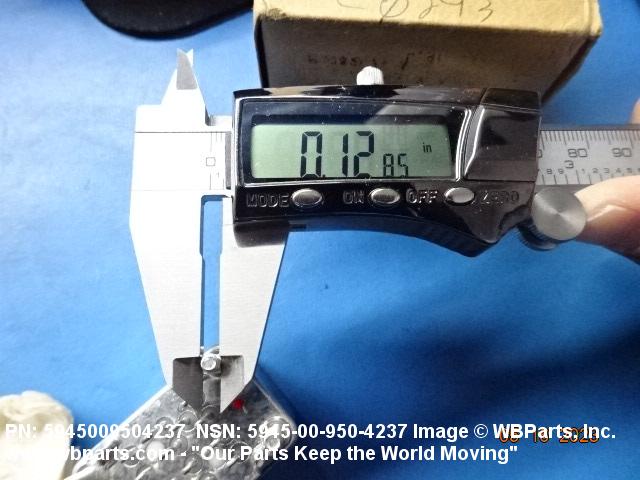

NOMINAL THREAD SIZE	0.138 INCHES SINGLE MOUNTING FACILITY
THREAD CLASS	2A SINGLE MOUNTING FACILITY
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-6106K
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS25267-D1

Restrictions/Controls & Freight Information | NSN 5945-00-950-4237

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-00-950-4237

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	T
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
