NSN 5945-00-981-1574 MS575723001, MS5757-23-001, MS575728001

Product Details | ELECTROMAGNETIC RELAY

5945-00-981-1574 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS575723001, MS5757-23-001, MS575728001, MS5757-28-001, MS75723001, MS757-23-001, MJ75728001, MJ757-28-001, M5757/23-001, M575723001, BO7D692BZ20011, BO7D692BZ2-0011, E6780313C, FC215, FC215450, FC215-450, FS950019V ITEM 36, FS950019V36, FS950019V-36, FS950019VITEM36, MILR575723, MILR5757-23, 865851, 93GB204X300, 93GB20-4-X-300, 9741084010, 974-1084-010, 10132620 , 2T47411, 2T-4741-1, 352250012748, 555251-015, 5945-00-981-1574, 00-981-1574, 5945009811574, 009811574, 555251015

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	19 OCT 1966	00-981-1574	32512 ( RELAY, ELECTROMAGNETIC )

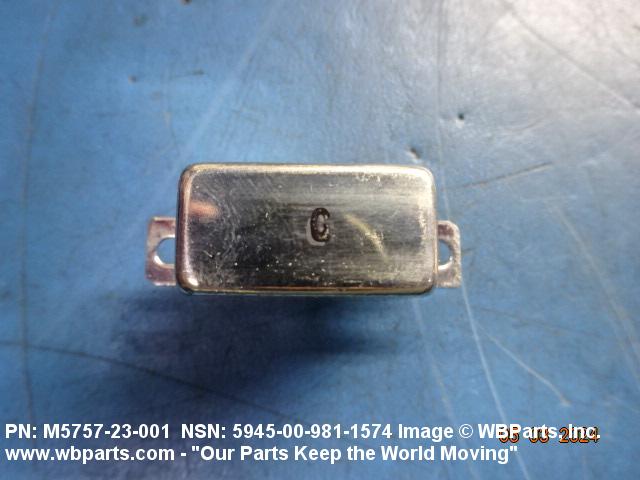

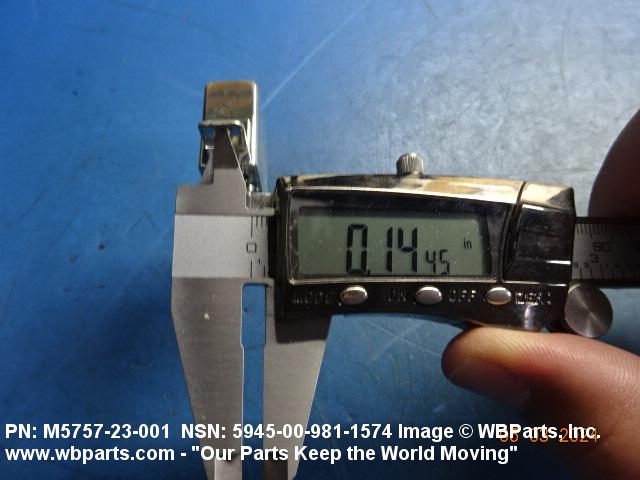

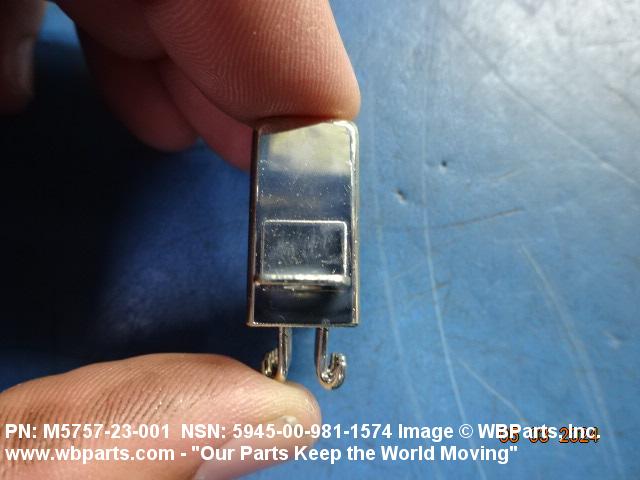

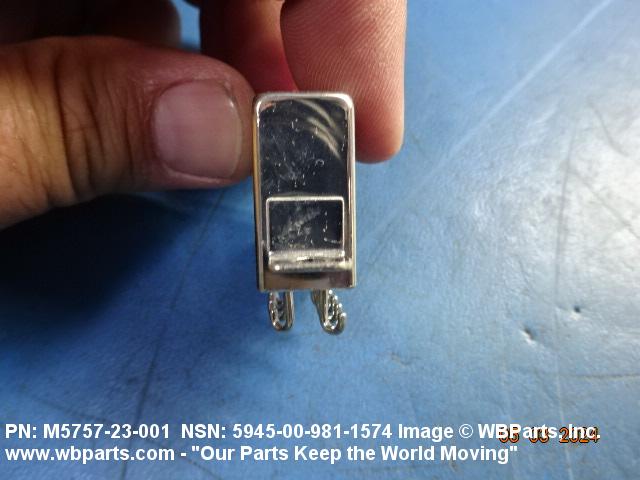

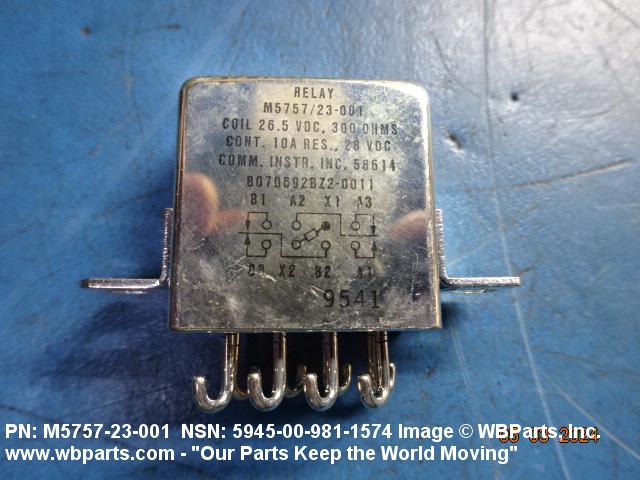

Drawings & Photos | NSN 5945-00-981-1574

Part Number	Request Date	QTY	Origin
5945-00-981-1574	2025-07-202	30	KR
5945-00-981-1574	2025-01-22	1	BR
5945-00-981-1574	2024-07-199	1	Germany
5945-00-981-1574	2024-04-116	1	Germany
5945-00-981-1574	2023-07-186	80	Taiwan
5945-00-981-1574	2022-04-115	2	Germany
5945-00-981-1574	2019-04-119	5	KR
5945-00-981-1574	2019-01-24	20	US
M575723001	2014-12-353	6	United States
5945-00-981-1574	2013-04-108	2	MANUAL
5945-00-981-1574	2013-04-108	90	IN
5945-00-981-1574	2011-05-139	100	DIBBS
5945-00-981-1574	2011-04-115	590	DIBBS
M575723001	2010-09-260	30	South Korea
BO7D692BZ20011	2008-07-210	3	United Kingdom

Cross Reference | NSN 5945-00-981-1574

Part Number	Cage Code	Manufacturer
2T-4741-1	02289	HI-G CO INC SUB OF NYTRONICS INC
352250012748	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
555251-015	12436	BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC.
865851	06141	L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION
865851	62035	BECHDON COMPANY, THE
93GB20-4-X-300	98927	ELECTRONIC SPECIALTY CORP RELAY DIV
93GB20-4-X-300	C7407	IV-ELECTRONIC KLAUS VESPERMANN KG
974-1084-010	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
BO7D692BZ2-0011	82415	AIRPAX CORP LLC
E6780313C	U1381	ROLLS-ROYCE MARINE ELECTRICAL SYSTEMS LTD
E6780313C	U5295	VOSPER THORNYCROFT CONTROLS LTD
FC215	S0045	BRAECKER LTD
FC215-450	78290	STRUTHERS-DUNN INC
FS950019V ITEM 36	U1381	ROLLS-ROYCE MARINE ELECTRICAL SYSTEMS LTD
FS950019V ITEM 36	U5295	VOSPER THORNYCROFT CONTROLS LTD
FS950019V-36	U1381	ROLLS-ROYCE MARINE ELECTRICAL SYSTEMS LTD
FS950019V-36	U5295	VOSPER THORNYCROFT CONTROLS LTD
M5757/23-001	14304	HARRIS CORPORATION DBA HARRIS RF COMMUNICATION
M5757/23-001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M5757/23-001	82415	AIRPAX CORP LLC
MILR5757-23	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MJ757-28-001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS5757-23-001	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS5757-28-001	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS757-23-001	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-981-1574

Compare

Related Products | NSN 5945-00-981-1574

5945-00-981-1578, 5945-00-981-2011, 5945-00-981-2012, 5945-00-981-2151, 5945-00-981-3308

Technical Data | NSN 5945-00-981-1574

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	3.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD 500.0 MILLIAMPERES AC AND 1.0 AMPERES DC LAMP LOAD 1.5 AMPERES AC AND 3.0 AMPERES DC MOTOR LOAD
COIL QUANTITY	1
WINDING QUANTITY	1
WINDING DC RESISTANCE RATING	270.0 OHMS MINIMUM AND 330.0 OHMS MAXIMUM SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	26.5 VOLTS DC 25 DEG CELSIUS SINGLE WINDING

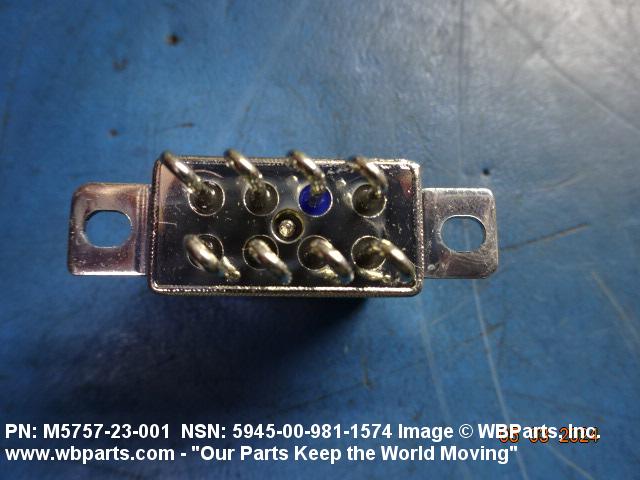

TERMINAL TYPE AND QUANTITY	8 WIRE HOOK ALL FUNCTIONS
TIME DELAY	0.015 SECONDS MAXIMUM FIXED OPERATE AND RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC AND SHOCK RESISTANT AND VIBRATION RESISTANT

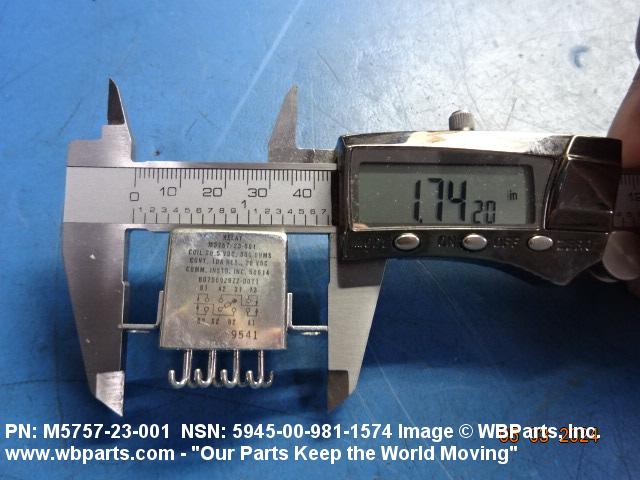

OVERALL LENGTH	1.750 INCHES MAXIMUM

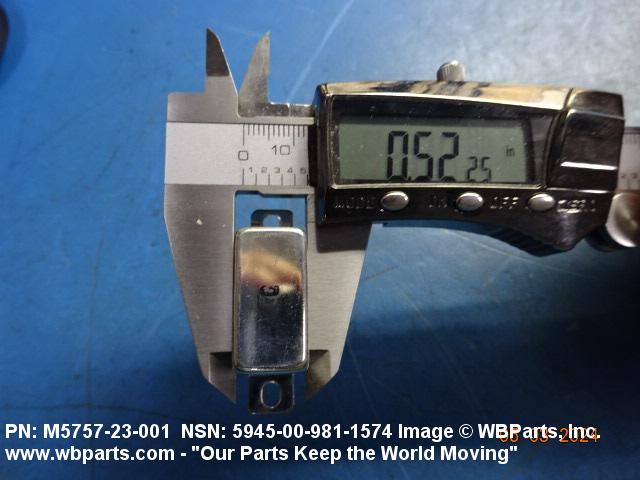

OVERALL WIDTH	0.625 INCHES MAXIMUM

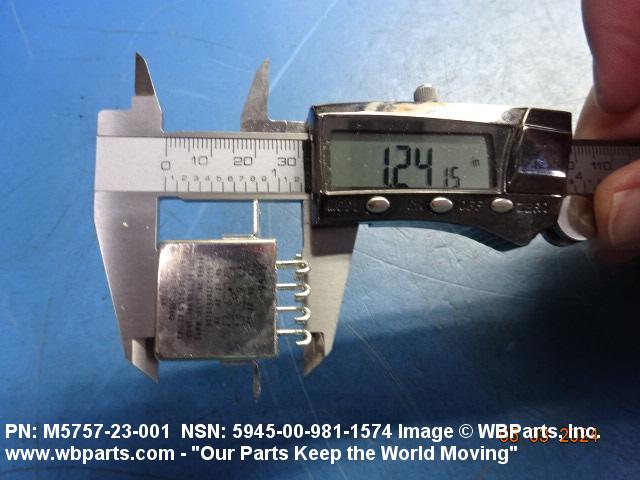

OVERALL HEIGHT	1.612 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	2 SLOTTED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	IN-LINE SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.437 INCHES NOMINAL SINGLE MOUNTING FACILITY
MOUNTING SLOT WIDTH	0.500 INCHES MAXIMUM SINGLE MOUNTING FACILITY
TEST DATA DOCUMENT	81349-MIL-R-5757 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-R-5757/23 GOVERNMENT SPECIFICATION
III CUBIC MEASURE	1.763 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	0.125 POUNDS
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILR5757-23
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M5757/23-001

Restrictions/Controls & Freight Information | NSN 5945-00-981-1574

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-00-981-1574

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	M	Armored Carriers
Weapons Systems/End Item or Homogeneous Group	MM	Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
