NSN 5945-00-988-2730 MS25237A1, MS25237-A1, MS25327A1
Product Details | ELECTROMAGNETIC RELAY
5945-00-988-2730 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: MS25237A1, MS25237-A1, MS25327A1, MS25327-A1, FC4004, FC-400-4, FC400-4, FC40084, FC400-84, MILPRF6106, MIL-PRF-6106, MILR6106, MIL-R-6106, 10228684, 14200011, 1420-0011 , 338464, 41706007, 4170600-7, 92244488, 9224-4488, 5945-00-988-2730, 00-988-2730, 5945009882730, 009882730
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-988-2730 | 32512 ( RELAY, ELECTROMAGNETIC ) |

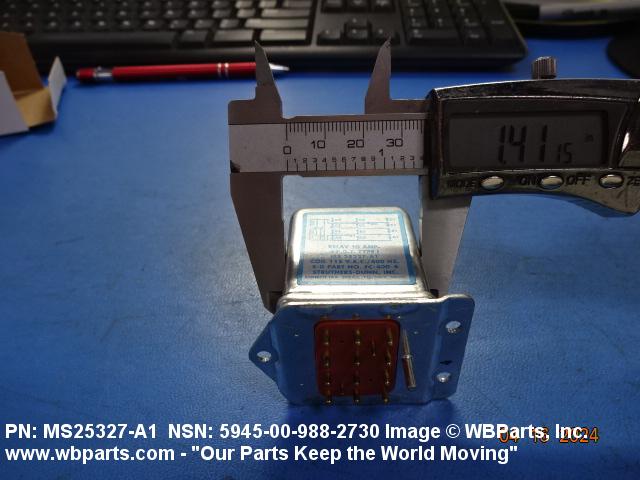

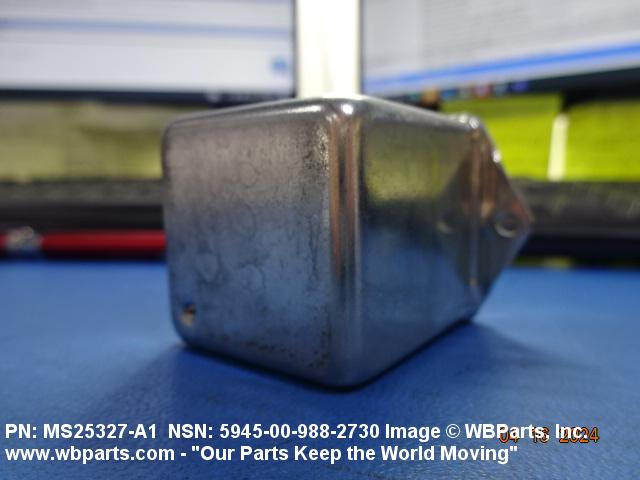

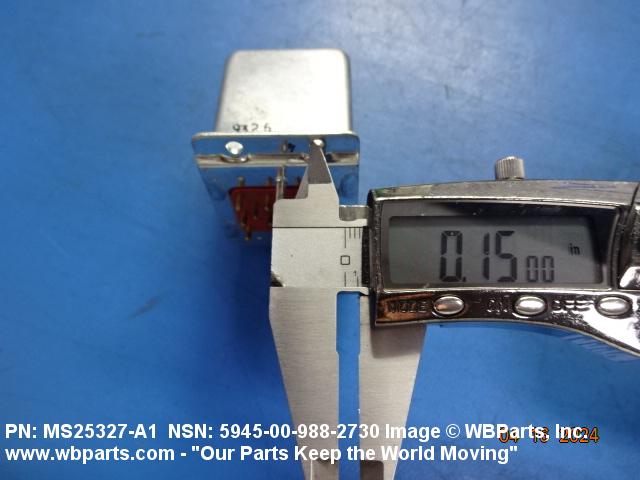

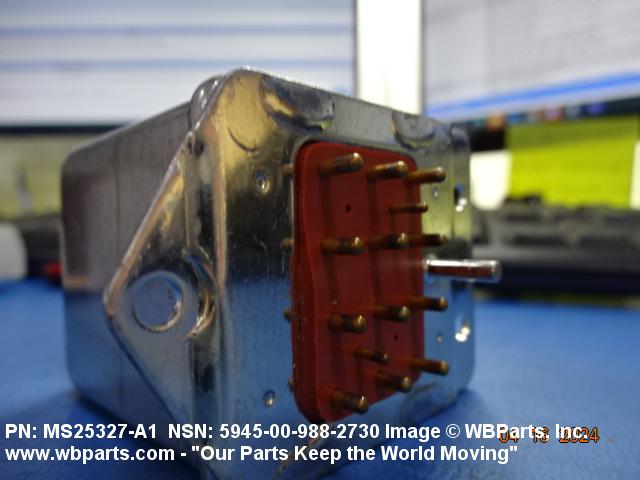

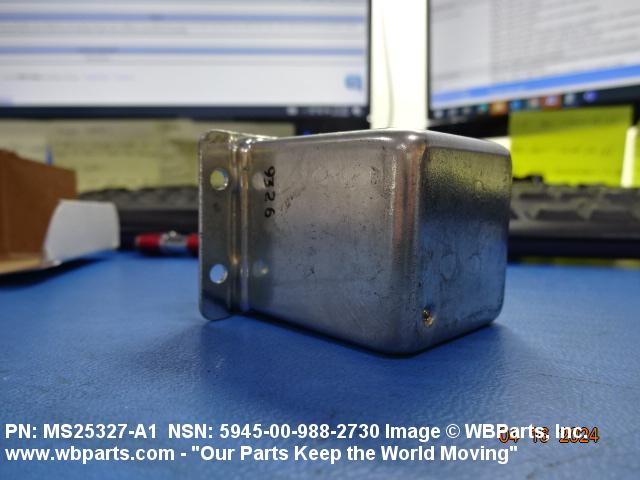

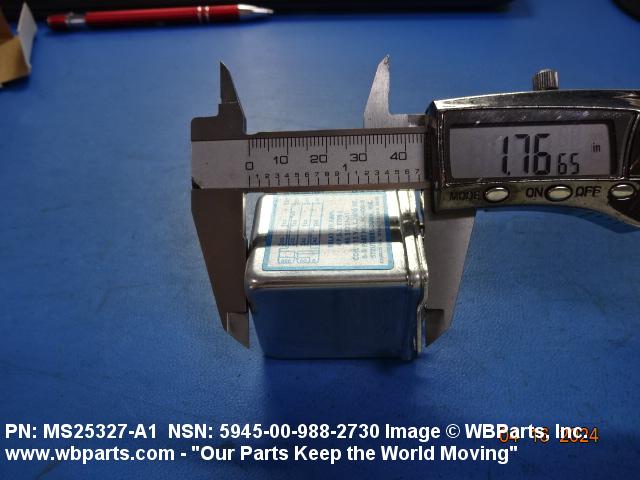

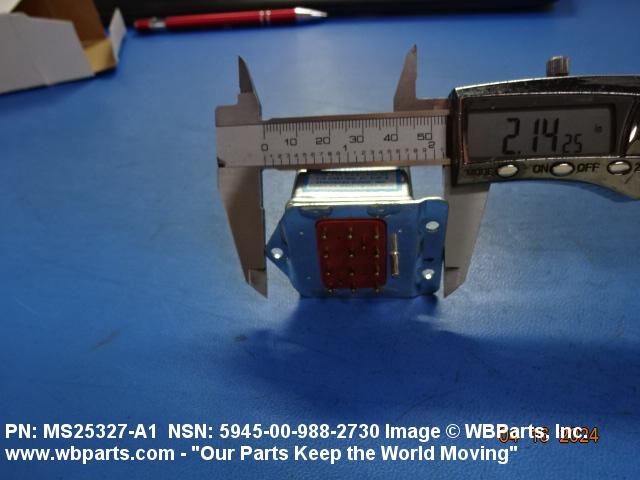

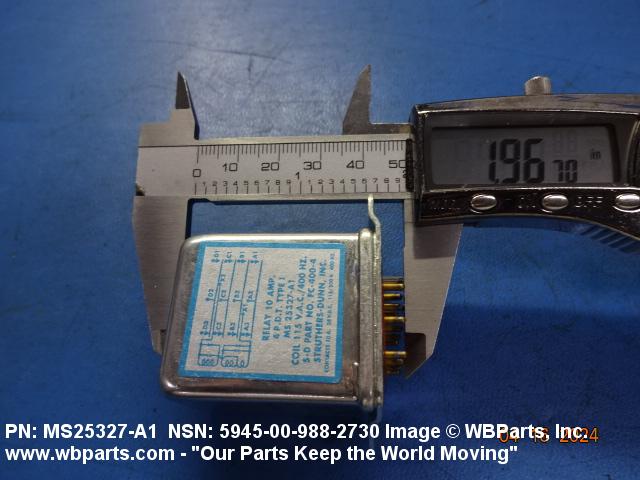

Drawings & Photos | NSN 5945-00-988-2730
Demand History | NSN 5945-00-988-2730
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-988-2730 | 2025-05-125 | 15 | DIBBS |
| 5945-00-988-2730 | 2025-04-114 | 15 | DIBBS |
| 5945-00-988-2730 | 2024-07-190 | 10 | RO |
| 5945-00-988-2730 | 2024-04-100 | 3 | United States |
| 5945-00-988-2730 | 2024-03-88 | 28 | DIBBS |
| 5945-00-988-2730 | 2024-02-43 | 21 | DIBBS |
| 5945-00-988-2730 | 2024-01-07 | 32 | DIBBS |
| 5945-00-988-2730 | 2023-09-250 | 14 | DIBBS |
| 5945-00-988-2730 | 2023-08-220 | 9 | DIBBS |
| 5945-00-988-2730 | 2023-05-129 | 14 | US |
| 5945-00-988-2730 | 2023-05-124 | 35 | DIBBS |
| 5945-00-988-2730 | 2023-01-09 | 20 | DIBBS |
| 5945-00-988-2730 | 2022-10-300 | 13 | DIBBS |
| 5945-00-988-2730 | 2022-07-208 | 28 | US |
| 5945-00-988-2730 | 2022-07-186 | 28 | US |
| 5945-00-988-2730 | 2022-05-147 | 4 | US |
| 5945-00-988-2730 | 2022-03-89 | 12 | United States |
| 5945-00-988-2730 | 2022-02-55 | 13 | DIBBS |
| 5945-00-988-2730 | 2021-09-252 | 21 | DIBBS |
| 5945-00-988-2730 | 2021-02-39 | 27 | DIBBS |
| 5945-00-988-2730 | 2021-01-28 | 27 | DIBBS |
| 5945-00-988-2730 | 2020-06-163 | 24 | DIBBS |
| 5945-00-988-2730 | 2020-04-92 | 7 | United States |
| 5945-00-988-2730 | 2020-03-77 | 7 | US |
| 5945-00-988-2730 | 2020-03-77 | 7 | US |
| 5945-00-988-2730 | 2019-09-262 | 43 | DIBBS |
| 5945-00-988-2730 | 2019-09-251 | 43 | DIBBS |
| 5945-00-988-2730 | 2019-03-66 | 20 | DIBBS |
| 5945-00-988-2730 | 2018-07-207 | 36 | DIBBS |
| 5945-00-988-2730 | 2018-05-126 | 34 | DIBBS |
| 5945-00-988-2730 | 2018-03-67 | 30 | DIBBS |
| 5945-00-988-2730 | 2017-11-334 | 19 | DIBBS |
| 5945-00-988-2730 | 2017-06-169 | 15 | DIBBS |
| 5945-00-988-2730 | 2016-12-353 | 19 | DIBBS |
| 5945-00-988-2730 | 2016-08-229 | 14 | DIBBS |
| 5945-00-988-2730 | 2016-02-39 | 14 | DIBBS |
| 5945-00-988-2730 | 2014-06-180 | 33 | DIBBS |
| 5945-00-988-2730 | 2014-04-114 | 19 | DIBBS |
| 5945-00-988-2730 | 2013-08-230 | 28 | DIBBS |
| 14200011 | 2012-07-192 | 30 | CN |
| 14200011 | 2012-07-188 | 30 | China |
| 14200011 | 2011-06-171 | 5 | Singapore |
| FC40084 | 2011-01-23 | 3 | JP |
| 5945-00-988-2730 | 2010-11-313 | 100 | US |
| 5945-00-988-2730 | 2008-04-104 | 7 | Israel |
| 14200011 | 2008-02-58 | 45 | IR |
Cross Reference | NSN 5945-00-988-2730
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10228684 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 338464 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 4170600-7 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4170600-7 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 9224-4488 | 58657 | LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH |
| FC-400-4 | 31889 | STRUTHERS-DUNN SYSTEMS DIV |
| FC400-4 | 78290 | STRUTHERS-DUNN INC |
| FC400-84 | 78290 | STRUTHERS-DUNN INC |
| MIL-PRF-6106 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-6106 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS25237-A1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS25327-A1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-988-2730
Related Products | NSN 5945-00-988-2730
Technical Data | NSN 5945-00-988-2730
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD 6.0 AMPERES AC AND 6.0 AMPERES DC INDUCTIVE LOAD 2.0 AMPERES AC AND 2.0 AMPERES DC LAMP LOAD 4.0 AMPERES AC AND 4.0 AMPERES DC MOTOR LOAD |
| ARC QUENCHING METHOD | AIR |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 115.0 VOLTS AC 25 DEG CELSIUS SINGLE WINDING |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| TERMINAL TYPE AND QUANTITY | 14 PIN ALL FUNCTIONS |
| TIME DELAY | 0.02 SECONDS MAXIMUM FIXED OPERATE TIME 0.05 SECONDS MAXIMUM FIXED RELEASE TIME |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | HERMETIC |
| OVERALL LENGTH | 2.187 INCHES MAXIMUM |
| OVERALL WIDTH | 1.531 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.156 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | TRIANGLE SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO THE ALTITUDE OF AN ISOSCELES TRIANGLE | 1.844 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.147 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| TEST DATA DOCUMENT | 81349-MIL-R-6106 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS25327 GOVERNMENT STANDARD |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
| III CUBIC MEASURE | 7.219 CUBIC INCHES |
| III UNPACKAGED UNIT WEIGHT | 0.430 POUNDS |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III CASE MATERIAL | METAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-6106 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25327-A1 |
Restrictions/Controls & Freight Information | NSN 5945-00-988-2730
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060680 | BATTERIES OR CELL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 582 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | V | Miscellaneous hazardous materials, UN class 9 (no label) |
Management | NSN 5945-00-988-2730
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
