NSN 5945-00-997-9335 MS2174182B, MS217418-2B, MS274182B

Product Details | ELECTROMAGNETIC RELAY

5945-00-997-9335 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS2174182B, MS217418-2B, MS274182B, MS27418-2B, M274182B, M27418-2B, C1141, C114-1, LPI31330HMSP0RM2PCT, LPI3-1330HMSP0RM2PCT , MILPRF6106, MIL-PRF-6106, 00.4.575.5002, 0045755002, 5M.4751.221.60, 5M475122160, 93247424, 9324-7424, 974.03.11.101, 9740311101, 021-000936, 5945-00-997-9335, 00-997-9335, 5945009979335, 021000936, 009979335

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	18 NOV 1966	00-997-9335	32512 ( RELAY, ELECTROMAGNETIC )

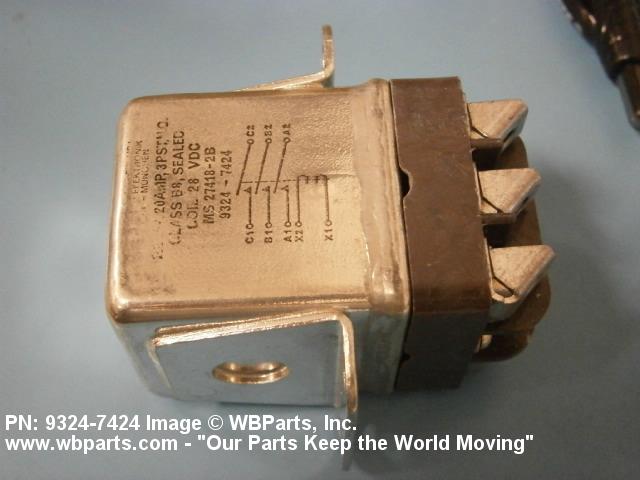

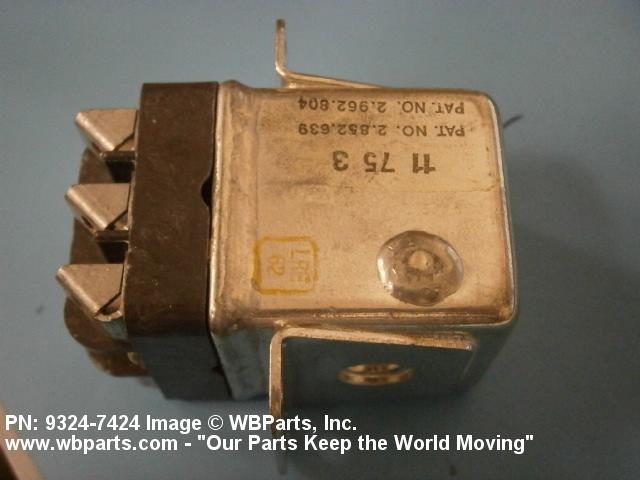

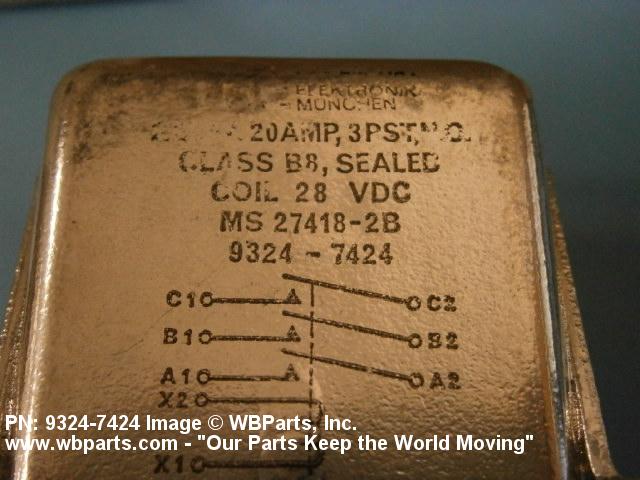

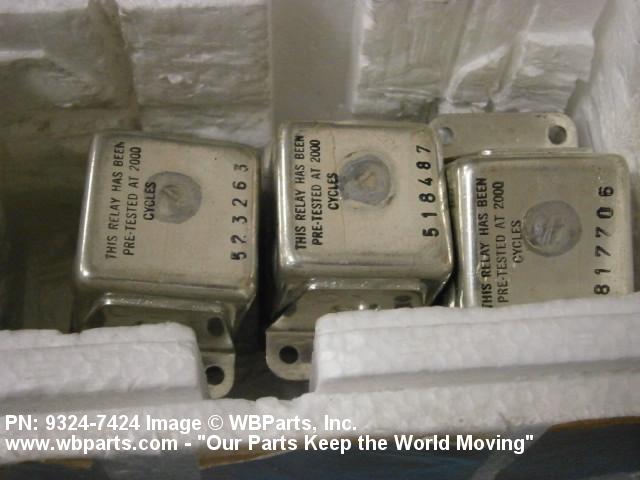

Drawings & Photos | NSN 5945-00-997-9335

Part Number	Request Date	QTY	Origin
5945-00-997-9335	2025-03-76	66	DIBBS
5945-00-997-9335	2025-03-65	66	DIBBS
5945-00-997-9335	2024-06-156	36	DIBBS
5945-00-997-9335	2024-05-143	36	DIBBS
5945-00-997-9335	2024-04-113	21	DIBBS
5945-00-997-9335	2024-04-102	21	DIBBS
5945-00-997-9335	2023-09-248	41	DIBBS
5945-00-997-9335	2023-08-234	41	DIBBS
5945-00-997-9335	2023-07-201	37	DIBBS
5945-00-997-9335	2022-03-79	81	DIBBS
5945-00-997-9335	2020-10-289	90	DIBBS
5945-00-997-9335	2020-10-275	36	DIBBS
5945-00-997-9335	2020-03-83	63	DIBBS
5945-00-997-9335	2020-03-68	63	DIBBS
5945-00-997-9335	2020-02-40	20	Singapore
5945-00-997-9335	2019-12-337	48	DIBBS
5945-00-997-9335	2019-10-280	39	DIBBS
5945-00-997-9335	2019-05-121	3	US
5945-00-997-9335	2018-08-239	1	DIBBS-RFPs
93247424	2016-07-208	1	us
5945-00-997-9335	2014-08-219	20	US
5945-00-997-9335	2011-11-325	10	United States
5945-00-997-9335	2011-06-165	83	DIBBS
5945-00-997-9335	2011-05-125	1	MX
5945-00-997-9335	2007-11-332	178	DIBBS
MS274182B	2007-05-131	36	US
MS274182B	2007-05-131	138	US
5945-00-997-9335	2007-04-95	150	DIBBS
5945-00-997-9335	2007-04-95	150	DIBBS
5945-00-997-9335	2007-03-87	10	DIBBS
5945-00-997-9335	2007-03-87	40	DIBBS
5945-00-997-9335	2007-03-87	150	DIBBS
5945-00-997-9335	2007-03-80	10	DIBBS
5945-00-997-9335	2007-03-74	150	DIBBS
5945-00-997-9335	2007-03-74	40	DIBBS
5945-00-997-9335	2007-03-73	10	DIBBS
5945-00-997-9335	2007-02-47	18	DIBBS
5945-00-997-9335	2007-01-26	18	DIBBS
5945-00-997-9335	2006-06-173	56	DIBBS
MS274182B	2006-06-158	15	United States

Cross Reference | NSN 5945-00-997-9335

Part Number	Cage Code	Manufacturer
00.4.575.5002	D2269	PILLER GERMANY GMBH & CO. KG
021-000936	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
5M.4751.221.60	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
9324-7424	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
974.03.11.101	S4080	PILATUS AIRCRAFT LTD
C114-1	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
M27418-2B	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS217418-2B	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27418-2B	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27418-2B	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-997-9335

Compare

Related Products | NSN 5945-00-997-9335

5945-00-997-9361, 5945-00-997-9620, 5945-00-997-9735, 5945-00-998-1273, 5945-00-998-1622

Technical Data | NSN 5945-00-997-9335

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	3 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	20.0 AMPERES AC AND 15.0 AMPERES DC RESISTIVE LOAD
COIL QUANTITY	1
WINDING QUANTITY	1
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
NOMINAL OPERATING CURRENT RATING AND TYPE	250.0 MILLIAMPERES DC SINGLE WINDING

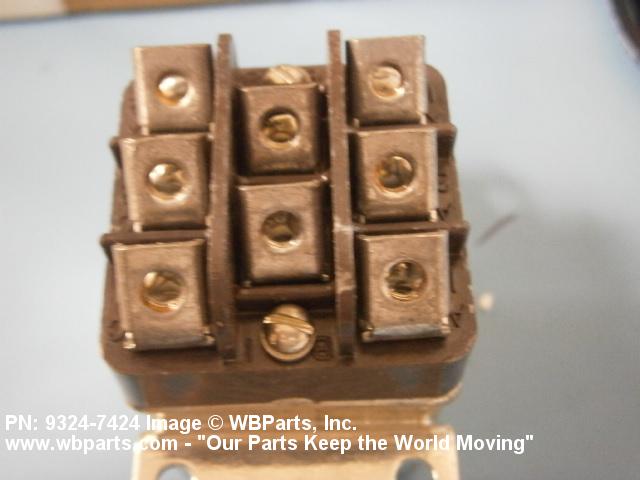

TERMINAL TYPE AND QUANTITY	8 PIN ALL FUNCTIONS
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC
OVERALL LENGTH	2.500 INCHES NOMINAL
OVERALL WIDTH	2.410 INCHES NOMINAL
OVERALL HEIGHT	1.550 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY	4 UNTHREADED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	RECTANGULAR SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	2.000 INCHES NOMINAL SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	1.062 INCHES NOMINAL SINGLE MOUNTING FACILITY
UNTHREADED MOUNTING HOLE DIAMETER	0.173 INCHES NOMINAL SINGLE MOUNTING FACILITY
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-6106
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS27418-2B

Restrictions/Controls & Freight Information | NSN 5945-00-997-9335

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	062960	REOSTATS/PARTS NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-00-997-9335

Navy

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
