NSN 5945-01-005-5917 T0FX37743HA2173, T0FX3-7743HA2173, 13U45
Product Details | ELECTROMAGNETIC RELAY
5945-01-005-5917 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: T0FX37743HA2173, T0FX3-7743HA2173, 13U45, 13U4-5, 5945-01-005-5917, 01-005-5917, 5945010055917, 010055917
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JUN 1975 | 01-005-5917 | 32512 ( RELAY, ELECTROMAGNETIC ) |

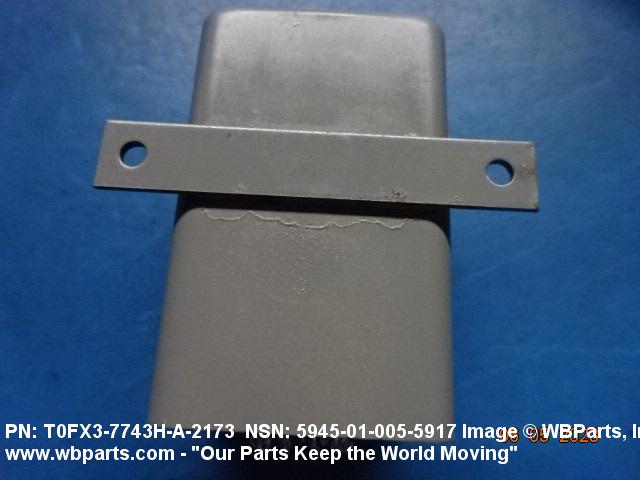

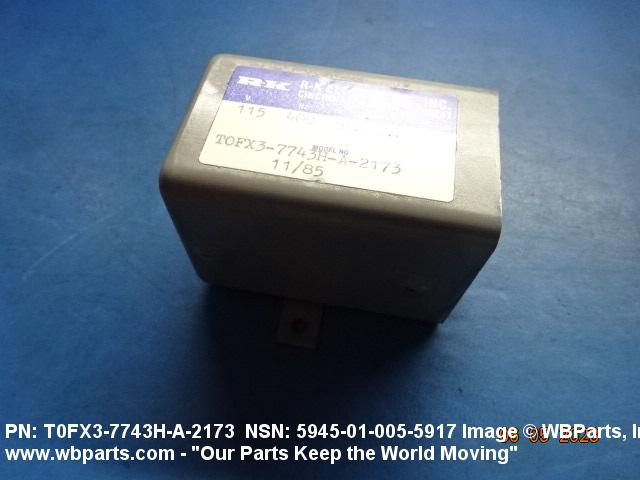

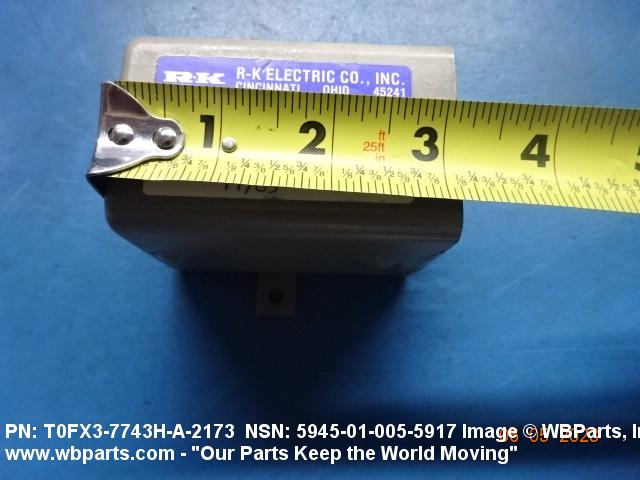

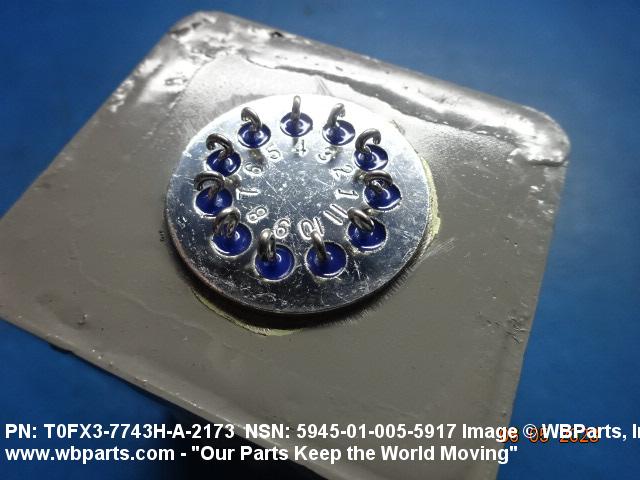

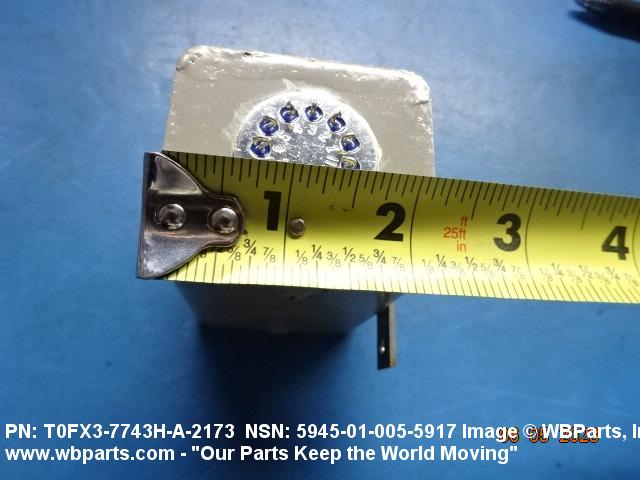

Drawings & Photos | NSN 5945-01-005-5917
Demand History | NSN 5945-01-005-5917
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-005-5917 | 2025-07-198 | 9 | US |
| 5945-01-005-5917 | 2023-04-111 | 1 | US |
| T0FX37743HA2173 | 2023-02-55 | 1 | United States |
| 5945-01-005-5917 | 2017-04-109 | 5 | SA |
| T0FX37743HA2173 | 2016-08-216 | 5 | Saudi Arabia |
| 5945-01-005-5917 | 2015-06-168 | 1 | United States |
| 5945-01-005-5917 | 2014-06-161 | 5 | MANUAL |
| 5945-01-005-5917 | 2014-04-120 | 10 | PK |
| 5945-01-005-5917 | 2014-04-112 | 5 | PK |
| T0FX37743HA2173 | 2014-03-71 | 5 | PK |
| 5945-01-005-5917 | 2014-03-71 | 5 | PK |
| 13U45 | 2009-06-168 | 3 | US |
| 13U45 | 2009-06-168 | 3 | US |
| 5945-01-005-5917 | 2009-04-105 | 1 | DIBBS |
| 5945-01-005-5917 | 2009-01-02 | 2 | DIBBS |
| 5945-01-005-5917 | 2008-07-207 | 7 | DIBBS |
| 5945-01-005-5917 | 2008-05-133 | 3 | DIBBS |
| 5945-01-005-5917 | 2007-05-127 | 8 | DIBBS |
| 5945-01-005-5917 | 2006-04-94 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-005-5917
Technical Data | NSN 5945-01-005-5917
| Characteristic | Specifications |
|---|---|
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 120.0 AC |
| ENVIRONMENTAL PROTECTION | HERMETIC |
| OVERALL LENGTH | 3.438 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| OVERALL HEIGHT | 2.312 INCHES NOMINAL |
| MANUFACTURERS CODE | 98437 |
| MFR SOURCE CONTROLLING REFERENCE | 13U4-5 |
Restrictions/Controls & Freight Information | NSN 5945-01-005-5917
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
