NSN 5945-01-008-8876 3900H0213, 3900H-0-213, 01-008-8876
Product Details | ELECTROMAGNETIC RELAY

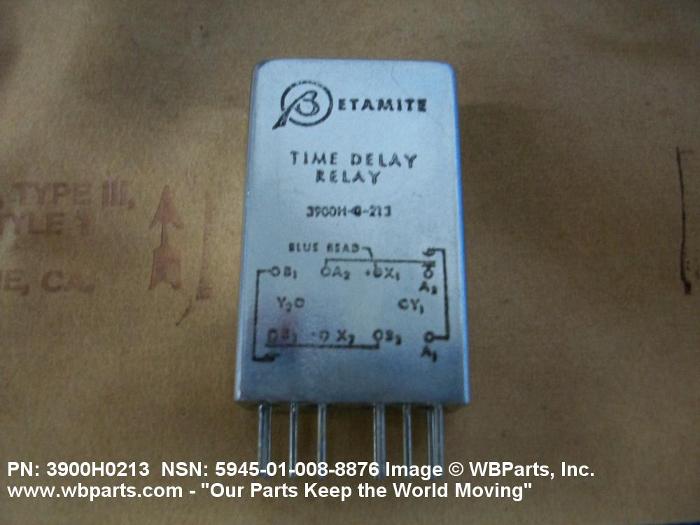

5945-01-008-8876 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: 3900H0213, 3900H-0-213, 5945-01-008-8876, 01-008-8876, 5945010088876, 010088876
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 AUG 1975 | 01-008-8876 | 32512 ( RELAY, ELECTROMAGNETIC ) |
Drawings & Photos | NSN 5945-01-008-8876
Demand History | NSN 5945-01-008-8876
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3900H0213 | 2011-07-209 | 2 | Belgium |
| 3900H0213 | 2009-04-111 | 10 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-008-8876
Technical Data | NSN 5945-01-008-8876
| Characteristic | Specifications |
|---|---|

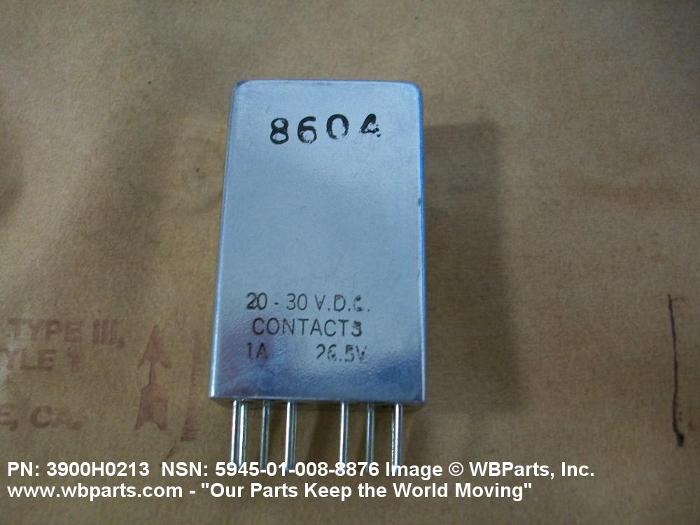

| NONPILE-UP MAIN CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 26.5 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 1.0 AMPERES DC RESISTIVE LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 20.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| TERMINAL TYPE AND QUANTITY | 8 PIN ALL FUNCTIONS |
| TIME DELAY | 0.01 SECONDS MAXIMUM FIXED RELEASE TIME 0.10 SECONDS MINIMUM AND 200.00 SECONDS MAXIMUM ADJUSTABLE OPERATE TIME |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | DUSTPROOF |
| OVERALL LENGTH | 0.800 INCHES MAXIMUM |
| OVERALL WIDTH | 0.400 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.523 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PLUG-IN TERMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | POLARIZED |
