NSN 5945-01-014-7989 A42006594600, A420-065946-00, 4C110D
Product Details | ELECTRICAL SOLENOID
5945-01-014-7989 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: A42006594600, A420-065946-00, 4C110D, 4-C-110D, 4CONT115VDC, 5945-01-014-7989, 01-014-7989, 5945010147989, 010147989
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 JAN 1976 | 01-014-7989 | 00310 ( SOLENOID, ELECTRICAL ) |

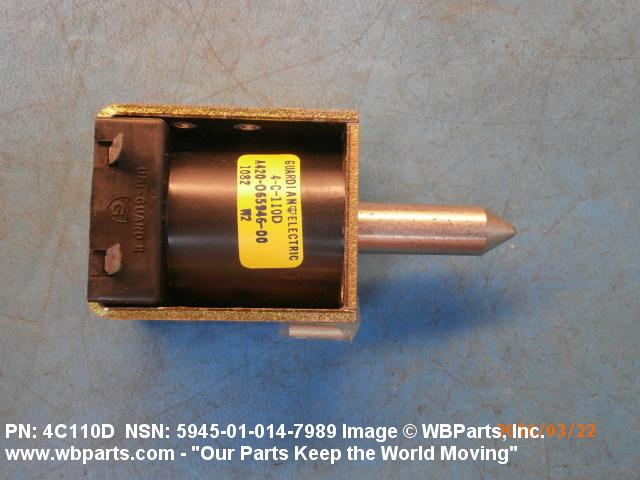

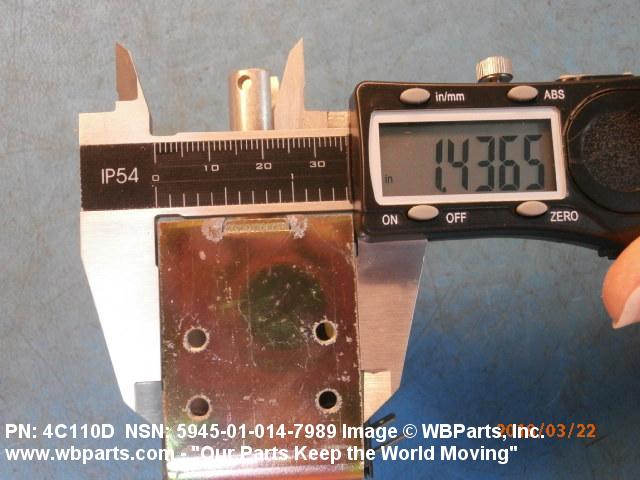

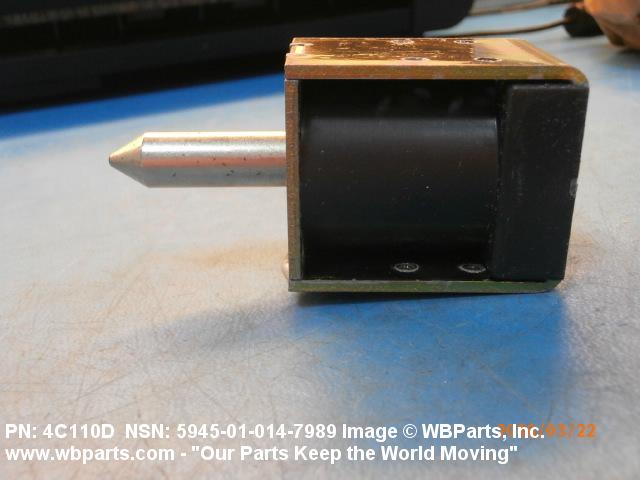

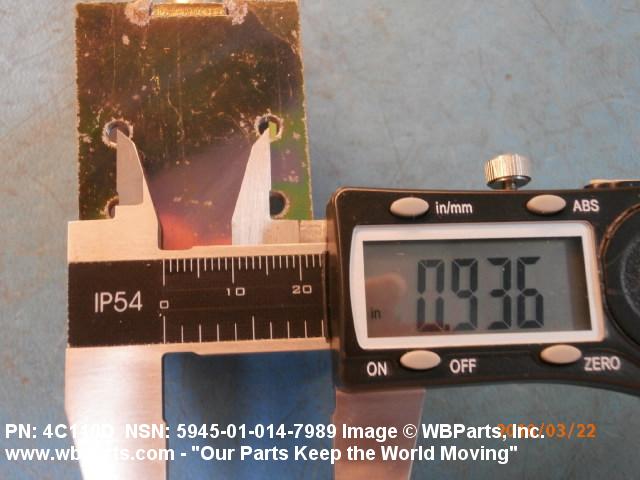

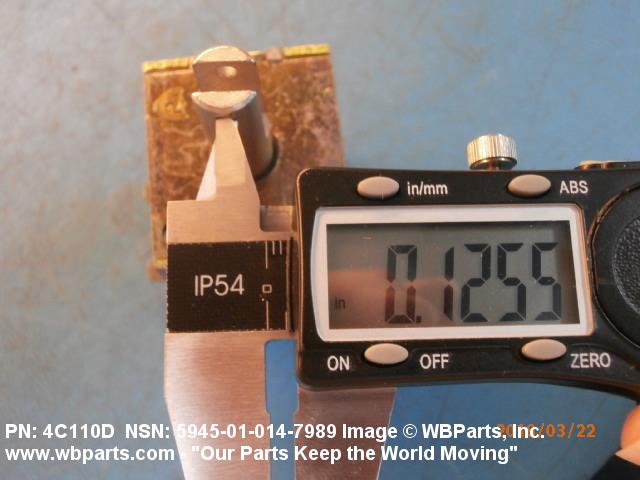

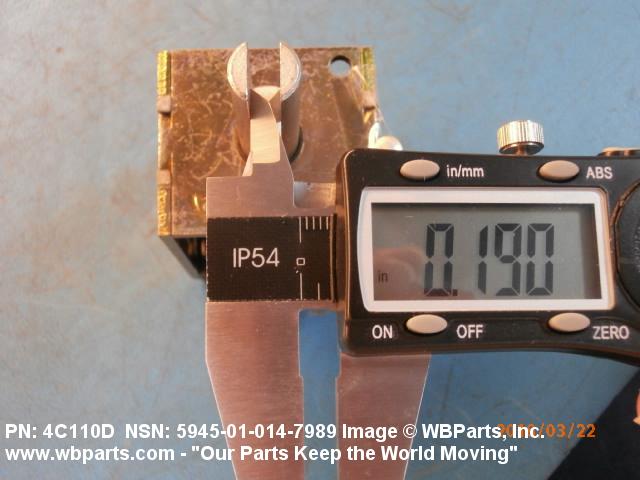

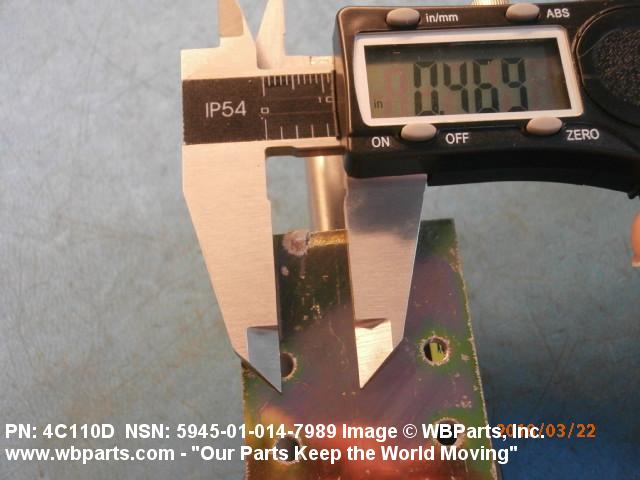

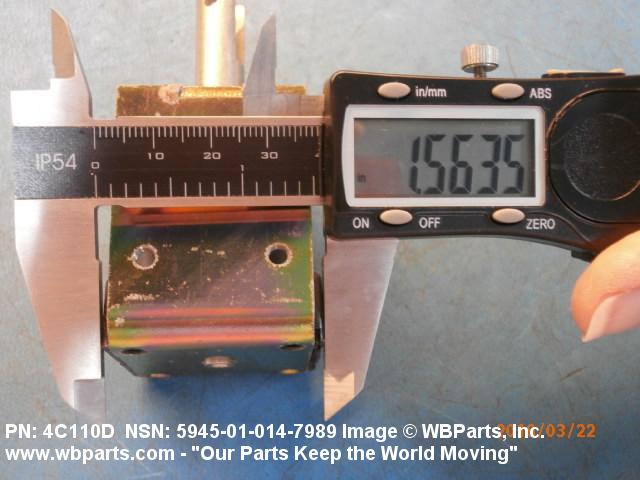

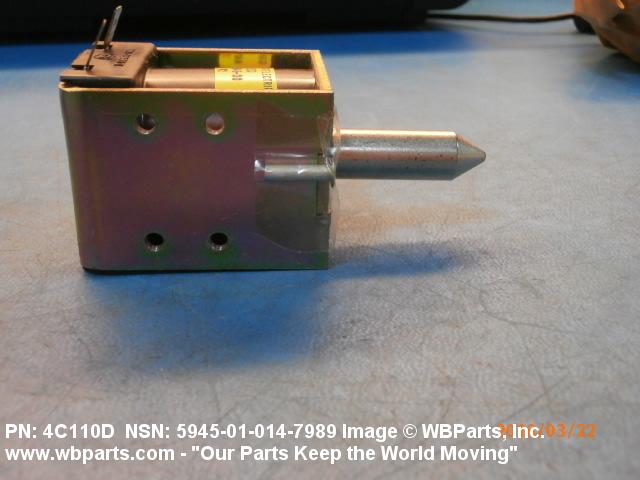

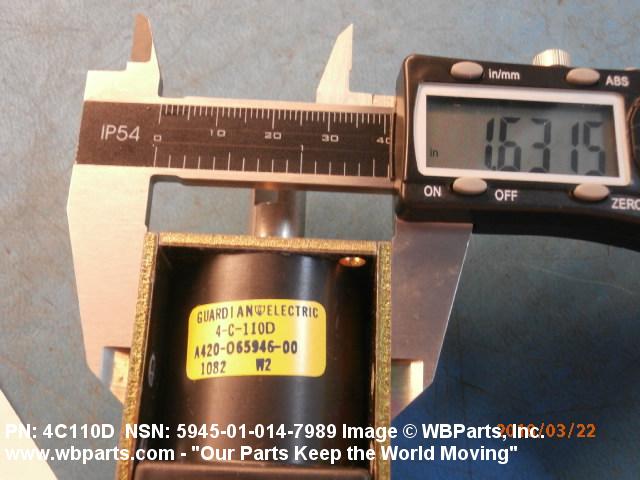

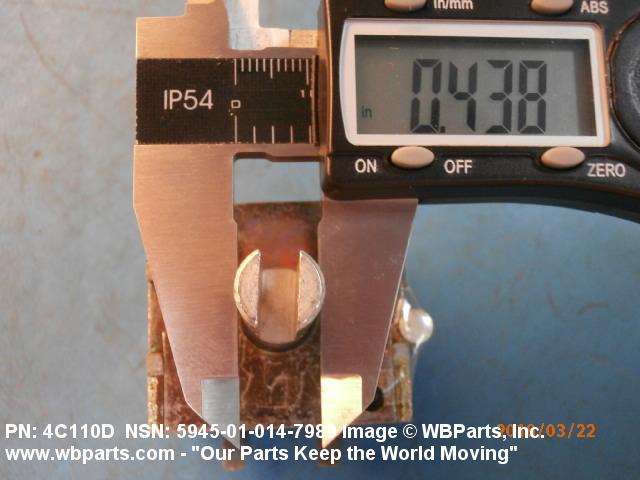

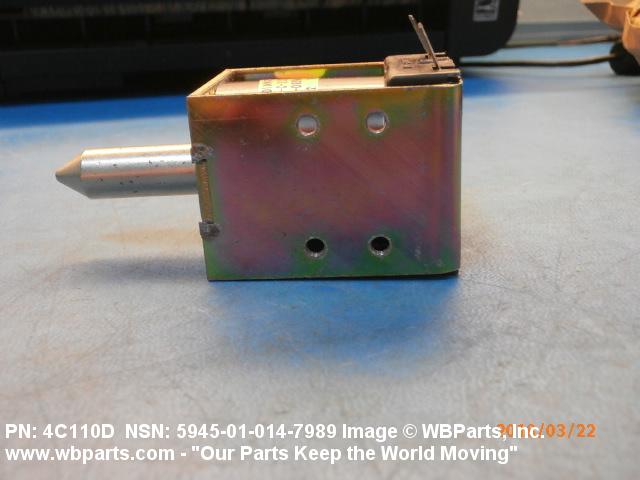

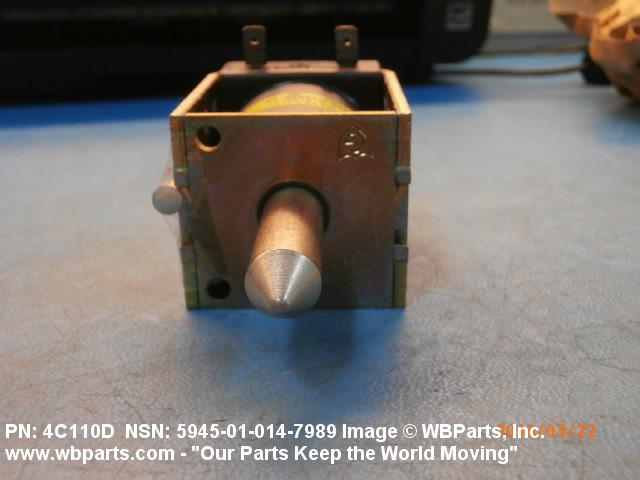

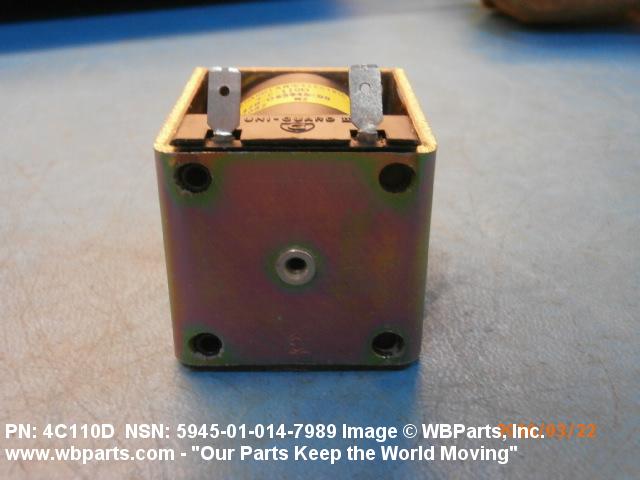

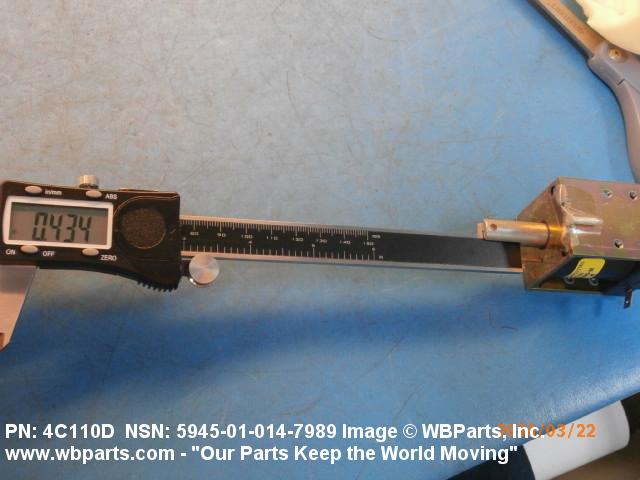

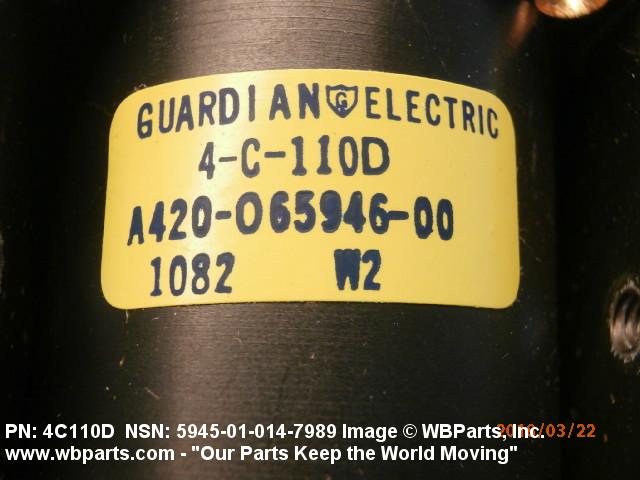

Drawings & Photos | NSN 5945-01-014-7989
Demand History | NSN 5945-01-014-7989
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-014-7989 | 2018-03-72 | 2 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-014-7989
Technical Data | NSN 5945-01-014-7989
| Characteristic | Specifications |
|---|---|
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 115.0 DC MAXIMUM |
| CURRENT RATING | 0.090 AMPERES NOMINAL |
| ELECTRIC POWER RATING | 10.00 WATTS NOMINAL |
| ELECTRICAL RESISTANCE | 1.30 KILOHMS NOMINAL |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PULL |
| MOUNTING FACILITY TYPE AND QUANTITY | 8 THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC MOUNTING FACILITY HOLE |
| NOMINAL THREAD SIZE | 0.164 INCHES MOUNTING FACILITY HOLE |
| THREAD CLASS | ANY ACCEPTABLE MOUNTING FACILITY HOLE |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LOCATION | END OPPOSITE ACTUATOR |
| INCLOSURE TYPE | UNINCLOSED |
Restrictions/Controls & Freight Information | NSN 5945-01-014-7989
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
