NSN 5945-01-041-9241 S2041, S204-1, E40100
Product Details | ELECTRICAL SOLENOID
5945-01-041-9241 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: S2041, S204-1, E40100, E-40100, 12001058, 5945-01-041-9241, 01-041-9241, 5945010419241, 010419241
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 JUN 1977 | 01-041-9241 | 00310 ( SOLENOID, ELECTRICAL ) |

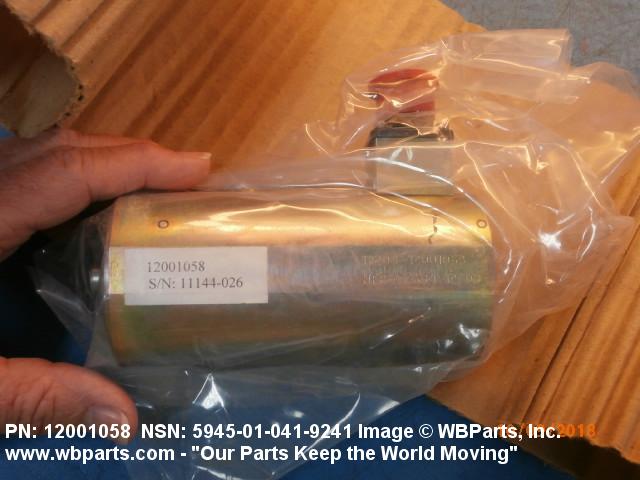

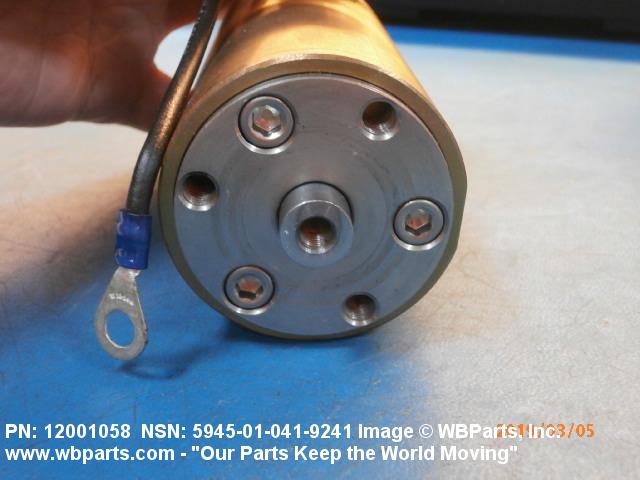

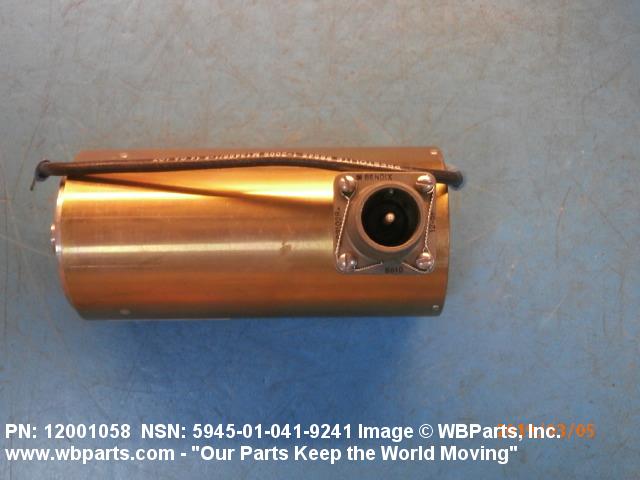

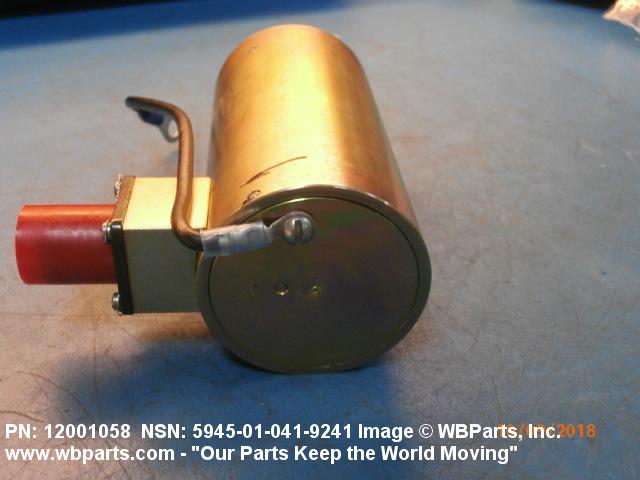

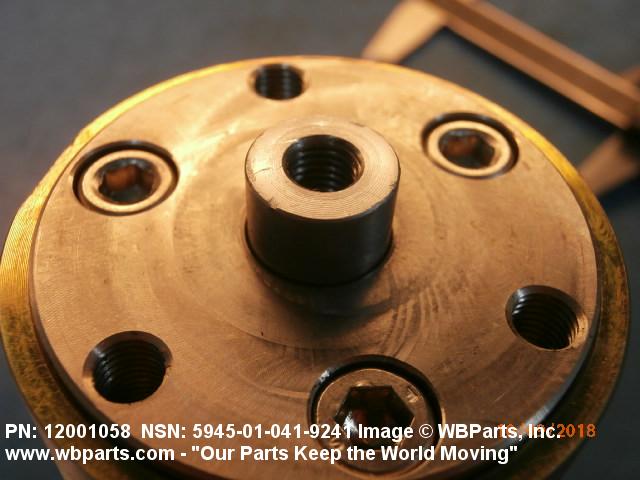

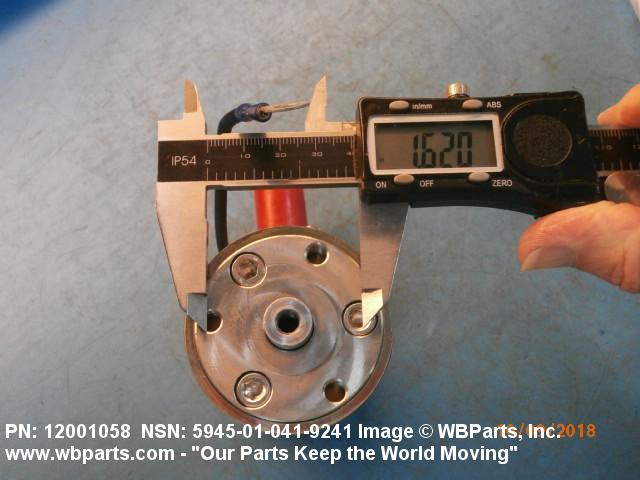

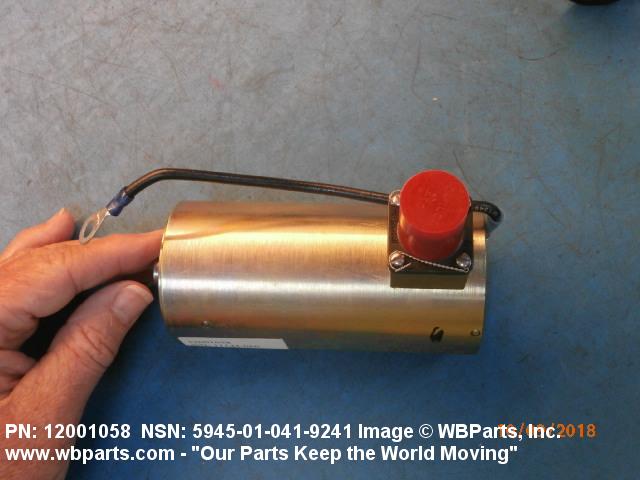

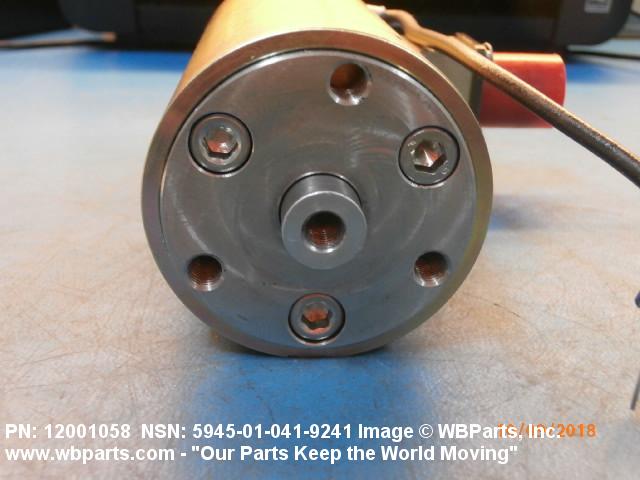

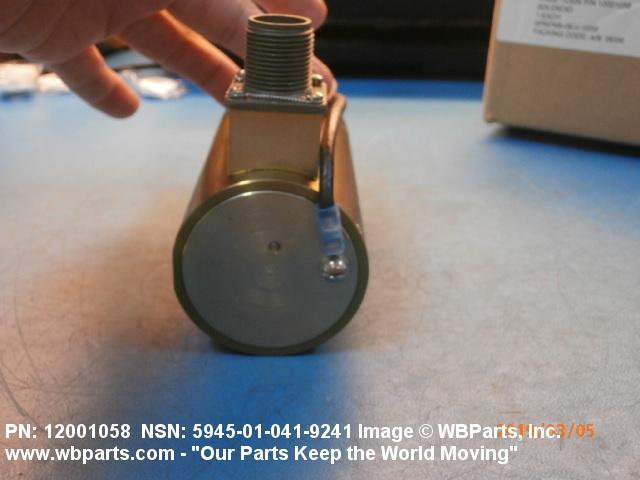

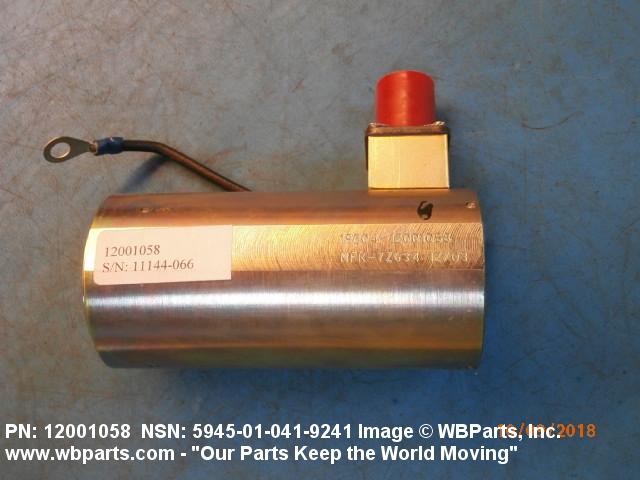

Drawings & Photos | NSN 5945-01-041-9241
Demand History | NSN 5945-01-041-9241
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-041-9241 | 2025-09-261 | 20 | Israel |
| 5945-01-041-9241 | 2025-04-112 | 45 | Israel |
| 5945-01-041-9241 | 2025-01-30 | 50 | US |
| 5945-01-041-9241 | 2024-09-274 | 50 | IL |
| 5945-01-041-9241 | 2021-04-109 | 75 | IL |
| 12001058 | 2019-02-57 | 2 | United States |
| 5945-01-041-9241 | 2018-12-359 | 2 | DIBBS |
| 5945-01-041-9241 | 2018-10-275 | 2 | United States |
| 12001058 | 2018-09-271 | 2 | United States |
| 5945-01-041-9241 | 2017-07-211 | 30 | IL |
| 5945-01-041-9241 | 2017-07-192 | 100 | FR |
| 5945-01-041-9241 | 2017-06-181 | 4 | United States |
| 5945-01-041-9241 | 2017-02-44 | 1 | IL |
| 5945-01-041-9241 | 2017-02-44 | 49 | IL |
| 5945-01-041-9241 | 2016-08-236 | 13 | DIBBS |
| 5945-01-041-9241 | 2014-09-273 | 10 | DIBBS |
| 5945-01-041-9241 | 2014-01-16 | 12 | DIBBS |
| 5945-01-041-9241 | 2013-12-343 | 8 | DIBBS |
| 5945-01-041-9241 | 2013-12-343 | 3 | DIBBS |
| 5945-01-041-9241 | 2013-11-328 | 8 | DIBBS |
| 5945-01-041-9241 | 2013-11-328 | 3 | DIBBS |
| S2041 | 2012-09-254 | 50 | Germany |
| 5945-01-041-9241 | 2011-06-174 | 55 | DIBBS |
| 5945-01-041-9241 | 2011-06-174 | 64 | DIBBS |
| 5945-01-041-9241 | 2006-03-76 | 99 | DIBBS |
| 5945-01-041-9241 | 2006-02-47 | 54 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-01-041-9241
Related Products | NSN 5945-01-041-9241
Technical Data | NSN 5945-01-041-9241
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 9 ENCLOSED FRAME |

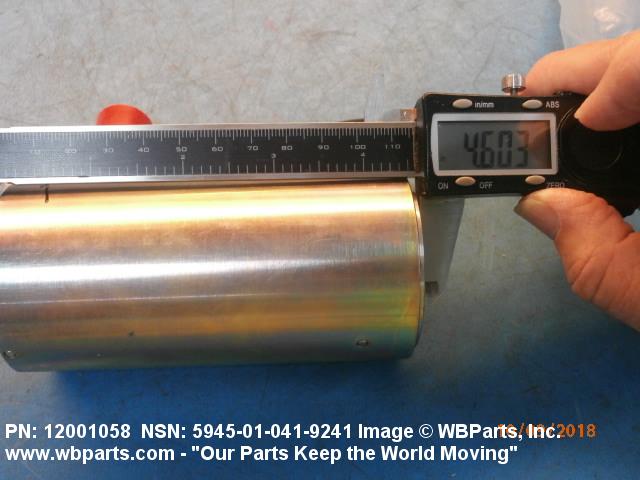

| BODY LENGTH | 4.620 INCHES NOMINAL |

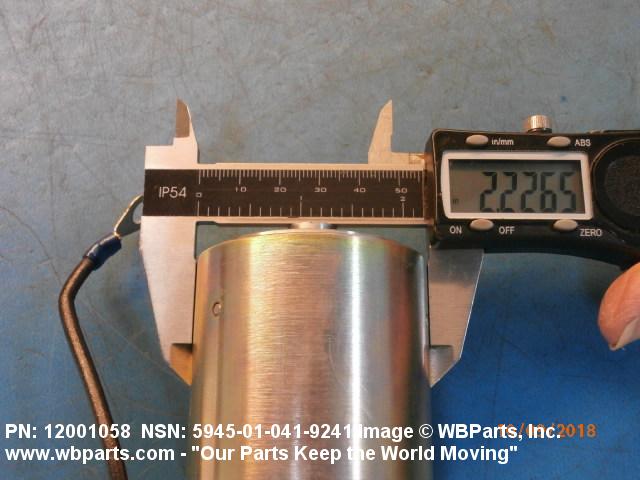

| BODY WIDTH | 2.120 INCHES NOMINAL |
| BODY HEIGHT | 2.120 INCHES NOMINAL |
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 30.0 DC MAXIMUM |
| DUTY TYPE | INTERMITTENT |
| ACTUATOR STROKE TYPE | PULL |
| LINEAR FORCE DELIVERED | 30.00 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 0.300 INCHES |
| POWER TAKEOFF CONNECTION TYPE | INTERNAL THREADS |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 THREADED HOLE |

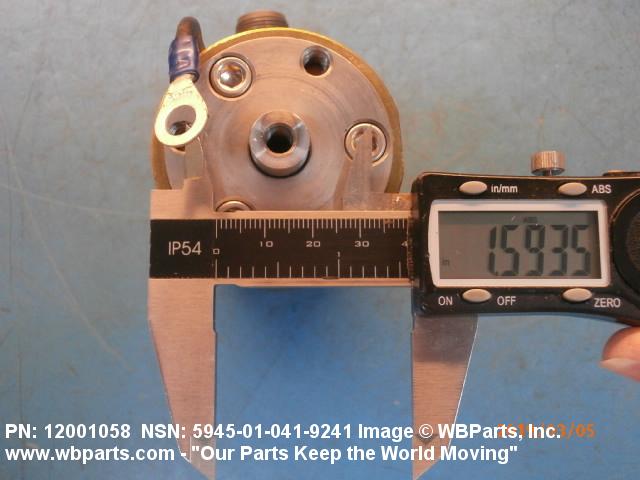

| BOLT CIRCLE DIAMETER | 1.654 INCHES NOMINAL |

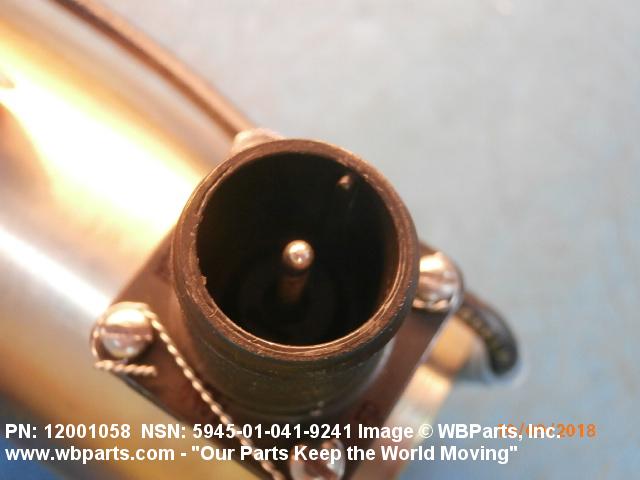

| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE |
| TERMINAL LOCATION | TOP EDGE ON END OPPOSITE ACTUATOR |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| CASE MATERIAL | STEEL |
| CASE SURFACE TREATMENT | ZINC |
| ENVIRONMENTAL PROTECTION | WATERTIGHT |

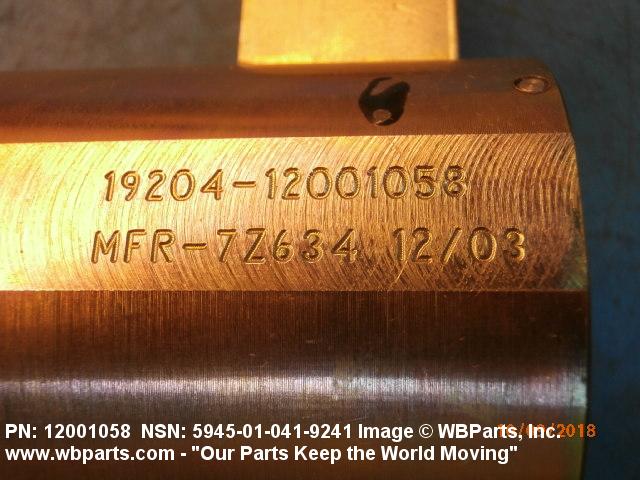

| TEST DATA DOCUMENT | 19204-12001058 DRAWING |
| III MAXIMUM OPERATING TEMP | 125.0 DEG FAHRENHEIT |
| III CONNECTOR MANUFACTURER CODE | 96906 |
| III CONNECTOR MANUFACTURER PART NUMBER | MS3102R-12-5P |
| MANUFACTURERS CODE | 19200 |

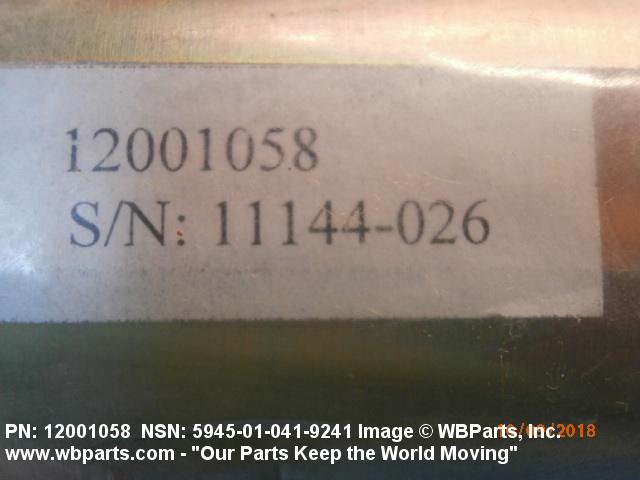

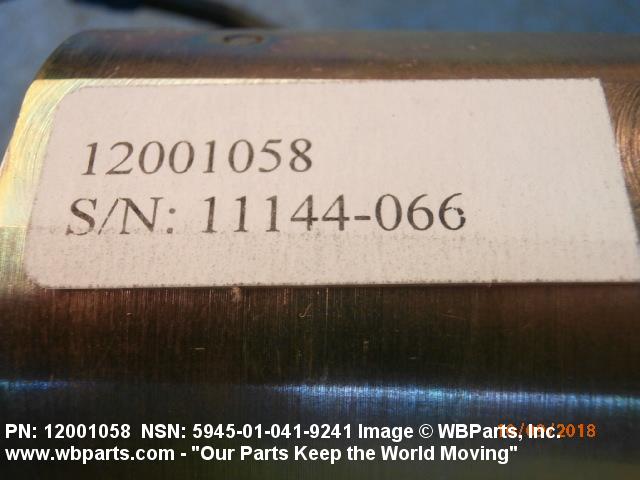

| DESIGN CONTROL REFERENCE | 12001058 |
Restrictions/Controls & Freight Information | NSN 5945-01-041-9241
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063100 | SOLENOIDS/PARTS W/WO ARMATURES |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-01-041-9241
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
