NSN 5945-01-049-7515 182657-001, 26989581, 2698958-1
Product Details | ELECTRICAL SOLENOID
5945-01-049-7515 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: 182657-001, 26989581, 2698958-1, 5945-01-049-7515, 01-049-7515, 5945010497515, 182657001, 010497515
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 OCT 1977 | 01-049-7515 | 00310 ( SOLENOID, ELECTRICAL ) |
Drawings & Photos | NSN 5945-01-049-7515
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-049-7515
Technical Data | NSN 5945-01-049-7515
| Characteristic | Specifications |
|---|---|

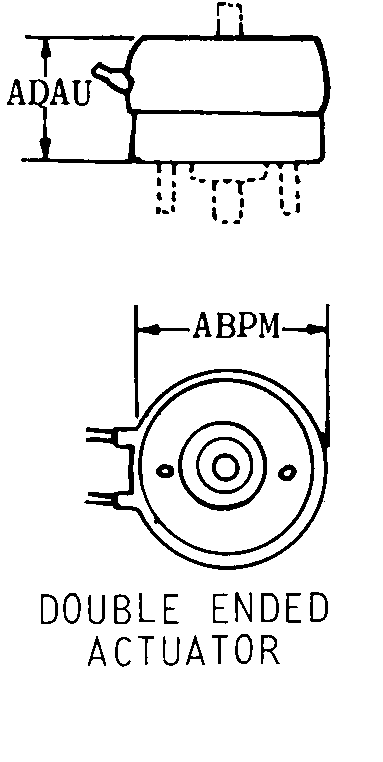

| BODY STYLE | 13 DOUBLE ENDED ACTUATOR |
| BODY DIAMETER | 3.365 INCHES MINIMUM AND 3.406 INCHES MAXIMUM |
| BODY HEIGHT | 2.312 INCHES MAXIMUM |
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 50.0 DC MAXIMUM |
| ELECTRIC POWER RATING | 45.0 WATTS NOMINAL |
| ELECTRICAL RESISTANCE | 58.64 OHMS NOMINAL |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | ROTARY |
| ROTATION DIRECTION AND ENERGIZING STROKE IN ANGULAR DEG | 45.0 CLOCKWISE |
| TORQUE RATING AND TYPE | 9.00 INCH-POUNDS STARTING |
| ENERGIZING STROKE MAXIMUM LENGTH | 0.100 INCHES |
| POWER TAKEOFF CONNECTION TYPE | FLATTED-DRILLED |
| ACTUATOR DIAMETER | 0.437 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED STUD |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 2.120 INCHES MINIMUM AND 2.130 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF MOUNTING FACILITY STUD |
| NOMINAL THREAD SIZE | 0.250 INCHES MOUNTING FACILITY STUD |
| THREAD CLASS | 2A MOUNTING FACILITY STUD |
| THREAD QUANTITY PER INCH | 28 MOUNTING FACILITY STUD |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LOCATION | CIRCUMFERENCE |
| INCLOSURE TYPE | FULLY INCLOSED |
| III MAXIMUM OPERATING TEMP | 65.0 DEG CELSIUS |
Restrictions/Controls & Freight Information | NSN 5945-01-049-7515
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063100 | SOLENOIDS/PARTS W/WO ARMATURES |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-01-049-7515
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
