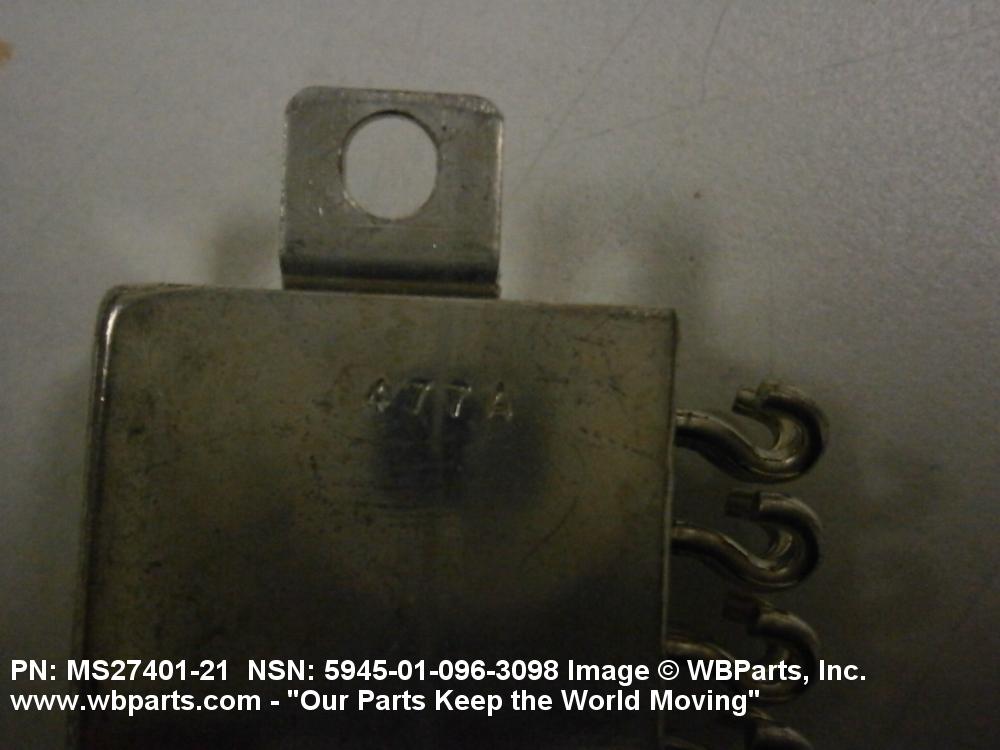

Product Details | ELECTROMAGNETIC RELAY

5945-01-096-3098 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS2740121, MS27401-21, MS2740121U, MS27401-21U, MS2740121X, MS27401-21X, MS2740123, MS27401-23, M6106/7-009, M6106/7-009M, M6106/7-009U, M61067009, M61067009M, M61067009U, M83536/9-026M, M83536/9-26M, M835369026M, M83536926M, BACR13CF6, C503000471, E2101063, E210-1063, E2101354, E210-1354, FCA21075, FCA-210-75, JJ1A036, J-J1A-036, MIL-PRF-83536/9, MILPRF835369, MILR6106, MIL-R-6106, MIL-R-6106/7, MILR61067, MILR83536, MIL-R-83536, MIL-R-83536/9, MILR835369, JJ2A003, J-J2A-003, JJ2A056, J-J2A-056, JJ2A070, J-J2A-070, JX2A027, 61550-61347-101, 7611444, 76-11444, 7611481, 76-11481, 77C709332P001, 7908112-21, 9501081C, 950108-1C, JJ2A, 10164138 , 311073721461, 31-107372-1461, 41851721, 418517-21, 5945-01-096-3098, 01-096-3098, 6155061347101, 5945010963098, 010963098, 790811221

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	18 JUN 1980	01-096-3098	32512 ( RELAY, ELECTROMAGNETIC )

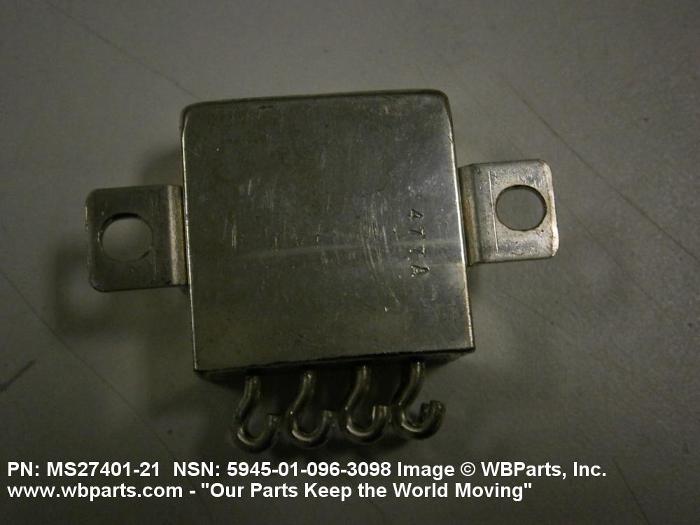

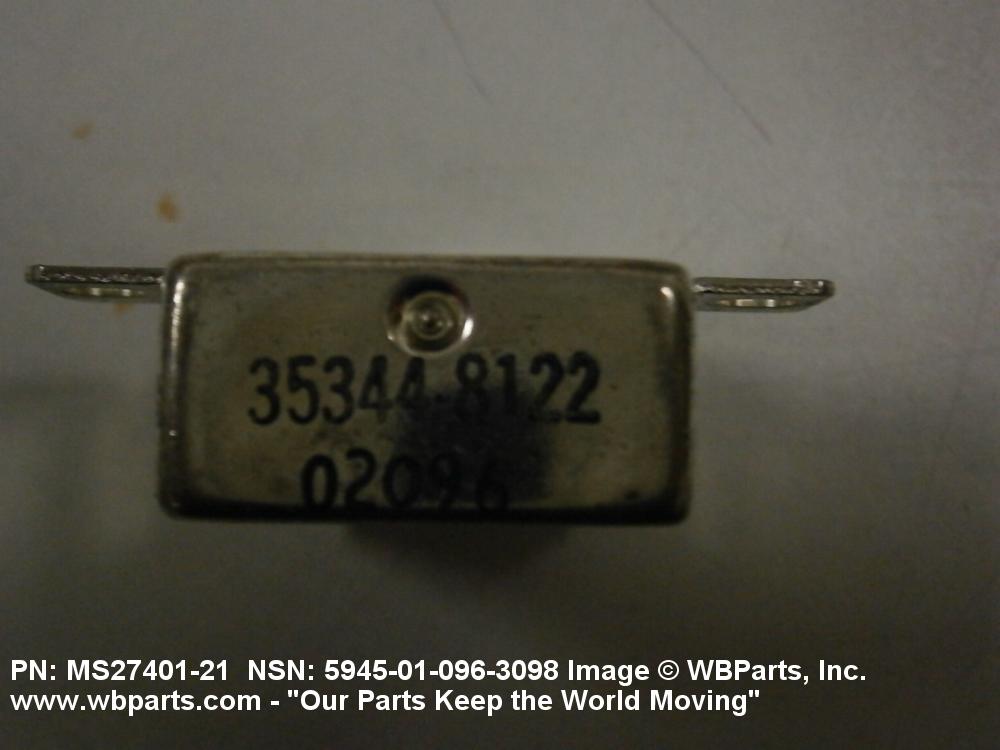

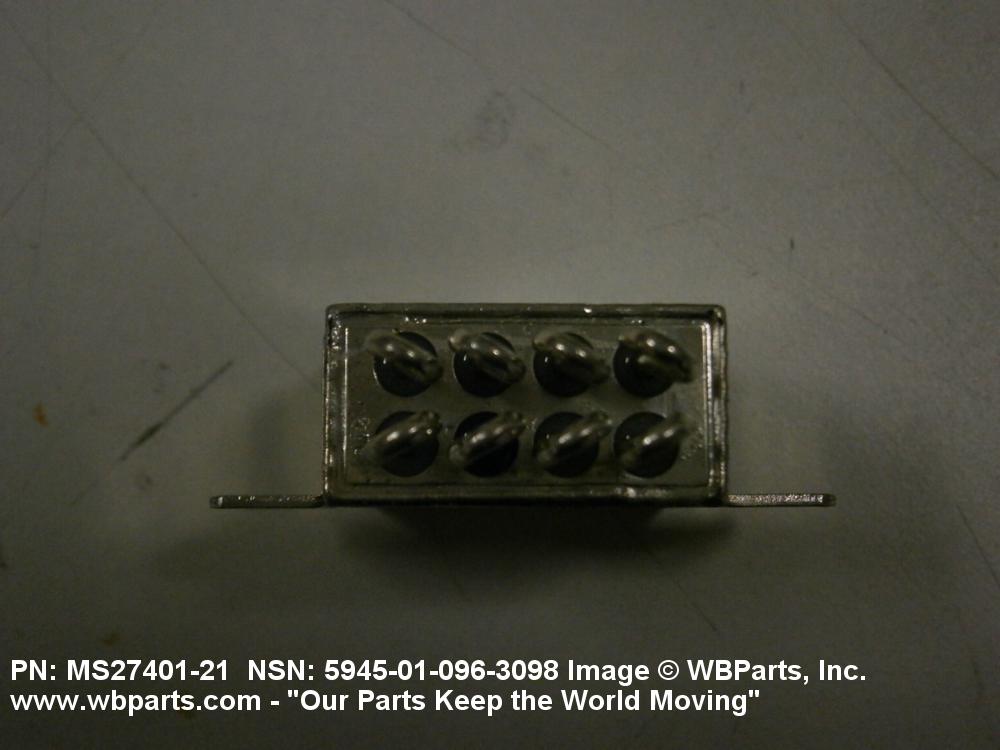

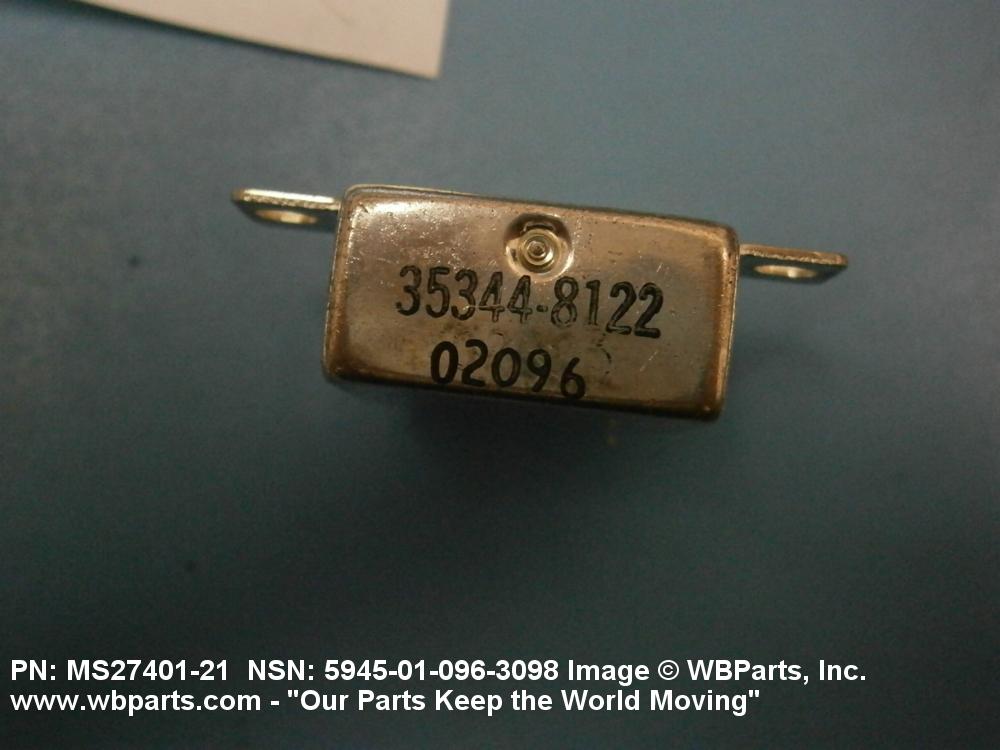

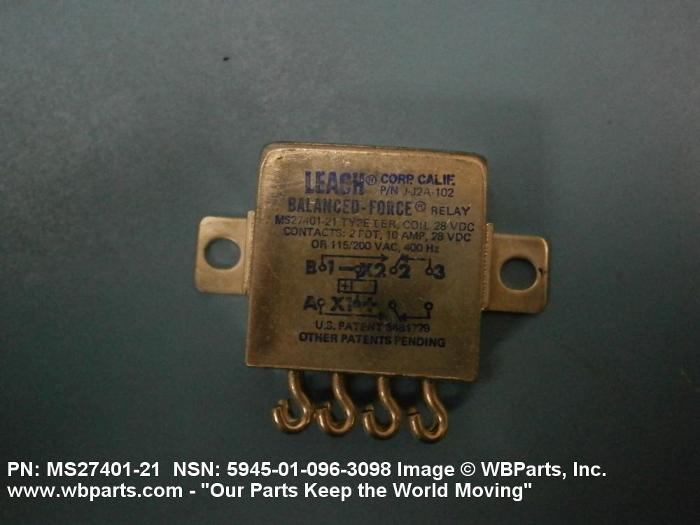

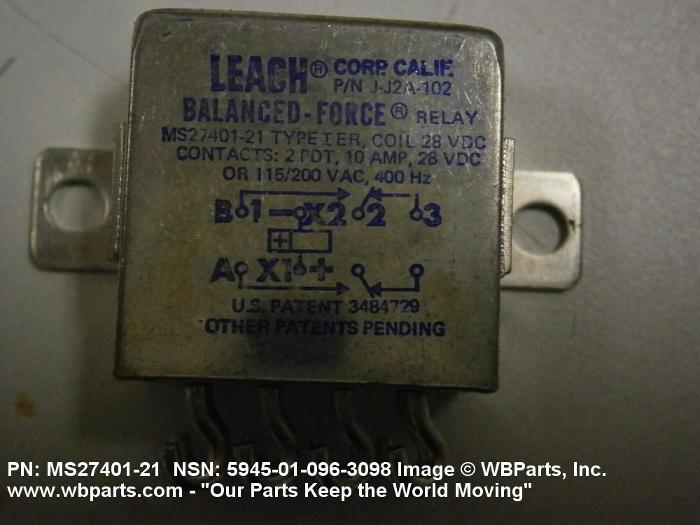

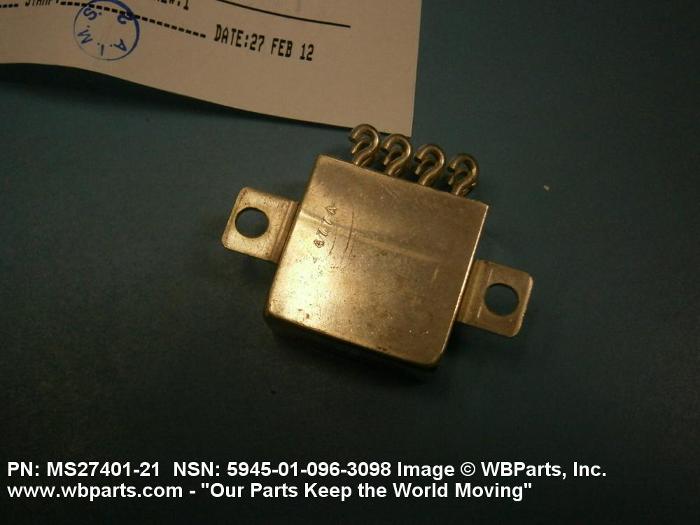

Drawings & Photos | NSN 5945-01-096-3098

Part Number	Request Date	QTY	Origin
5945-01-096-3098	2023-09-257	145	DIBBS
5945-01-096-3098	2021-07-203	95	DIBBS
5945-01-096-3098	2019-02-39	100	US
5945-01-096-3098	2017-12-337	222	DIBBS
5945-01-096-3098	2017-07-204	90	DIBBS
M83536926M	2013-12-360	10	US
5945-01-096-3098	2013-12-344	87	DIBBS
5945-01-096-3098	2013-10-295	75	DIBBS
5945-01-096-3098	2013-03-79	133	DIBBS
5945-01-096-3098	2013-02-59	106	DIBBS
5945-01-096-3098	2012-05-152	101	DIBBS
5945-01-096-3098	2012-04-101	76	DIBBS
MS2740121	2012-02-58	1	us
5945-01-096-3098	2012-02-55	19	DIBBS
MS2740121	2012-02-33	1	United States
5945-01-096-3098	2011-11-318	44	DIBBS
5945-01-096-3098	2011-09-245	66	DIBBS
5945-01-096-3098	2011-07-210	53	DIBBS
MS2740121X	2011-02-59	10	US
5945-01-096-3098	2010-11-307	200	US
MS2740123	2010-04-116	1	US
5945-01-096-3098	2010-03-84	68	DIBBS
5945-01-096-3098	2009-11-322	46	DIBBS
MILR83536	2009-10-296	60	US
5945-01-096-3098	2007-02-47	88	DIBBS

Cross Reference | NSN 5945-01-096-3098

Part Number	Cage Code	Manufacturer
31-107372-1461	04655	GENERAL DYNAMICS C4 SYSTEMS, INC.
418517-21	96214	RAYTHEON COMPANY DBA RAYTHEON
61550-61347-101	78286	SIKORSKY AIRCRAFT CORPORATION
76-11444	30554	DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER
76-11481	93742	ENGINEERED ELECTRIC COMPANY DBA DRS FERMONT
77C709332P001	03538	LOCKHEED MARTIN CORPORATION DIV MST
7908112-21	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
950108-1C	82577	RAYTHEON COMPANY DBA RAYTHEON
BACR13CF6	81205	THE BOEING COMPANY DBA BOEING
C503000471	88818	KEARFOTT CORPORATION DBA KEARFOTT
E210-1063	99699	DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE
E210-1354	99699	DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE
FCA-210-75	78290	STRUTHERS-DUNN INC
J-J1A-036	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
J-J2A-003	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
J-J2A-056	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
J-J2A-070	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
JJ2A	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
JX2A027	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
M6106/7-009	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M6106/7-009M	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M6106/7-009U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83536/9-026M	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83536/9-26M	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83536/9-26M	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MIL-PRF-83536/9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106/7	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-83536	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-83536/9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27401-21	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
MS27401-21	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27401-21U	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27401-21X	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27401-23	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-096-3098

Compare

Related Products | NSN 5945-01-096-3098

5945-01-096-3100, 5945-01-096-3194, 5945-01-096-3684, 5945-01-096-3797, 5945-01-096-3858

Technical Data | NSN 5945-01-096-3098

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD 8.0 AMPERES AC AND 8.0 AMPERES DC INDUCTIVE LOAD 2.0 AMPERES AC AND 2.0 AMPERES DC LAMP LOAD 4.0 AMPERES AC AND 4.0 AMPERES DC MOTOR LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	1
WINDING QUANTITY	1
WINDING DC RESISTANCE RATING	320.0 OHMS NOMINAL SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
TERMINAL TYPE AND QUANTITY	8 WIRE HOOK ALL FUNCTIONS
TIME DELAY	0.01 SECONDS MAXIMUM FIXED OPERATE AND RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC
OVERALL LENGTH	1.718 INCHES MAXIMUM
OVERALL WIDTH	1.010 INCHES MAXIMUM
OVERALL HEIGHT	0.525 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	2 SLOTTED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	IN-LINE SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.446 INCHES NOMINAL SINGLE MOUNTING FACILITY
MOUNTING SLOT WIDTH	0.150 INCHES NOMINAL SINGLE MOUNTING FACILITY
SPECIAL FEATURES	FAILURE RATE LEVEL 0.5 PERCENT PER 1000 OPERATIONS
TEST DATA DOCUMENT	81349-MIL-R-6106 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS27401 GOVERNMENT STANDARD
CRITICALITY CODE JUSTIFICATION	FEAT
III PURPOSE FOR WHICH DESIGNED	GENERAL
III CUBIC MEASURE	0.910 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	0.090 POUNDS
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-83536/9
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M83536/9-0026M
