Product Details | ELECTROMAGNETIC RELAY

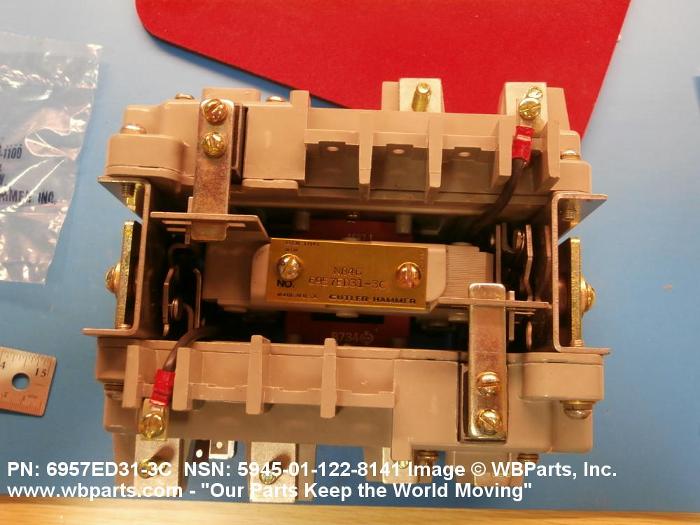

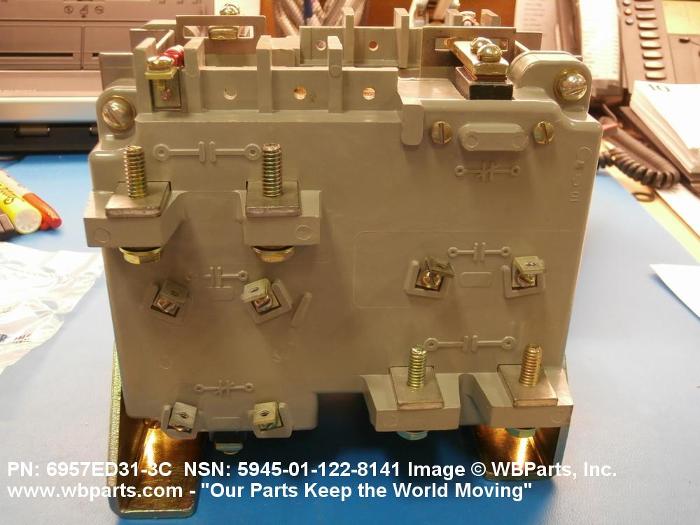

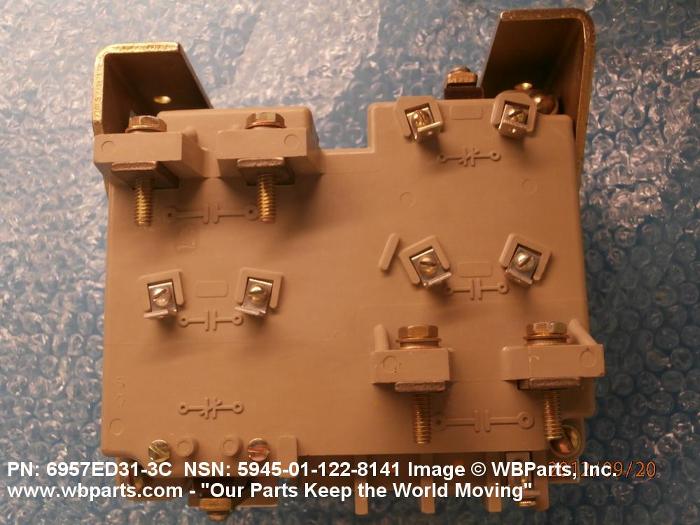

5945-01-122-8141 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: 54971681, 5497168-1, 6957ED313C, 6957ED31-3C, 5945-01-122-8141, 01-122-8141, 5945011228141, 011228141
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 NOV 1981 | 01-122-8141 | 32512 ( RELAY, ELECTROMAGNETIC ) |

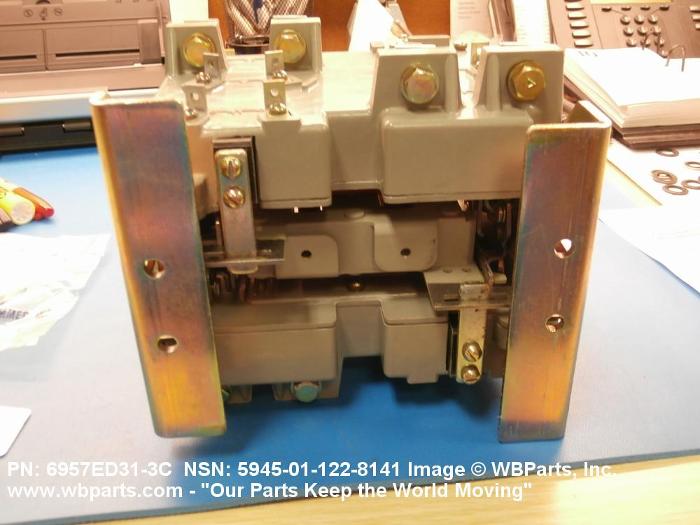

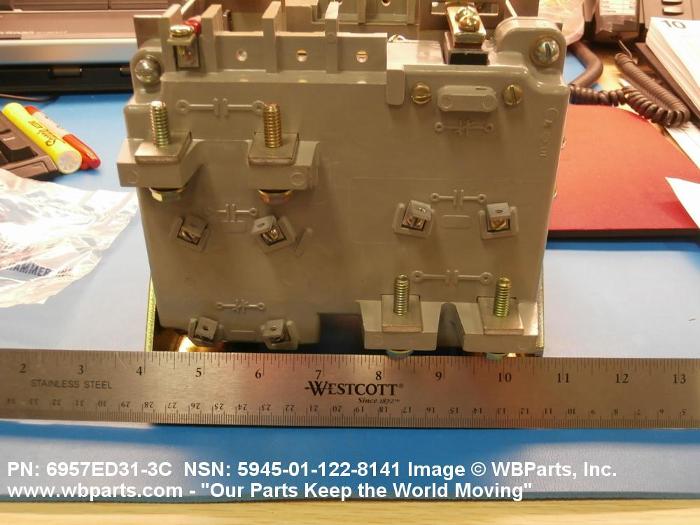

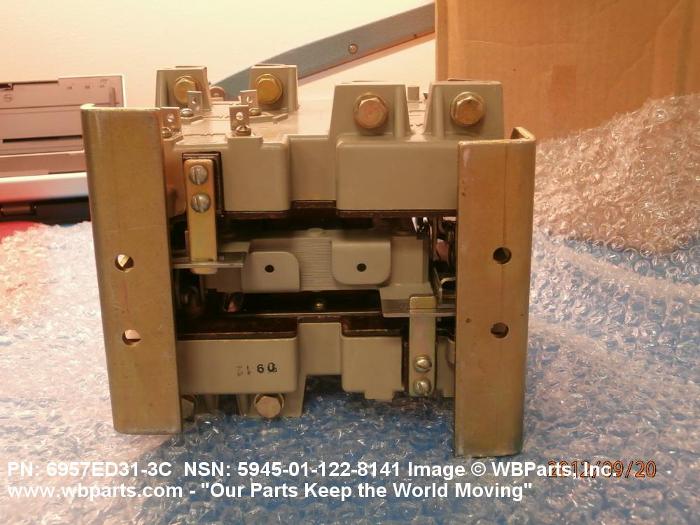

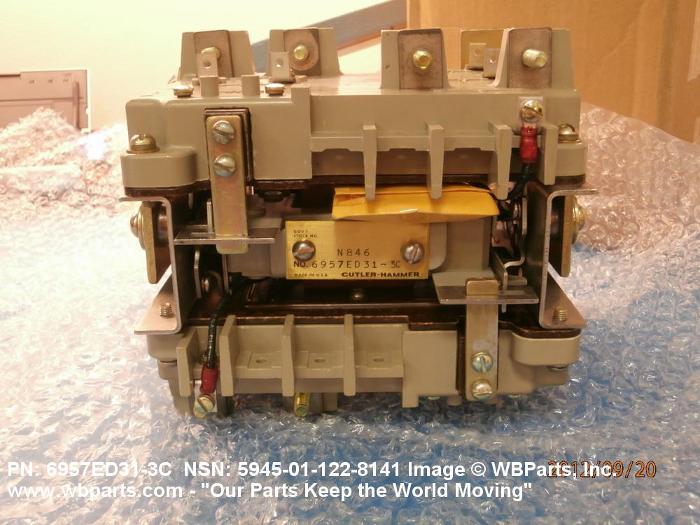

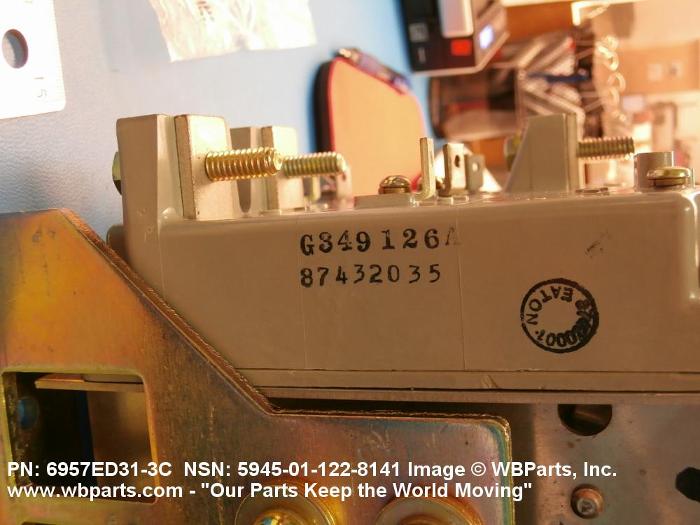

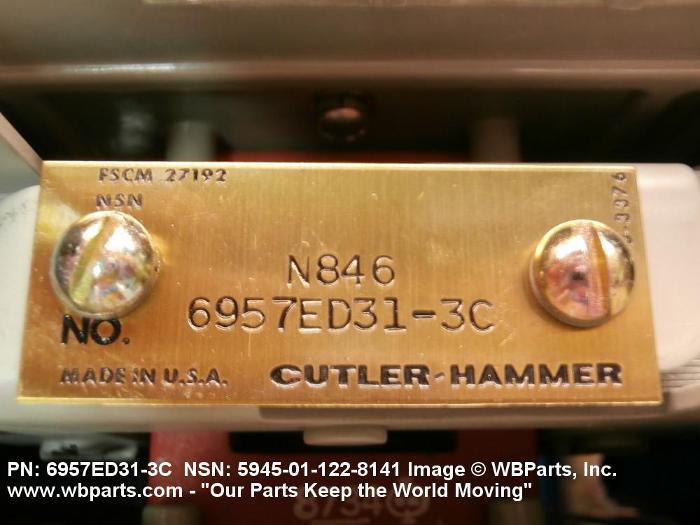

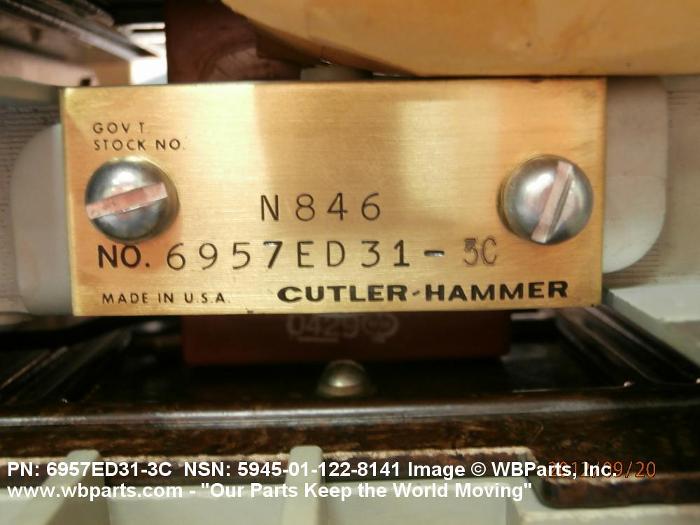

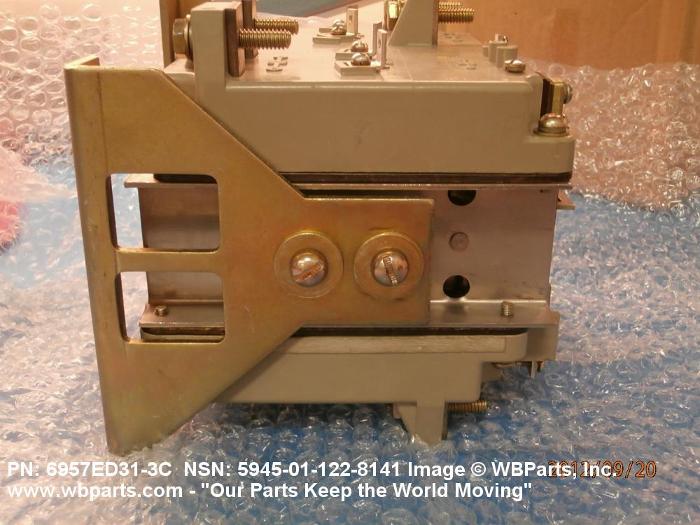

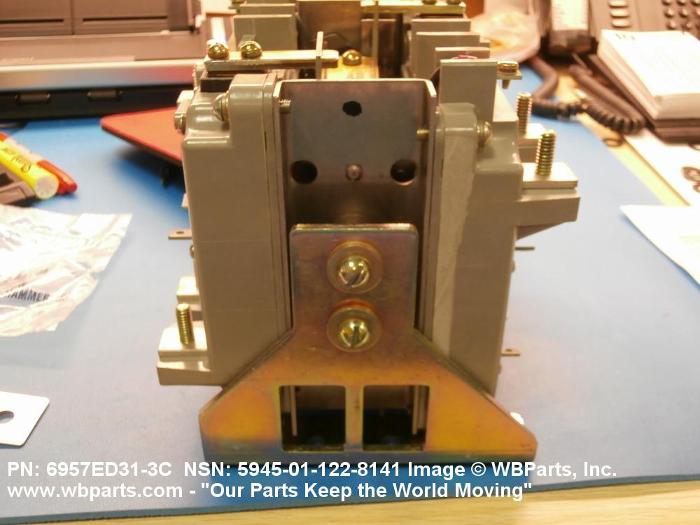

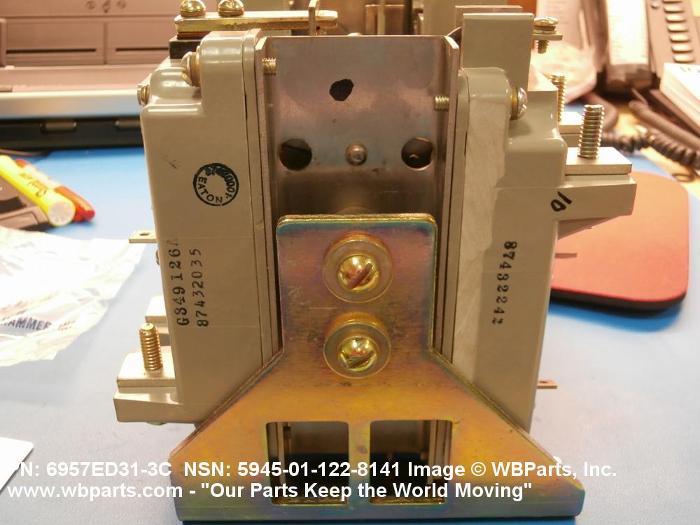

Drawings & Photos | NSN 5945-01-122-8141
Demand History | NSN 5945-01-122-8141
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6957ED31-3C | 2025-03-89 | 15 | DIBBS |
| 6957ED31-3C | 2024-03-81 | 9 | DIBBS |
| 6957ED31-3C | 2024-03-66 | 9 | DIBBS |
| 6957ED31-3C | 2023-10-282 | 2 | DIBBS |
| 6957ED31-3C | 2023-07-194 | 1 | DIBBS |
| 6957ED31-3C | 2023-07-187 | 2 | DIBBS |
| 6957ED31-3C | 2023-06-152 | 2 | DIBBS |
| 6957ED31-3C | 2022-04-111 | 1 | DIBBS |
| 6957ED31-3C | 2022-03-90 | 7 | DIBBS |
| 6957ED31-3C | 2021-11-322 | 1 | DIBBS |
| 6957ED31-3C | 2021-11-308 | 4 | DIBBS |
| 6957ED31-3C | 2021-09-266 | 3 | DIBBS |
| 5945-01-122-8141 | 2021-08-236 | 4 | us |
| 6957ED31-3C | 2020-12-357 | 1 | DIBBS |
| 6957ED31-3C | 2020-12-338 | 2 | DIBBS |
| 6957ED31-3C | 2020-11-324 | 2 | DIBBS |
| 6957ED31-3C | 2020-11-306 | 7 | DIBBS |
| 6957ED31-3C | 2020-10-294 | 2 | DIBBS |
| 6957ED31-3C | 2020-09-259 | 4 | DIBBS |
| 6957ED31-3C | 2020-08-243 | 1 | DIBBS |
| 6957ED31-3C | 2020-08-231 | 1 | DIBBS |
| 6957ED31-3C | 2020-07-211 | 1 | DIBBS |
| 6957ED31-3C | 2020-05-142 | 2 | DIBBS |
| 6957ED31-3C | 2019-12-335 | 3 | DIBBS |
| 6957ED31-3C | 2019-01-24 | 3 | DIBBS |
| 5945-01-122-8141 | 2018-12-357 | 6 | United States |
| 5945-01-122-8141 | 2018-03-63 | 3 | DIBBS |
| 6957ED313C | 2017-12-354 | 2 | TW |
| 5945-01-122-8141 | 2016-03-73 | 3 | DIBBS |
| 5945-01-122-8141 | 2016-01-21 | 4 | DIBBS |
| 5945-01-122-8141 | 2015-07-210 | 3 | DIBBS |
| 5945-01-122-8141 | 2015-04-102 | 2 | DIBBS |
| 5945-01-122-8141 | 2014-12-350 | 4 | DIBBS |
| 5945-01-122-8141 | 2014-11-306 | 2 | DIBBS |
| 5945-01-122-8141 | 2014-06-177 | 4 | DIBBS |
| 5945-01-122-8141 | 2014-01-15 | 4 | DIBBS |
| 5945-01-122-8141 | 2014-01-08 | 24 | US |
| 6957ED313C | 2012-09-254 | 2 | Canada |
| 5945-01-122-8141 | 2011-08-222 | 16 | US |
| 6957ED313C | 2011-06-181 | 16 | us |
| 5945-01-122-8141 | 2007-10-292 | 5 | DIBBS |
| 5945-01-122-8141 | 2006-05-136 | 5 | DIBBS |
| 5945-01-122-8141 | 2006-04-103 | 3 | DIBBS |
| 5945-01-122-8141 | 2006-04-103 | 4 | DIBBS |
