NSN 5945-01-146-3366 MS277152, MS27715-2, MILPRF6106

Product Details | ELECTROMAGNETIC RELAY

5945-01-146-3366 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS277152, MS27715-2, MILPRF6106, MIL-PRF-6106, MILR6106, MIL-R-6106, 5945-01-146-3366, 01-146-3366, 5945011463366, 011463366

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	29 JAN 1983	01-146-3366	32512 ( RELAY, ELECTROMAGNETIC )

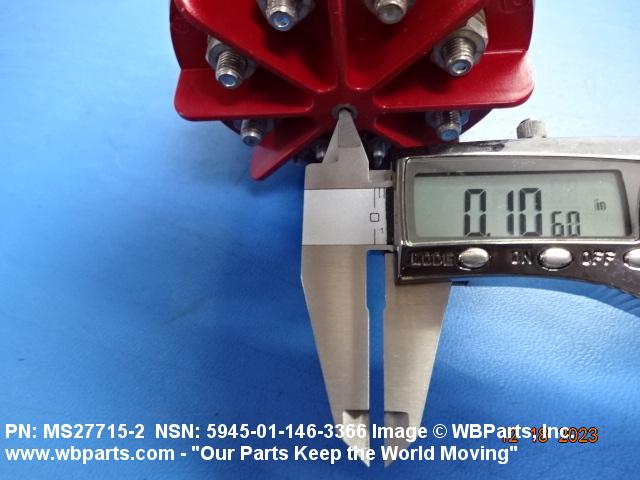

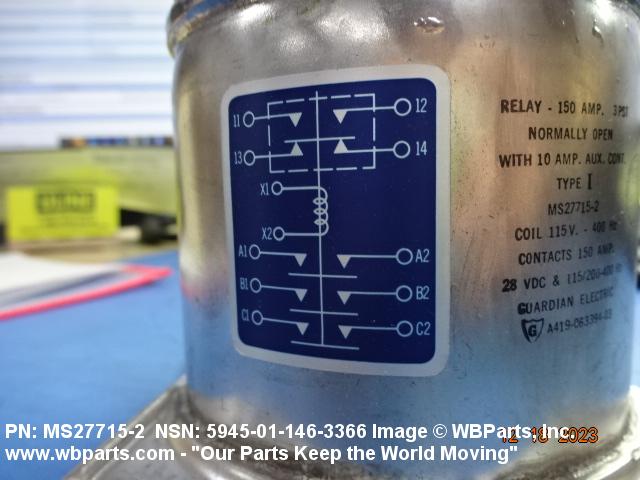

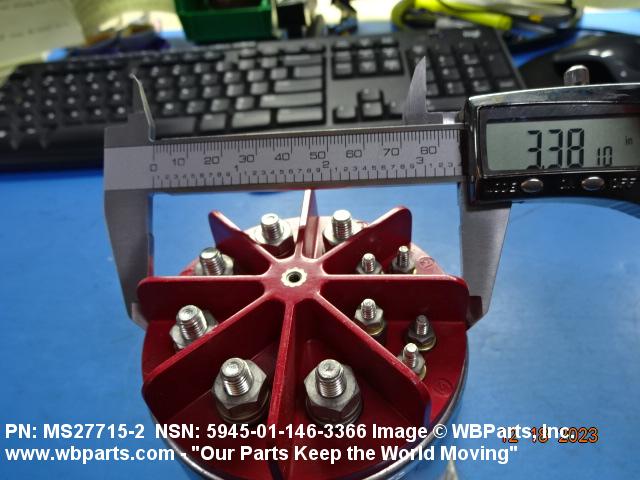

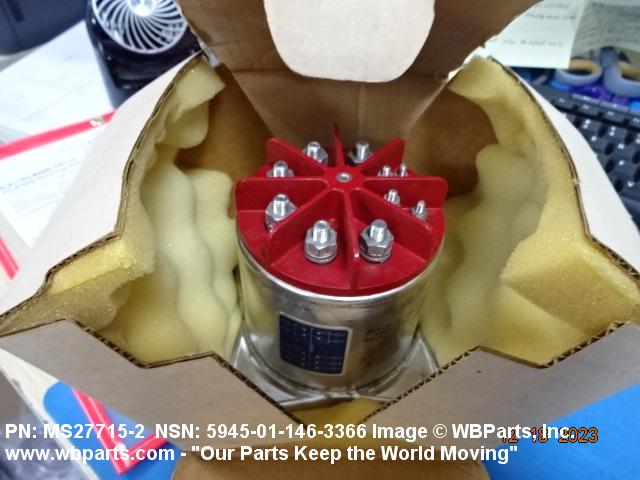

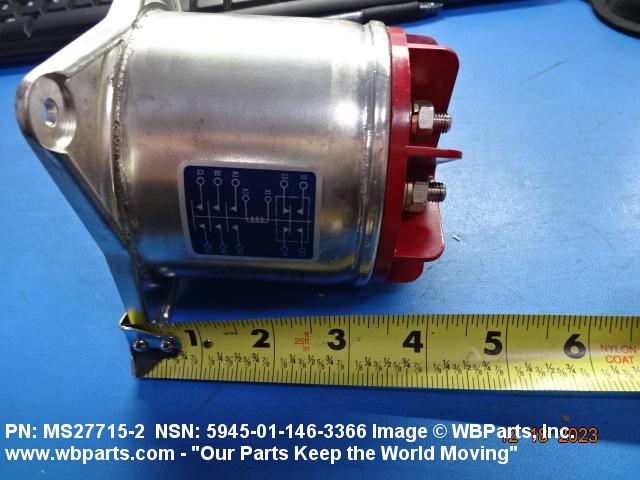

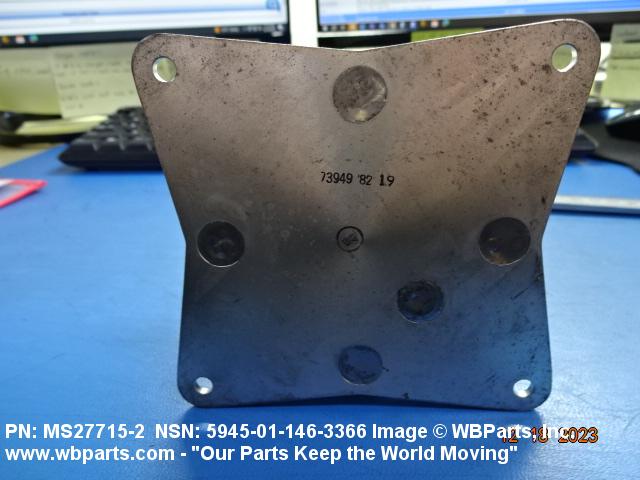

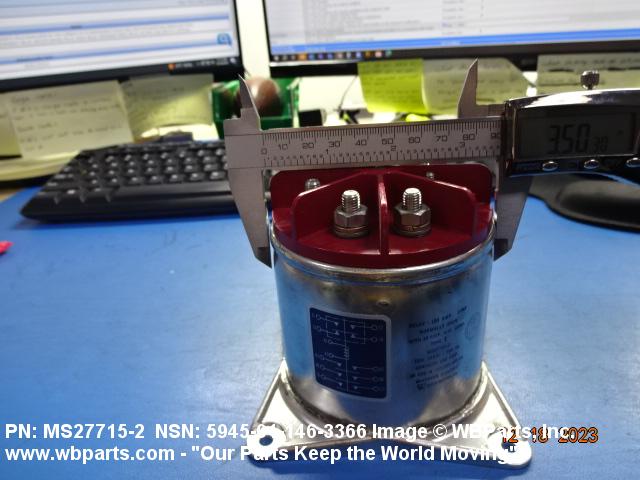

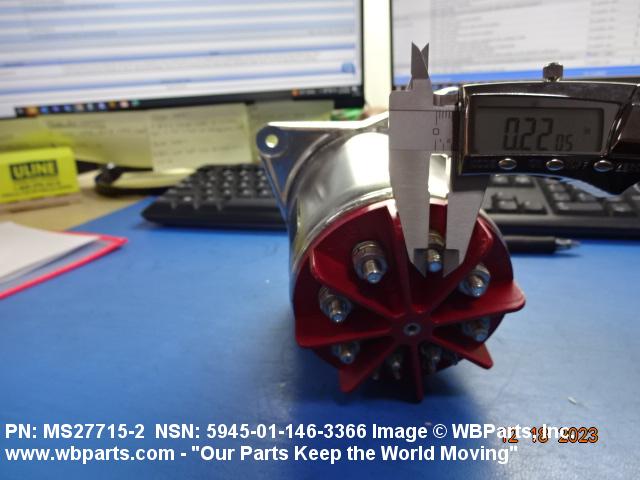

Drawings & Photos | NSN 5945-01-146-3366

Part Number	Request Date	QTY	Origin
5945-01-146-3366	2025-05-138	6	DIBBS
5945-01-146-3366	2025-05-125	6	DIBBS
5945-01-146-3366	2024-03-88	6	DIBBS
5945-01-146-3366	2024-03-71	6	DIBBS
5945-01-146-3366	2024-02-60	6	DIBBS
5945-01-146-3366	2023-12-352	1	DIBBS
5945-01-146-3366	2023-12-348	1	United States
5945-01-146-3366	2012-03-61	10	DIBBS
5945-01-146-3366	2011-04-100	8	DIBBS
5945-01-146-3366	2010-08-239	1	DIBBS
5945-01-146-3366	2009-10-303	1	DIBBS
5945-01-146-3366	2009-09-251	2	DIBBS
5945-01-146-3366	2007-05-138	3	DIBBS

Cross Reference | NSN 5945-01-146-3366

Part Number	Cage Code	Manufacturer
MIL-PRF-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27715-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-146-3366

Compare

Related Products | NSN 5945-01-146-3366

5945-01-146-3388, 5945-01-146-3389, 5945-01-146-3390, 5945-01-146-3419, 5945-01-146-3449

Technical Data | NSN 5945-01-146-3366

Characteristic	Specifications

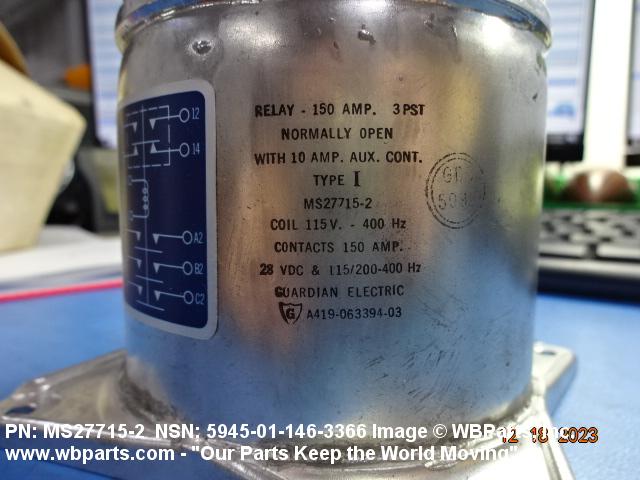

NONPILE-UP MAIN CONTACT ARRANGEMENT	3 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION
NONPILE-UP AUXILIARY CONTACT ARRANGEMENT	2 POLE, SINGLE THROW, NORMALLY OPEN, DOUBLE MAKE, MOMENTARY ACTION
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
AUXILIARY CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	150.0 AMPERES AC AND 150.0 AMPERES DC RESISTIVE LOAD 100.0 AMPERES AC AND 100.0 AMPERES DC MOTOR LOAD
AUXILIARY CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD 3.0 AMPERES AC AND 3.0 AMPERES DC LAMP LOAD 5.0 AMPERES AC AND 5.0 AMPERES DC MOTOR LOAD
COIL QUANTITY	1
WINDING QUANTITY	1
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	115.0 VOLTS AC 25 DEG CELSIUS SINGLE WINDING

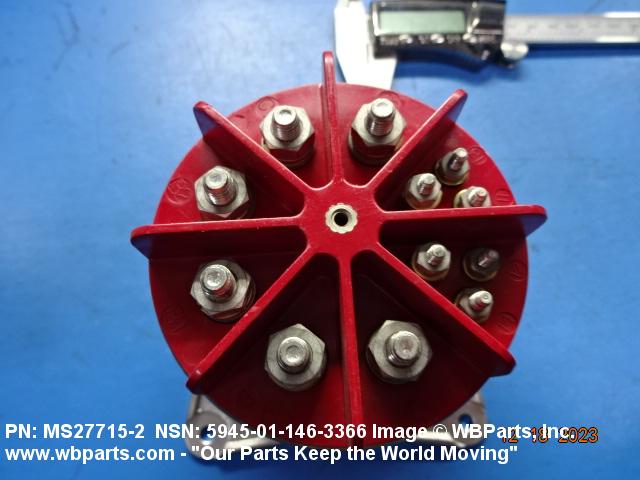

TERMINAL TYPE AND QUANTITY	12 THREADED STUD ALL FUNCTIONS
DUTY TYPE	CONTINUOUS
OVERALL LENGTH	4.343 INCHES NOMINAL
OVERALL WIDTH	4.156 INCHES NOMINAL

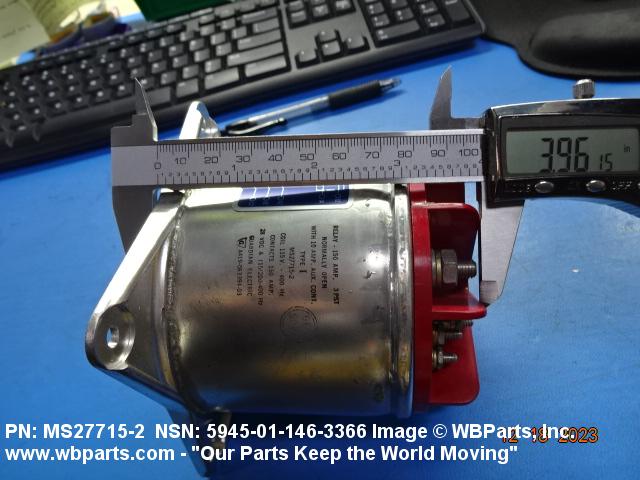

OVERALL HEIGHT	3.956 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY	4 UNTHREADED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	RECTANGULAR SINGLE MOUNTING FACILITY

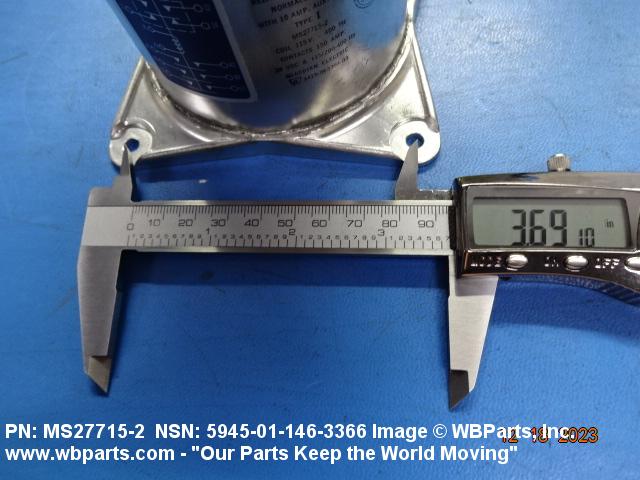

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	3.687 INCHES NOMINAL SINGLE MOUNTING FACILITY

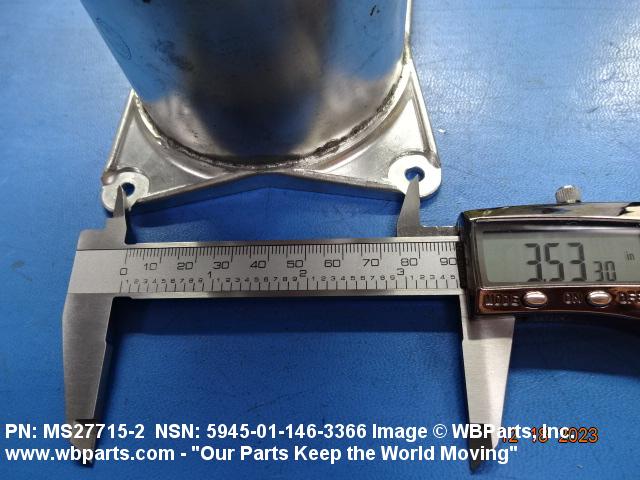

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	3.500 INCHES NOMINAL SINGLE MOUNTING FACILITY
UNTHREADED MOUNTING HOLE DIAMETER	0.218 INCHES NOMINAL SINGLE MOUNTING FACILITY
TEST DATA DOCUMENT	81349-MIL-R-6106 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS27715 GOVERNMENT STANDARD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-6106
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS27715-2

Restrictions/Controls & Freight Information | NSN 5945-01-146-3366

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-01-146-3366

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
