NSN 5945-01-149-5087 6338ED87B3, 6338ED8-7B3, 6938ED87B3
Product Details | ELECTROMAGNETIC RELAY
5945-01-149-5087 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: 6338ED87B3, 6338ED8-7B3, 6938ED87B3, 6938ED8-7B3, 5945-01-149-5087, 01-149-5087, 5945011495087, 011495087
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 MAR 1983 | 01-149-5087 | 32512 ( RELAY, ELECTROMAGNETIC ) |

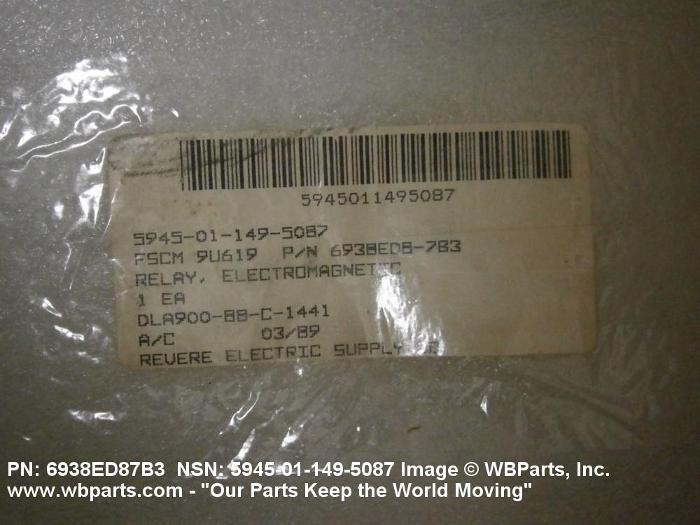

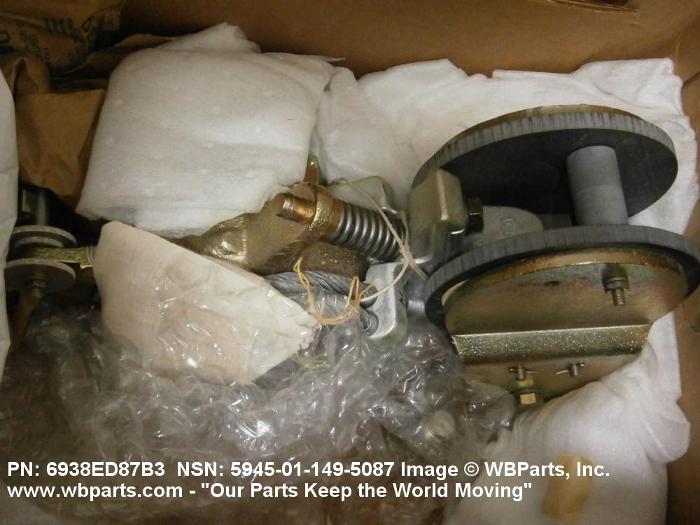

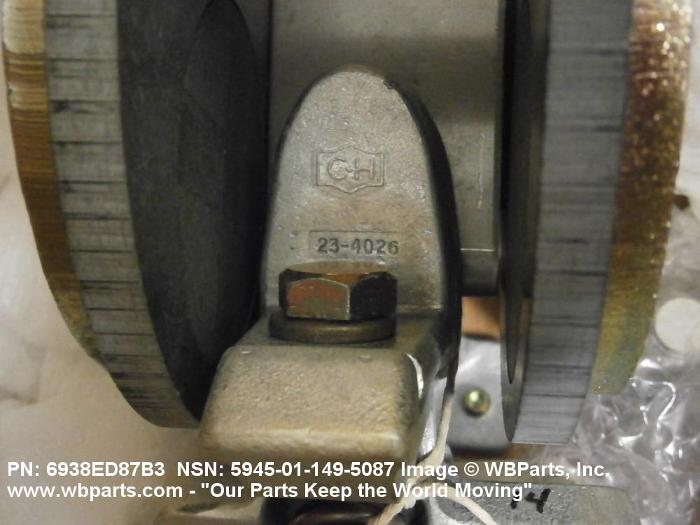

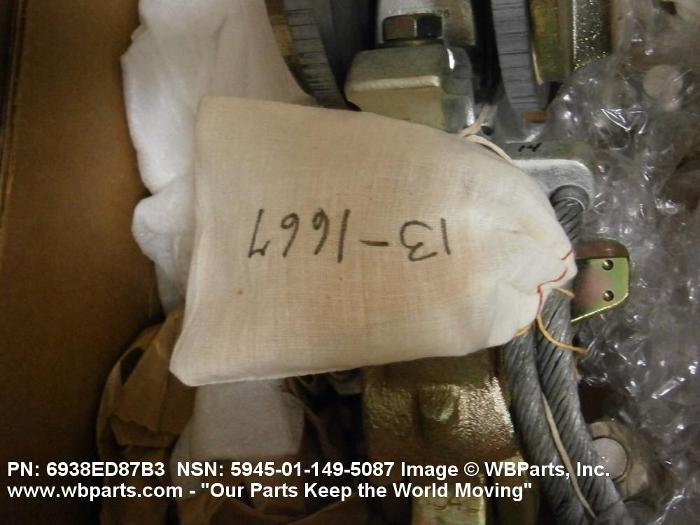

Drawings & Photos | NSN 5945-01-149-5087
Demand History | NSN 5945-01-149-5087
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6938ED8-7B3 | 2021-11-330 | 2 | DIBBS |
| 6938ED8-7B3 | 2021-11-319 | 2 | DIBBS |
| 6938ED8-7B3 | 2020-10-294 | 3 | DIBBS |
| 6938ED8-7B3 | 2020-03-72 | 3 | DIBBS |
| 5945-01-149-5087 | 2018-09-249 | 2 | DIBBS |
| 5945-01-149-5087 | 2012-11-311 | 3 | US |
| 5945-01-149-5087 | 2012-11-307 | 3 | DIBBS |
| 5945-01-149-5087 | 2012-08-244 | 3 | DIBBS |
| 5945-01-149-5087 | 2012-04-100 | 2 | DIBBS |
| 5945-01-149-5087 | 2011-10-285 | 0 | United States |
| 5945-01-149-5087 | 2011-08-227 | 2 | DIBBS |
| 5945-01-149-5087 | 2011-06-180 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-01-149-5087
Related Products | NSN 5945-01-149-5087
Technical Data | NSN 5945-01-149-5087
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION |
| NONPILE-UP AUXILIARY CONTACT ARRANGEMENT | 2 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION AND 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 600.0 AC |
| ARC QUENCHING METHOD | AIR |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 250.0 VOLTS DC 25 DEG CELSIUS ALL WINDINGS |
| TERMINAL TYPE AND QUANTITY | 10 SCREW ALL FUNCTIONS |
| DUTY TYPE | CONTINUOUS |
| OVERALL LENGTH | 8.500 INCHES NOMINAL |
| OVERALL WIDTH | 8.000 INCHES NOMINAL |
| OVERALL HEIGHT | 23.000 INCHES NOMINAL |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
| III UNPACKAGED UNIT WEIGHT | 42.000 POUNDS |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III CONTACT SURFACE TREATMENT | SILVER PLATED |
| III CASE MATERIAL | METAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5945-01-149-5087
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-01-149-5087
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
