Product Details | ELECTROMAGNETIC RELAY
5945-01-151-4418 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: 3653008275, 36530082-75, 8451991, 5945-01-151-4418, 01-151-4418, 5945011514418, 011514418
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 APR 1983 | 01-151-4418 | 32512 ( RELAY, ELECTROMAGNETIC ) |

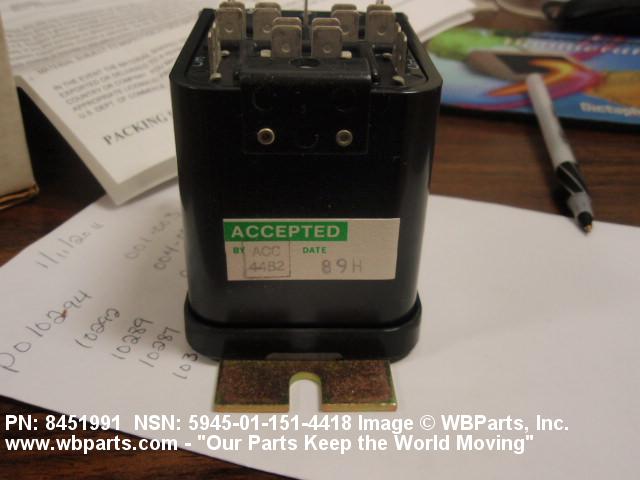

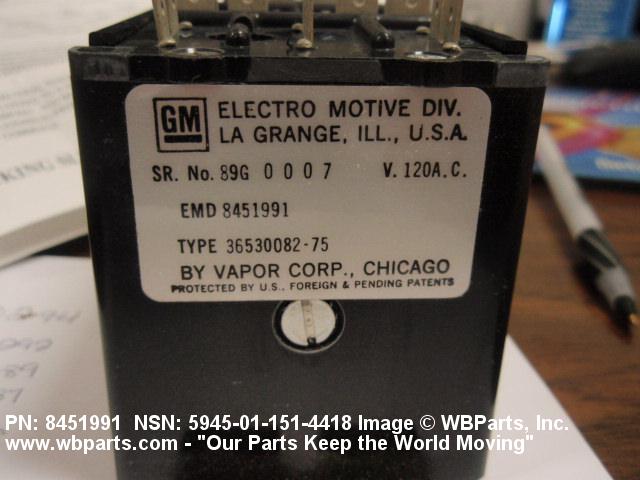

Drawings & Photos | NSN 5945-01-151-4418
Demand History | NSN 5945-01-151-4418
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-151-4418 | 2021-10-276 | 1 | US |
| 5945-01-151-4418 | 2021-10-276 | 5 | US |
| 8451991 | 2018-08-225 | 4 | US |
| 5945-01-151-4418 | 2017-10-290 | 21 | MX |
| 8451991 | 2013-06-178 | 2 | US |
| 3653008275 | 2011-08-213 | 2 | US |
| 8451991 | 2011-08-213 | 2 | US |
| 3653008275 | 2010-12-354 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-151-4418
Technical Data | NSN 5945-01-151-4418

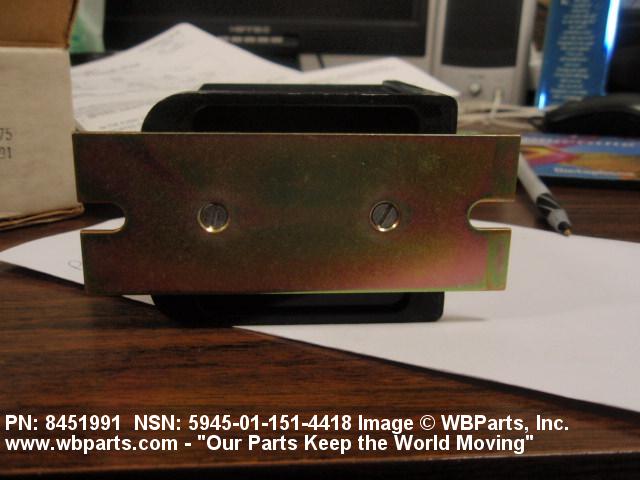

| Characteristic | Specifications |
|---|---|
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 120.0 AC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.0 AMPERES AC RESISTIVE LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 120.0 VOLTS AC 25 DEG CELSIUS SINGLE WINDING |
| TERMINAL TYPE AND QUANTITY | 11 QUICK DISCONNECT, MALE ENERGIZING ELEMENT |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | DUSTPROOF |
| OVERALL LENGTH | 4.312 INCHES NOMINAL |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| OVERALL HEIGHT | 2.719 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 SLOTTED HOLE SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | IN-LINE SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.688 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MOUNTING SLOT WIDTH | 0.250 INCHES NOMINAL SINGLE MOUNTING FACILITY |

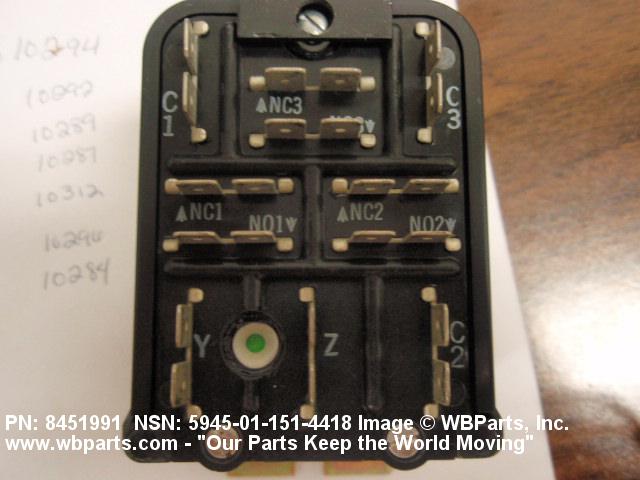

| SPECIAL FEATURES | NONPILE-UP ARRANGEMENT OF MAIN CONTACTS IS 3 NORMALLY OPEN OR 3 THAT ARE NORMALLY CLOSED; CONTACTS Y AND Z,BRIDGE RECTIFIER 16300 OHMS WINDING IS 4320 OHMS |
| III END ITEM IDENTIFICATION | USED ON MAIN ENGINE CONTROL PANEL ABOARD 180 FT. CLASS COAST GUARD VESSELS |
| III CUBIC MEASURE | 27.845 CUBIC INCHES |
| III UNPACKAGED UNIT WEIGHT | 1.000 POUNDS |
| MANUFACTURERS CODE | 72915 |
| DESIGN CONTROL REFERENCE | 8451991 |
