NSN 5945-01-183-6703 MS2740105X, MS27401-05X, MS2740113

Product Details | ELECTROMAGNETIC RELAY

5945-01-183-6703 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS2740105X, MS27401-05X, MS2740113, MS27401-13, MS2740113P, MS27401-13P , MS274015, MS27401-5, MS274015M, MS27401-5M, MS274015U, MS27401-5U, MS274015X, MS27401-5X, M2740113, M27401-13, M274015, M27401-5, M83536/9-023L, M83536/9-023M, M83536/9-023P, M835369023L, M835369023M, M835369023P, MILPRF6106, MIL-PRF-6106 , MILPRF83536, MIL-PRF-83536, MIL-PRF-83536/9, MILPRF835369, MILR6106, MIL-R-6106, MILR83536, MIL-R-83536, MIL-R-83536/9, MILR835369, 10132662 , 5169256002, 5169256-002, 72B7950001003, 72B795000-1003, 5945-01-183-6703, 01-183-6703, 5945011836703, 011836703

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	07 JUL 1984	01-183-6703	32512 ( RELAY, ELECTROMAGNETIC )

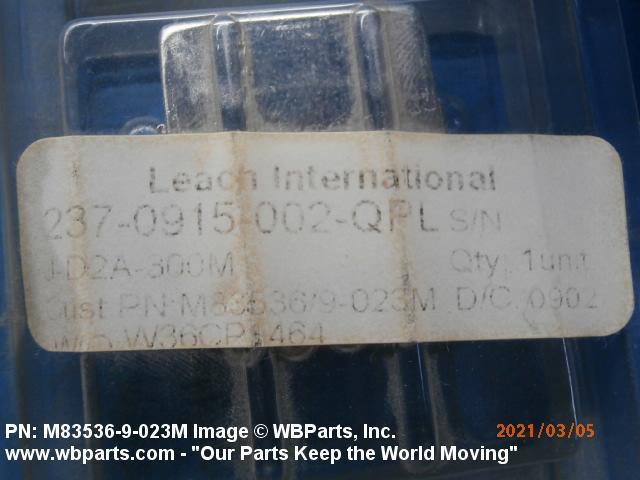

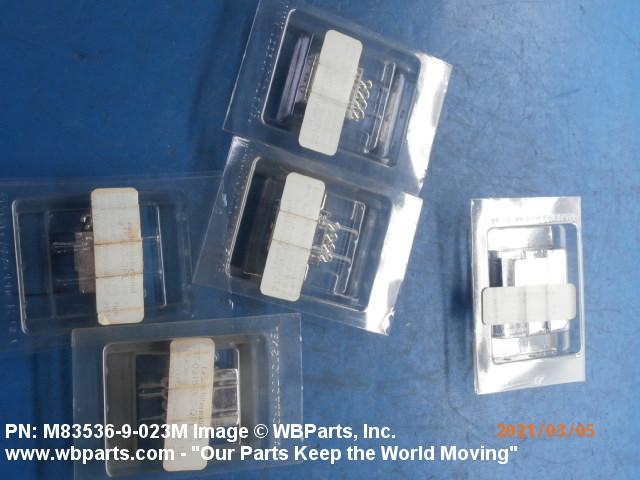

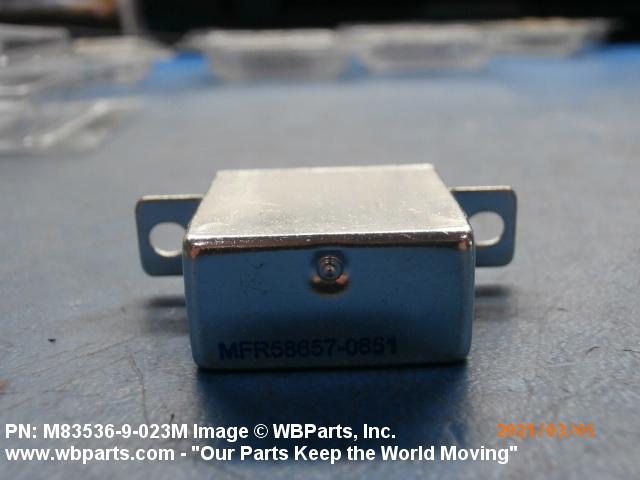

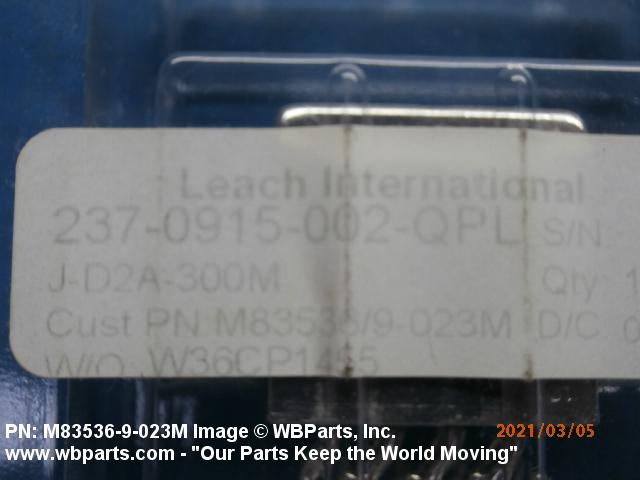

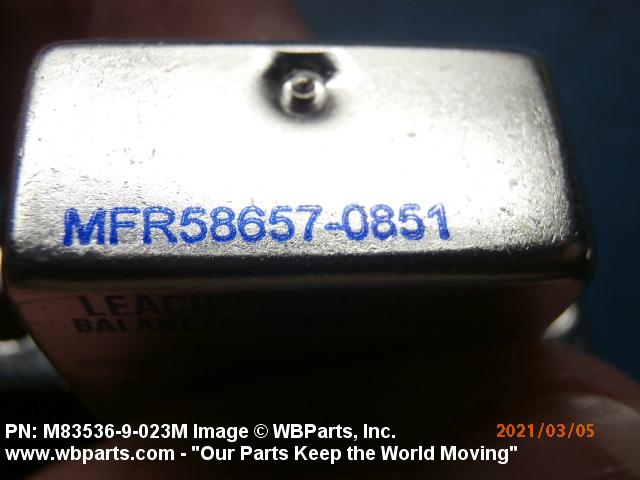

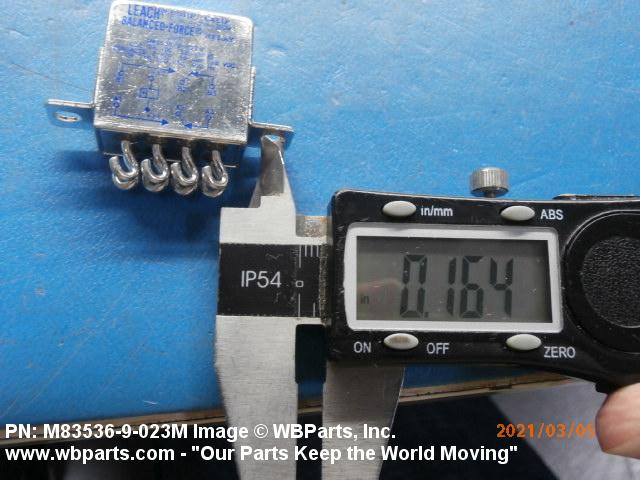

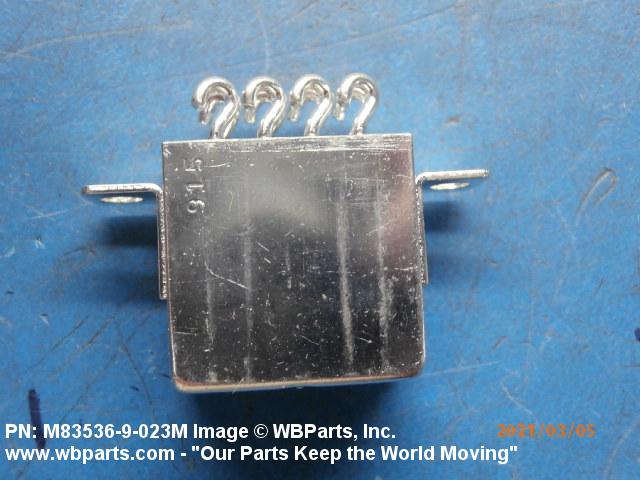

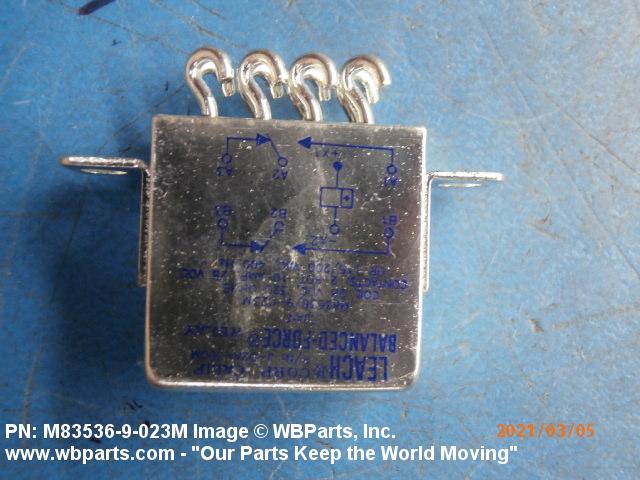

Drawings & Photos | NSN 5945-01-183-6703

Part Number	Request Date	QTY	Origin
MS274015	2025-04-91	45	China
5945-01-183-6703	2024-06-165	7	Saudi Arabia
M835369023M	2024-01-16	123	Hong Kong
M835369023M	2023-01-05	60	United States
M835369023M	2021-02-56	5	United States
5945-01-183-6703	2019-03-87	421	DIBBS
5945-01-183-6703	2018-09-257	1	DIBBS-RFPs
MS2740113	2017-08-221	20	United Arab Emirates
5945-01-183-6703	2015-01-03	60	Ukraine
5945-01-183-6703	2014-01-20	100	IR
5945-01-183-6703	2013-04-108	5	MANUAL
M835369023M	2012-08-233	15	China
5945-01-183-6703	2011-01-10	98	DIBBS
5945-01-183-6703	2010-12-335	113	DIBBS
5945-01-183-6703	2010-11-327	60	DIBBS
5945-01-183-6703	2010-05-140	69	DIBBS
M835369023L	2010-02-47	3	US
5945-01-183-6703	2010-01-14	249	DIBBS
M835369023L	2009-12-362	40	US
M835369023L	2009-12-357	40	US
M835369023M	2009-12-348	0	Malaysia
5945-01-183-6703	2009-12-341	30	China
MILR83536	2009-10-296	60	US
5945-01-183-6703	2009-07-203	127	DIBBS
5945-01-183-6703	2009-05-126	101	DIBBS
5945-01-183-6703	2009-04-98	219	DIBBS
5945-01-183-6703	2007-10-278	250	DIBBS

Cross Reference | NSN 5945-01-183-6703

Part Number	Cage Code	Manufacturer
5169256-002	53711	NAVAL SEA SYSTEMS COMMAND
72B795000-1003	76301	BOEING COMPANY, THE DBA BOEING
M27401-13	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M27401-5	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83536/9-023L	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83536/9-023M	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83536/9-023P	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-83536	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-83536/9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-83536	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-83536/9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27401-05X	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27401-13	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27401-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27401-5M	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27401-5U	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27401-5X	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-183-6703

Compare

Related Products | NSN 5945-01-183-6703

5945-01-183-6704, 5945-01-183-6705, 5945-01-183-6706, 5945-01-183-6707, 5945-01-183-6709

Technical Data | NSN 5945-01-183-6703

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD 2.0 AMPERES AC AND 2.0 AMPERES DC LAMP LOAD 4.0 AMPERES AC AND 4.0 AMPERES DC MOTOR LOAD
COIL QUANTITY	1
WINDING QUANTITY	1
WINDING DC RESISTANCE RATING	320.0 OHMS NOMINAL SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
NOMINAL OPERATING CURRENT RATING AND TYPE	110.0 MILLIAMPERES DC SINGLE WINDING

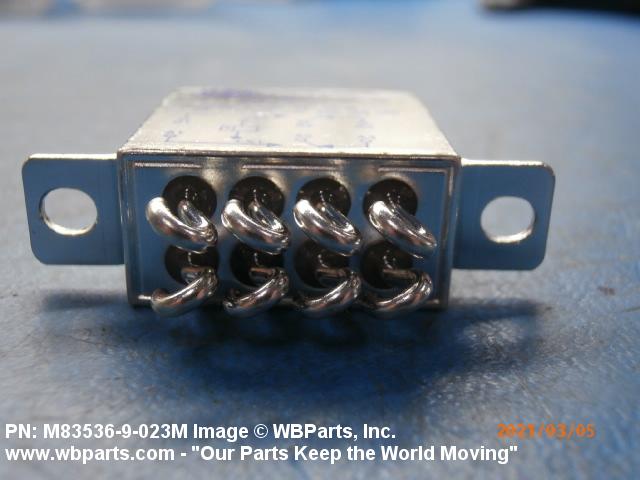

TERMINAL TYPE AND QUANTITY	8 WIRE HOOK ALL FUNCTIONS
TIME DELAY	0.01 SECONDS MAXIMUM FIXED OPERATE AND RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC

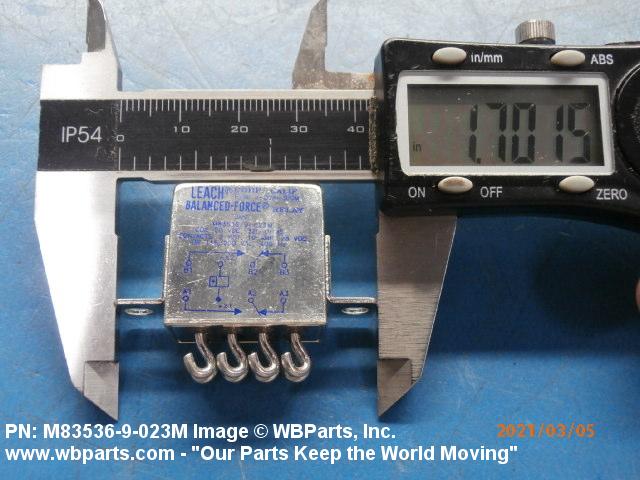

OVERALL LENGTH	1.718 INCHES MAXIMUM
OVERALL WIDTH	0.525 INCHES MAXIMUM

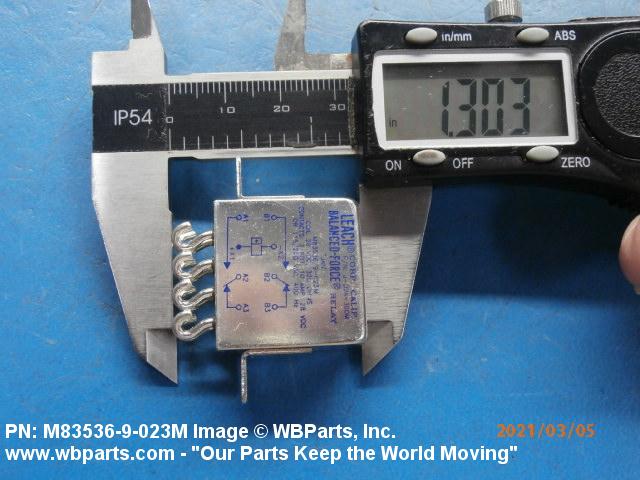

OVERALL HEIGHT	1.320 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	2 SLOTTED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	IN-LINE SINGLE MOUNTING FACILITY

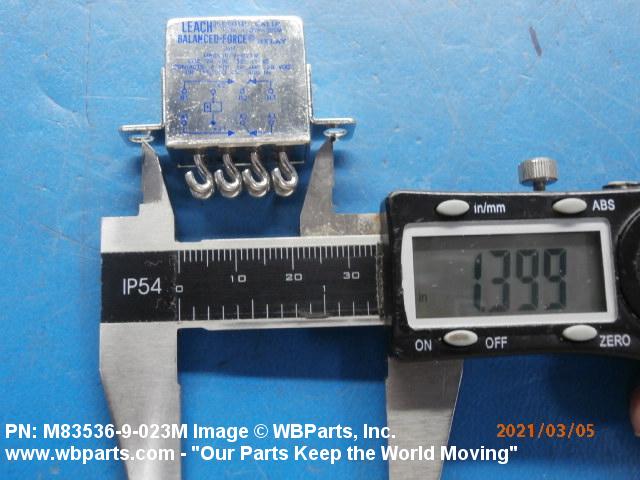

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.396 INCHES MINIMUM AND 1.446 INCHES MAXIMUM SINGLE MOUNTING FACILITY
MOUNTING SLOT WIDTH	0.150 INCHES NOMINAL SINGLE MOUNTING FACILITY
FEATURES PROVIDED	POLARIZED
TEST DATA DOCUMENT	81349-MIL-R-83536 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-R-83536/9 GOVERNMENT SPECIFICATION
III CUBIC MEASURE	1.191 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	1.440 OUNCES
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-83536
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M83536/9-023M

Restrictions/Controls & Freight Information | NSN 5945-01-183-6703

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-01-183-6703

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
