NSN 5945-01-189-1874 MS39016/6-107P, MS390166107P, M39016/55-005M

Product Details | ELECTROMAGNETIC RELAY

5945-01-189-1874 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS39016/6-107P, MS390166107P, M39016/55-005M , M39016/6-107L, M39016/6-107M, M39016/6-107P, M39016/6-207L, M39016/6-207P, M3901655005M, M390166107L, M390166107M, M390166107P, M390166207L, M390166207P, M5757/10-001, M575709011, M5757-09-011, M575710001, SX2001, BR26700B2DPDT, BR26-700B2DPDT, HF1119K01, DJ262J6AS4, UPCCSGFC29E, MILPRF39016, MIL-PRF-39016 , MIL-PRF-39016/6, MILPRF390166, MIL-R-39016/6, MILR39016/6-107, MIL-R-39016/6107L, MILR390166, MILR390166107, MILR390166107L, MILR575710, MILR5757-10, 10087238 , 18571481, 1857148-1, 2K3129, 36RJL820202, 36RJL8-20202, 3SAV1325A2, 525728, 6109K97005, 6109K97-005, 6189019001, 618-901-9001, 68A18B127, 7301483, 730148-3, 7906321-01, 9741076070, 974-1076-070, 5945-01-189-1874, 01-189-1874, 5945011891874, 790632101, 011891874

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	12 SEP 1984	01-189-1874	32512 ( RELAY, ELECTROMAGNETIC )

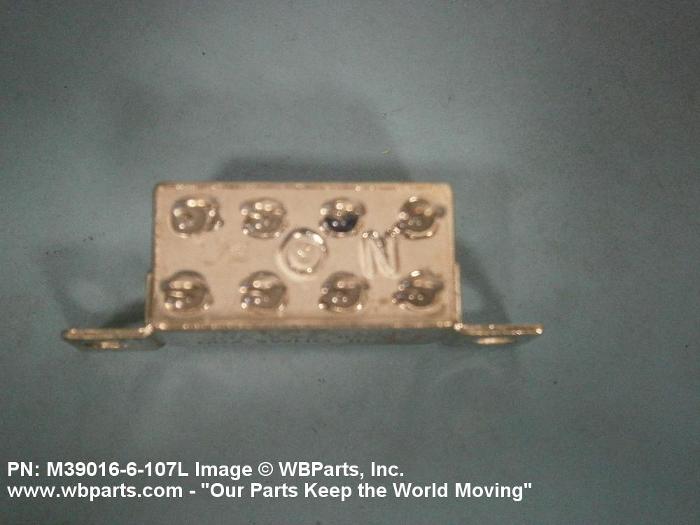

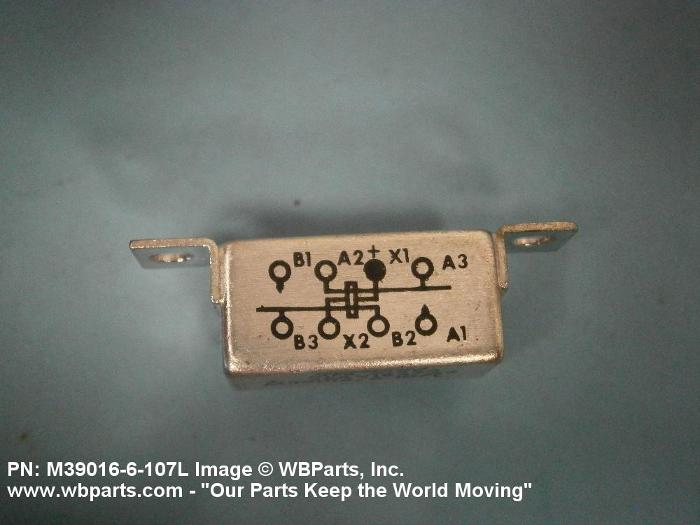

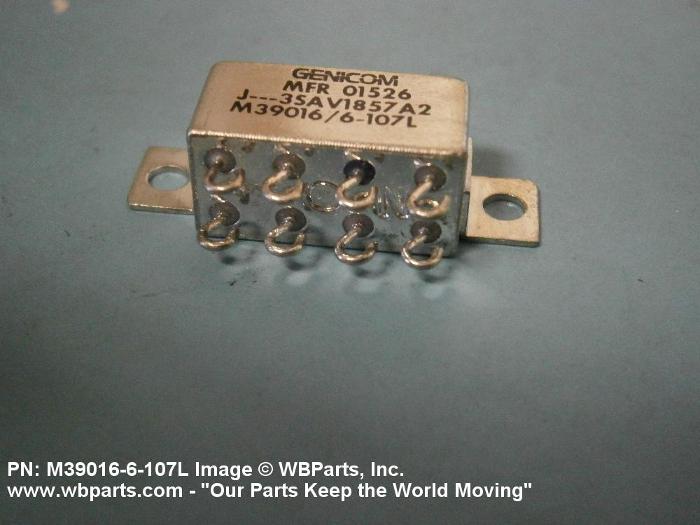

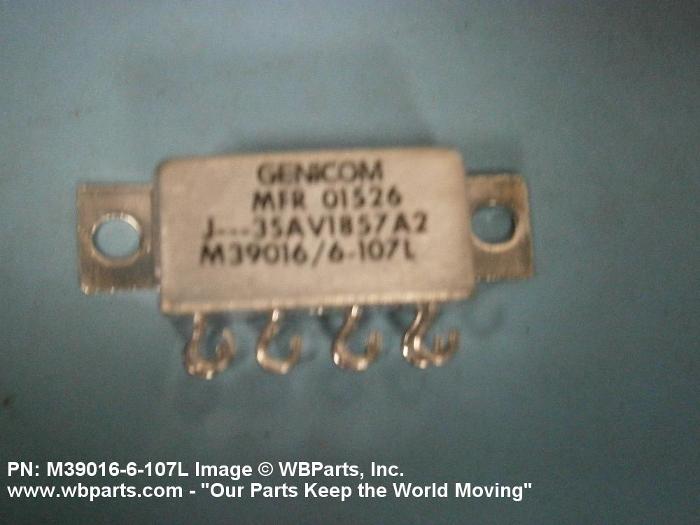

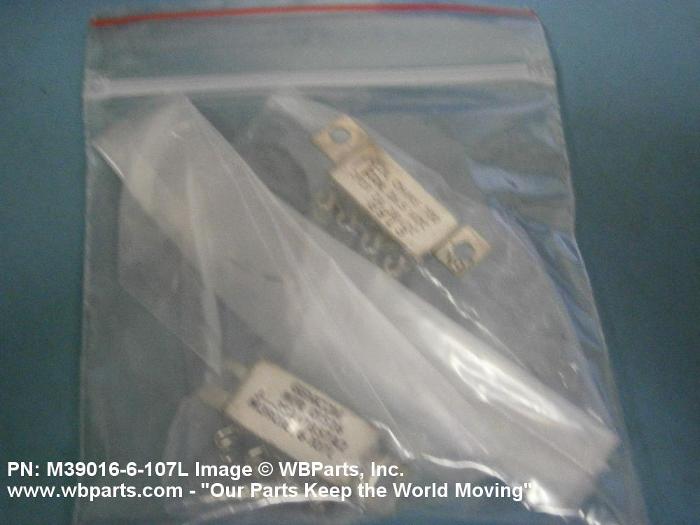

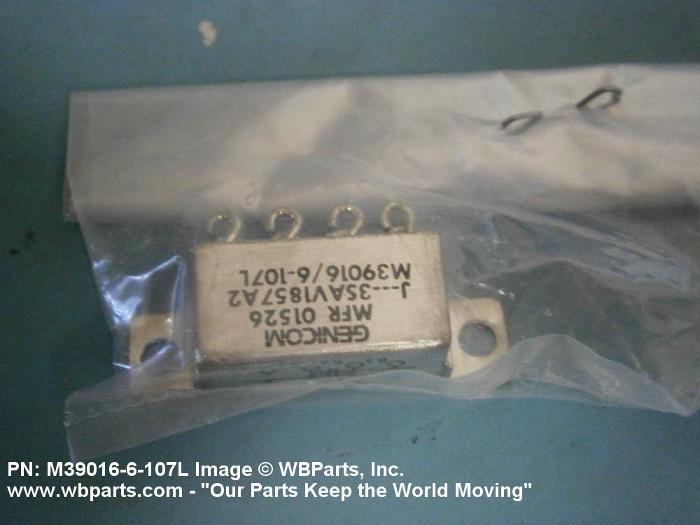

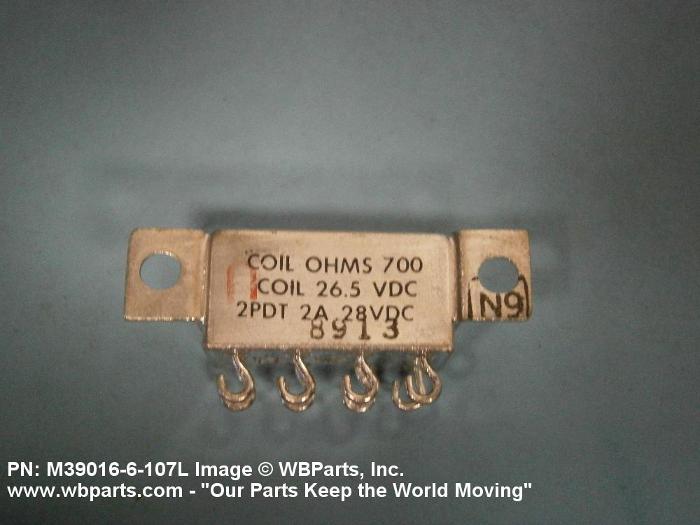

Drawings & Photos | NSN 5945-01-189-1874

Part Number	Request Date	QTY	Origin
5945-01-189-1874	2020-12-338	1	US
5945-01-189-1874	2019-09-248	20	United Arab Emirates
5945-01-189-1874	2018-04-92	254	DIBBS
5945-01-189-1874	2017-05-127	194	DIBBS
5945-01-189-1874	2017-03-89	122	DIBBS
5945-01-189-1874	2016-12-364	235	DIBBS
5945-01-189-1874	2015-09-263	20	DIBBS
5945-01-189-1874	2014-01-15	680	DIBBS
5945-01-189-1874	2013-03-87	159	DIBBS
5945-01-189-1874	2012-10-279	15	DIBBS
5945-01-189-1874	2012-09-251	123	DIBBS
M390166107M	2011-06-171	1	US
5945-01-189-1874	2009-07-203	121	DIBBS
5945-01-189-1874	2009-04-120	433	DIBBS
5945-01-189-1874	2009-03-86	237	DIBBS
5945-01-189-1874	2009-03-82	364	DIBBS
5945-01-189-1874	2008-12-350	281	DIBBS
5945-01-189-1874	2008-05-140	303	DIBBS
5945-01-189-1874	2008-03-84	91	DIBBS
MILR390166	2006-01-31	40	IT

Cross Reference | NSN 5945-01-189-1874

Part Number	Cage Code	Manufacturer
1857148-1	19315	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND
1857148-1	55972	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
2K3129	00062	MARINE ELECTRIC SYSTEMS, INC. DBA MESYS
36RJL8-20202	78277	SIGMA INSTRUMENTS INC
3SAV1325A2	01526	GENICOM CORP
3SAV1325A2	1DUQ5	COMMUNICATIONS INSTRUMENTS INC DIV OF CII TECHNOLOGIES
525728	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6109K97-005	97424	AMETEK, INC. DIV AEROSPACE & DEFENSE
618-901-9001	07217	HONEYWELL ASCA INC DIVAEROSPACE-TORONTO DBA HONEYWELL
68A18B127	30003	NAVAL AIR SYSTEMS COMMAND
730148-3	80249	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
7906321-01	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
974-1076-070	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
BR26-700B2DPDT	82050	ESTERLINE ELECTRONICS CORP
DJ262J6AS4	99699	DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE
HF1119K01	00779	TYCO ELECTRONICS CORPORATION
HF1119K01	1E9M5	C P CLARE CORP
HF1119K01	58614	TYCO ELECTRONICS CORPORATION DBA CII TECHNOLOGIES
M39016/6-107L	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39016/6-107M	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39016/6-107P	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39016/6-207L	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39016/6-207P	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M5757-09-011	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M5757/10-001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-39016/6	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-39016/6	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-39016/6107L	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILR39016/6-107	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILR5757-10	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS39016/6-107P	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
SX2001	02288	ALLIED CONTROLS, INC.
UPCCSGFC29E	81312	WINCHESTER ELECTRONICS CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-189-1874

Compare

Related Products | NSN 5945-01-189-1874

5945-01-189-1875, 5945-01-189-1876, 5945-01-189-1877, 5945-01-189-1878, 5945-01-189-2497

Technical Data | NSN 5945-01-189-1874

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	300.0 MILLIAMPERES AC AND 2.0 AMPERES DC RESISTIVE LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	1
WINDING QUANTITY	1
WINDING DC RESISTANCE RATING	700.0 OHMS NOMINAL SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	26.5 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
TERMINAL TYPE AND QUANTITY	8 WIRE HOOK ALL FUNCTIONS
TIME DELAY	0.004 SECONDS MAXIMUM FIXED OPERATE AND RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC
OVERALL LENGTH	1.320 INCHES MAXIMUM
OVERALL WIDTH	0.600 INCHES MAXIMUM
OVERALL HEIGHT	0.410 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	2 SLOTTED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	IN-LINE SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.062 INCHES MINIMUM AND 1.078 INCHES MAXIMUM SINGLE MOUNTING FACILITY
MOUNTING SLOT WIDTH	0.120 INCHES NOMINAL SINGLE MOUNTING FACILITY
FEATURES PROVIDED	POLARIZED
SPECIAL FEATURES	FAILURE RATE LEVEL 0.1 PERCENT
TEST DATA DOCUMENT	81349-MIL-R-39016 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-R-39016/6 GOVERNMENT SPECIFICATION
CRITICALITY CODE JUSTIFICATION	FEAT
III PURPOSE FOR WHICH DESIGNED	GENERAL
(NON-CORE DATA) END ITEM SOURCE	12345
III CUBIC MEASURE	0.325 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	13.0 GRAMS
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-39016/6
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M39016/6-107P

Restrictions/Controls & Freight Information | NSN 5945-01-189-1874

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-01-189-1874

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
