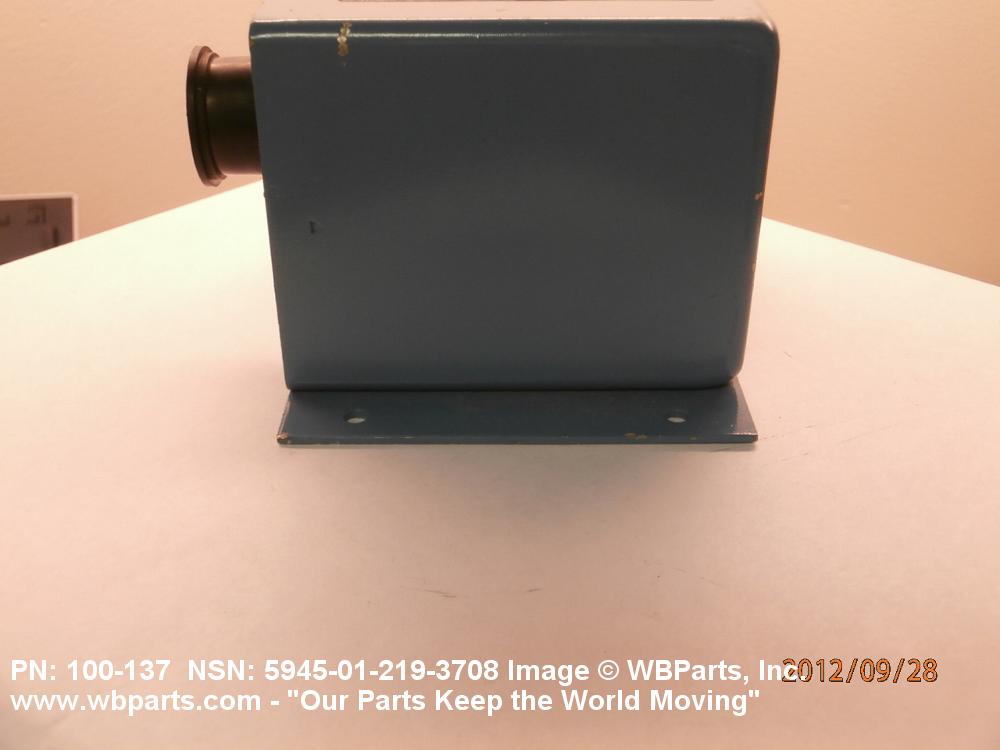

NSN 5945-01-219-3708 100137, 100-137, 60185901

5945-01-219-3708

Part Alternates: 100137, 100-137, 60185901, 601859-01, 5945-01-219-3708, 01-219-3708, 5945012193708, 012193708

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	25 OCT 1985	01-219-3708	77777 ( )

Part Number	Request Date	QTY	Origin
5945-01-219-3708	2016-04-96	1	DIBBS
5945-01-219-3708	2016-03-91	1	DIBBS
5945-01-219-3708	2016-02-35	2	DIBBS
5945-01-219-3708	2015-12-342	1	DIBBS
5945-01-219-3708	2015-05-125	2	DIBBS
5945-01-219-3708	2015-02-54	1	DIBBS
100137	2012-10-299	1	United Kingdom
5945-01-219-3708	2012-09-262	4	United Kingdom
5945-01-219-3708	2012-08-219	2	United Kingdom
5945-01-219-3708	2012-07-193	2	United Kingdom
5945-01-219-3708	2012-07-190	2	DIBBS

Part Number	Cage Code	Manufacturer
100-137	15420	LOGITEK INC
601859-01	09017	EDO

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5945-01-219-3708

Compare

5945-01-219-4203, 5945-01-219-4802, 5945-01-219-4884, 5945-01-219-5829, 5945-01-219-6021

Characteristic	Specifications
END ITEM IDENTIFICATION	SIMULATOR,RADAR SIGNAL,6940011375984
GENERAL CHARACTERISTICS ITEM DESCRIPTION	THREE-PHASE POWER MONITOR; HERMETICALLY SEALED; INPUT(OPERATING) 115/220 VRMS; FREQ 60 HZ; INPUT(SENSE) VOLTAGE BAND 108/132 VRMS; FREQ BAND 57 HZ/63 HZ; TIME DELAY DROP OUT 0.5 SEC; PICK UP 2 SEC; TERMINALS GLASS TO METAL SEAL,SOLDER HOOKS; OUTPUT CONTACT RATING 10A RESISTIVE/6A INDUCTIVE; 3.940 IN. LG; 2.063 IN. H; 3.171 IN. W; POWER DISSIPATION 6W MAX; 0.560 IN. DIA MTG HOLES,4; 3.437 IN. BETWEEN MTG HOLES PARALLEL TO LG; 2.171 IN. PARALLEL TO W

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	TA	Sacramento Air Logistics Center McClellan AFB, CA 95652-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
