NSN 5945-01-241-8471 W172DIT38, W172DIT-38, 191TE1C224L
Product Details | REED RELAY

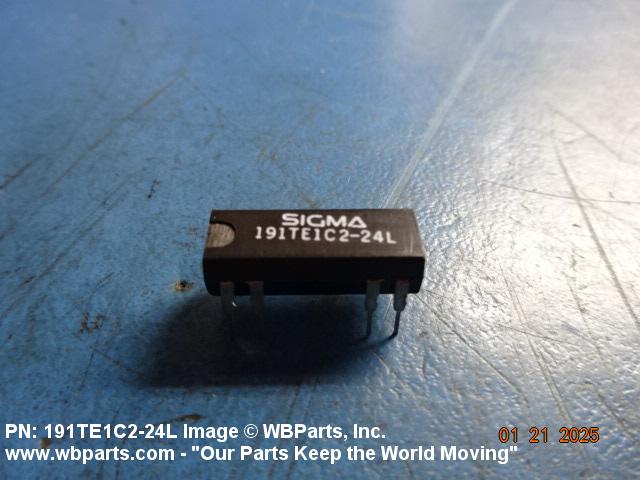

5945-01-241-8471 A relay consisting of an energizing coil and a metallic reed switch mechanism. The reeds serve as both core and contacts, which are not hinged or pivoted and which move by flexure when acted upon by a magnetic field induced by energization of the coil. It may also include a biasing magnet. The biasing magnet, either aids or opposes the movement of the reeds and the opening or closing of the contacts. For items in which actuation is dependent on the resonant frequency of the reeds see RELAY, RESONANT REED. Excludes RELAY, ELECTROMAGNETIC.
Part Alternates: W172DIT38, W172DIT-38, 191TE1C224L, 191TE1C2-24L, 5945-01-241-8471, 01-241-8471, 5945012418471, 012418471
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 OCT 1986 | 01-241-8471 | 30544 ( RELAY, REED ) |

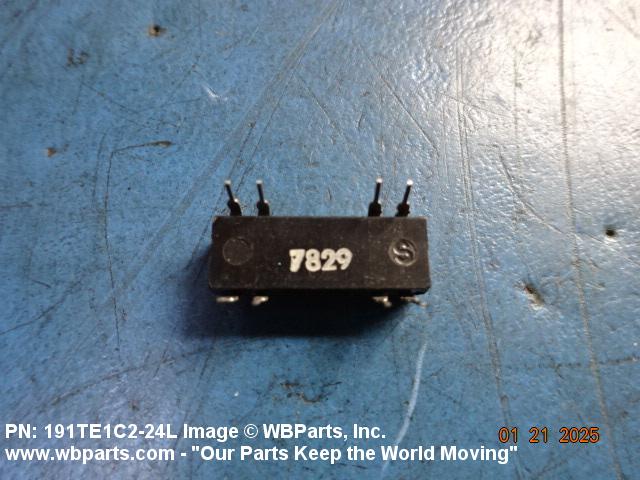

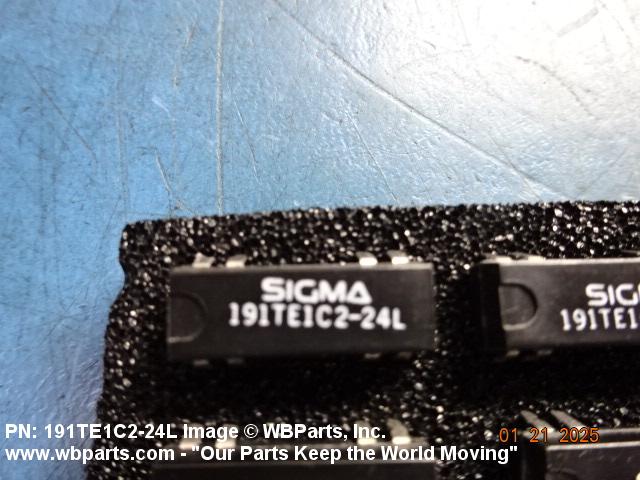

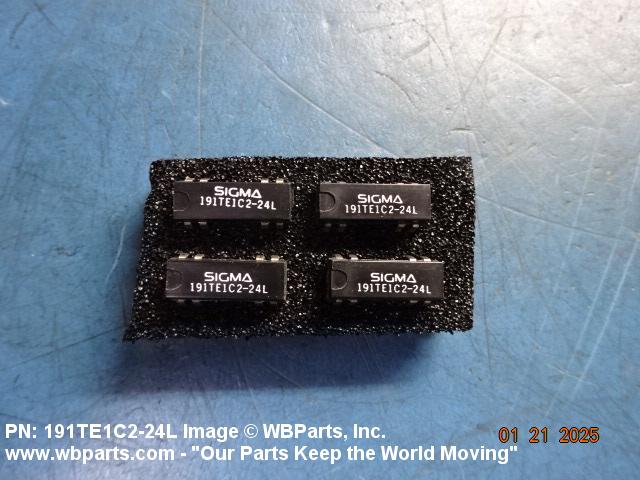

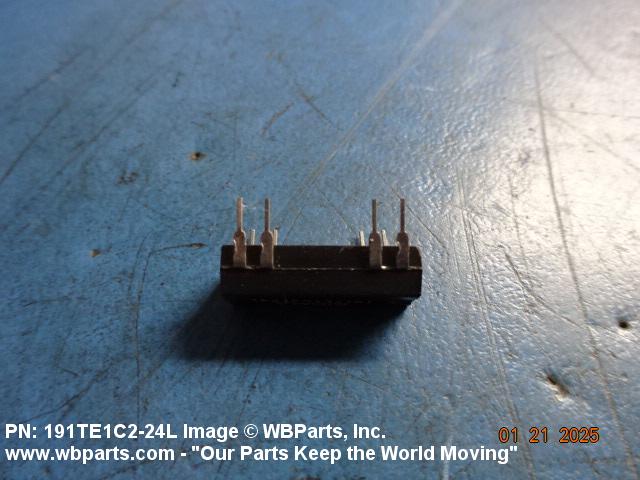

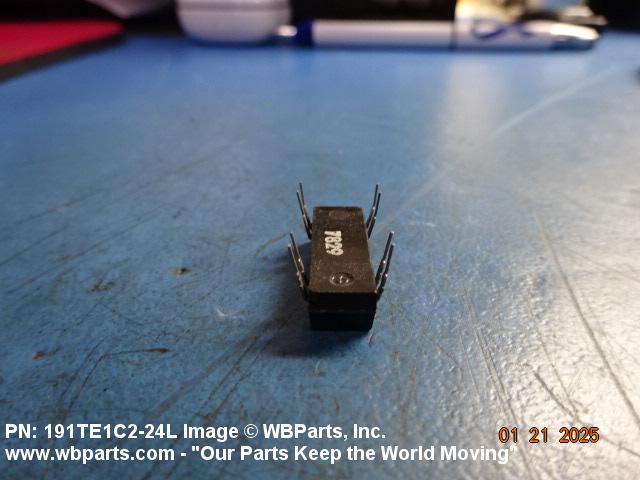

Drawings & Photos | NSN 5945-01-241-8471
Demand History | NSN 5945-01-241-8471
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 191TE1C224L | 2025-01-02 | 4 | United States |
| 5945-01-241-8471 | 2006-11-324 | 100 | China |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-241-8471
Technical Data | NSN 5945-01-241-8471

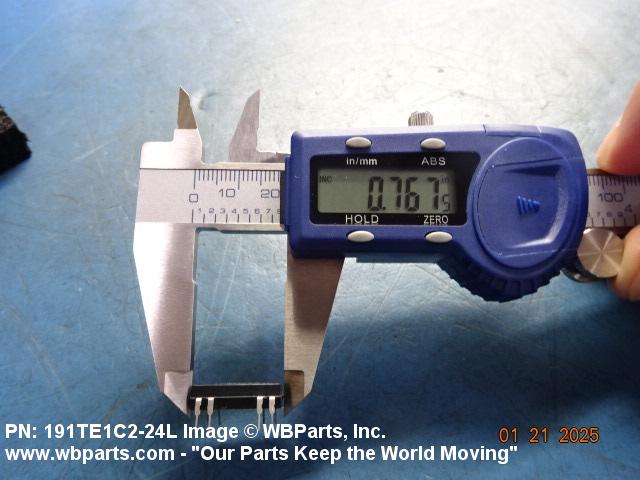

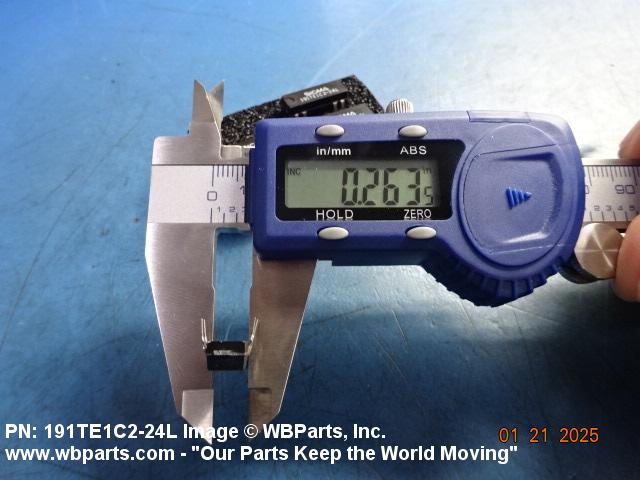

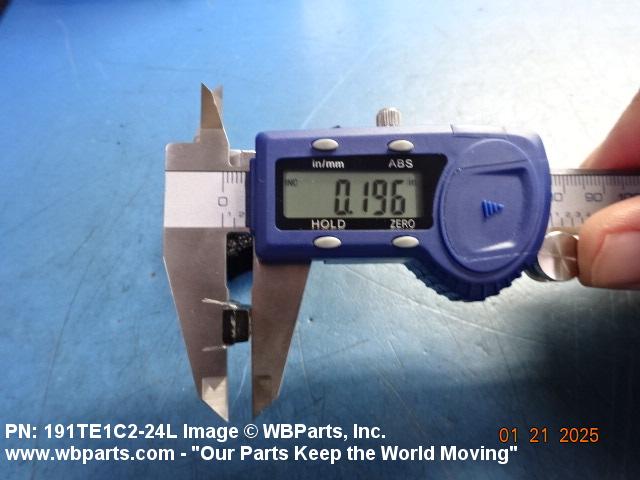

| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 100.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 500.0 MILLIAMPERES DC RESISTIVE LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 1.25 KILOHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 24.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| ENERGIZING ELEMENT POWER RATING | 10.0 WATTS |
| TERMINAL TYPE AND QUANTITY | 5 PIN ALL FUNCTIONS |
| DUTY TYPE | CONTINUOUS |
| OVERALL LENGTH | 0.750 INCHES MAXIMUM |
| OVERALL WIDTH | 0.300 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.196 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PLUG-IN TERMINAL SINGLE MOUNTING FACILITY |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
| III END ITEM IDENTIFICATION | END ITEM NAME: 141 FLT SIM |
| (NON-CORE DATA) END ITEM SOURCE | 82932 |
| III CUBIC MEASURE | 0.044 CUBIC INCHES |
| III UNPACKAGED UNIT WEIGHT | 0.050 OUNCES |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III CONTACT MATERIAL | GOLD |
| III CONTACT SURFACE TREATMENT | RHODIUM PLATED |
| III CASE MATERIAL | PLASTIC |
| III PRECIOUS MATERIAL | GOLD AND RHODIUM |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS GOLD AND CONTACT SURFACES RHODIUM |
