NSN 5945-01-254-0600 AZ8202C12DE, AZ820-2C-12DE, 0008005308
Product Details | ELECTROMAGNETIC RELAY
5945-01-254-0600 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: AZ8202C12DE, AZ820-2C-12DE, 0008005308, 000-8005-308, 5945-01-254-0600, 01-254-0600, 5945012540600, 012540600
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30-APR-87 | 01-254-0600 | 32512 ( RELAY, ELECTROMAGNETIC ) |

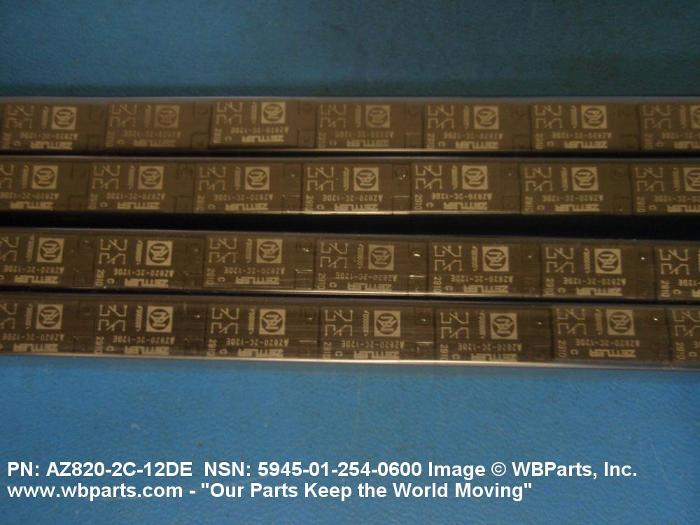

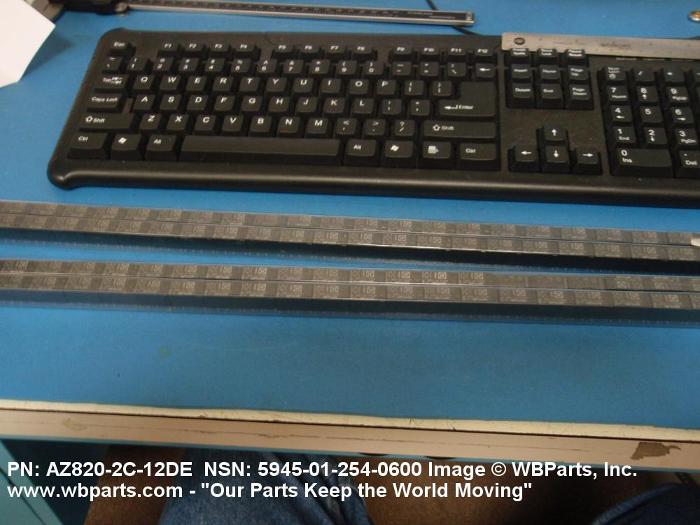

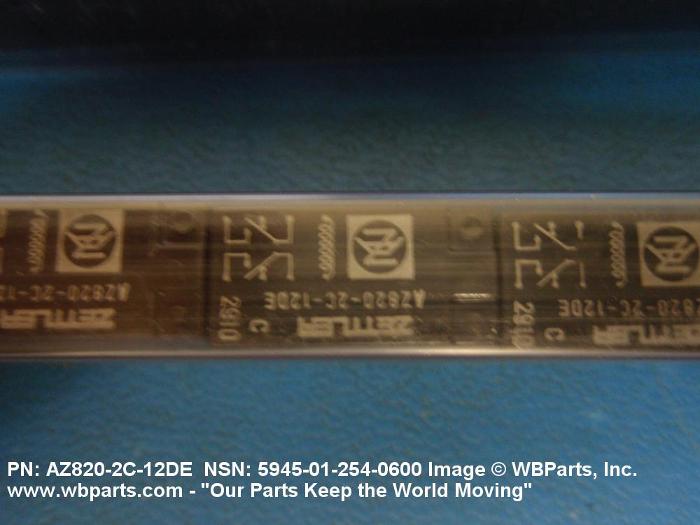

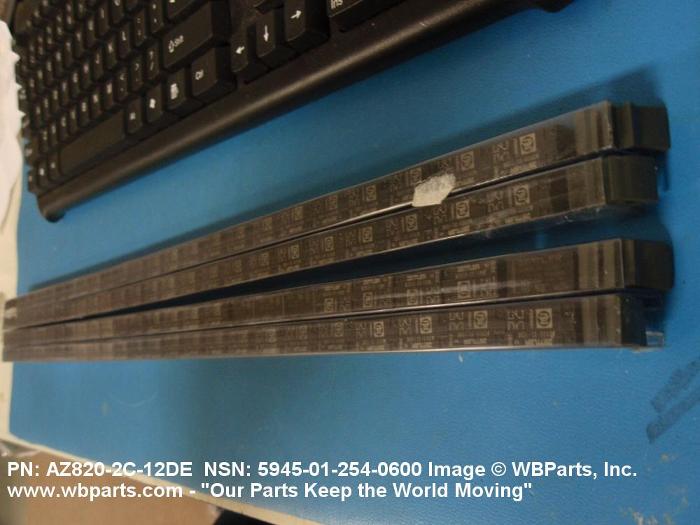

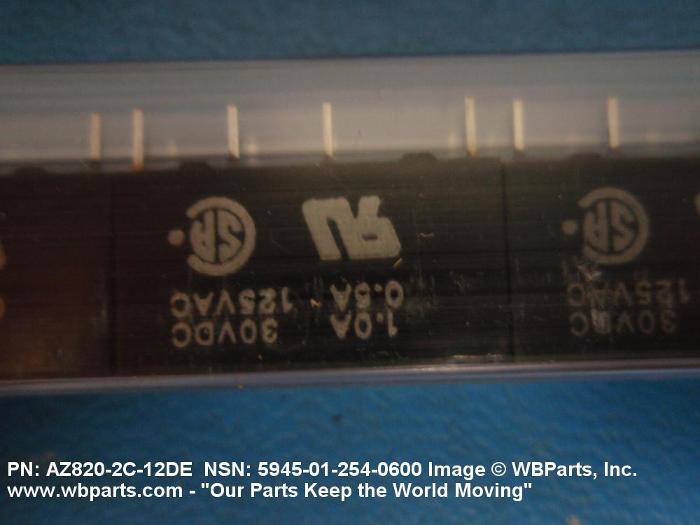

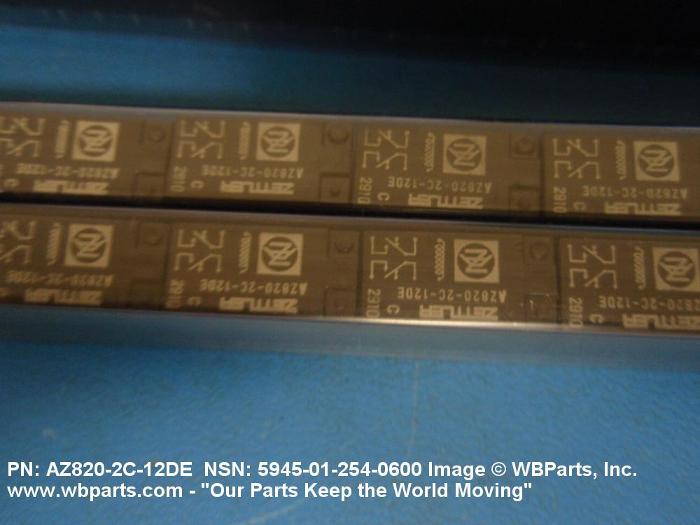

Drawings & Photos | NSN 5945-01-254-0600
Demand History | NSN 5945-01-254-0600
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-254-0600 | 2012-05-125 | 42 | DIBBS |
| 5945-01-254-0600 | 2012-03-79 | 28 | DIBBS |
| AZ8202C12DE | 2011-04-102 | 100 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-254-0600
Technical Data | NSN 5945-01-254-0600
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 150.0 AC AND 150.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 2.0 AMPERES AC AND 2.0 AMPERES DC RESISTIVE LOAD |
| ARC QUENCHING METHOD | AIR |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 280.0 OHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 12.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| TERMINAL TYPE AND QUANTITY | 8 PIN ALL FUNCTIONS |
| TIME DELAY | 0.005 SECONDS NOMINAL FIXED OPERATE TIME 0.002 SECONDS NOMINAL FIXED RELEASE TIME |
| DUTY TYPE | CONTINUOUS |
| OVERALL LENGTH | 0.830 INCHES MAXIMUM |
| OVERALL WIDTH | 0.430 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.465 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PLUG-IN TERMINAL SINGLE MOUNTING FACILITY |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
| III END ITEM IDENTIFICATION | ITA MTS 32ITA |
| (NON-CORE DATA) END ITEM SOURCE | 94756 |
| III CUBIC MEASURE | 0.166 CUBIC INCHES |
| III UNPACKAGED UNIT WEIGHT | 5.0 GRAMS |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III CASE MATERIAL | PLASTIC |
Restrictions/Controls & Freight Information | NSN 5945-01-254-0600
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
