NSN 5945-01-290-6629 M6106/28-024U, M6106/28-024X, M610628024U

Product Details | ELECTROMAGNETIC RELAY

5945-01-290-6629 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: M6106/28-024U, M6106/28-024X, M610628024U, M610628024X, M83536/6-022M, M835366022M, A134628, A13-4628, E4051060, E405-1060, JANM83536/6-022M, JANM835366022M, MIL-PRF-83536/6, MILPRF835366, MIL-R-6106/28, MILR610628, MIL-R-83536/6, MILR835366, 134628, 13-4628, 5945-01-290-6629, 01-290-6629, 5945012906629, 012906629

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	14 DEC 1988	01-290-6629	32512 ( RELAY, ELECTROMAGNETIC )

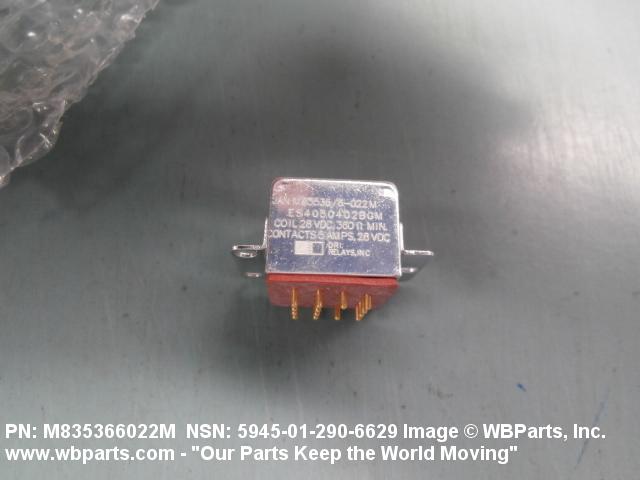

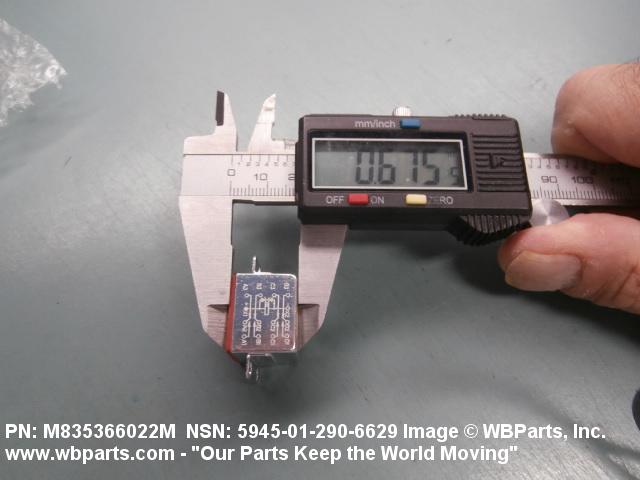

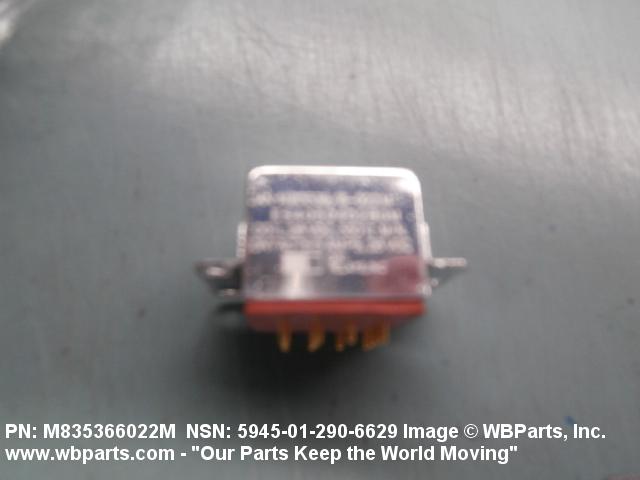

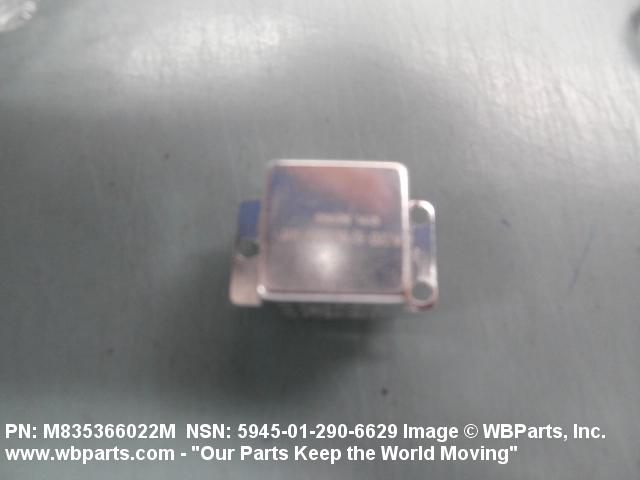

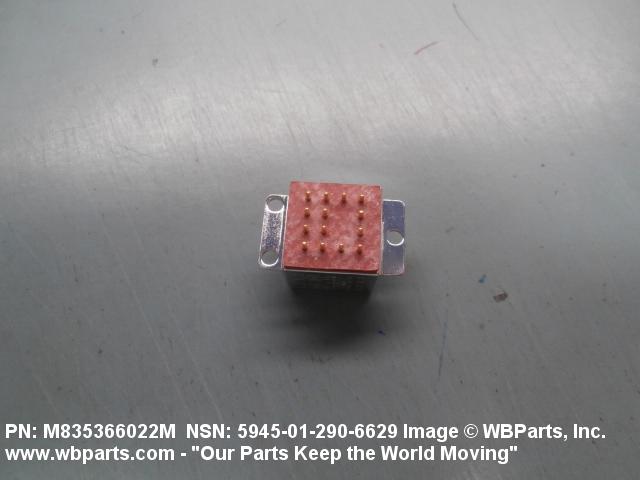

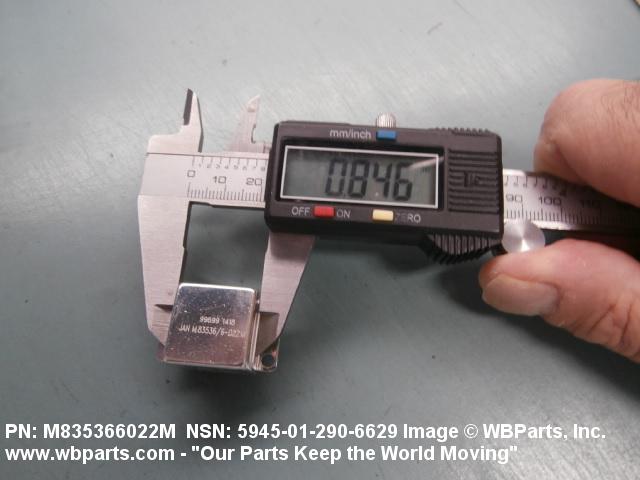

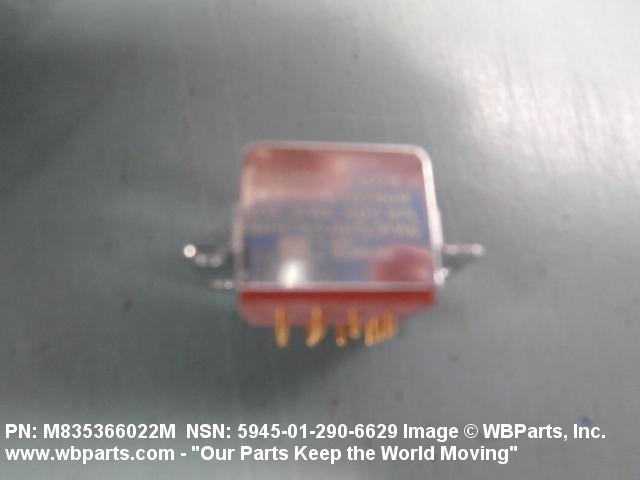

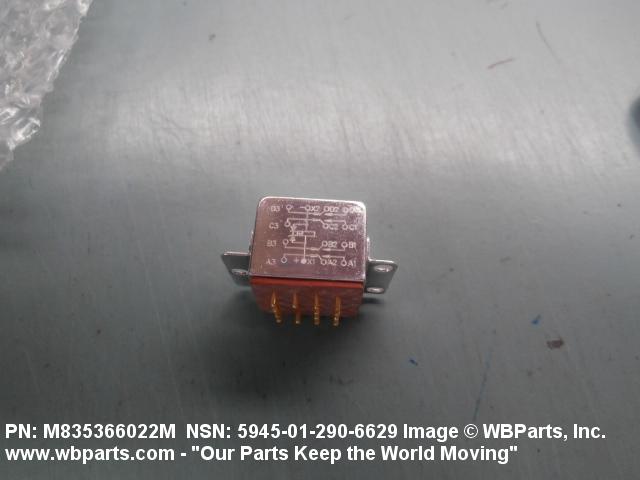

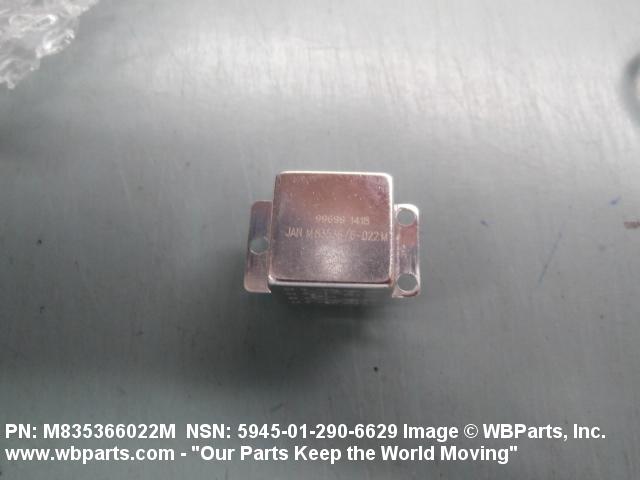

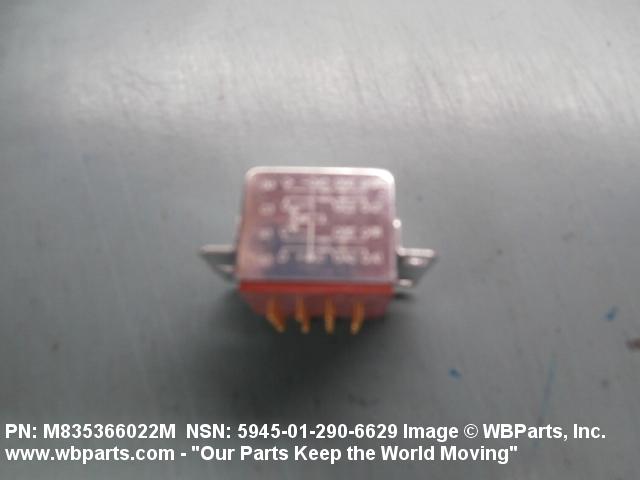

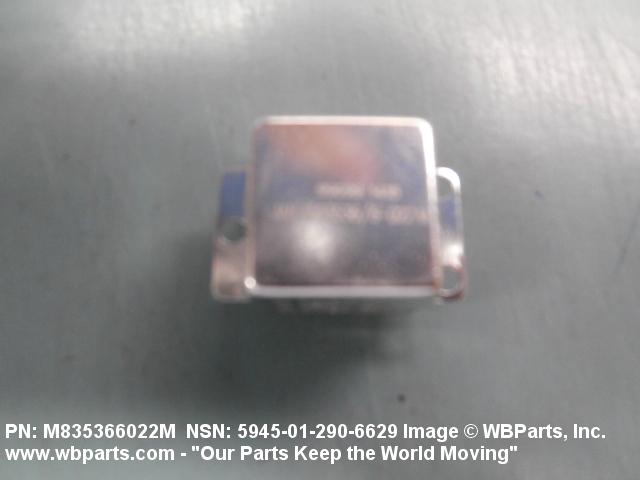

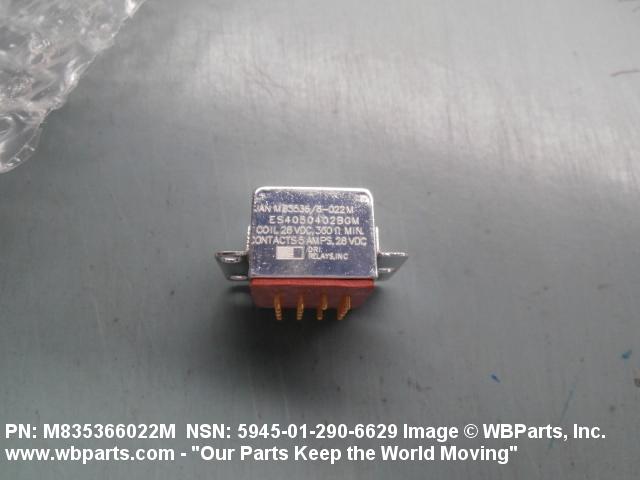

Drawings & Photos | NSN 5945-01-290-6629

Part Number	Request Date	QTY	Origin
5945-01-290-6629	2024-03-79	150	DIBBS
5945-01-290-6629	2023-12-353	620	DIBBS
5945-01-290-6629	2023-12-337	306	DIBBS
5945-01-290-6629	2022-11-326	1000	US
5945-01-290-6629	2022-10-304	1000	DIBBS
5945-01-290-6629	2022-07-209	147	DIBBS
5945-01-290-6629	2022-07-198	147	DIBBS
5945-01-290-6629	2022-03-65	636	DIBBS
M83536/6-022M	2020-05-136	4	Poland
M835366022M	2019-12-345	1	Sweden
5945-01-290-6629	2019-11-325	1	United States
5945-01-290-6629	2019-01-24	231	DIBBS
5945-01-290-6629	2018-12-343	195	DIBBS
5945-01-290-6629	2018-09-257	1	DIBBS-RFPs
M835366022M	2016-03-82	4	United States
M835366022M	2014-05-129	2	Ecuador
M835366022M	2014-05-129	2	Ecuador
M835366022M	2014-05-129	2	Ecuador
5945-01-290-6629	2013-05-150	307	DIBBS
5945-01-290-6629	2013-03-65	485	DIBBS
5945-01-290-6629	2013-01-04	227	DIBBS
5945-01-290-6629	2012-12-352	307	DIBBS
5945-01-290-6629	2012-06-181	415	DIBBS
5945-01-290-6629	2012-03-79	20	ZA
5945-01-290-6629	2012-03-62	404	DIBBS
5945-01-290-6629	2011-11-308	785	DIBBS
M835366022M	2011-07-188	2	Spain
M835366022M	2011-02-46	1	PH
5945-01-290-6629	2009-12-345	35	DIBBS
M835366022M	2009-11-334	6	Italy
M835366022M	2009-11-327	10	Hungary
5945-01-290-6629	2009-09-244	243	DIBBS
5945-01-290-6629	2008-06-178	200	DIBBS
5945-01-290-6629	2008-02-37	1115	DIBBS
5945-01-290-6629	2007-10-283	1601	DIBBS
5945-01-290-6629	2007-08-218	554	DIBBS
M835366022M	2007-07-199	6	US
5945-01-290-6629	2007-05-143	2	DIBBS
5945-01-290-6629	2007-05-127	679	DIBBS
5945-01-290-6629	2007-03-89	237	DIBBS
5945-01-290-6629	2007-02-54	52	DIBBS
5945-01-290-6629	2007-02-32	169	DIBBS

Cross Reference | NSN 5945-01-290-6629

Part Number	Cage Code	Manufacturer
13-4628	99699	DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE
A13-4628	99699	DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE
E405-1060	99699	DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE
JANM83536/6-022M	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M6106/28-024U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M6106/28-024X	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83536/6-022M	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-83536/6	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106/28	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-83536/6	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-290-6629

Compare

Related Products | NSN 5945-01-290-6629

5945-01-290-6662, 5945-01-290-6977, 5945-01-290-7459, 5945-01-290-7553, 5945-01-290-7669

Technical Data | NSN 5945-01-290-6629

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	5.0 AMPERES AC AND 5.0 AMPERES DC RESISTIVE LOAD 3.0 AMPERES AC AND 3.0 AMPERES DC INDUCTIVE LOAD 1.0 AMPERES AC AND 1.0 AMPERES DC LAMP LOAD 2.0 AMPERES AC AND 2.0 AMPERES DC MOTOR LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	1
WINDING QUANTITY	1
WINDING DC RESISTANCE RATING	400.0 OHMS NOMINAL SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
NOMINAL OPERATING CURRENT RATING AND TYPE	81.0 MILLIAMPERES DC SINGLE WINDING
TERMINAL TYPE AND QUANTITY	14 PIN ALL FUNCTIONS
TIME DELAY	0.006 SECONDS MAXIMUM FIXED OPERATE AND RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC

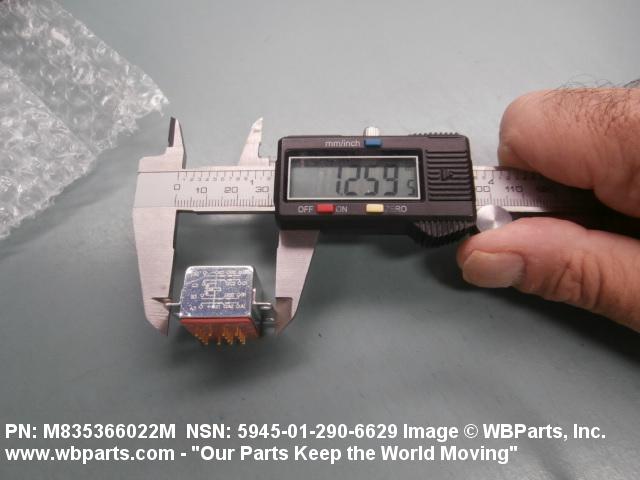

OVERALL LENGTH	1.260 INCHES MINIMUM AND 1.280 INCHES MAXIMUM

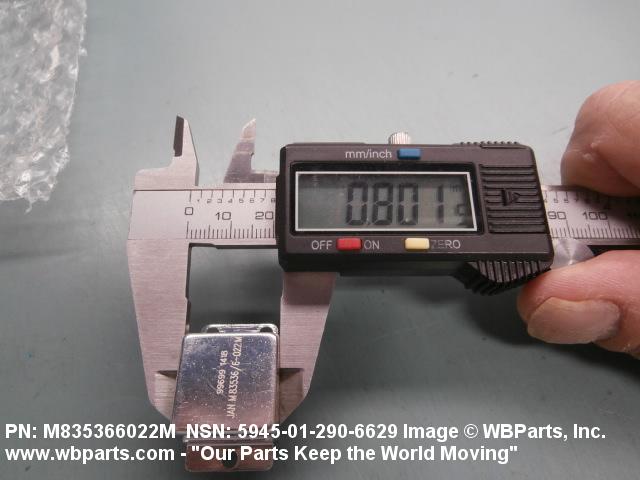

OVERALL WIDTH	0.790 INCHES MINIMUM AND 0.810 INCHES MAXIMUM
OVERALL HEIGHT	0.620 INCHES MINIMUM AND 0.640 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	3 SLOTTED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	TRIANGLE SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO THE ALTITUDE OF AN ISOSCELES TRIANGLE	1.062 INCHES MINIMUM AND 1.078 INCHES MAXIMUM SINGLE MOUNTING FACILITY
MOUNTING SLOT WIDTH	0.131 INCHES MINIMUM AND 0.151 INCHES MAXIMUM SINGLE MOUNTING FACILITY
FEATURES PROVIDED	POLARIZED
SPECIAL FEATURES	FAILURE RATE LEVEL1.0 PERCENT PER 10000 OPERATIONS
TEST DATA DOCUMENT	81349-MIL-R-83536 SPECIFICATION SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-R-83536/6 GOVERNMENT SPECIFICATION GOVERNMENT SPECIFICATION
CRITICALITY CODE JUSTIFICATION	FEAT
III PURPOSE FOR WHICH DESIGNED	GENERAL
III CUBIC MEASURE	0.664 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	264.0 GRAMS
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE

Restrictions/Controls & Freight Information | NSN 5945-01-290-6629

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-01-290-6629

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
