NSN 5945-01-297-9850 M6106/29-004M, M610629004M, MIL-R-6106/29
Product Details | ELECTROMAGNETIC RELAY
5945-01-297-9850 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: M6106/29-004M, M610629004M, MIL-R-6106/29, MILR610629, 5945-01-297-9850, 01-297-9850, 5945012979850, 012979850
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-297-9850 | 32512 ( RELAY, ELECTROMAGNETIC ) |

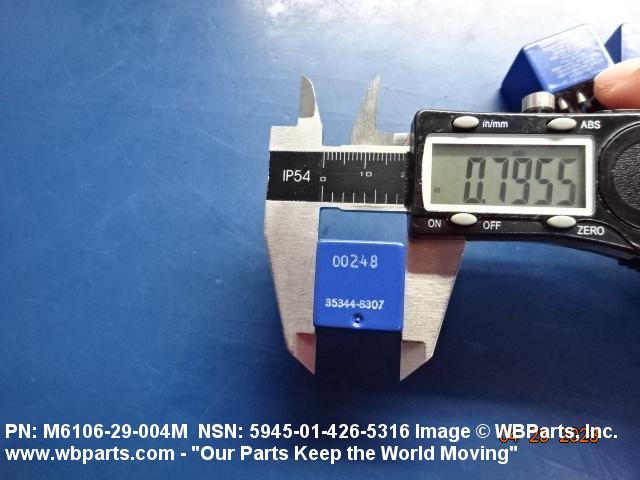

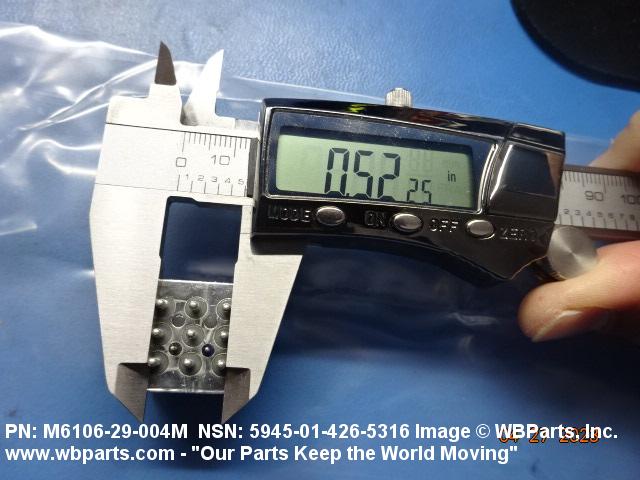

Drawings & Photos | NSN 5945-01-297-9850
Demand History | NSN 5945-01-297-9850
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M610629004M | 2023-08-214 | 20 | United States |
Cross Reference | NSN 5945-01-297-9850
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M6106/29-004M | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M6106/29-030U | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83536/22-017M | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-83536/22 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-6106/29 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-83536/22 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-297-9850
Technical Data | NSN 5945-01-297-9850
| Characteristic | Specifications |
|---|---|
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 29.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 0.081 AMPERES DC RESISTIVE LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 400.0 OHMS NOMINAL SINGLE WINDING |
| TERMINAL TYPE AND QUANTITY | 9 PIN ALL FUNCTIONS |
| DUTY TYPE | CONTINUOUS |

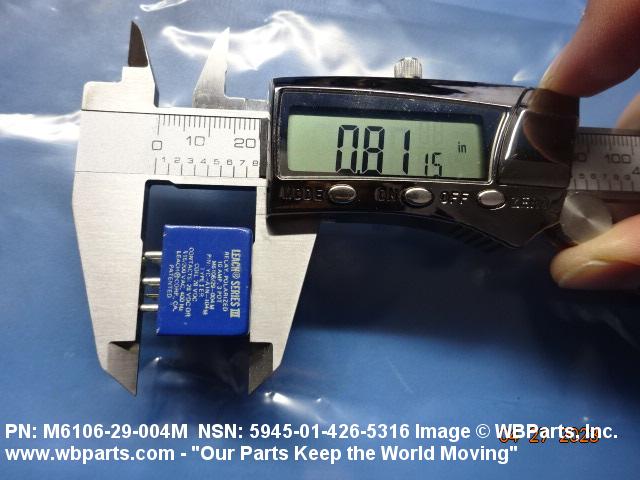

| OVERALL LENGTH | 0.810 INCHES MAXIMUM |
| OVERALL WIDTH | 0.640 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.640 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 9 TERMINAL SINGLE MOUNTING FACILITY |
| TEST DATA DOCUMENT | 81349-MIL-R-6106 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-6106/29 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-6106/29 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M6106/29-004M |
Restrictions/Controls & Freight Information | NSN 5945-01-297-9850
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
