NSN 5945-01-308-2060 MS2740130, MS27401-30, MS2740130P

Product Details | ELECTROMAGNETIC RELAY

5945-01-308-2060 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS2740130, MS27401-30, MS2740130P, MS27401-30P, MS2740136, MS27401-36, MS2740136P, MS27401-36P, MS2740136U, MS27401-36U, MS2740136X, MS27401-36X, M83536/11-007L, M83536/11-007M, M8353611007L, M8353611007M, H7913905014, H791-3905-014, JAD4K, JA-D4K, JAD4K103, JA-D4K-103, JADAK, MILPRF6106, MIL-PRF-6106, MIL-PRF-83536/11, MILPRF8353611, MILR6106, MIL-R-6106, MIL-R-83536/11, MILR8353611, 2756A/455-0603-006, 2756A4550603006, 3020318002, 3020318-002, 556-7015832-014, 94533630, 945336-30, 5945-01-308-2060, 01-308-2060, 5945013082060, 5567015832014, 013082060

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	24 SEP 1989	01-308-2060	32512 ( RELAY, ELECTROMAGNETIC )

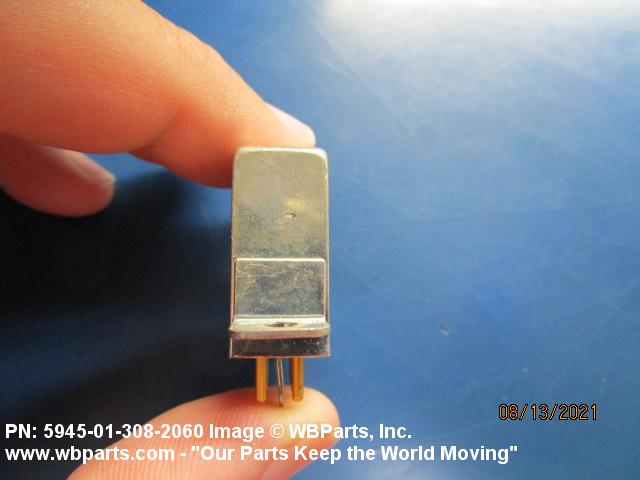

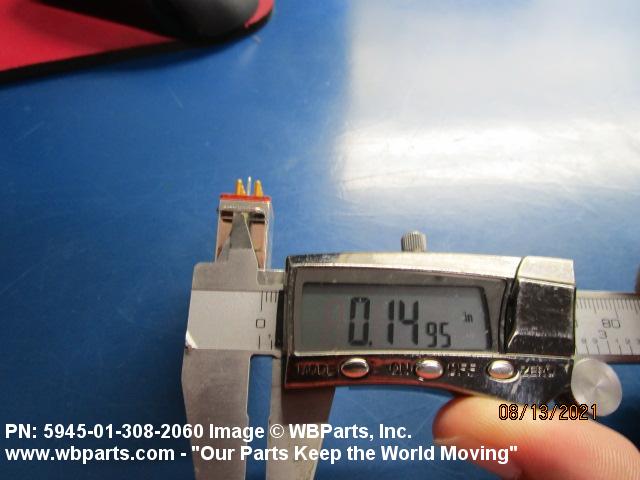

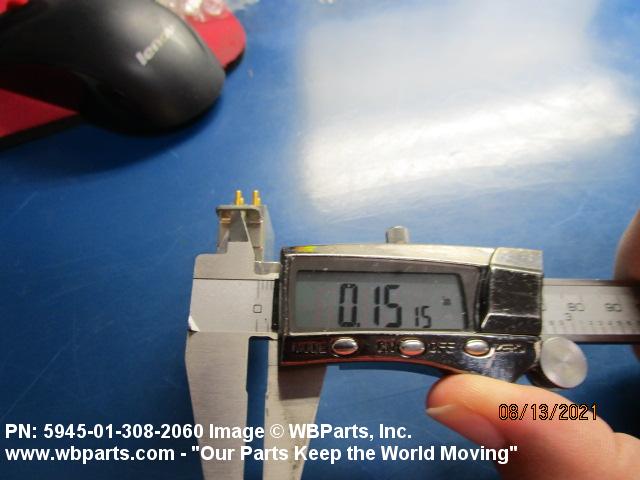

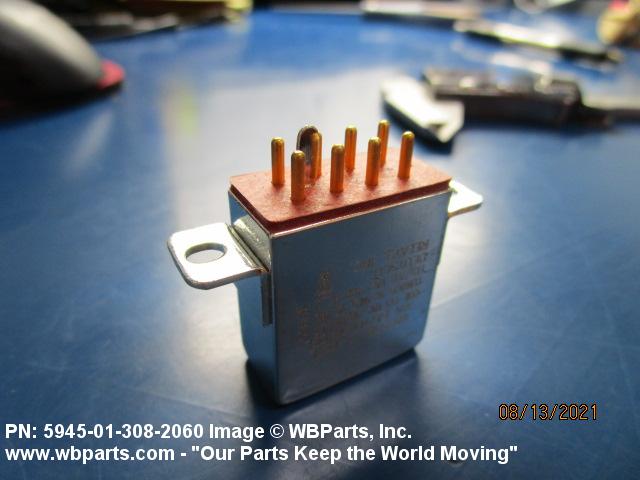

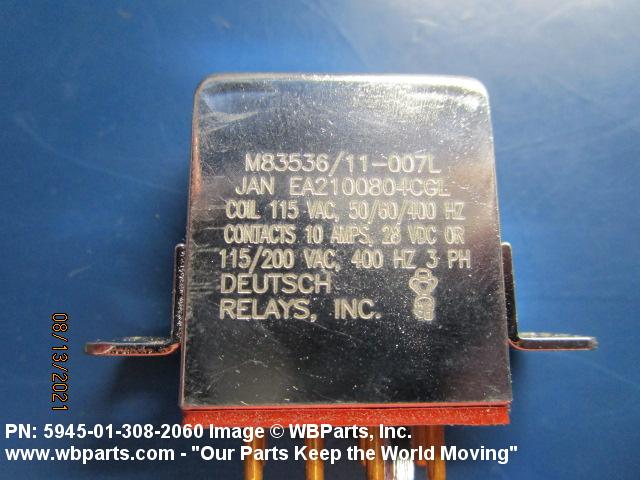

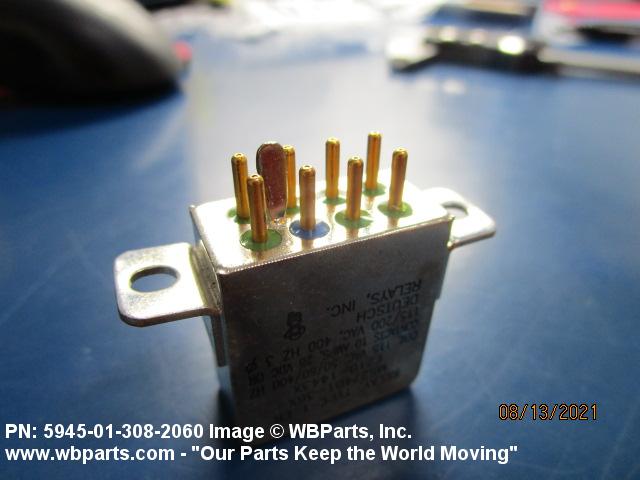

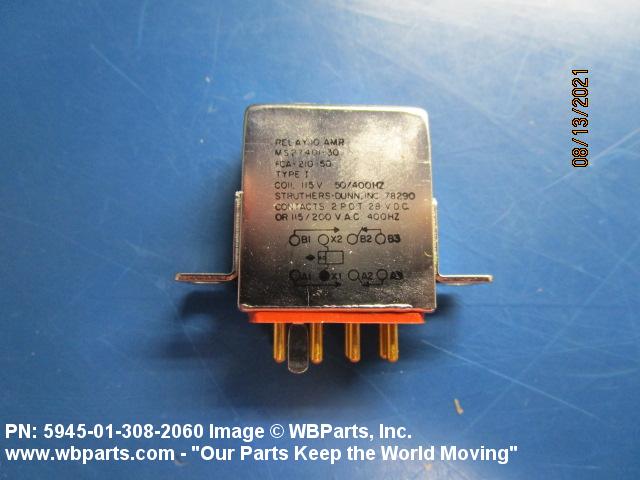

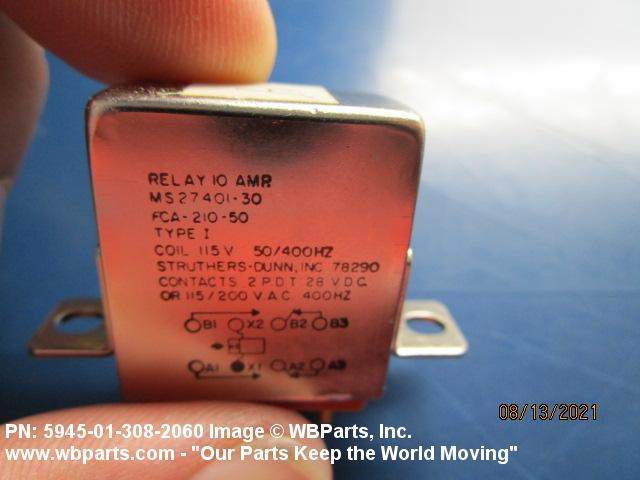

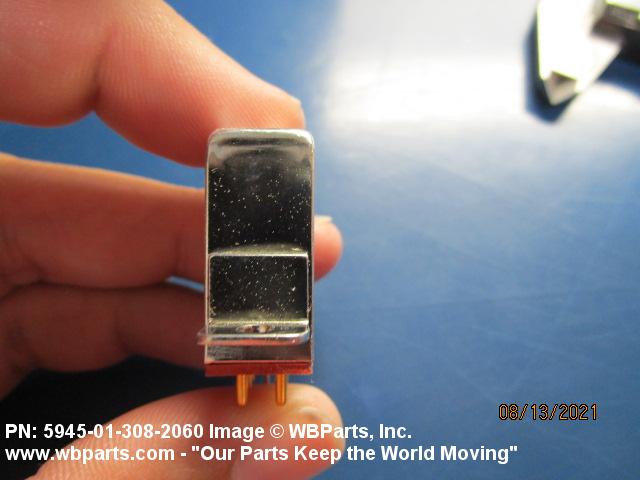

Drawings & Photos | NSN 5945-01-308-2060

Part Number	Request Date	QTY	Origin
5945-01-308-2060	2025-07-191	143	DIBBS
5945-01-308-2060	2025-06-163	143	DIBBS
5945-01-308-2060	2025-01-24	43	DIBBS
5945-01-308-2060	2025-01-13	43	DIBBS
5945-01-308-2060	2024-11-309	100	DIBBS
5945-01-308-2060	2024-10-298	100	DIBBS
5945-01-308-2060	2024-10-284	31	DIBBS
5945-01-308-2060	2024-10-275	25	US
5945-01-308-2060	2024-04-113	69	DIBBS
5945-01-308-2060	2024-04-101	69	DIBBS
5945-01-308-2060	2023-09-268	7	DIBBS
5945-01-308-2060	2023-08-214	7	DIBBS
5945-01-308-2060	2023-03-75	62	DIBBS
5945-01-308-2060	2023-02-36	62	DIBBS
5945-01-308-2060	2022-09-269	30	United States
5945-01-308-2060	2022-09-249	63	DIBBS
5945-01-308-2060	2022-08-237	63	DIBBS
5945-01-308-2060	2022-08-235	61	DIBBS
5945-01-308-2060	2022-05-132	31	DIBBS
5945-01-308-2060	2022-02-53	4	DIBBS
5945-01-308-2060	2021-12-353	26	DIBBS
5945-01-308-2060	2021-11-323	10	US
5945-01-308-2060	2021-10-300	12	DIBBS
5945-01-308-2060	2021-08-228	14	DIBBS
5945-01-308-2060	2021-08-221	10	United States
5945-01-308-2060	2021-07-183	51	DIBBS
5945-01-308-2060	2021-06-168	51	DIBBS
5945-01-308-2060	2020-07-183	25	DIBBS
5945-01-308-2060	2018-09-252	50	DIBBS
5945-01-308-2060	2018-07-211	20	US
5945-01-308-2060	2014-05-125	10	US
5945-01-308-2060	2013-03-64	66	DIBBS
MS2740130	2012-07-195	2	US
M8353611007M	2012-01-20	4	United States
5945-01-308-2060	2010-05-140	43	DIBBS
JAD4K	2007-12-347	16	US
5945-01-308-2060	2006-07-200	0	DIBBS
5945-01-308-2060	2006-06-165	9	DIBBS

Cross Reference | NSN 5945-01-308-2060

Part Number	Cage Code	Manufacturer
2756A/455-0603-006	94756	BOEING COMPANY, THE DBA BOEING
3020318-002	53711	NAVAL SEA SYSTEMS COMMAND
556-7015832-014	53711	NAVAL SEA SYSTEMS COMMAND
945336-30	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
H791-3905-014	96169	ELECTRIC BOAT CORPORATION
JA-D4K	99699	DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE
JA-D4K-103	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
JADAK	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
M83536/11-007L	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83536/11-007M	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-6106	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MIL-PRF-83536/11	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MIL-R-83536/11	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27401-30	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27401-30P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27401-36	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27401-36P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27401-36U	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27401-36X	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-308-2060

Compare

Related Products | NSN 5945-01-308-2060

5945-01-308-2061, 5945-01-308-2216, 5945-01-308-2491, 5945-01-308-2740, 5945-01-308-2766

Technical Data | NSN 5945-01-308-2060

Characteristic	Specifications

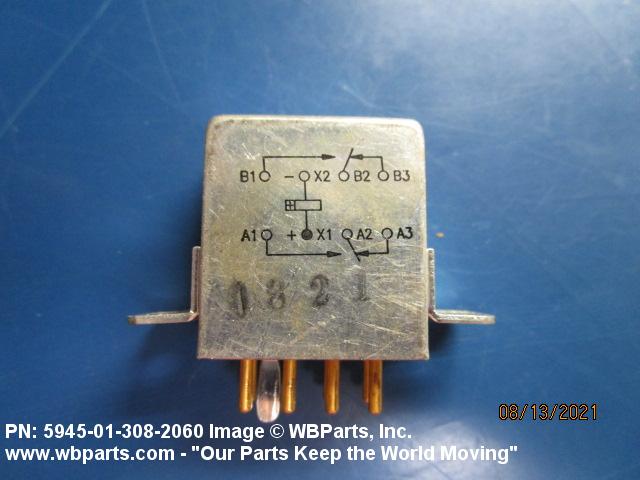

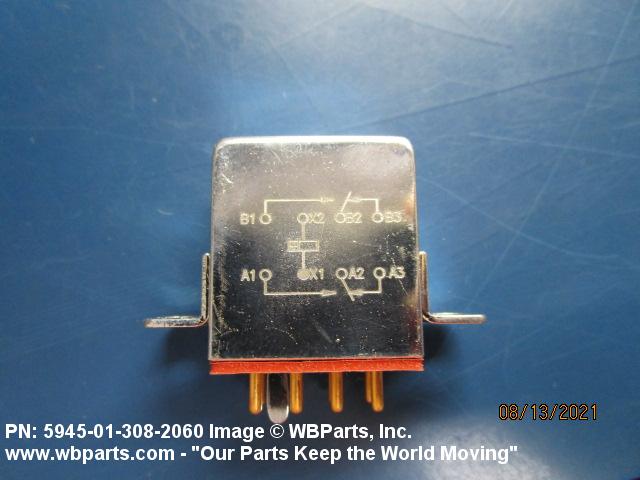

NONPILE-UP MAIN CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD 8.0 AMPERES AC AND 8.0 AMPERES DC INDUCTIVE LOAD 2.0 AMPERES AC AND 2.0 AMPERES DC LAMP LOAD 4.0 AMPERES AC AND 4.0 AMPERES DC MOTOR LOAD
COIL QUANTITY	1
WINDING QUANTITY	1
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	115.0 VOLTS AC 25 DEG CELSIUS SINGLE WINDING
NOMINAL OPERATING CURRENT RATING AND TYPE	30.0 MILLIAMPERES AC SINGLE WINDING

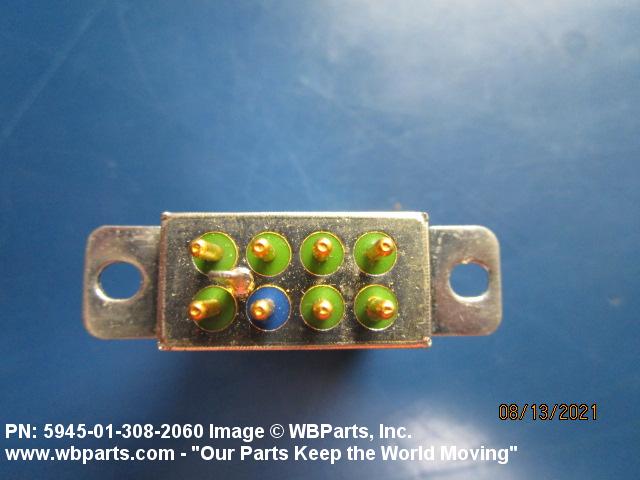

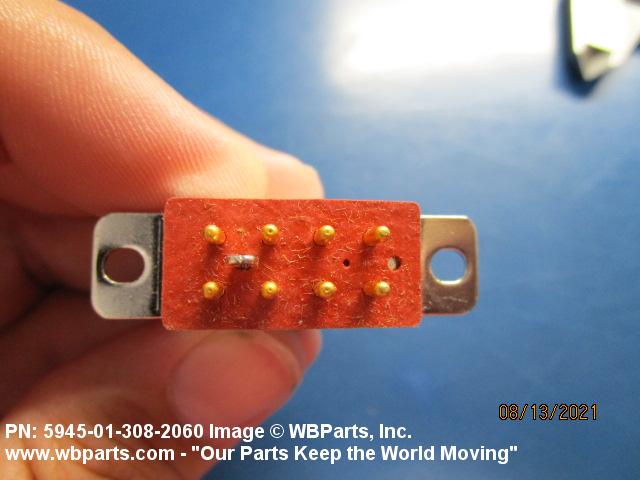

TERMINAL TYPE AND QUANTITY	8 PIN ALL FUNCTIONS
TIME DELAY	0.02 SECONDS NOMINAL FIXED OPERATE TIME 0.05 SECONDS NOMINAL FIXED RELEASE TIME
DUTY TYPE	CONTINUOUS

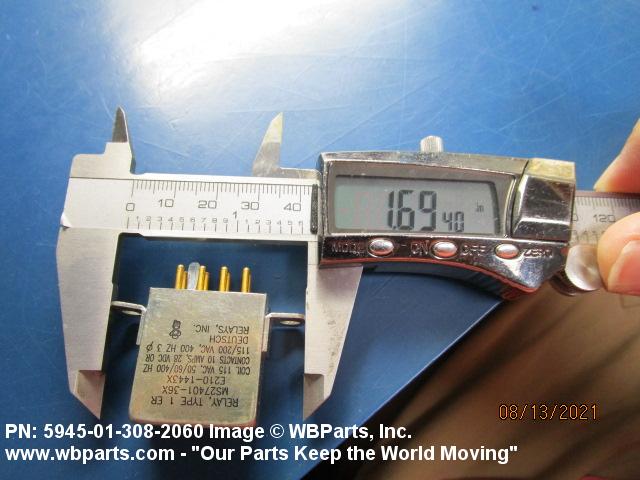

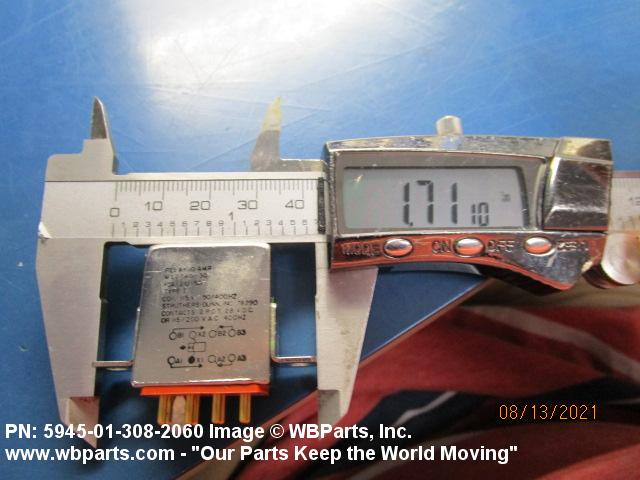

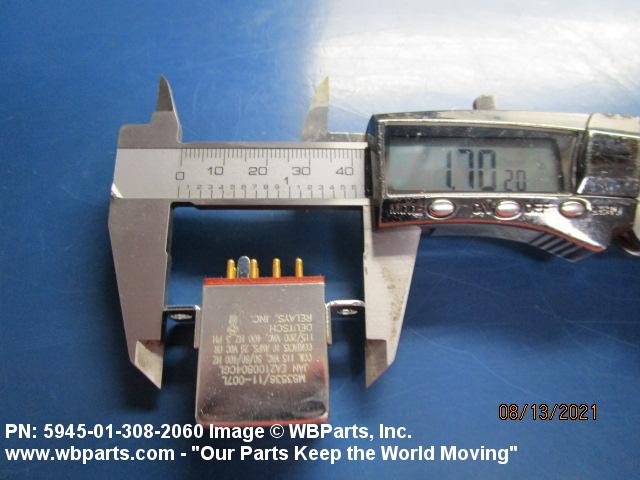

OVERALL LENGTH	1.698 INCHES MINIMUM AND 1.718 INCHES MAXIMUM

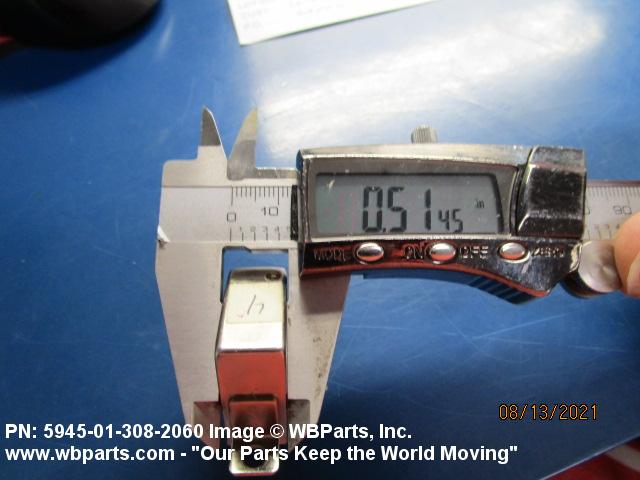

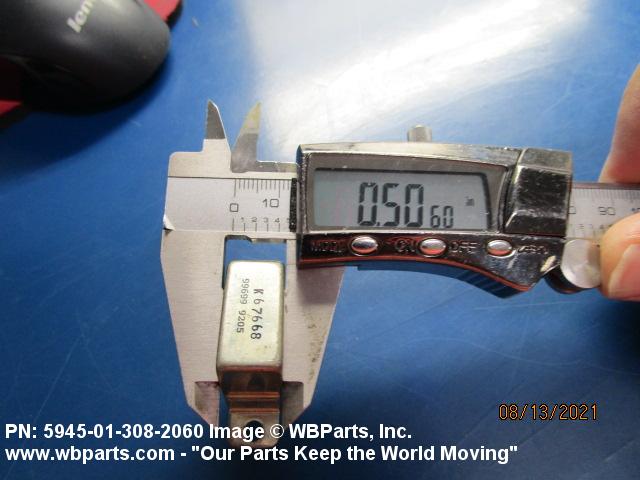

OVERALL WIDTH	0.505 INCHES MINIMUM AND 0.525 INCHES MAXIMUM

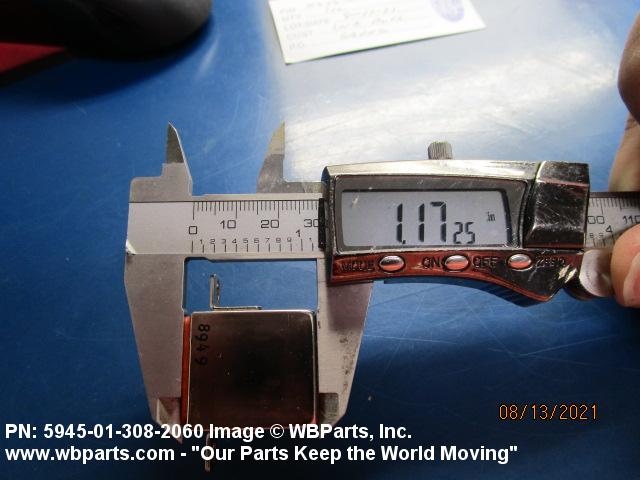

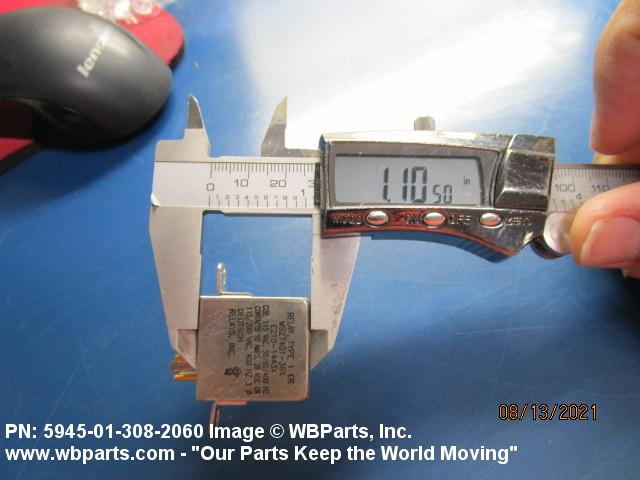

OVERALL HEIGHT	1.105 INCHES MINIMUM AND 1.125 INCHES MAXIMUM
