NSN 5945-01-332-4413 MP2PCSDC24, MP2P-CS-DC24, 01-332-4413
Product Details | ELECTROMAGNETIC RELAY
5945-01-332-4413 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: MP2PCSDC24, MP2P-CS-DC24, 5945-01-332-4413, 01-332-4413, 5945013324413, 013324413
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 JAN 1991 | 01-332-4413 | 32512 ( RELAY, ELECTROMAGNETIC ) |

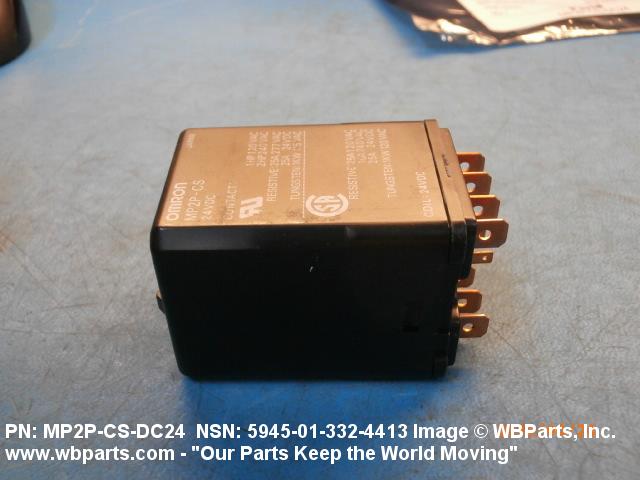

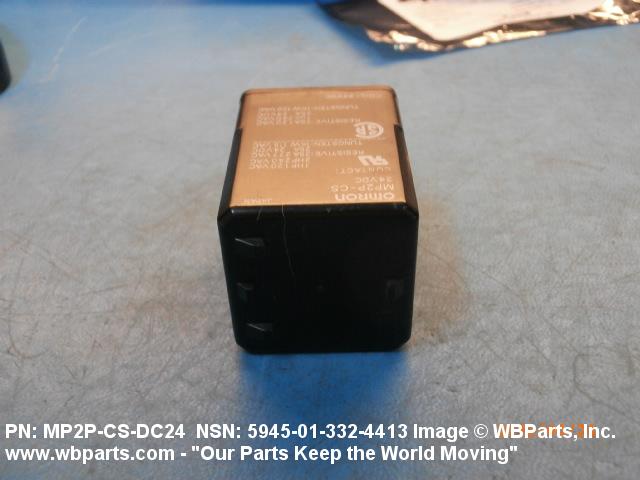

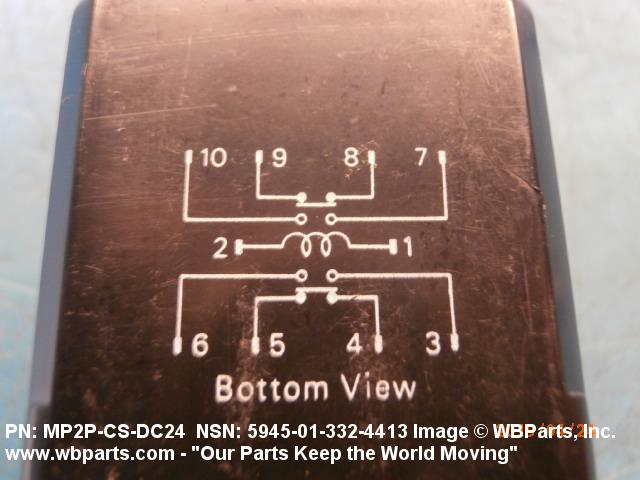

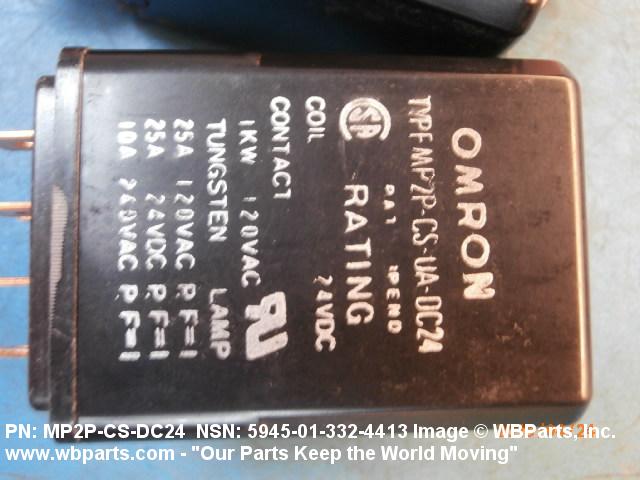

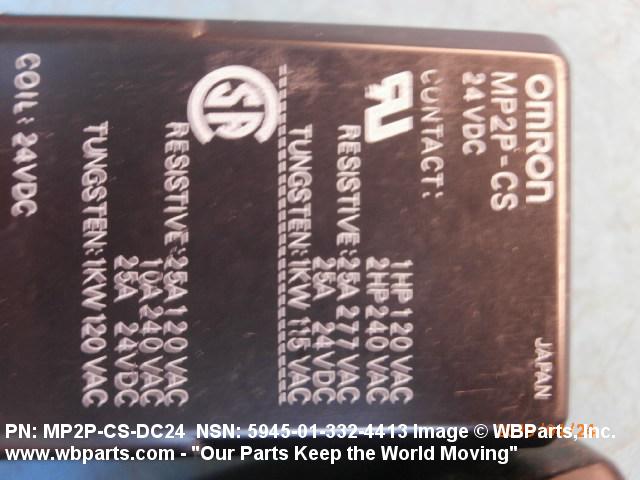

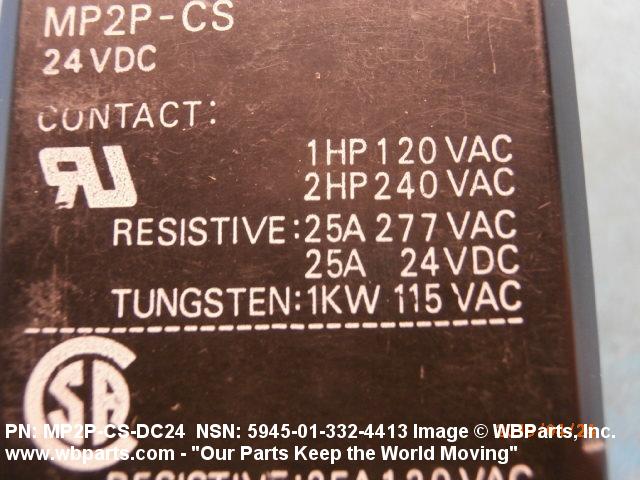

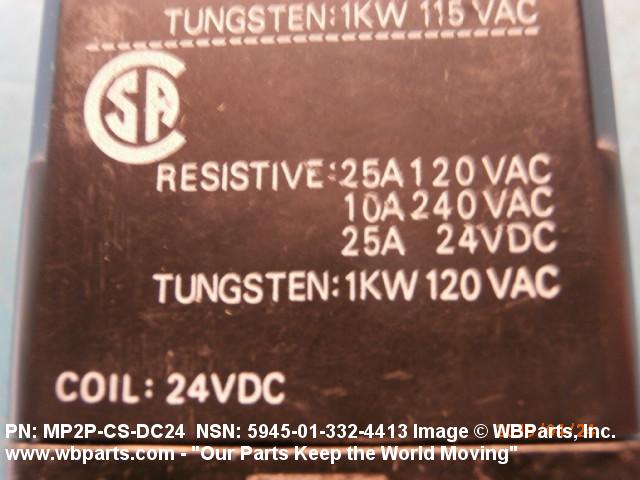

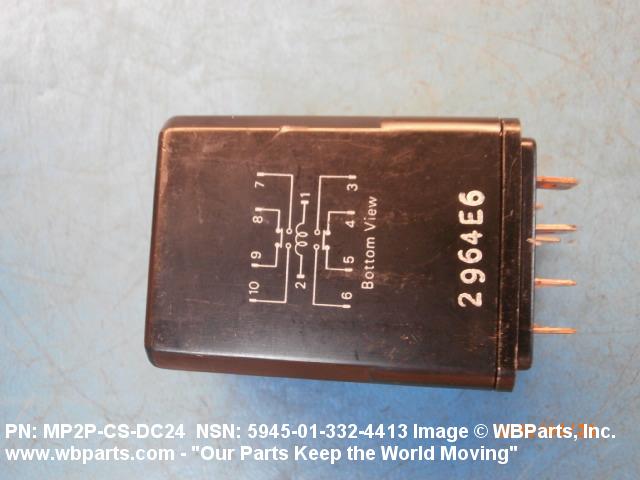

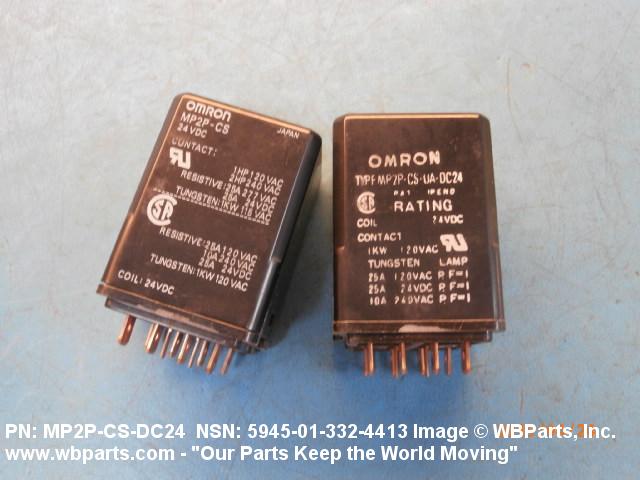

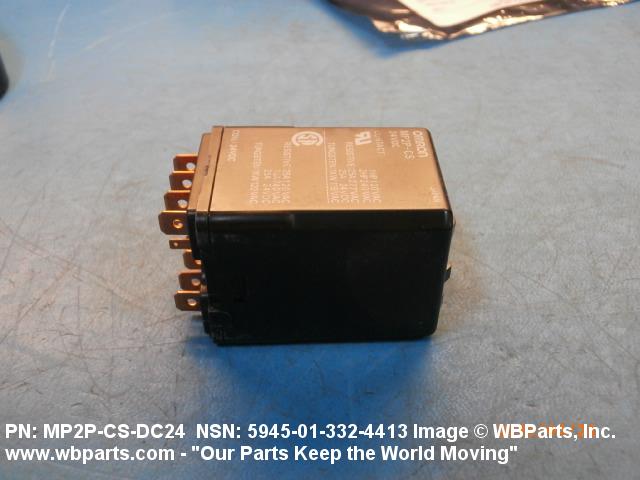

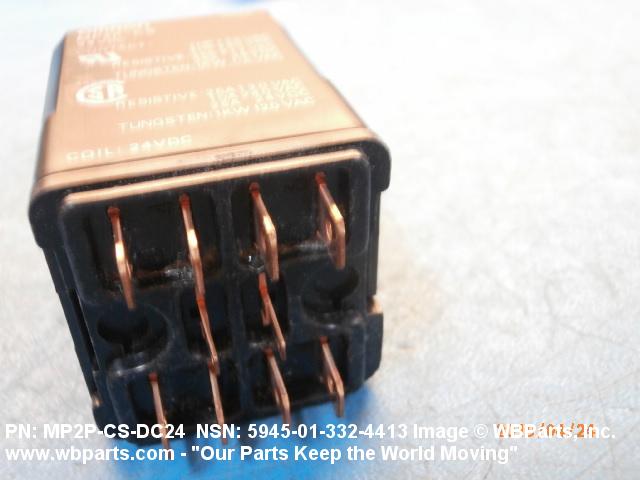

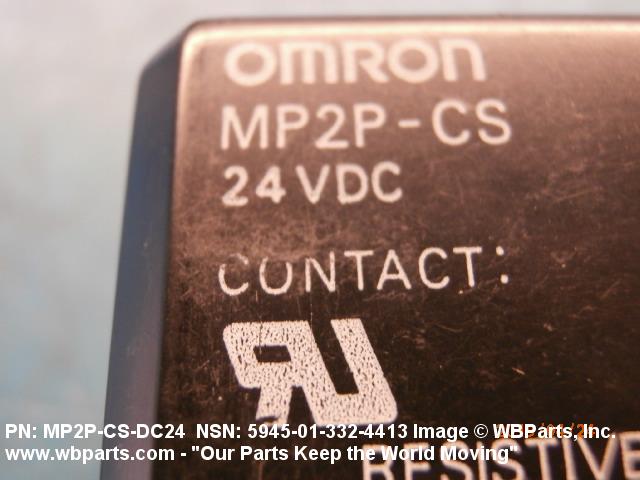

Drawings & Photos | NSN 5945-01-332-4413
Demand History | NSN 5945-01-332-4413
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-332-4413 | 2019-04-107 | 2 | United States |
Cross Reference | NSN 5945-01-332-4413
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MP2P-CS-DC24 | 61964 | OMRON ELECTRONICS LLC DBA O E I |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-332-4413
Technical Data | NSN 5945-01-332-4413
| Characteristic | Specifications |
|---|---|
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 24.0 DC |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| TERMINAL TYPE AND QUANTITY | 4 QUICK DISCONNECT, MALE ALL FUNCTIONS |
| DUTY TYPE | CONTINUOUS |

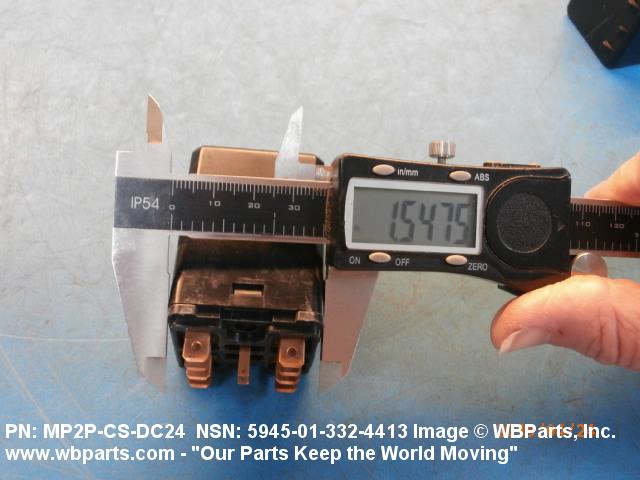

| OVERALL LENGTH | 1.560 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PLUG-IN TERMINAL SINGLE MOUNTING FACILITY |
Restrictions/Controls & Freight Information | NSN 5945-01-332-4413
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
