NSN 5945-01-338-6483 M83726/18-5001W, M83726185001W, ST5M124321081
Product Details | HYBRID RELAY
5945-01-338-6483 A self-contained device that performs the function of opening or closing an electrical circuit in response to electrical changes in an external circuit. It consists of a combination of semiconductor and passive circuit devices, which in turn control an integral electro-magnetic relay. Excludes relays which employ diodes, rectifiers or other passive devices to achieve contact protection or coil modification. Excludes RELAY, SOLID STATE.
Part Alternates: M83726/18-5001W, M83726185001W, ST5M124321081, ST5M1243-2108-1, CTD2102016, CTD210-2016, TDA719, TDA-719, MIL-PRF-83726/18, MILPRF8372618, MIL-R-83726/18, MILR8372618, 10203992, 5945-01-338-6483, 01-338-6483, 5945013386483, 013386483
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 MAY 1991 | 01-338-6483 | 31445 ( RELAY, HYBRID ) |

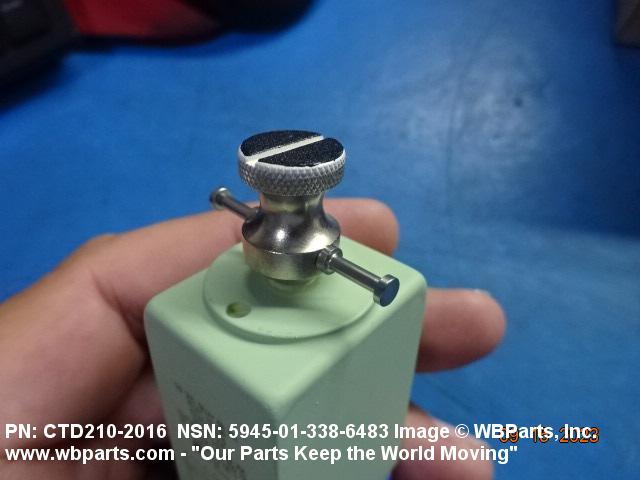

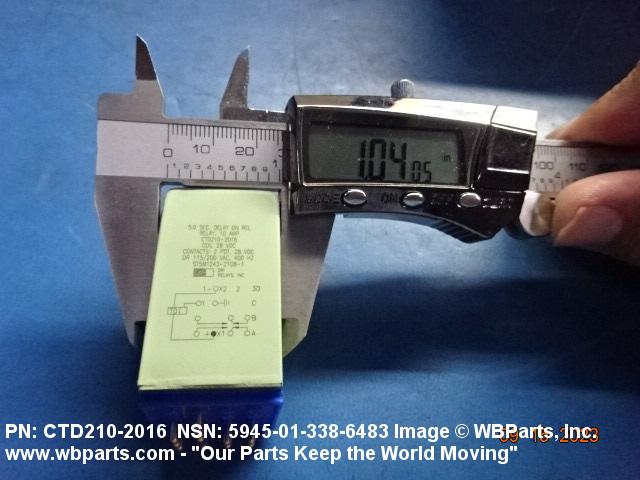

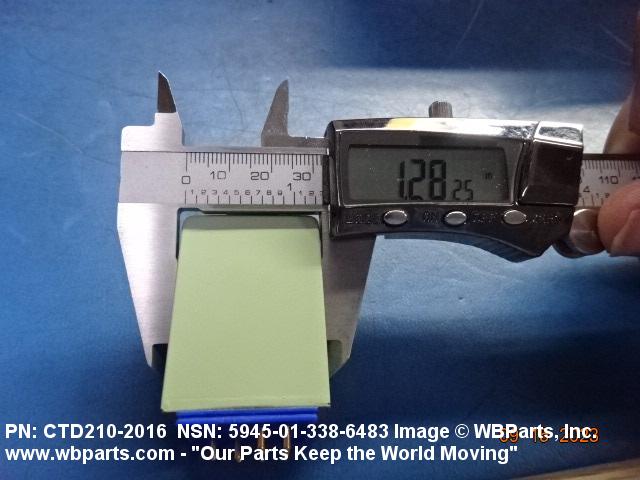

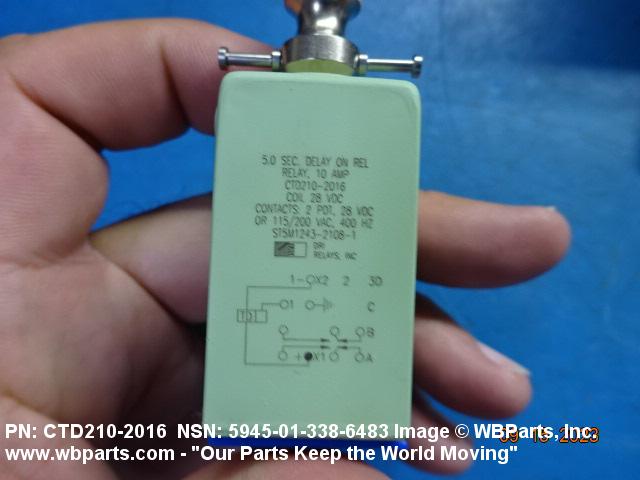

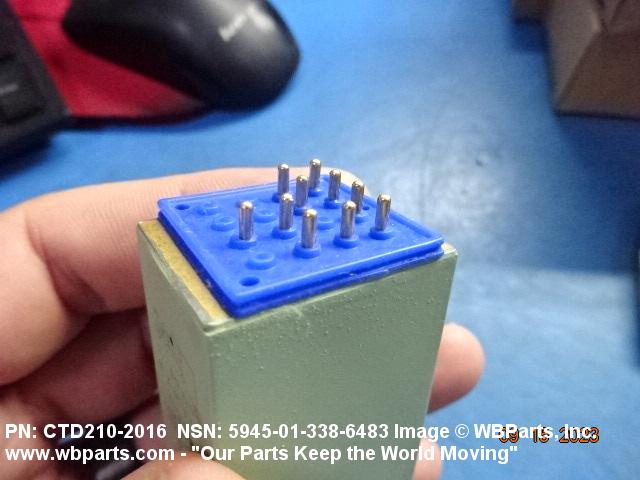

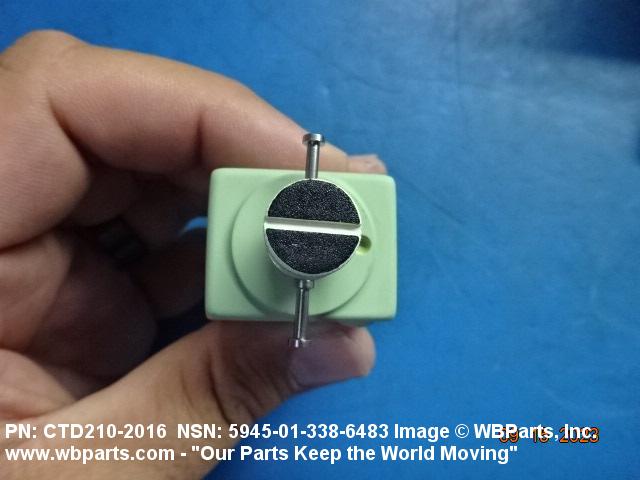

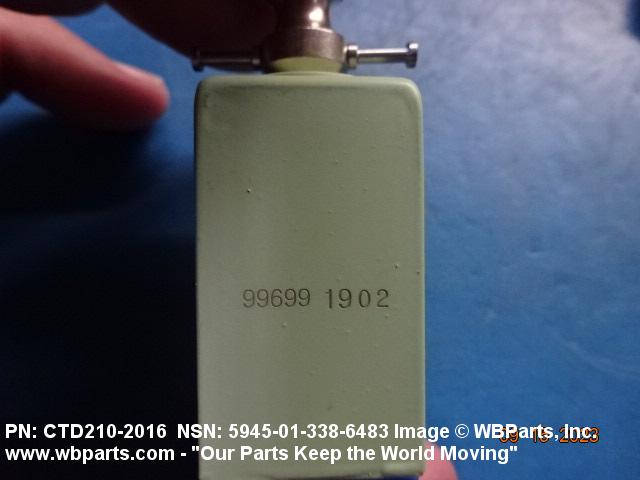

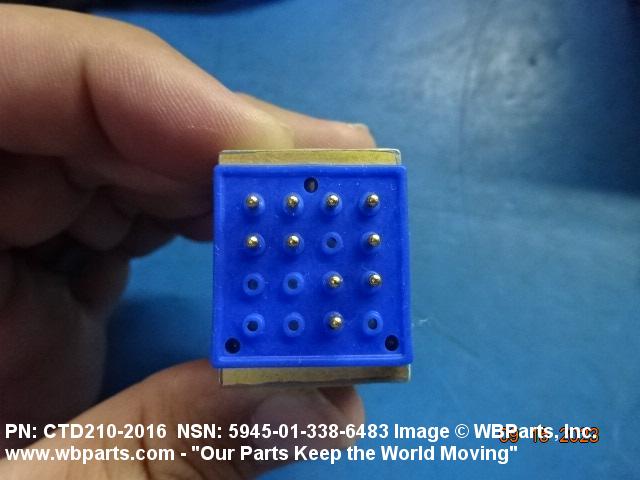

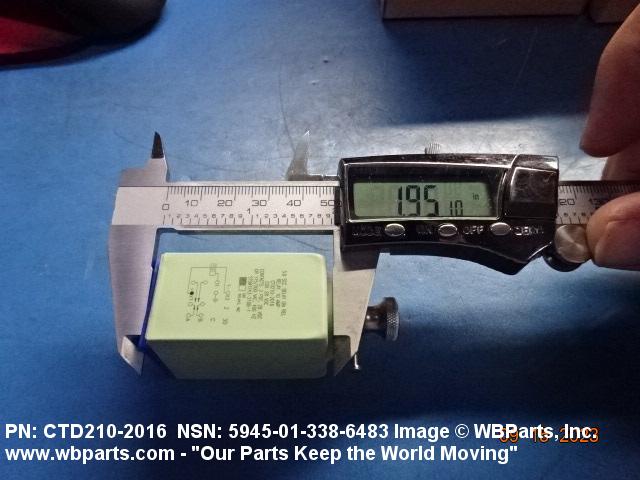

Drawings & Photos | NSN 5945-01-338-6483
