NSN 5945-01-340-9893 YCD4A002, YC-D4A-002, YCD4A300M
Product Details | ELECTROMAGNETIC RELAY
5945-01-340-9893 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: YCD4A002, YC-D4A-002, YCD4A300M, YC-D4A-300M , 099-00142-01 ITEM 22, 0990014201ITEM22, 5054133051, 505-41330-51, 5945-01-340-9893, 01-340-9893, 5945013409893, 013409893
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 JUN 1991 | 01-340-9893 | 32512 ( RELAY, ELECTROMAGNETIC ) |

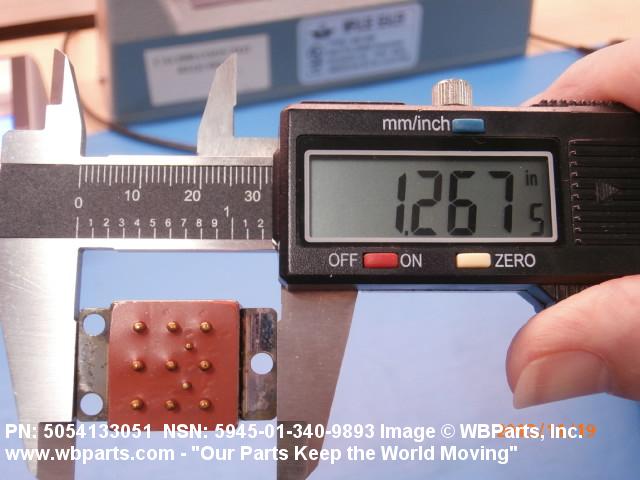

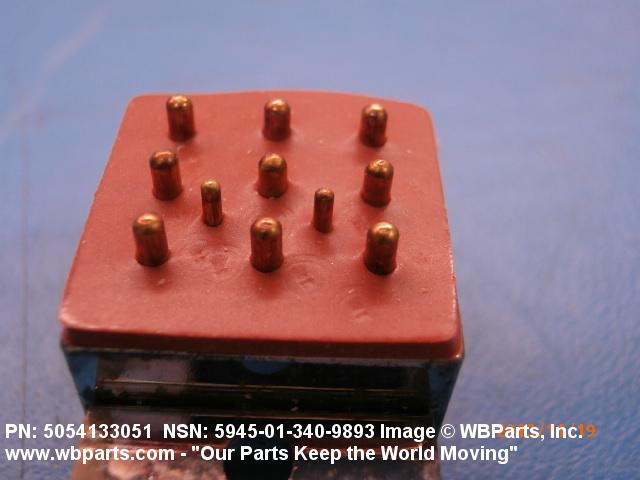

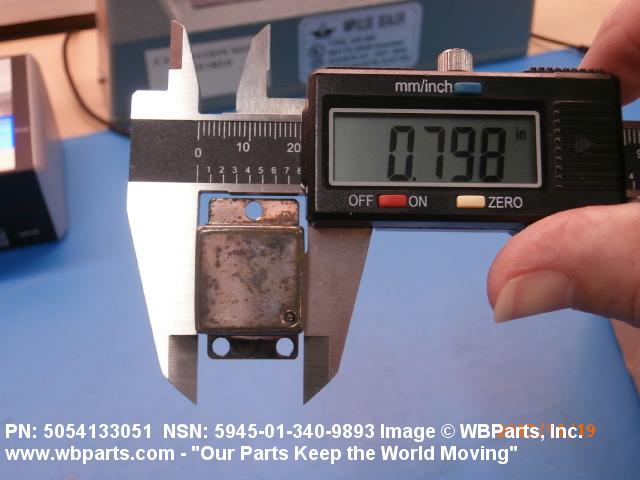

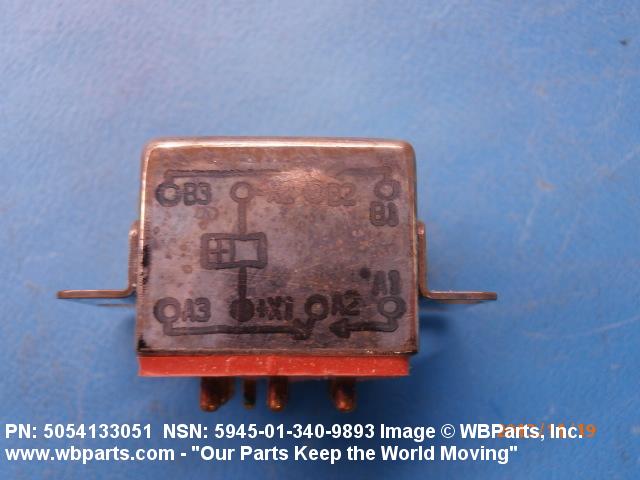

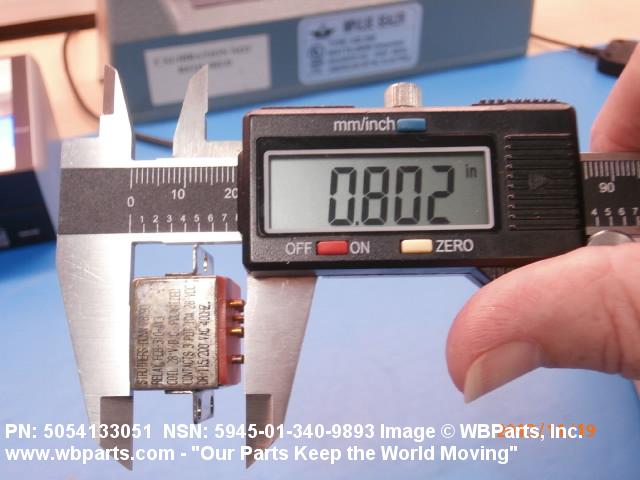

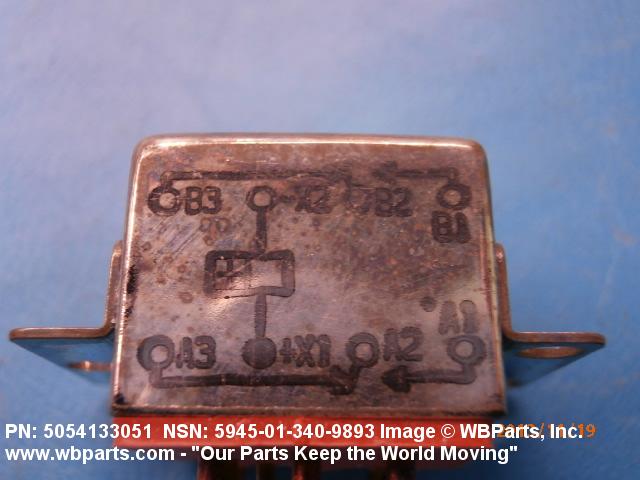

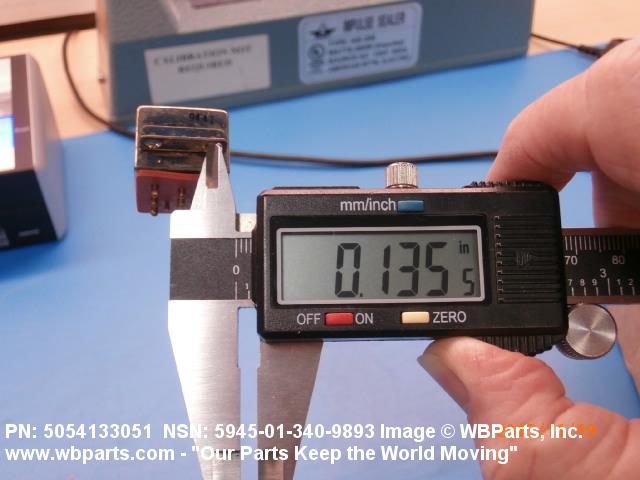

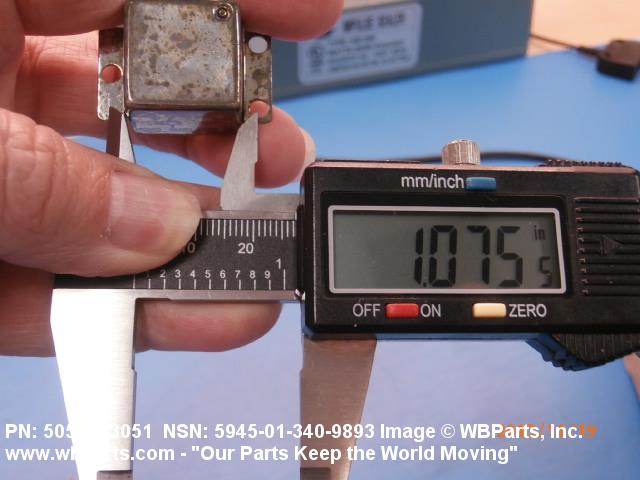

Drawings & Photos | NSN 5945-01-340-9893
Demand History | NSN 5945-01-340-9893
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 099-00142-01 ITEM 22 | 2025-12-336 | 4 | DIBBS |
| 505-41330-51 | 2025-12-336 | 4 | DIBBS |
| YC-D4A-300M | 2025-12-336 | 4 | DIBBS |
| 099-00142-01 ITEM 22 | 2025-10-282 | 4 | DIBBS |
| 505-41330-51 | 2025-10-282 | 4 | DIBBS |
| YC-D4A-300M | 2025-10-282 | 4 | DIBBS |
| 5945-01-340-9893 | 2016-03-67 | 4 | DIBBS |
| 5945-01-340-9893 | 2013-11-319 | 2 | DIBBS |
| 5945-01-340-9893 | 2013-11-317 | 1 | Italy |
| 5945-01-340-9893 | 2013-11-317 | 2 | DIBBS |
| 5945-01-340-9893 | 2010-06-168 | 1 | DIBBS |
