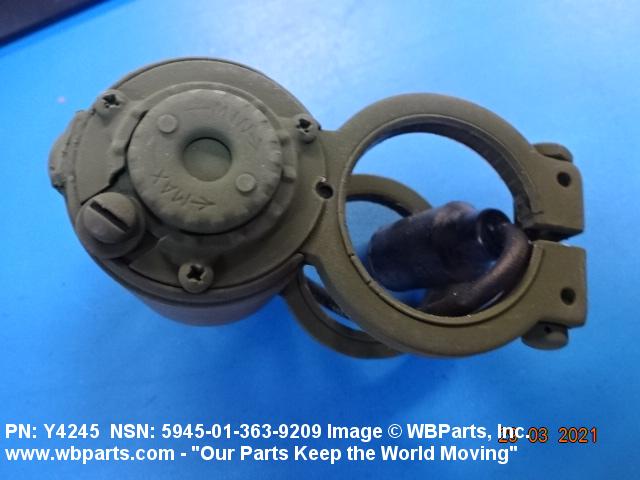

Product Details | ELECTRICAL SOLENOID

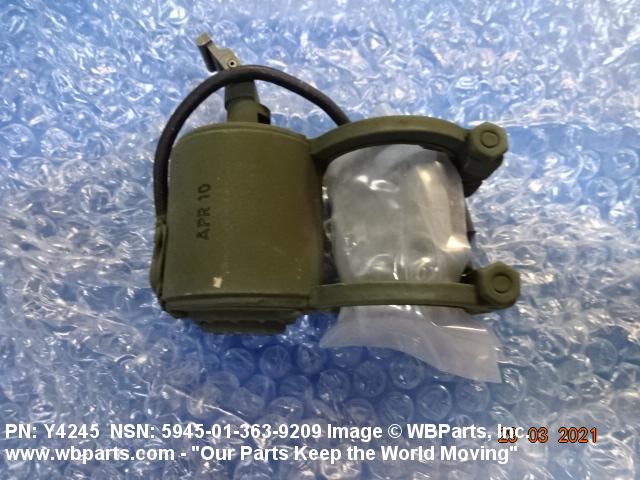

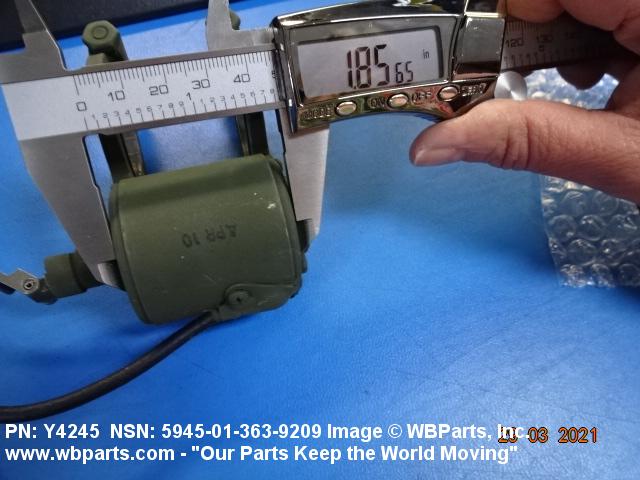

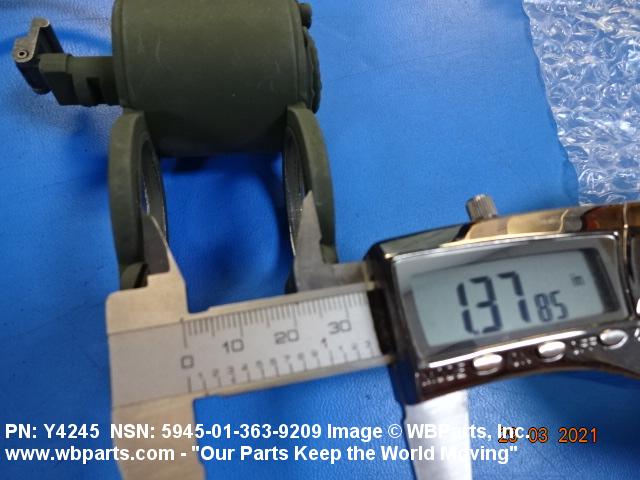

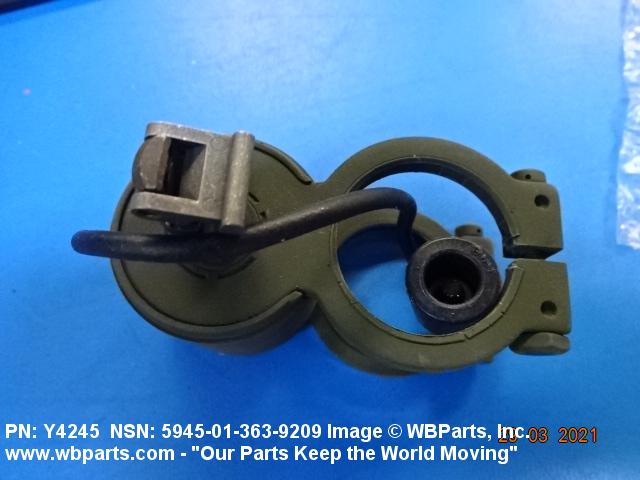

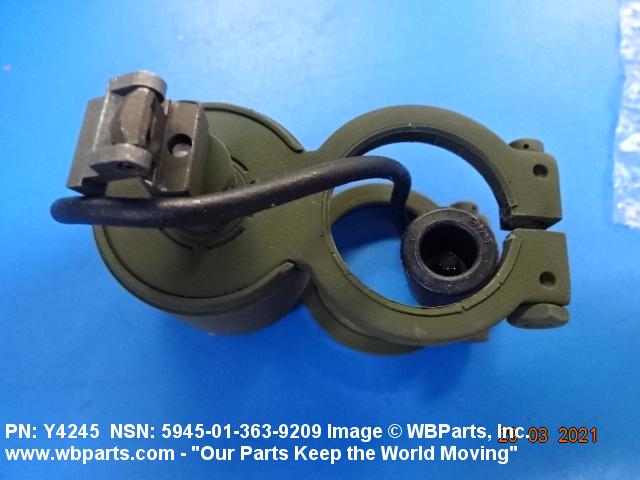

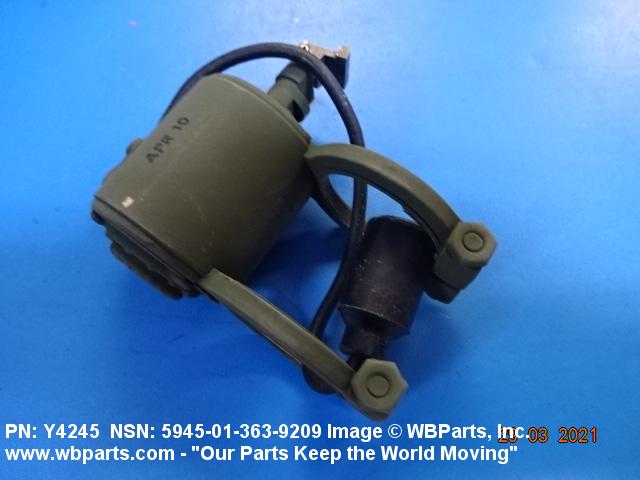

5945-01-363-9209 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.

Part Alternates: M12109/13, M1210913, A10478, A20587, Y4245, 3662004174 , 5000A700010, 5000-A700-010, 8724532, 5945-01-363-9209, 01-363-9209, 5945006300901 , 5945013639209, 013639209

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	10 SEP 1992	01-363-9209	00310 ( SOLENOID, ELECTRICAL )
