NSN 5945-01-463-9427 JD4A019, J-D4A-019, 01-463-9427
Product Details | ELECTROMAGNETIC RELAY
5945-01-463-9427 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: JD4A019, J-D4A-019, 5945-01-463-9427, 01-463-9427, 5945014639427, 014639427
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 APR 1999 | 01-463-9427 | 32512 ( RELAY, ELECTROMAGNETIC ) |

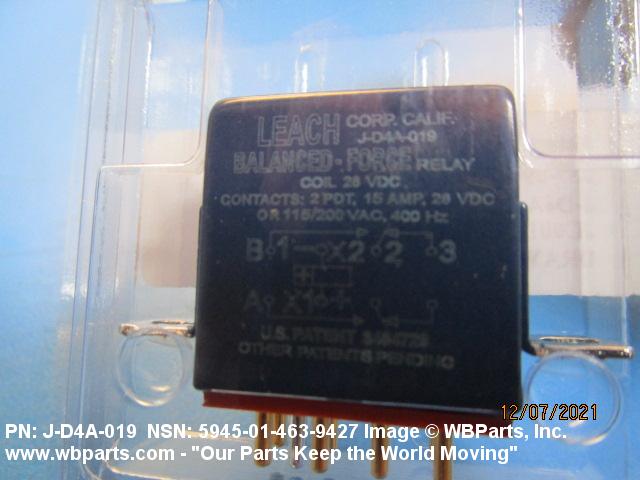

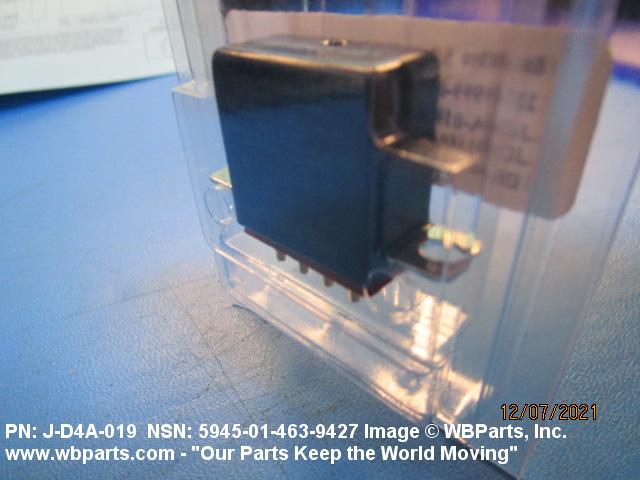

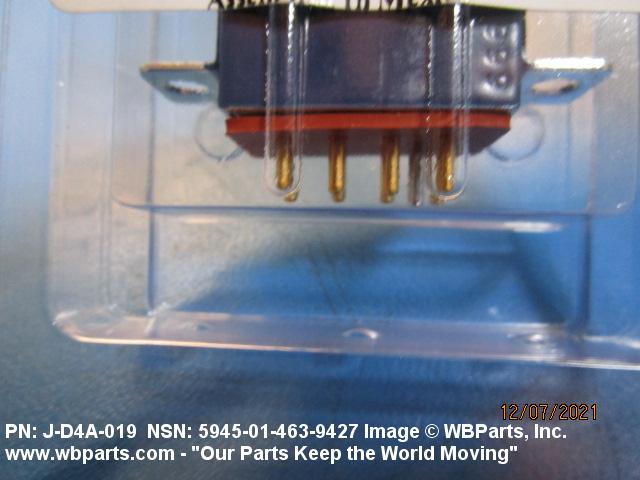

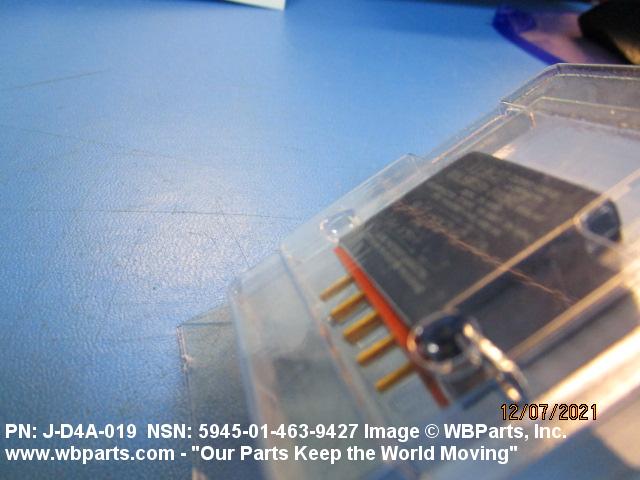

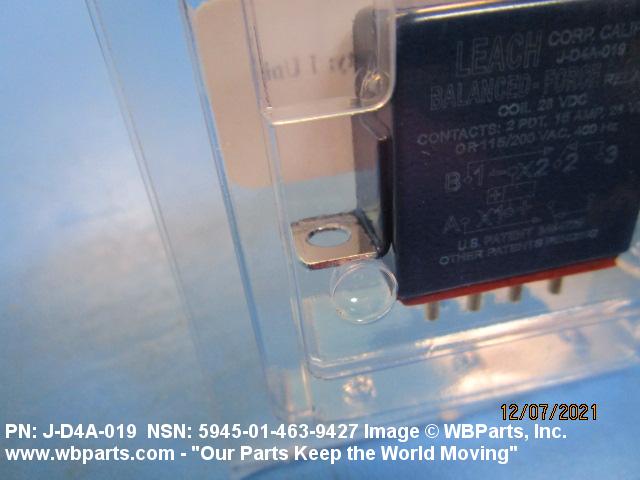

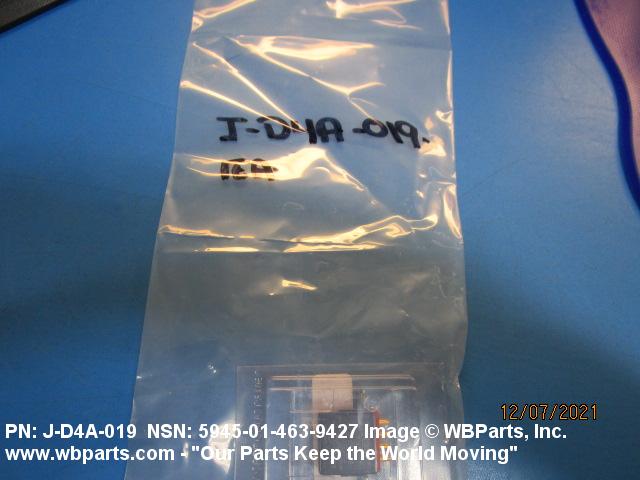

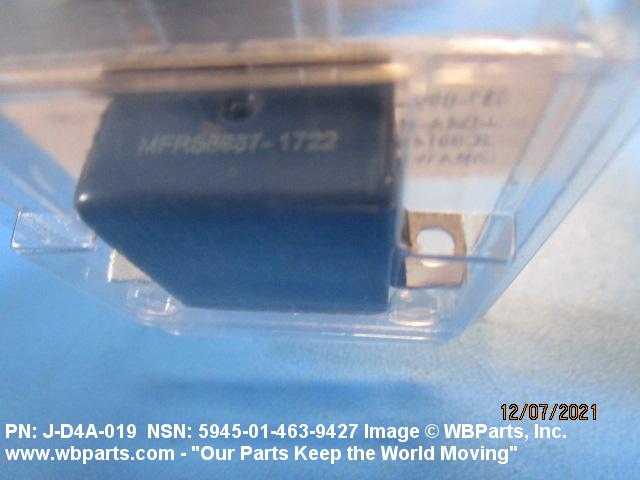

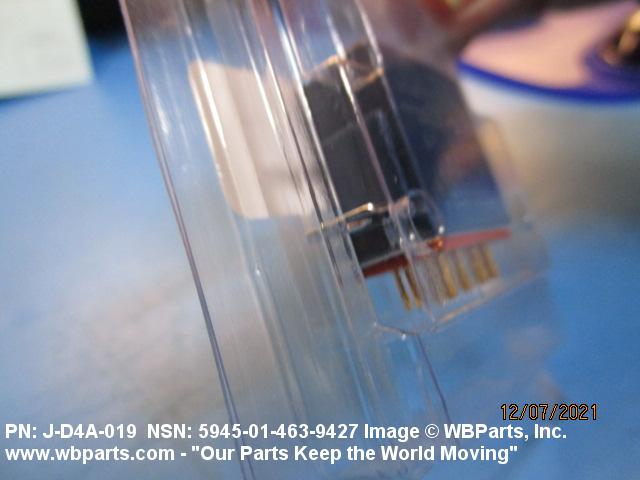

Drawings & Photos | NSN 5945-01-463-9427
Demand History | NSN 5945-01-463-9427
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| JD4A019 | 2021-11-327 | 1 | France |
Cross Reference | NSN 5945-01-463-9427
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J-D4A-019 | 58657 | LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-463-9427
Technical Data | NSN 5945-01-463-9427
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 200.0 AC AND 28.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 15.0 AMPERES AC AND 15.0 AMPERES DC RESISTIVE LOAD 8.0 AMPERES AC AND 8.0 AMPERES DC INDUCTIVE LOAD 2.0 AMPERES AC AND 2.0 AMPERES DC LAMP LOAD 6.0 AMPERES AC AND 4.0 AMPERES DC MOTOR LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 320.0 OHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| TERMINAL TYPE AND QUANTITY | 8 PIN ALL FUNCTIONS |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | HERMETIC |
| OVERALL LENGTH | 1.718 INCHES MAXIMUM |
| OVERALL WIDTH | 0.525 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.310 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 SLOTTED HOLE SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | IN-LINE SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.396 INCHES MINIMUM AND 1.446 INCHES MAXIMUM SINGLE MOUNTING FACILITY |
| MOUNTING SLOT WIDTH | 0.150 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | POLARIZED |
| SPECIAL FEATURES | TEMP RANGE MINUS 70.0 DEG TO PLUS 125.0 DEG C; PICKUP VOLTAGE 18.0 VDC MAX; HOLD VOLTAGE 7.0 VDC; DROP-OUT VOLTAGE 1.5 VDC MIN; COIL CURRENT 0.11 AMP MAX; TERMINAL STRENGTH 5.0 LBS NOMINAL; PINS ARE UNDERPLATED (EXCEPT POLARIZING PIN IS TINNED) PRIOR TO GOLD PLATING (PER MIL-G-45204, TYPE II, CLASS I) WITH NICKEL 50.000 TO 150.000 MICROINCHES THICK; PINS ARE 0.062 INCH NOMINAL DIA AND 0.270 INCH NOMINAL LENGTH WITH EXCEPTION OF POLARIZING PIN WHICH IS 0.300 INCH NOMINAL LENGTH; 0.050 INCH NOMINAL THICKNESS SILICONE RUBBER GASKET PER AMS 3332, WITH SHORE HARDNESS OF 20, IS LOCATED AGAINST BOTTOM OF CASE AND AT BASE OF PINS |
| (NON-CORE DATA) CASE SURFACE TREATMENT | ENAMEL |
| III PRECIOUS MATERIAL AND LOCATION | TERMINALS GOLD |
Restrictions/Controls & Freight Information | NSN 5945-01-463-9427
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
