NSN 5945-01-466-8133 S6240, 38T067F4583, 38-T067F4583
Product Details | ELECTROMAGNETIC RELAY
5945-01-466-8133 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: S6240, 38T067F4583, 38-T067F4583, 5945-01-466-8133, 01-466-8133, 5945014668133, 014668133
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 AUG 1999 | 01-466-8133 | 32512 ( RELAY, ELECTROMAGNETIC ) |

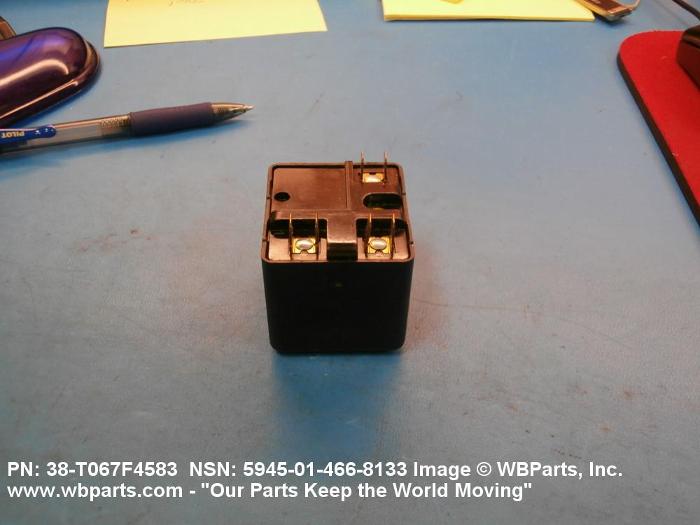

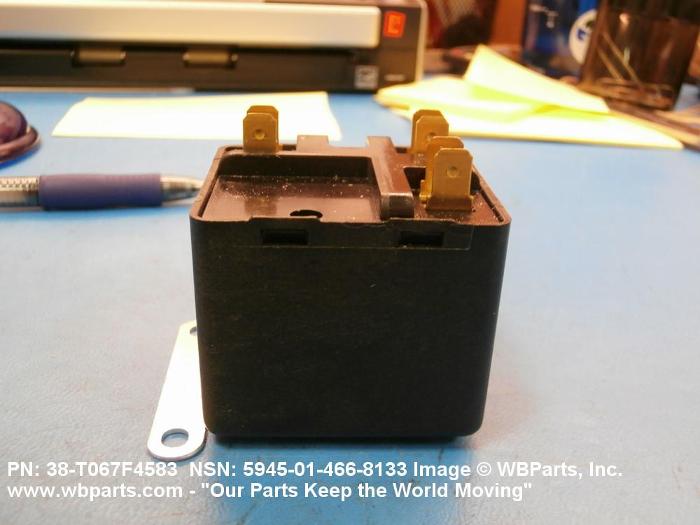

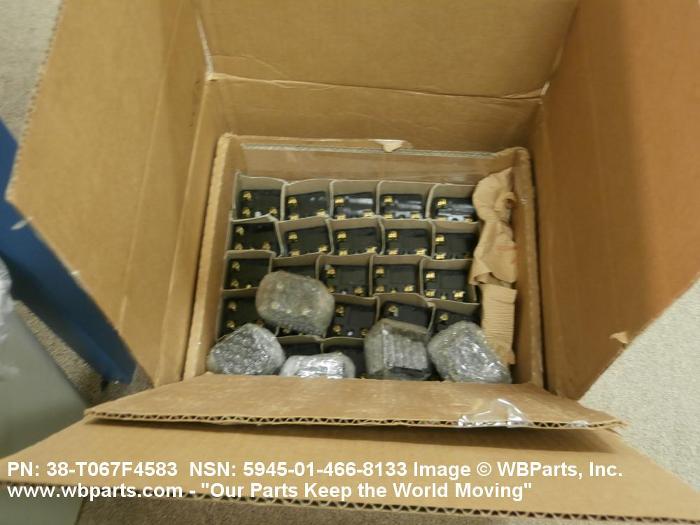

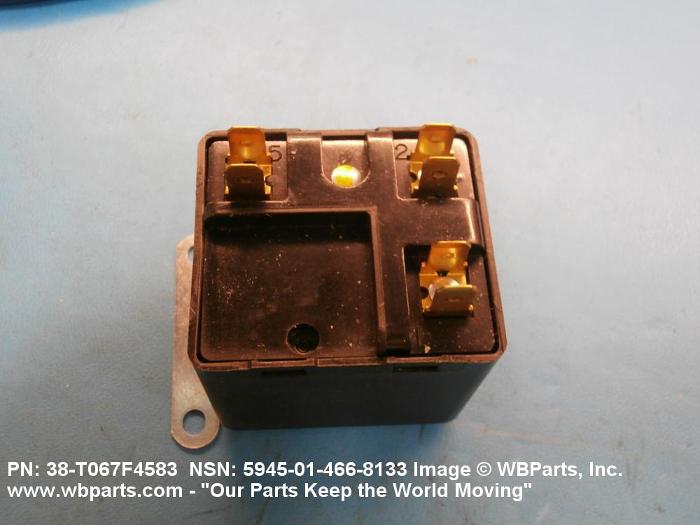

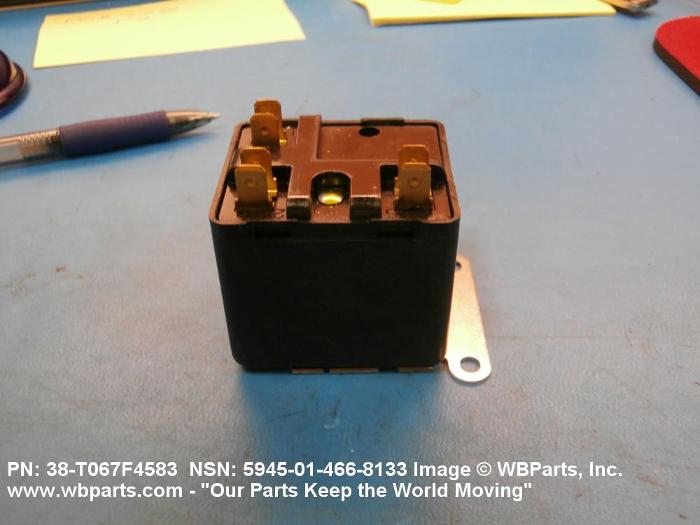

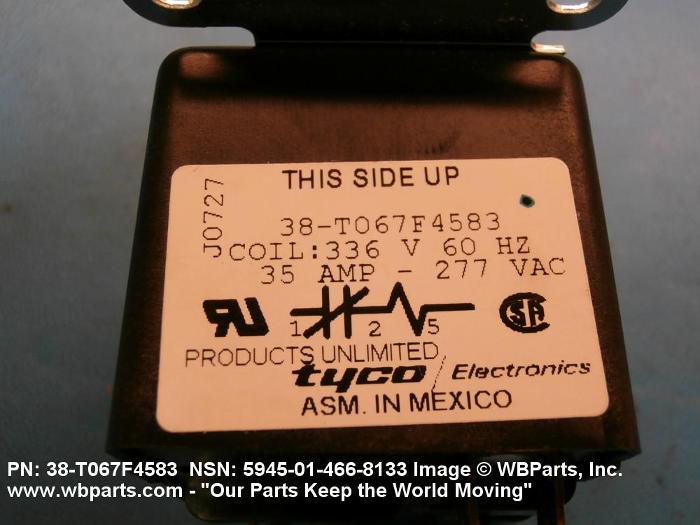

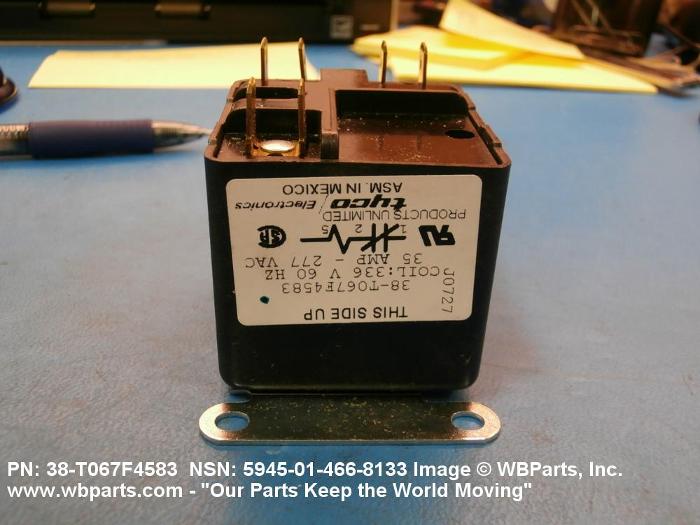

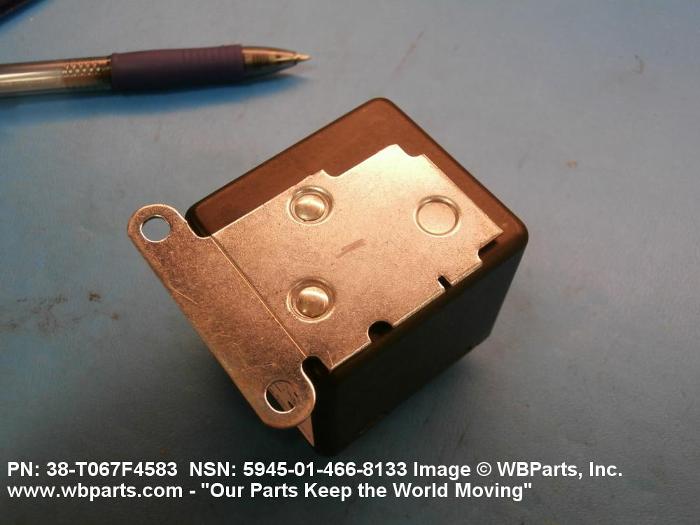

Drawings & Photos | NSN 5945-01-466-8133
Demand History | NSN 5945-01-466-8133
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-466-8133 | 2014-08-233 | 431 | DIBBS |
| 5945-01-466-8133 | 2014-08-222 | 356 | DIBBS |
| 5945-01-466-8133 | 2013-02-58 | 0 | United States |
| 5945-01-466-8133 | 2013-02-36 | 35 | United States |
| 5945-01-466-8133 | 2011-07-210 | 128 | DIBBS |
| 5945-01-466-8133 | 2011-07-203 | 120 | DIBBS |
| 5945-01-466-8133 | 2011-07-190 | 108 | DIBBS |
| 5945-01-466-8133 | 2011-01-07 | 142 | DIBBS |
| 5945-01-466-8133 | 2010-11-322 | 172 | DIBBS |
| 5945-01-466-8133 | 2010-10-280 | 54 | DIBBS |
| 5945-01-466-8133 | 2010-10-280 | 150 | DIBBS |
| 5945-01-466-8133 | 2010-08-230 | 150 | DIBBS |
| 5945-01-466-8133 | 2010-07-183 | 54 | DIBBS |
| 5945-01-466-8133 | 2007-09-250 | 24 | DIBBS |
| 5945-01-466-8133 | 2007-07-192 | 34 | DIBBS |
| 5945-01-466-8133 | 2007-06-165 | 5 | DIBBS |
| 5945-01-466-8133 | 2007-05-137 | 15 | DIBBS |
| 5945-01-466-8133 | 2007-05-125 | 11 | DIBBS |
| 5945-01-466-8133 | 2007-02-51 | 8 | DIBBS |
| 5945-01-466-8133 | 2007-02-51 | 50 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-01-466-8133
Related Products | NSN 5945-01-466-8133
Technical Data | NSN 5945-01-466-8133
| Characteristic | Specifications |
|---|---|
| NONPILE-UP AUXILIARY CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 277.0 AC |
| COIL QUANTITY | 1 |
| FREQUENCY IN HERTZ | 60.0 MAXIMUM |
| OVERALL LENGTH | 2.035 INCHES NOMINAL |
| OVERALL WIDTH | 1.820 INCHES NOMINAL |
| OVERALL HEIGHT | 1.820 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5945-01-466-8133
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-01-466-8133
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
