NSN 5945-01-506-7739 PL215-017-010 REV B FN 161, PL215017010REVBFN161, 215-017-010 REV B FN 161
Product Details | ELECTROMAGNETIC RELAY
5945-01-506-7739 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: PL215-017-010 REV B FN 161, PL215017010REVBFN161, 215-017-010 REV B FN 161, 215017010REVBFN161, 215-127-010 REV B FN 161, 215127010REVBFN161, 6957ED104B2ATN, 6957ED104-B2ATN, 5945-01-506-7739, 01-506-7739, 5945015067739, 015067739
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 APR 2003 | 01-506-7739 | 32512 ( RELAY, ELECTROMAGNETIC ) |

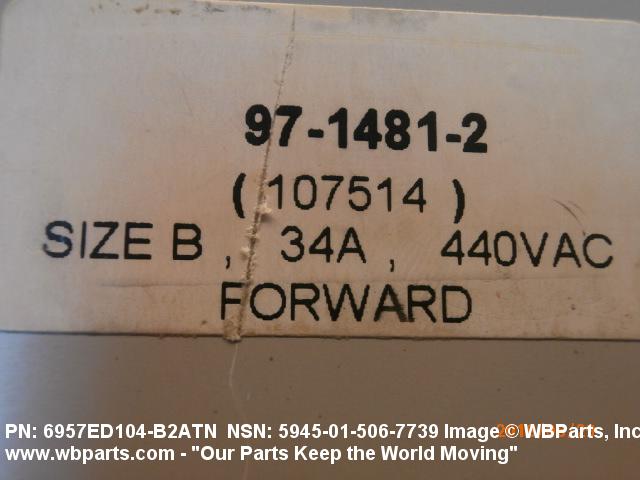

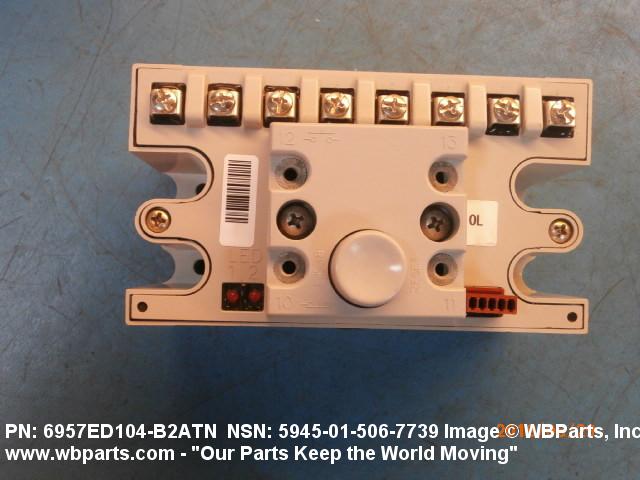

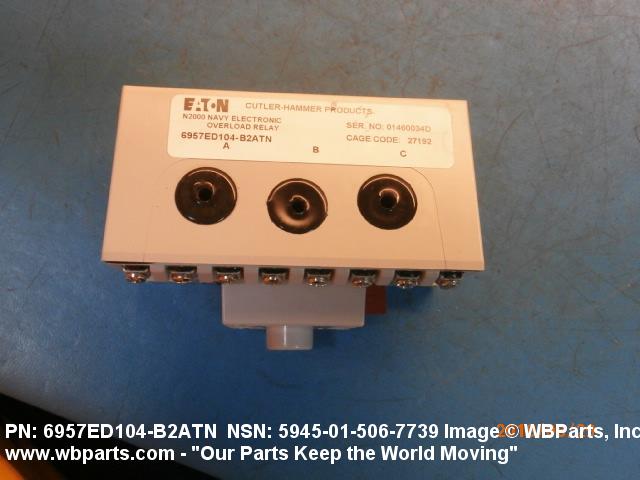

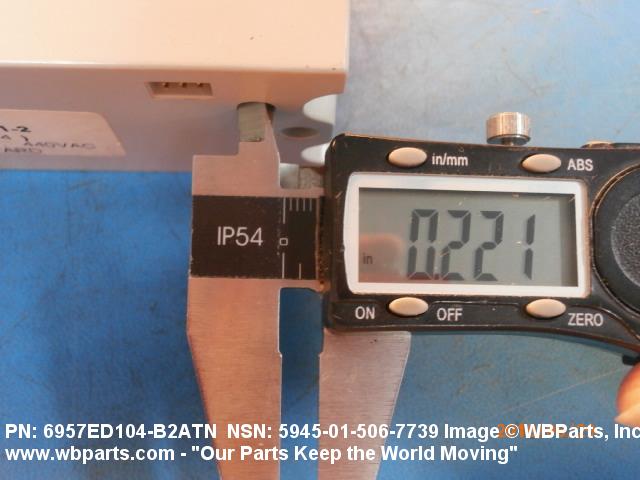

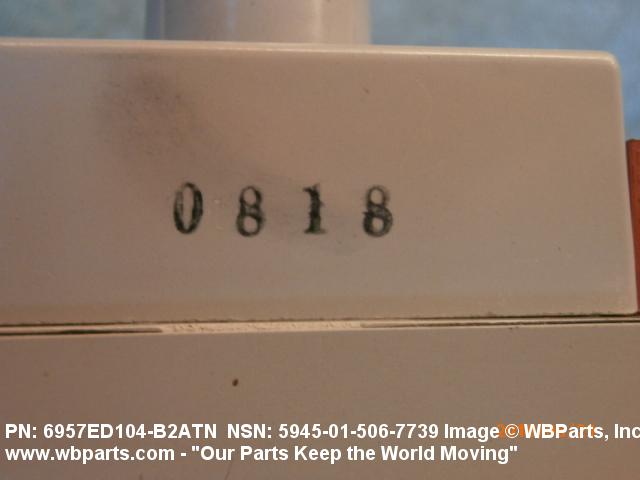

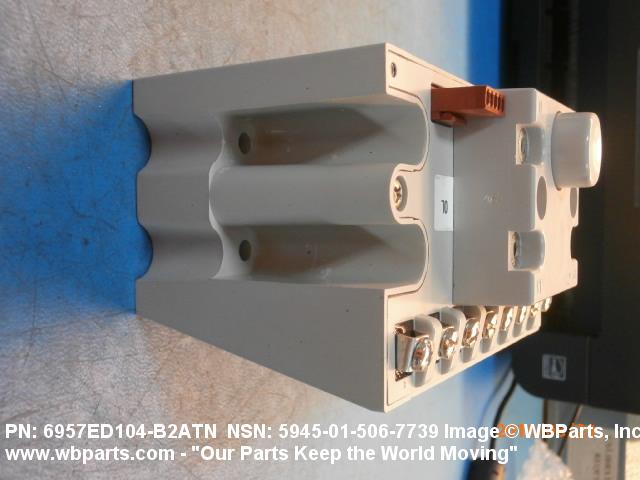

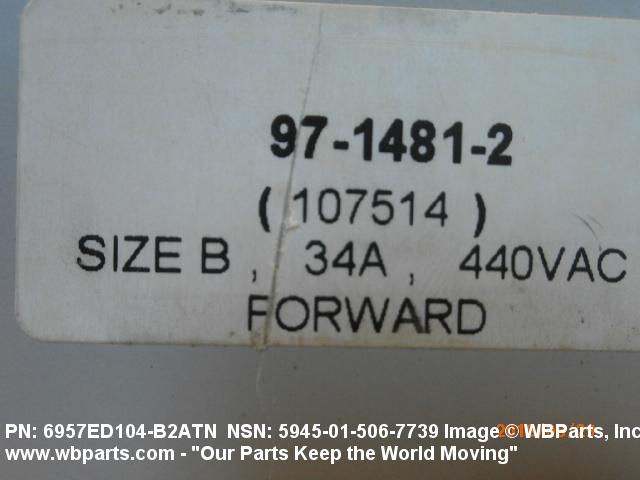

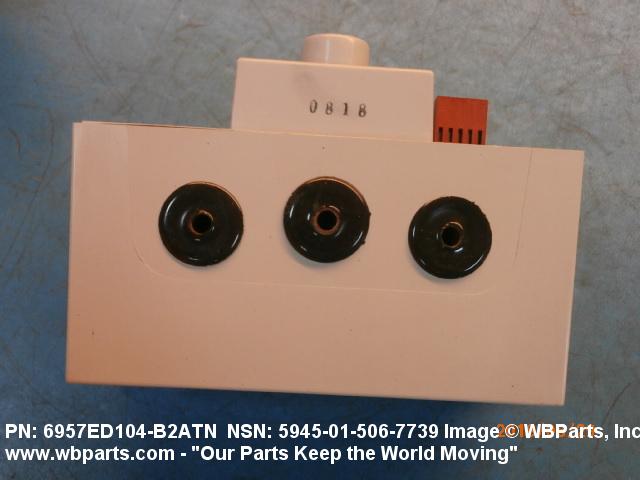

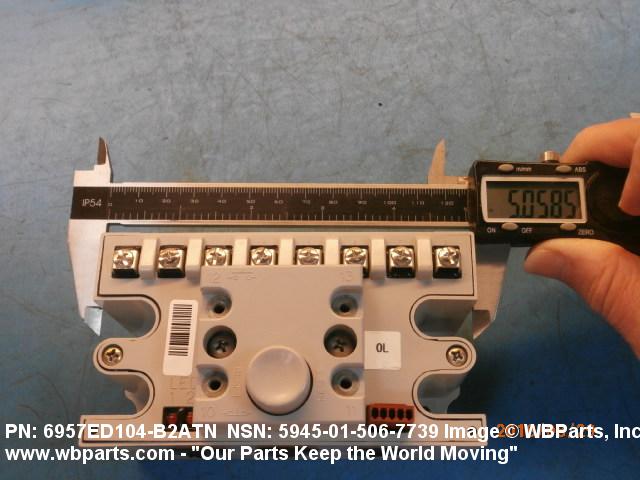

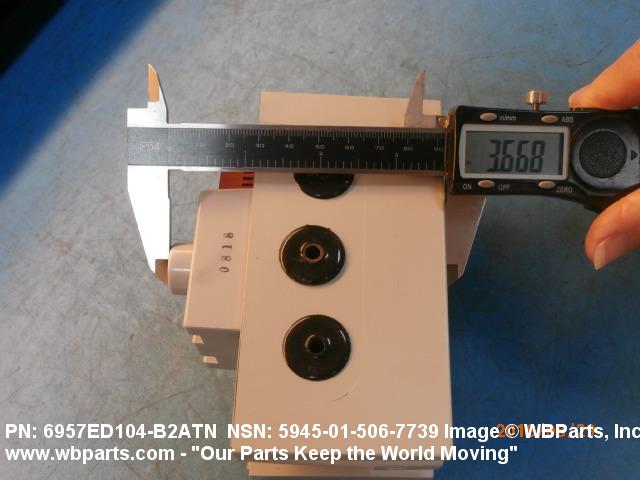

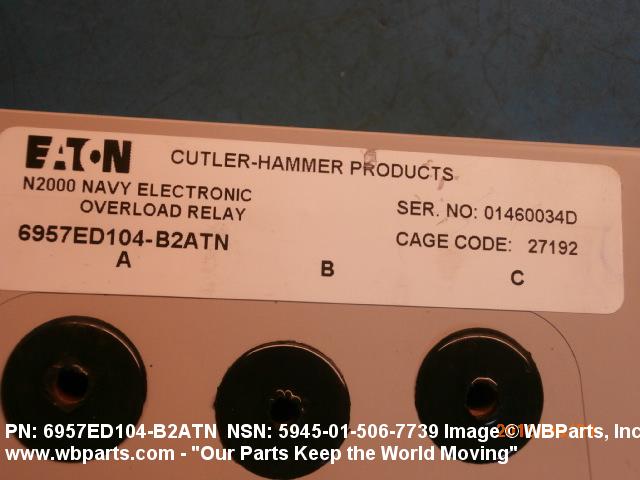

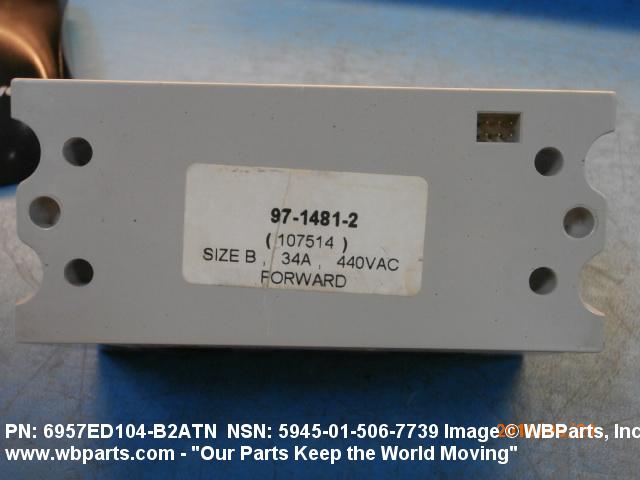

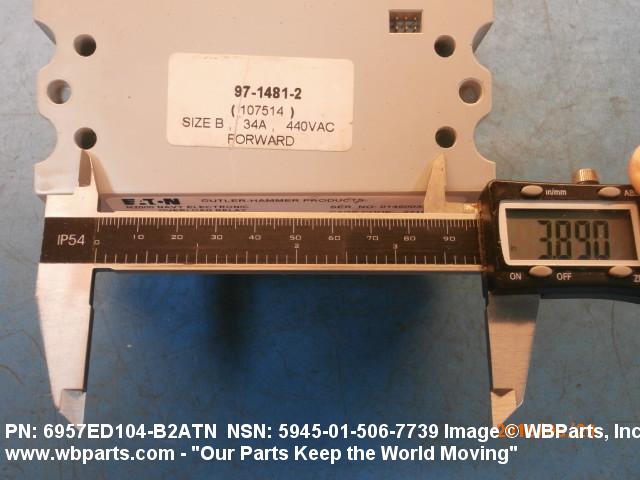

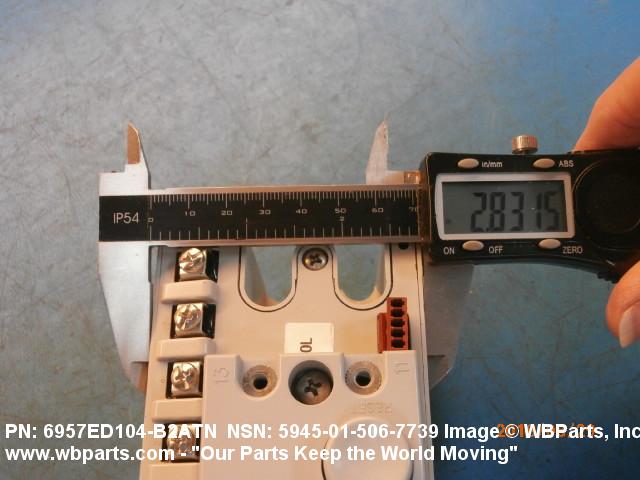

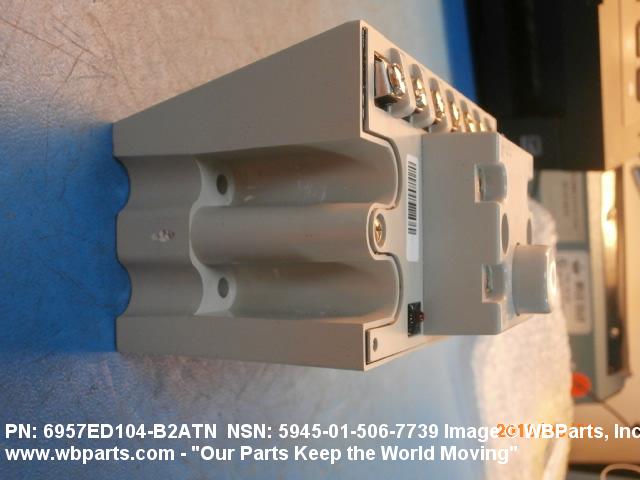

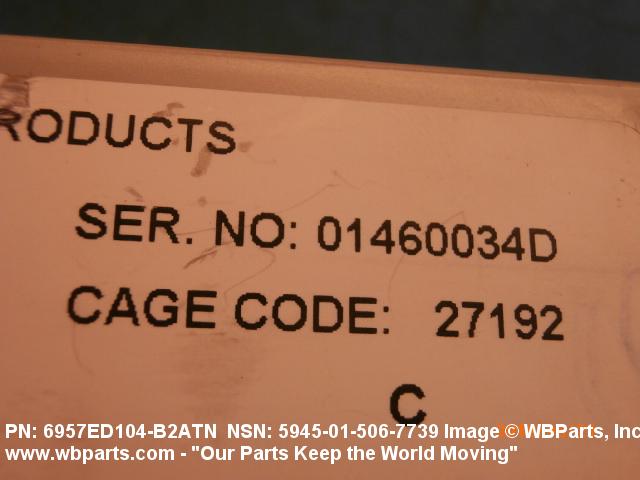

Drawings & Photos | NSN 5945-01-506-7739
Demand History | NSN 5945-01-506-7739
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6957ED104-B2ATN | 2024-09-247 | 20 | DIBBS |
| 6957ED104-B2ATN | 2024-08-235 | 20 | DIBBS |
| 6957ED104-B2ATN | 2024-02-57 | 12 | DIBBS |
| 6957ED104-B2ATN | 2024-02-46 | 12 | DIBBS |
| 6957ED104B2ATN | 2019-09-259 | 1 | United States |
| 6957ED104B2ATN | 2018-08-227 | 1 | United States |
| 5945-01-506-7739 | 2016-07-213 | 37 | DIBBS |
| 5945-01-506-7739 | 2015-12-344 | 17 | DIBBS |
| 5945-01-506-7739 | 2015-06-172 | 17 | DIBBS |
| 5945-01-506-7739 | 2014-11-334 | 11 | DIBBS |
| 5945-01-506-7739 | 2013-12-347 | 9 | DIBBS |
| 5945-01-506-7739 | 2013-11-332 | 9 | DIBBS |
| 5945-01-506-7739 | 2013-01-14 | 3 | DIBBS |
| 5945-01-506-7739 | 2012-06-178 | 2 | DIBBS |
| 5945-01-506-7739 | 2012-05-135 | 2 | DIBBS |
| 5945-01-506-7739 | 2010-08-239 | 3 | DIBBS |
| 5945-01-506-7739 | 2009-11-316 | 2 | DIBBS |
| 5945-01-506-7739 | 2009-11-314 | 1 | DIBBS |
| 5945-01-506-7739 | 2009-09-257 | 4 | DIBBS |
| 5945-01-506-7739 | 2009-02-49 | 2 | DIBBS |
| 5945-01-506-7739 | 2009-02-42 | 5 | DIBBS |
| 5945-01-506-7739 | 2009-01-30 | 1 | DIBBS |
| 5945-01-506-7739 | 2009-01-12 | 1 | DIBBS |
| 5945-01-506-7739 | 2008-12-339 | 3 | DIBBS |
| 5945-01-506-7739 | 2008-07-185 | 2 | DIBBS |
Cross Reference | NSN 5945-01-506-7739
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 215-017-010 REV B FN 161 | 6Z538 | CAROLINA POWER SYSTEMS OF SUMTER, INC. |
| 215-127-010 REV B FN 161 | 6Z538 | CAROLINA POWER SYSTEMS OF SUMTER, INC. |
| 6957ED104-B2ATN | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| PL215-017-010 REV B FN 161 | 6Z538 | CAROLINA POWER SYSTEMS OF SUMTER, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-01-506-7739
Related Products | NSN 5945-01-506-7739
Technical Data | NSN 5945-01-506-7739
| Characteristic | Specifications |
|---|---|
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 32.0 AMPERES AC RESISTIVE LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 440.0 VOLTS AC 25 DEG CELSIUS SINGLE WINDING |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
| TERMINAL TYPE AND QUANTITY | 4 SCREW ALL FUNCTIONS |
| DUTY TYPE | CONTINUOUS |
| OVERALL LENGTH | 5.060 INCHES NOMINAL |
| OVERALL WIDTH | 2.860 INCHES NOMINAL |
| OVERALL HEIGHT | 3.640 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | RECTANGULAR SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.880 INCHES NOMINAL SINGLE MOUNTING FACILITY |

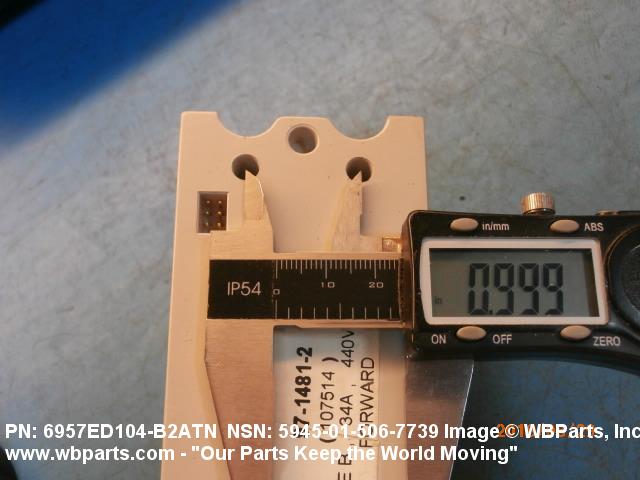

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.000 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.200 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| SPECIAL FEATURES | ITEM IS NON REVERSING |
| III END ITEM IDENTIFICATION | CONTROLLER, AC |
Restrictions/Controls & Freight Information | NSN 5945-01-506-7739
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-01-506-7739
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
