NSN 5945-01-540-6949 55.32.8024.0054, 553280240054, 01-540-6949
Product Details | ELECTROMAGNETIC RELAY
5945-01-540-6949 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: 55.32.8024.0054, 553280240054, 5945-01-540-6949, 01-540-6949, 5945015406949, 015406949
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 MAY 2006 | 01-540-6949 | 32512 ( RELAY, ELECTROMAGNETIC ) |

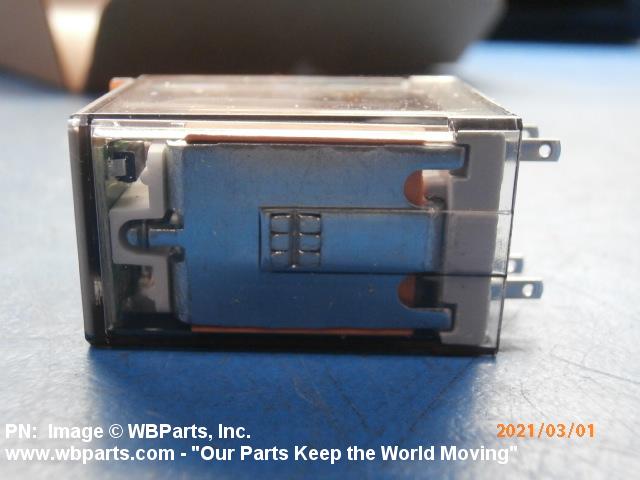

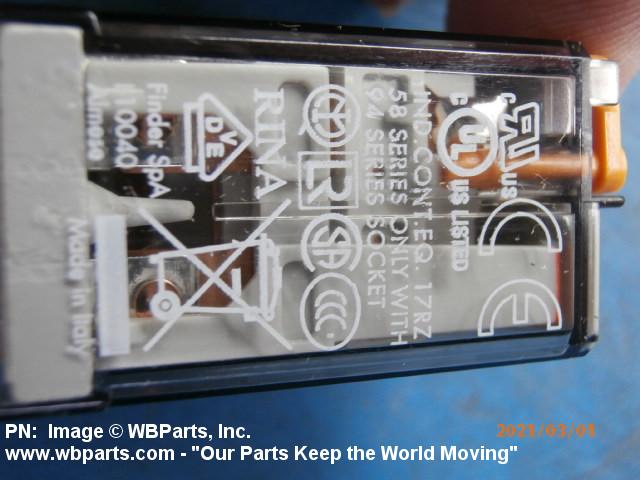

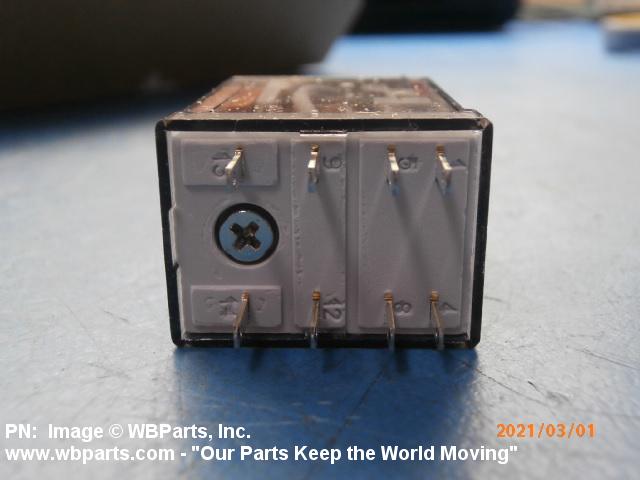

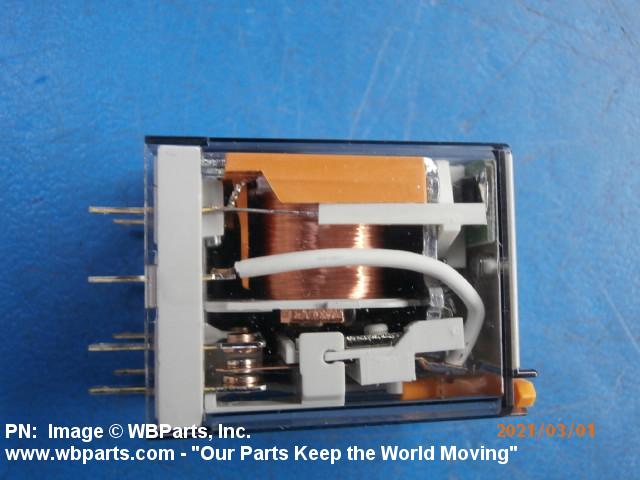

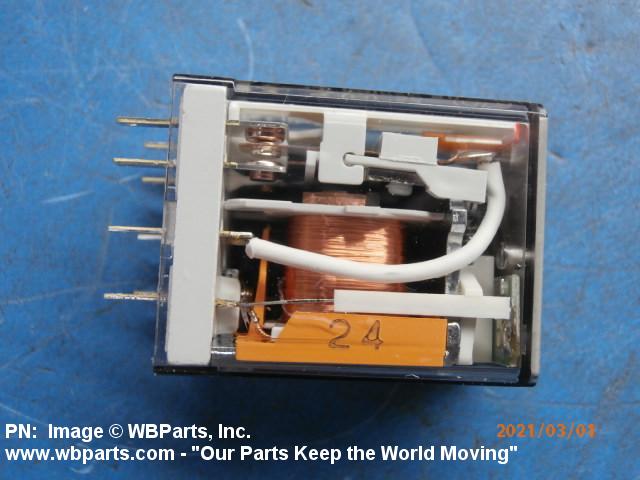

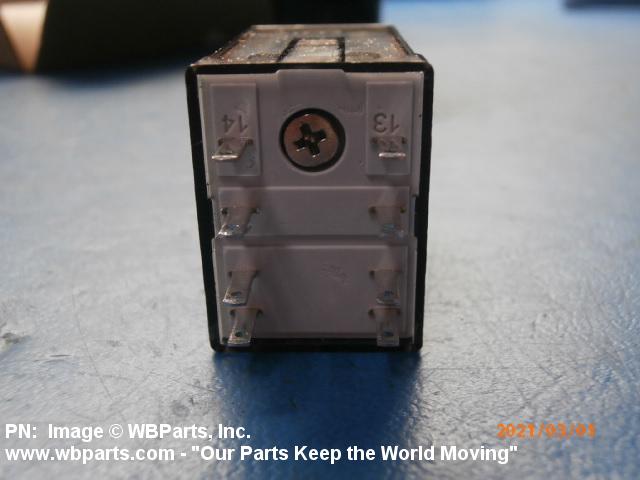

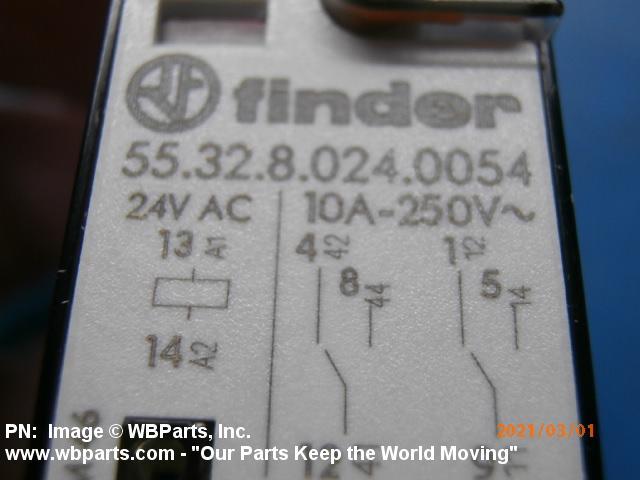

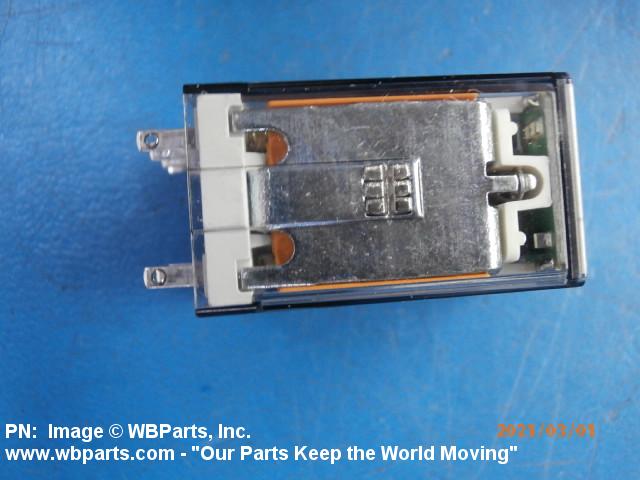

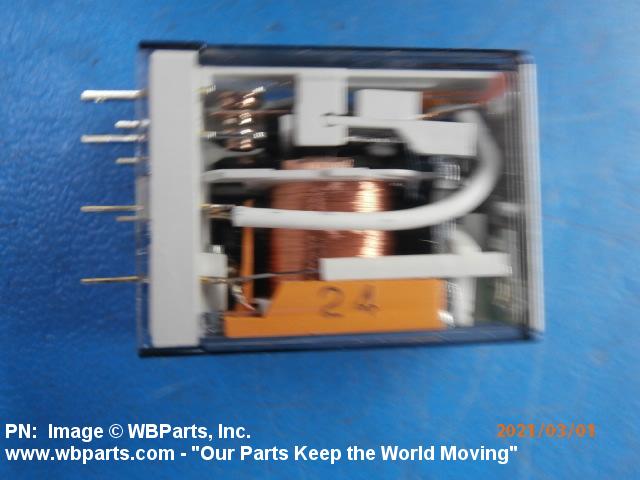

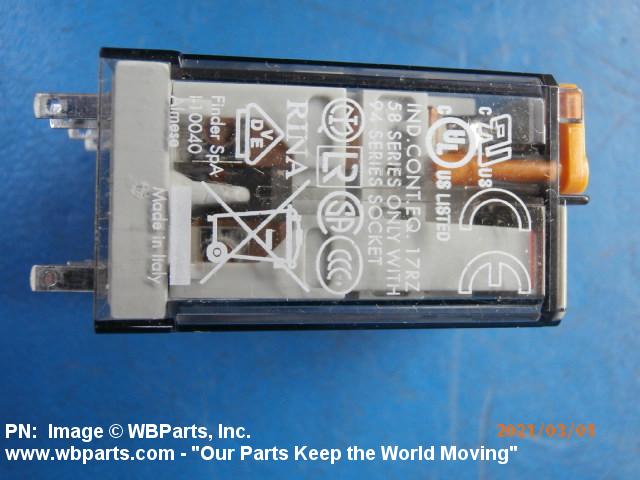

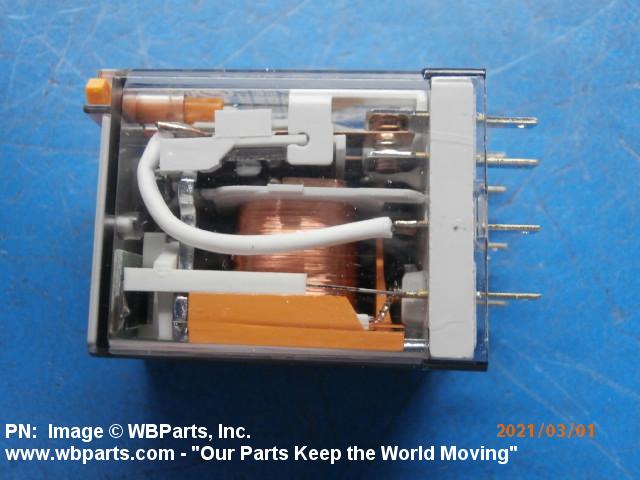

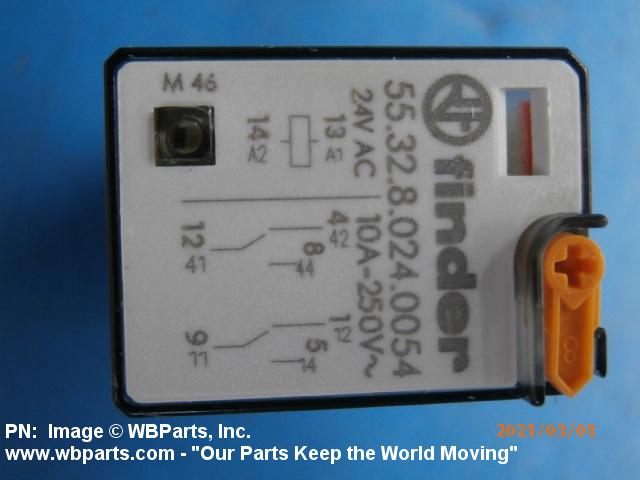

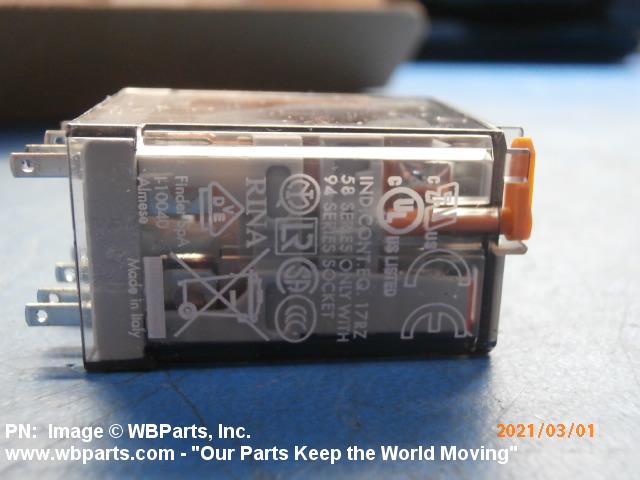

Drawings & Photos | NSN 5945-01-540-6949
Demand History | NSN 5945-01-540-6949
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 553280240054 | 2021-02-55 | 2 | United States |
Cross Reference | NSN 5945-01-540-6949
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 55.32.8024.0054 | 04QB3 | FINDER RELAYS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-540-6949
Technical Data | NSN 5945-01-540-6949
| Characteristic | Specifications |
|---|---|
| NOMINAL OPERATING CURRENT RATING AND TYPE | 10.0 AMPERES AC ALL WINDINGS |
| FREQUENCY IN HERTZ | 50.0 MINIMUM AND 60.0 MAXIMUM |

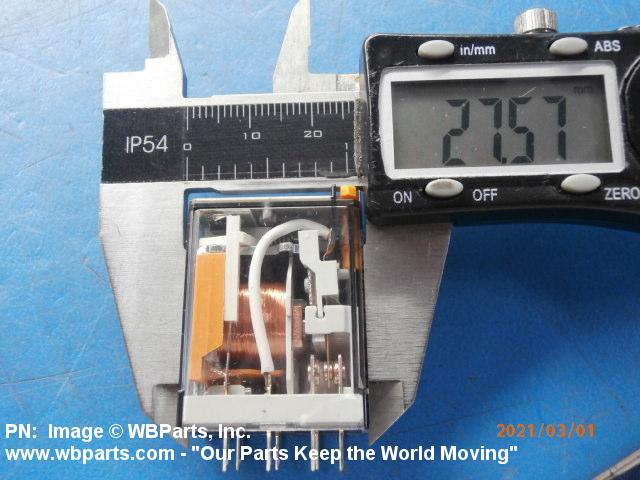

| OVERALL LENGTH | 27.5 MILLIMETERS NOMINAL |

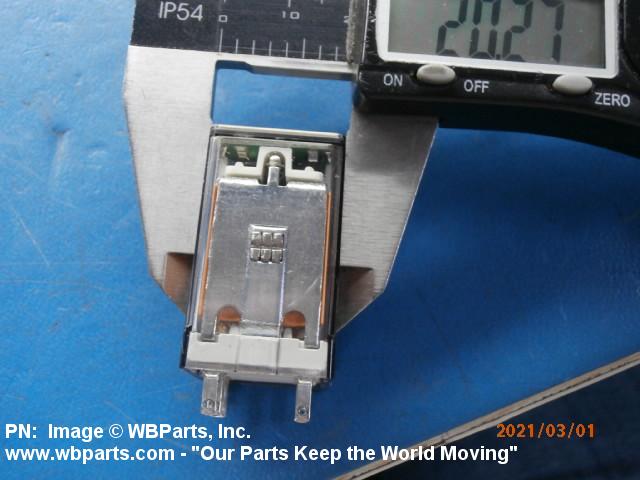

| OVERALL WIDTH | 20.7 MILLIMETERS NOMINAL |
Restrictions/Controls & Freight Information | NSN 5945-01-540-6949
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
