NSN 5950-00-106-5261 DIT250, DI-T250, 1214256
Product Details | AUDIO FREQUENCY TRANSFORMER
5950-00-106-5261 A transformer which is designed so that part or all of its range of operating frequencies is 20 kilohertz (kilocycles) and below. The maximum value may extend into the radio frequency range. It is generally used in the input, output, amplifier, or oscillator stages of audio and sonar devices.
Part Alternates: DIT250, DI-T250, 1214256, 1214-256, 561073425011, 56-107342-5011, 5950-00-106-5261, 00-106-5261, 5950001065261, 001065261
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 JUL 1968 | 00-106-5261 | 00780 ( TRANSFORMER, AUDIO FREQUENCY ) |

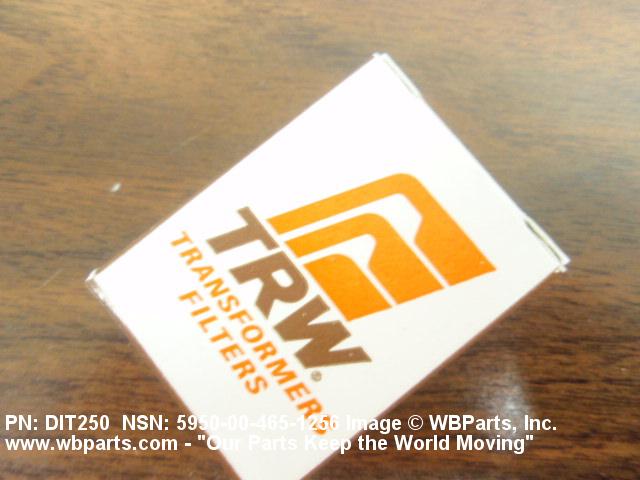

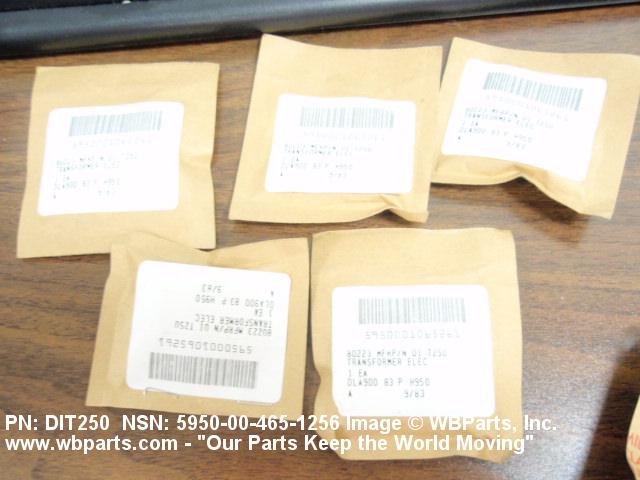

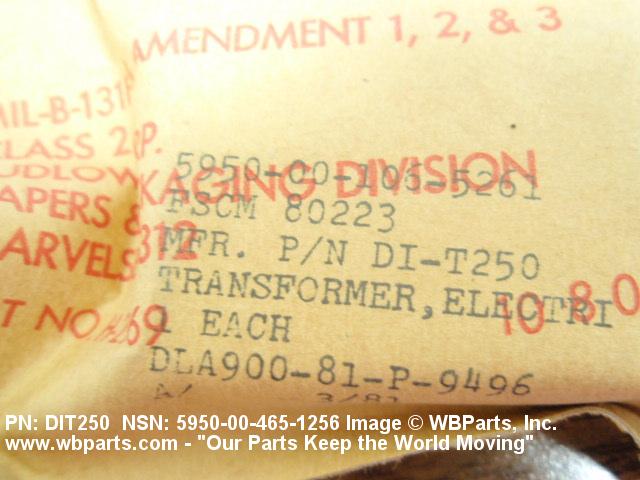

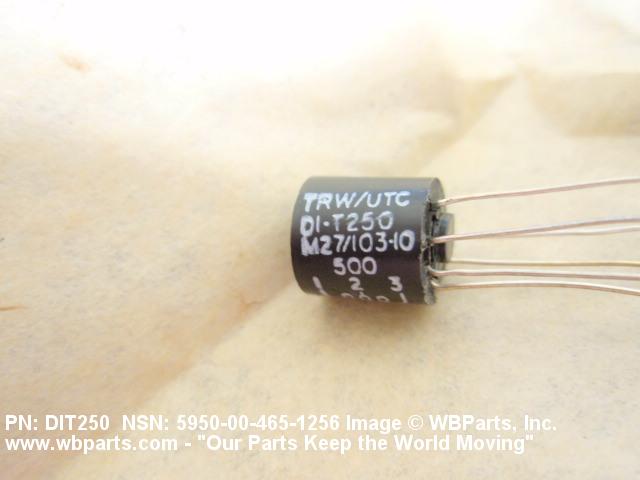

Drawings & Photos | NSN 5950-00-106-5261
Demand History | NSN 5950-00-106-5261
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DIT250 | 2014-07-203 | 1 | HU |
| DIT250 | 2010-11-333 | 10 | Taiwan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5950-00-106-5261
Related Products | NSN 5950-00-106-5261
Technical Data | NSN 5950-00-106-5261
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 6 WIRE LEAD |
| (NON-CORE DATA) WINDING TAP LOCATION | CENTER TAP SINGLE COMPONENT SINGLE PRIMARY CENTER TAP SINGLE COMPONENT SINGLE SECONDARY |
| WINDING OPERATING CURRENT | 5.5 MILLIAMPERES DC MAXIMUM SINGLE COMPONENT SINGLE PRIMARY |
| IMPEDANCE RATING IN OHMS | 500.0 NOMINAL SINGLE COMPONENT SINGLE PRIMARY 600.0 NOMINAL SINGLE COMPONENT SINGLE SECONDARY |
| FREQUENCY RATING | 400.0 HERTZ MINIMUM AND 100.0 KILOHERTZ MAXIMUM SINGLE COMPONENT |
| (NON-CORE DATA) FREQUENCY RESPONSE TOLERANCE IN DECIBELS | -3.0 TO 3.0 SINGLE COMPONENT |
| MAXIMUM TRANSFORMER POWER RATING | 500.0 MILLIWATTS SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 1 PRIMARY AND 1 SECONDARY SINGLE COMPONENT |
| MOUNTING METHOD | TERMINAL SINGLE GROUP |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| BODY LENGTH | 0.406 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.350 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIFICATION/STANDARD DATA | 04655-56-107342 MANUFACTURERS SOURCE CONTROL |
| III MAXIMUM OPERATING TEMP | 120.0 DEG FAHRENHEIT |
| (NON-CORE DATA) UNPACKAGED UNIT WEIGHT | 0.140 OUNCES |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES GOLD |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND VIBRATION RESISTANT |
Restrictions/Controls & Freight Information | NSN 5950-00-106-5261
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 595 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5950-00-106-5261
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
