NSN 5950-00-152-1837 MILT27, TF4RX02YY, 11295520
Product Details | POWER TRANSFORMER
5950-00-152-1837 A transformer consisting of one or more primary winding(s) and one or more secondary winding(s). It may be designed for direct connection to an alternating current source for purposes of changing the secondary volts and amperes or designed to eliminate metallic interconnection between circuits in an overall one to one voltage ratio, with or without additional output windings, or items designed to automatically maintain a constant output voltage within specified limits under varying input or load conditions. Also includes items having a provision for mechanically changing the turns ratio or inductive coupling in progressive increments by means of voltage taps, ratio adjuster, or devices oe similar design. For transformers having winding(s) common to both input and output circuits, see TRANSFORMER (1), POWER, AUTOTRANSFORMER. Excludes TRANSFORMER (1), PULSE.20259500022Coils and Transformers61200044Transformers: Distribution and Power Station
Part Alternates: MILT27, TF4RX02YY, 11295520, 5950-00-152-1837, 00-152-1837, 5950001521837, 001521837
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 OCT 1971 | 00-152-1837 | 32496 ( TRANSFORMER, POWER ) |

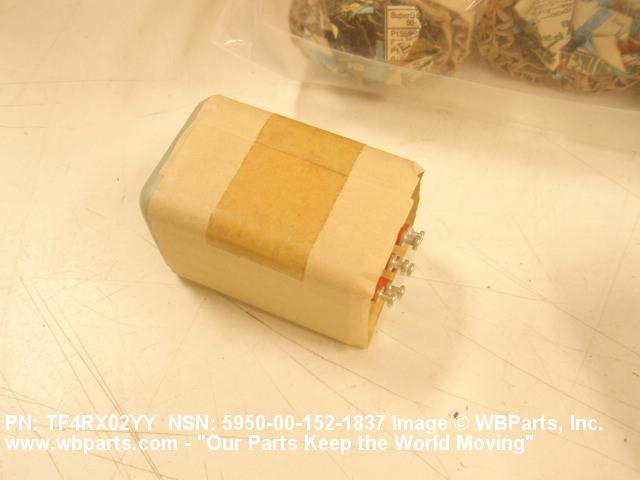

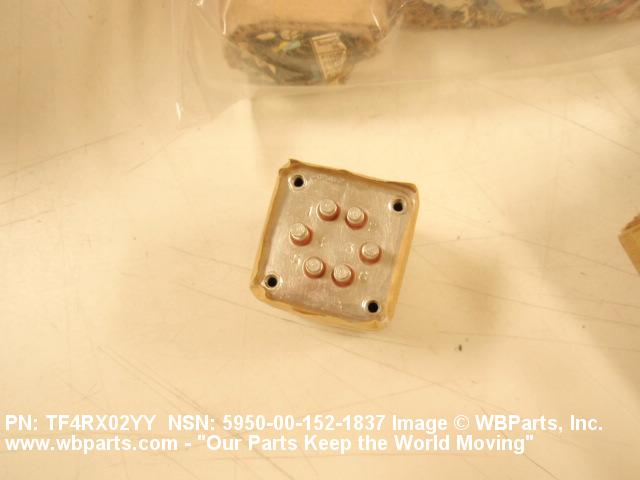

Drawings & Photos | NSN 5950-00-152-1837
Demand History | NSN 5950-00-152-1837
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| TF4RX02YY | 2012-03-82 | 2 | United States |
| 5950-00-152-1837 | 2011-07-201 | 1 | United States |
| TF4RX02YY | 2009-02-49 | 6 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5950-00-152-1837
Technical Data | NSN 5950-00-152-1837
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 12 SOLDER STUD AND 3 THREADED STUD |
| (NON-CORE DATA) WINDING TAP LOCATION | CENTER TAP SINGLE COMPONENT 2ND SECONDARY |
| WINDING OPERATING VOLTAGE | 25.50 AC VOLTS NOMINAL SINGLE COMPONENT 1ST SECONDARY 79.00 AC VOLTS NOMINAL SINGLE COMPONENT 2ND SECONDARY 208.00 AC VOLTS NOMINAL SINGLE COMPONENT SINGLE PRIMARY |
| WINDING OPERATING CURRENT | 28.6 AMPERES AC MAXIMUM SINGLE COMPONENT 1ST SECONDARY 100.0 MILLIAMPERES AC MAXIMUM SINGLE COMPONENT 2ND SECONDARY |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL SINGLE COMPONENT |
| WINDING SHIELDING METHOD | INTERNAL SHIELD GROUNDED TO INCLOSURE AND CORE SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 1 PRIMARY AND 2 SECONDARY SINGLE COMPONENT |
| INPUT-OUTPUT PHASE RELATIONSHIP | THREE PHASE TO THREE PHASE AND THREE PHASE TO SINGLE PHASE SINGLE COMPONENT |
| MOUNTING METHOD | THREADED STUD SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 4 SINGLE GROUP |
| THREAD SERIES DESIGNATOR | UNC SINGLE GROUP |
| NOMINAL THREAD SIZE | 0.375 INCHES SINGLE GROUP |
| THREAD QUANTITY PER INCH | 16 SINGLE GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 7.855 INCHES MINIMUM AND 7.905 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 5.555 INCHES MINIMUM AND 5.605 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| INCLOSURE TYPE | FULLY INCLOSED |
| BODY LENGTH | 9.880 INCHES MAXIMUM |
| BODY HEIGHT | 5.757 INCHES MAXIMUM |
| BODY WIDTH | 8.540 INCHES MAXIMUM |
| OVERALL LENGTH | 9.880 INCHES MAXIMUM |
| OVERALL HEIGHT | 6.647 INCHES NOMINAL |
| OVERALL WIDTH | 8.540 INCHES MAXIMUM |
| SPECIAL FEATURES | PRIMARY WINDINGS TAPPED TO VARY OUTPUT VOLTAGES BY 5 PCT |
| III TRANSFORMER WINDING CONNECTION TYPE | WYE-OPEN DELTA |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILT27 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | TF4RX02YY |
| MANUFACTURERS CODE | 17773 |
| DESIGN CONTROL REFERENCE | 11295520 |
Restrictions/Controls & Freight Information | NSN 5950-00-152-1837
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | BR | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
