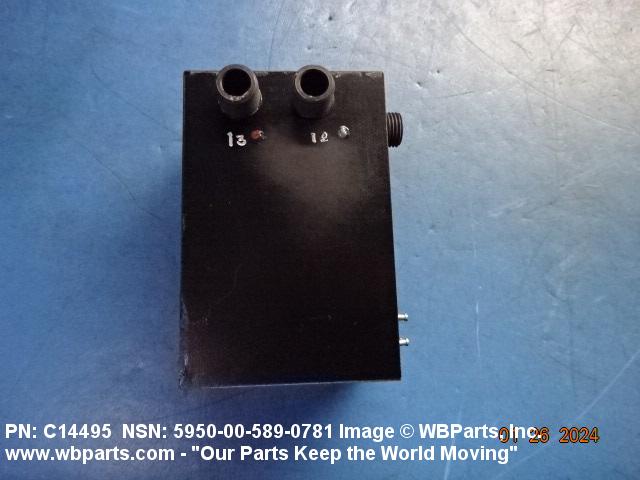

Product Details | POWER TRANSFORMER

5950-00-589-0781 A transformer consisting of one or more primary winding(s) and one or more secondary winding(s). It may be designed for direct connection to an alternating current source for purposes of changing the secondary volts and amperes or designed to eliminate metallic interconnection between circuits in an overall one to one voltage ratio, with or without additional output windings, or items designed to automatically maintain a constant output voltage within specified limits under varying input or load conditions. Also includes items having a provision for mechanically changing the turns ratio or inductive coupling in progressive increments by means of voltage taps, ratio adjuster, or devices oe similar design. For transformers having winding(s) common to both input and output circuits, see TRANSFORMER (1), POWER, AUTOTRANSFORMER. Excludes TRANSFORMER (1), PULSE.20259500022Coils and Transformers61200044Transformers: Distribution and Power Station

Part Alternates: C14495, L724725G01, PEI 7085, PEI7085, 139C587H01, 4501020000, 450-1020-000, 5950-00-589-0781, 00-589-0781, 5950005890781, 005890781

Electrical and Electronic Equipment Components | Coils and Transformers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	28 DEC 1974	00-589-0781	32496 ( TRANSFORMER, POWER )

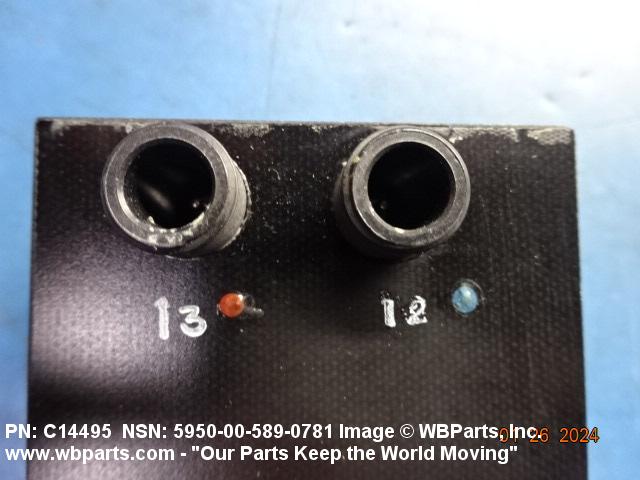

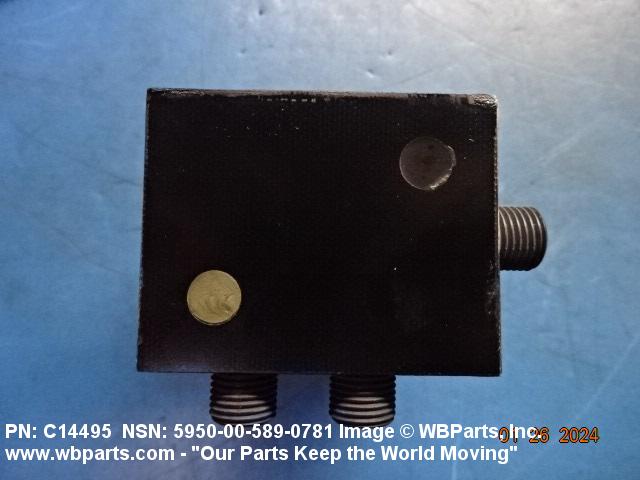

Drawings & Photos | NSN 5950-00-589-0781

Part Number	Request Date	QTY	Origin
139C587H01	2024-06-180	1	Taiwan
5950-00-589-0781	2023-09-265	1	Greece
5950-00-589-0781	2013-09-254	21	DIBBS
5950-00-589-0781	2013-02-39	10	PK
5950-00-589-0781	2013-01-06	5	Pakistan
5950-00-589-0781	2013-01-04	5	Pakistan
139C587H01	2012-08-227	10	US
5950-00-589-0781	2012-08-222	10	Pakistan
139C587H01	2011-09-250	5	US
5950-00-589-0781	2011-05-137	2	AR
139C587H01	2011-01-05	5	Pakistan
5950-00-589-0781	2010-09-273	1	us

Cross Reference | NSN 5950-00-589-0781

Part Number	Cage Code	Manufacturer
139C587H01	59533	MAGNETIC DESIGN LABS, INC.
139C587H01	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
450-1020-000	58019	MAGNATRONIX CORPORATION INC DBA FETCO
C14495	72149	ELECTRONIC TRANSFORMER CORP.
L724725G01	58019	MAGNATRONIX CORPORATION INC DBA FETCO
PEI 7085	13483	PRECISION ELECTRONICS, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5950-00-589-0781

Compare

Related Products | NSN 5950-00-589-0781

5950-00-589-0833, 5950-00-589-0835, 5950-00-589-0858, 5950-00-589-0859, 5950-00-589-2812

Technical Data | NSN 5950-00-589-0781

Characteristic	Specifications

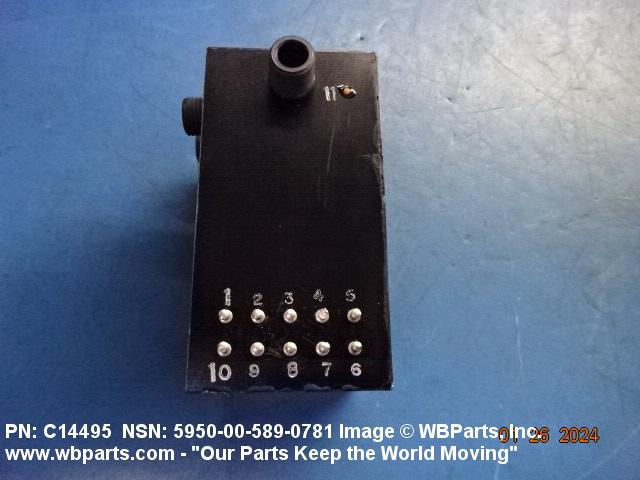

TERMINAL TYPE AND QUANTITY	3 THREADED STUD AND 10 TURRET
(NON-CORE DATA) WINDING TAP LOCATION	MULTIPLE TAPS W/O CENTER TAP SINGLE COMPONENT 1ST SECONDARY CENTER TAP SINGLE COMPONENT 2ND SECONDARY
WINDING OPERATING VOLTAGE	62.80 AC VOLTS NOMINAL AND 3.46 AC KILOVOLTS NOMINAL SINGLE COMPONENT 1ST SECONDARY 61.00 AC VOLTS NOMINAL SINGLE COMPONENT 2ND SECONDARY 6.98 AC VOLTS NOMINAL SINGLE COMPONENT 3RD SECONDARY 99.00 AC VOLTS NOMINAL SINGLE COMPONENT SINGLE PRIMARY
WINDING OPERATING CURRENT	450.0 MILLIAMPERES AC NOMINAL SINGLE COMPONENT 1ST SECONDARY 20.0 MILLIAMPERES AC NOMINAL SINGLE COMPONENT 2ND SECONDARY 3.5 AMPERES AC NOMINAL SINGLE COMPONENT 3RD SECONDARY
WINDING POWER RATING	1.22 VOLTS-AMPERES SINGLE COMPONENT 2ND SECONDARY 24.46 VOLTS-AMPERES SINGLE COMPONENT 3RD SECONDARY
FREQUENCY RATING	400.0 HERTZ NOMINAL SINGLE COMPONENT
WINDING SHIELDING METHOD	CORE GROUNDED SINGLE COMPONENT
WINDING FUNCTION AND QUANTITY	1 PRIMARY AND 3 SECONDARY SINGLE COMPONENT
INPUT-OUTPUT PHASE RELATIONSHIP	SINGLE PHASE TO SINGLE PHASE SINGLE COMPONENT

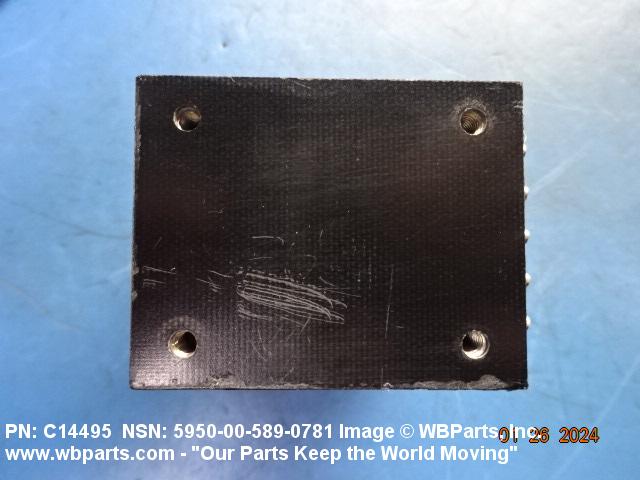

MOUNTING METHOD	THREADED HOLE SINGLE GROUP
MOUNTING FACILITY QUANTITY	4 SINGLE GROUP
THREAD SERIES DESIGNATOR	UNC SINGLE GROUP
NOMINAL THREAD SIZE	0.164 INCHES SINGLE GROUP
(NON-CORE DATA) THREAD CLASS	2B SINGLE GROUP
(NON-CORE DATA) THREAD DIRECTION	RIGHT-HAND SINGLE GROUP
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.795 INCHES MINIMUM AND 1.805 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	1.395 INCHES MINIMUM AND 1.405 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP
INCLOSURE TYPE	FULLY INCLOSED

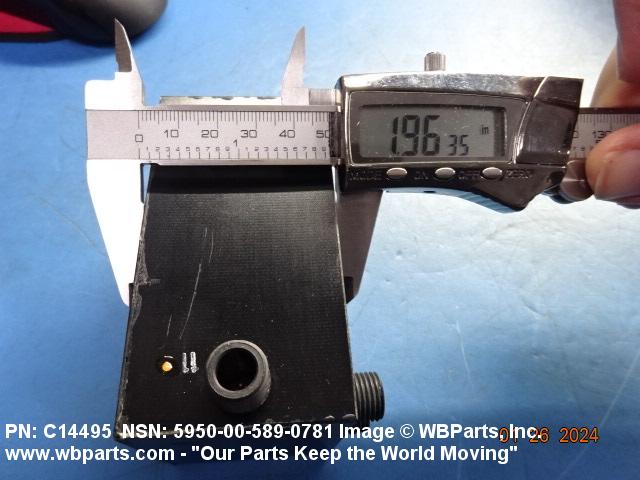

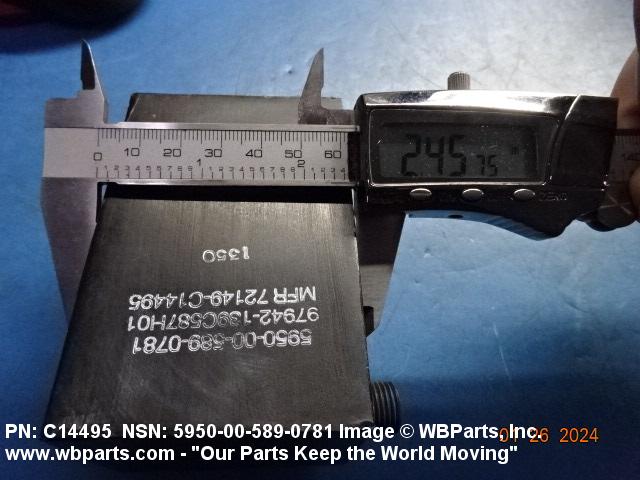

BODY LENGTH	2.440 INCHES MAXIMUM

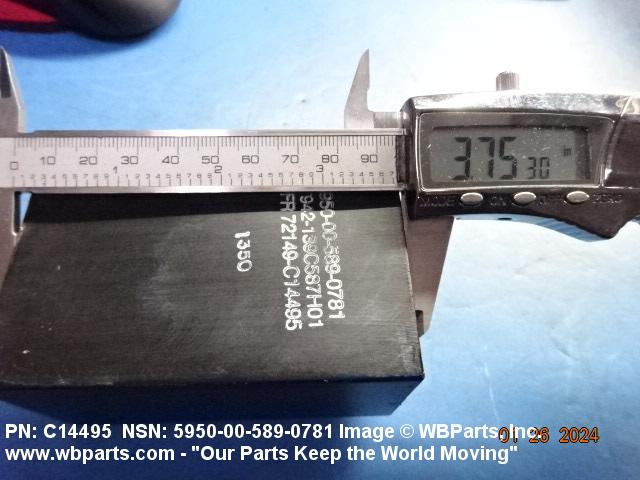

BODY HEIGHT	3.750 INCHES MAXIMUM
BODY WIDTH	1.960 INCHES MAXIMUM
FEATURES PROVIDED	COLOR CODED TERMINAL
RELIABILITY INDICATOR	NOT ESTABLISHED
(NON-CORE DATA) CUBIC MEASURE	17.9 CUBIC INCHES
