NSN 5950-00-761-3819 S6157610561, S6157-61056-1, SK61P
Product Details | POWER AUTOTRANSFORMER TRANSFORMER
5950-00-761-3819 A transformer which incorporates the primary and secondary functions into a single winding, which is common to both input and output circuits, and is designed to change the relationship of volts and amperes between the entire winding and its taps. Includes multiple winding transformers of like design and items in which a variation of the turns ratio or inductive ratio of inductive coupling is accomplished by connection to fixed terminals. Also, includes items having a provision for mechanically changing the turns ratio in progressive increments, by means of a shaft, voltage taps, ratio adjuster, or devices of similar design. Excludes TRANSFORMER (1), POWER; TRANSFORMER (1), PULSE.20259500022Coils and Transformers61200044Transformers: Distribution and Power Station
Part Alternates: S6157610561, S6157-61056-1, SK61P, SK-61-P, TE11463, K5759, 77917246, 779-172-46, 5950-00-761-3819, 00-761-3819, 5950007613819, 007613819
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-761-3819 | 36166 ( TRANSFORMER, POWER AUTOTRANSFORMER ) |

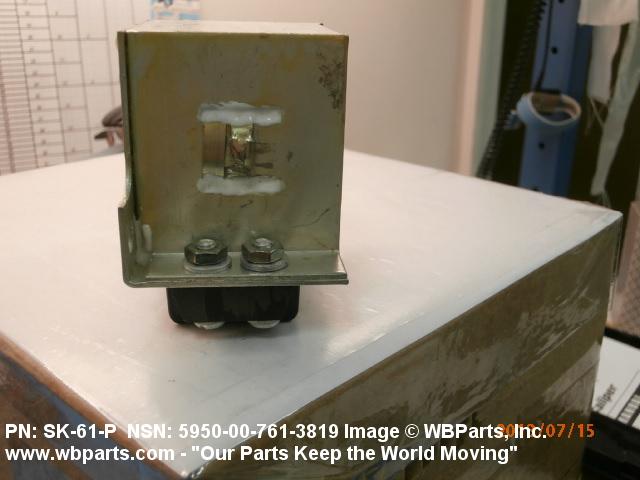

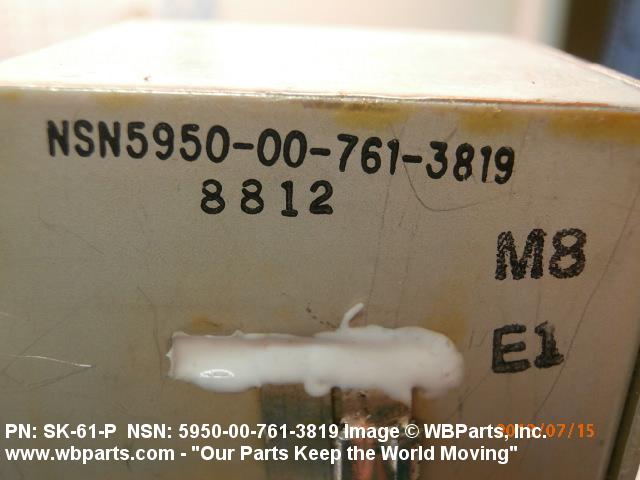

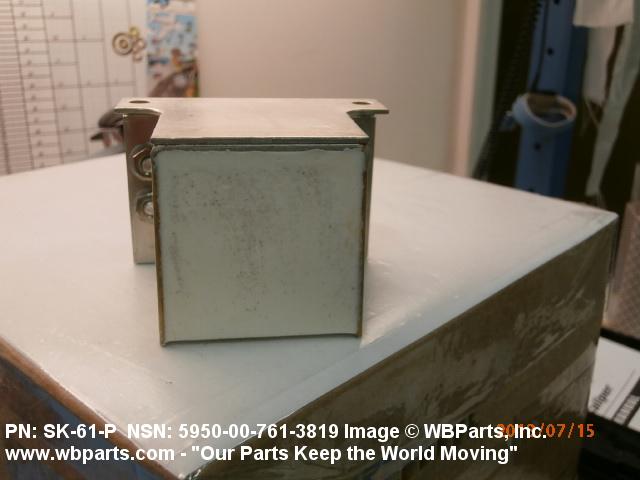

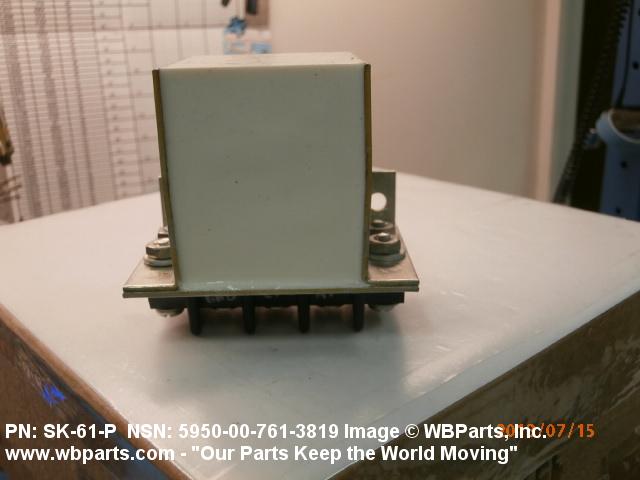

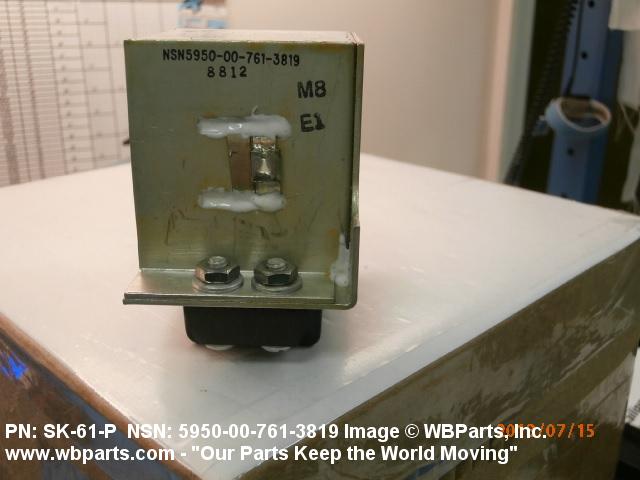

Drawings & Photos | NSN 5950-00-761-3819
Demand History | NSN 5950-00-761-3819
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FT1026 | 2025-10-293 | 28 | DIBBS |
| FT1026 | 2025-10-282 | 28 | DIBBS |
| FT1026 | 2025-05-139 | 27 | DIBBS |
| FT1026 | 2025-05-128 | 27 | DIBBS |
| 5950-00-761-3819 | 2024-10-295 | 15 | US |
| FT1026 | 2024-10-295 | 15 | DIBBS |
| K5759 | 2024-10-295 | 15 | DIBBS |
| FT1026 | 2024-10-284 | 15 | DIBBS |
| K5759 | 2024-10-284 | 15 | DIBBS |
| FT1026 | 2024-05-141 | 22 | DIBBS |
| K5759 | 2024-05-141 | 22 | DIBBS |
| FT1026 | 2024-05-129 | 22 | DIBBS |
| K5759 | 2024-05-129 | 22 | DIBBS |
| K5759 | 2023-07-204 | 13 | DIBBS |
| K5759 | 2023-07-191 | 13 | DIBBS |
| 5950-00-761-3819 | 2023-04-103 | 5 | DE |
| K5759 | 2023-03-72 | 6 | DIBBS |
| K5759 | 2023-01-18 | 6 | DIBBS |
| K5759 | 2023-01-11 | 1 | DIBBS |
| K5759 | 2022-10-300 | 6 | DIBBS |
| 5950-00-761-3819 | 2022-10-286 | 5 | US |
| K5759 | 2022-07-209 | 1 | DIBBS |
| K5759 | 2022-03-76 | 6 | DIBBS |
| K5759 | 2022-02-48 | 4 | DIBBS |
| K5759 | 2019-08-241 | 13 | DIBBS |
| 5950-00-761-3819 | 2018-01-25 | 3 | AR |
| 5950-00-761-3819 | 2017-10-304 | 36 | US |
| 5950-00-761-3819 | 2017-10-304 | 25 | US |
| 5950-00-761-3819 | 2017-10-304 | 13 | US |
| S6157610561 | 2017-10-298 | 2 | US |
| 5950-00-761-3819 | 2017-04-109 | 6 | US |
| 5950-00-761-3819 | 2017-03-66 | 17 | DIBBS |
| 5950-00-761-3819 | 2015-05-134 | 1 | Turkey |
| 5950-00-761-3819 | 2015-02-41 | 21 | DIBBS |
| 5950-00-761-3819 | 2014-11-313 | 17 | DIBBS |
| 5950-00-761-3819 | 2014-07-190 | 6 | United States |
| 5950-00-761-3819 | 2014-07-189 | 2 | United States |
| SK61P | 2013-07-182 | 2 | United States |
| 5950-00-761-3819 | 2012-09-250 | 2 | US |
| S6157610561 | 2012-02-59 | 1 | PE |
| 5950-00-761-3819 | 2012-02-58 | 1 | PE |
| 5950-00-761-3819 | 2010-11-314 | 24 | DIBBS |
| 5950-00-761-3819 | 2010-06-172 | 18 | DIBBS |
| 5950-00-761-3819 | 2010-04-96 | 8 | DIBBS |
| 5950-00-761-3819 | 2009-10-286 | 4 | DIBBS |
| 5950-00-761-3819 | 2009-10-281 | 1 | US |
| 5950-00-761-3819 | 2009-09-244 | 3 | US |
| SK61P | 2009-06-181 | 2 | US |
| 5950-00-761-3819 | 2009-03-78 | 25 | DIBBS |
Cross Reference | NSN 5950-00-761-3819
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 779-172-46 | D1347 | DIEHL AEROSPACE GMBH |
| K5759 | 51181 | KEYTRONICS, INC. DIV API TECHNOLOGIES - EIS DIVISION |
| S6157-61056-1 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| SK-61-P | 20950 | ESPEY MFG. & ELECTRONICS CORP. |
| SK-61-P | 98675 | ESPEY MFG. & ELECTRONICS CORP. |
| TE11463 | 54401 | TRANSFORMER ENGINEERS CO A DIV OF STANDARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5950-00-761-3819
Related Products | NSN 5950-00-761-3819
Technical Data | NSN 5950-00-761-3819
| Characteristic | Specifications |
|---|---|

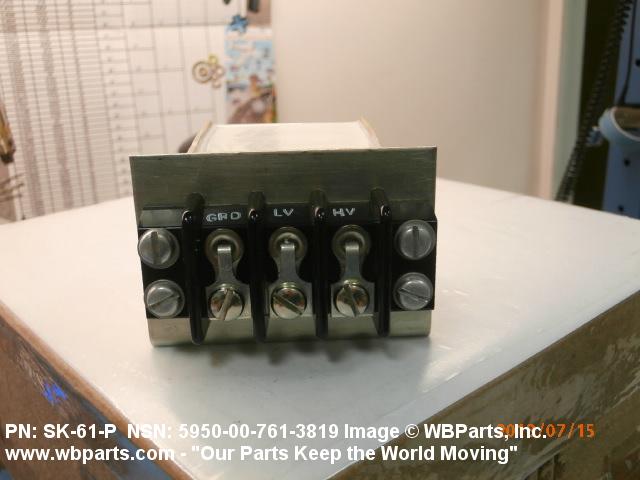

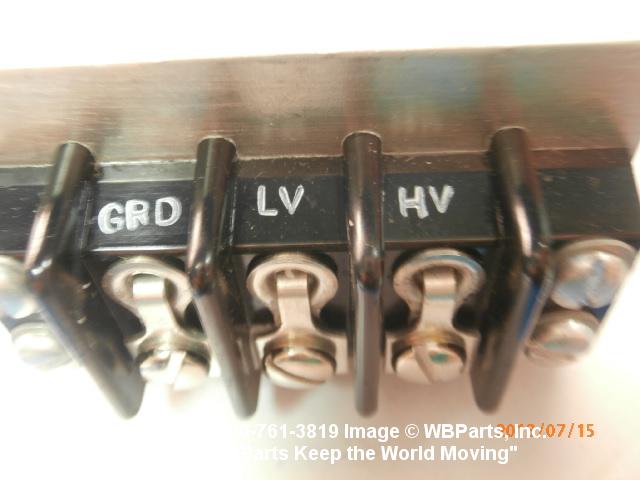

| TERMINAL TYPE AND QUANTITY | 3 THREADED STUD |
| WINDING OPERATING VOLTAGE | 115.00 AC VOLTS NOMINAL SINGLE COMPONENT SINGLE PRIMARY INPUT 28.00 AC VOLTS NOMINAL SINGLE COMPONENT SINGLE PRIMARY OUTPUT |
| WINDING OPERATING CURRENT | 5.35 AMPERES AC MAXIMUM SINGLE COMPONENT SINGLE PRIMARY OUTPUT |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 1 PRIMARY, FIXED AUTOTRANSFORMER TYPE SINGLE COMPONENT |
| INPUT-OUTPUT PHASE RELATIONSHIP | SINGLE PHASE TO SINGLE PHASE SINGLE COMPONENT |

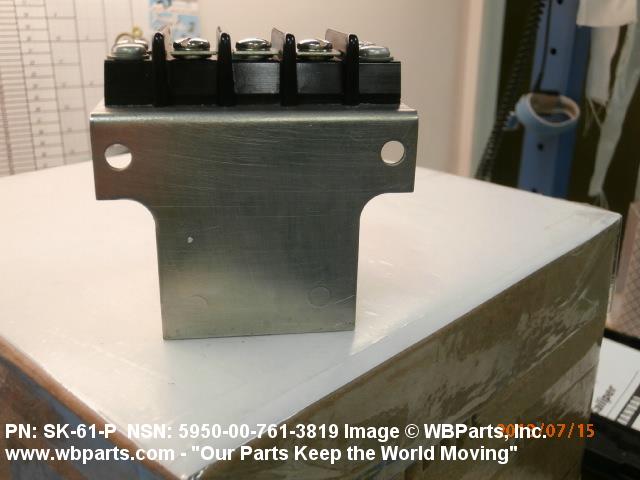

| MOUNTING METHOD | FLANGE AND UNTHREADED HOLE SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 2 SINGLE GROUP |

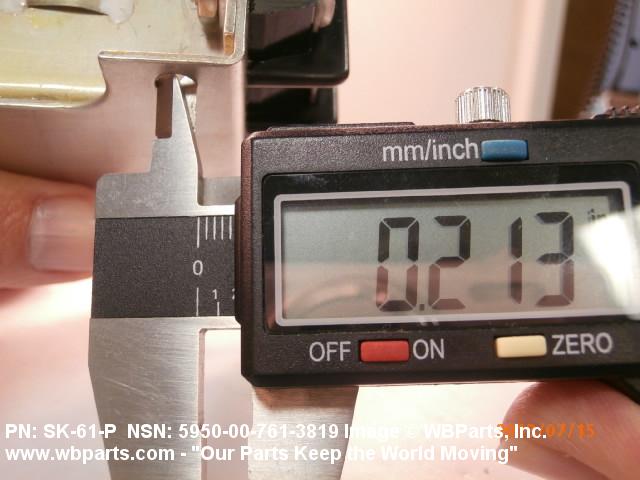

| MOUNTING HOLE DIAMETER | 0.218 INCHES NOMINAL SINGLE GROUP |

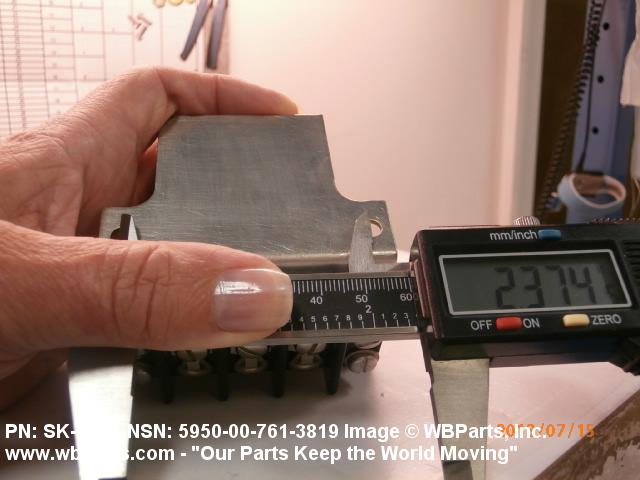

| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.375 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| INCLOSURE TYPE | PARTIALLY INCLOSED, DOUBLE SHELL |

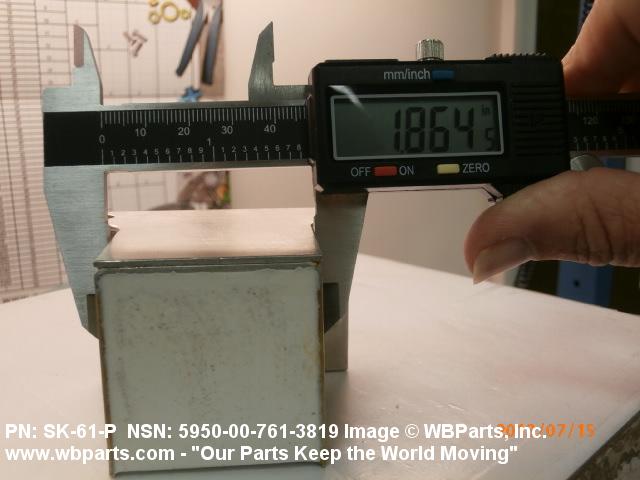

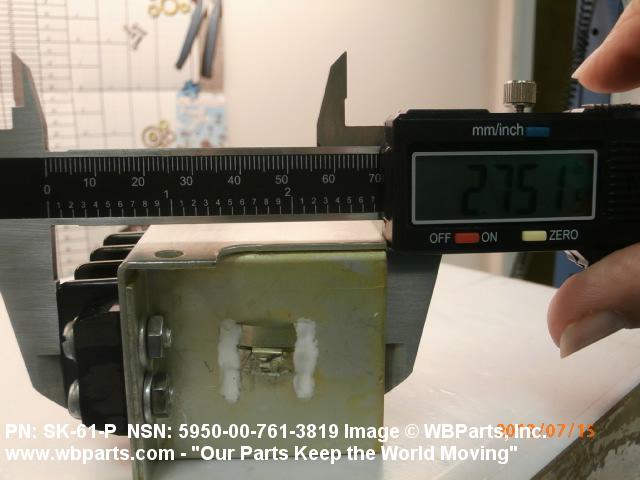

| BODY LENGTH | 2.938 INCHES MAXIMUM |

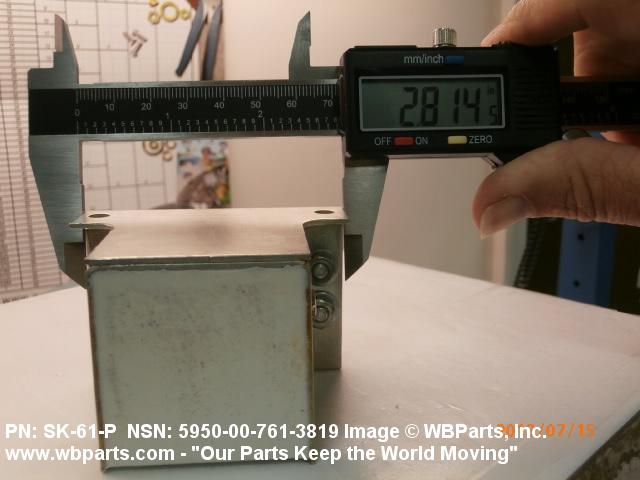

| BODY HEIGHT | 2.812 INCHES MAXIMUM |
| BODY WIDTH | 2.000 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| MANUFACTURERS CODE | 98675 |
| DESIGN CONTROL REFERENCE | SK61P |
Restrictions/Controls & Freight Information | NSN 5950-00-761-3819
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 595 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5950-00-761-3819
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
