NSN 5950-01-014-1784 318514, 3-18514, 6620518010
Product Details | POWER TRANSFORMER
5950-01-014-1784 A transformer consisting of one or more primary winding(s) and one or more secondary winding(s). It may be designed for direct connection to an alternating current source for purposes of changing the secondary volts and amperes or designed to eliminate metallic interconnection between circuits in an overall one to one voltage ratio, with or without additional output windings, or items designed to automatically maintain a constant output voltage within specified limits under varying input or load conditions. Also includes items having a provision for mechanically changing the turns ratio or inductive coupling in progressive increments by means of voltage taps, ratio adjuster, or devices oe similar design. For transformers having winding(s) common to both input and output circuits, see TRANSFORMER (1), POWER, AUTOTRANSFORMER. Excludes TRANSFORMER (1), PULSE.20259500022Coils and Transformers61200044Transformers: Distribution and Power Station
Part Alternates: 318514, 3-18514, 6620518010, 662-0518-010, 5950-01-014-1784, 01-014-1784, 5950010141784, 010141784
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 DEC 1975 | 01-014-1784 | 32496 ( TRANSFORMER, POWER ) |

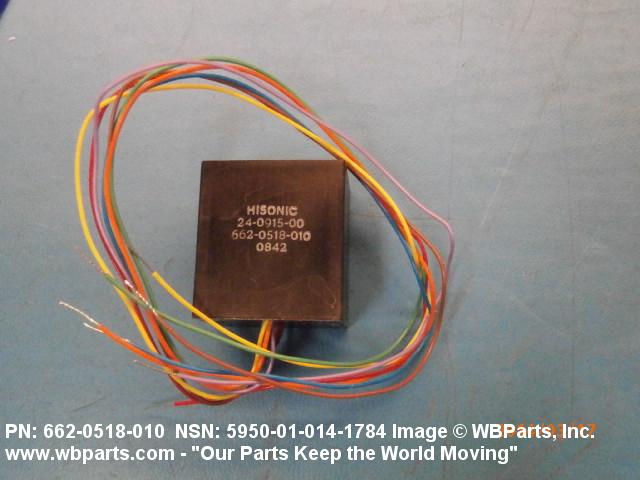

Drawings & Photos | NSN 5950-01-014-1784
Demand History | NSN 5950-01-014-1784
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5950-01-014-1784 | 2014-07-210 | 1 | DIBBS |
| 5950-01-014-1784 | 2014-02-33 | 1 | DIBBS |
| 5950-01-014-1784 | 2014-01-19 | 1 | DIBBS |
| 5950-01-014-1784 | 2013-12-357 | 1 | United States |
| 5950-01-014-1784 | 2013-12-351 | 1 | DIBBS |
| 5950-01-014-1784 | 2013-12-336 | 1 | DIBBS |
| 3-18514 | 2011-06-159 | 4 | |
| 3-18514 | 2011-05-132 | 6 | |
| 5950-01-014-1784 | 2011-04-100 | 10 | US |
| 3-18514 | 2011-04-95 | 10 | |
| 3-18514 | 2010-11-333 | 15 | |
| 3-18514 | 2010-11-333 | 13 | |
| 3-18514 | 2010-11-322 | 13 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5950-01-014-1784
Technical Data | NSN 5950-01-014-1784
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 7 WIRE LEAD |
| (NON-CORE DATA) WINDING TAP LOCATION | MULTIPLE TAPS W/CENTER TAP SINGLE COMPONENT SINGLE SECONDARY |
| WINDING OPERATING VOLTAGE | 26.00 AC VOLTS NOMINAL SINGLE COMPONENT SINGLE PRIMARY |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 1 PRIMARY AND 1 SECONDARY SINGLE COMPONENT |
| INPUT-OUTPUT PHASE RELATIONSHIP | SINGLE PHASE TO SINGLE PHASE SINGLE COMPONENT |
| MOUNTING METHOD | THREADED HOLE SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 2 SINGLE GROUP |
| THREAD SERIES DESIGNATOR | UNC SINGLE GROUP |
| NOMINAL THREAD SIZE | 0.112 INCHES SINGLE GROUP |
| THREAD QUANTITY PER INCH | 40 SINGLE GROUP |
| (NON-CORE DATA) THREAD CLASS | 3A SINGLE GROUP |

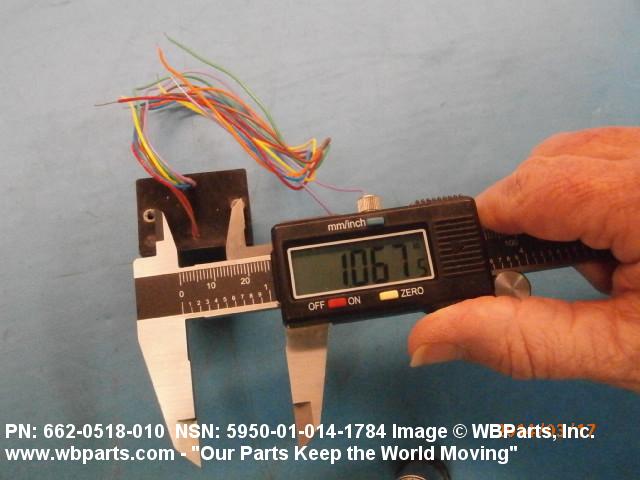

| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.062 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| INCLOSURE TYPE | FULLY INCLOSED |

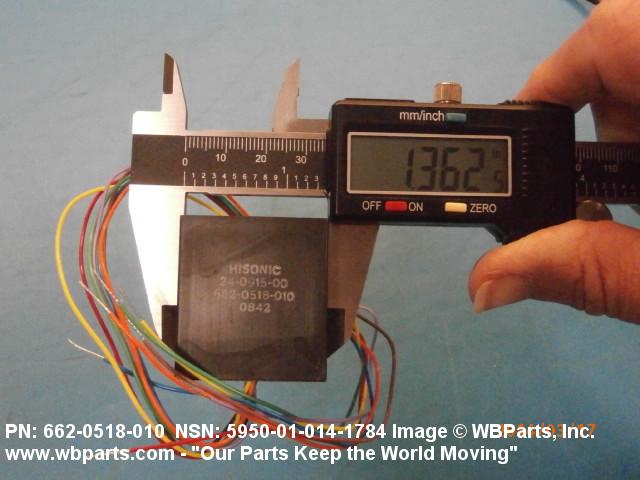

| BODY LENGTH | 1.375 INCHES NOMINAL |

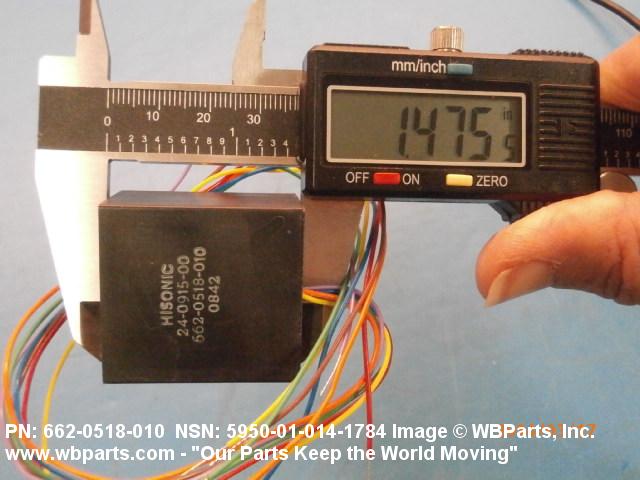

| BODY HEIGHT | 1.469 INCHES NOMINAL |

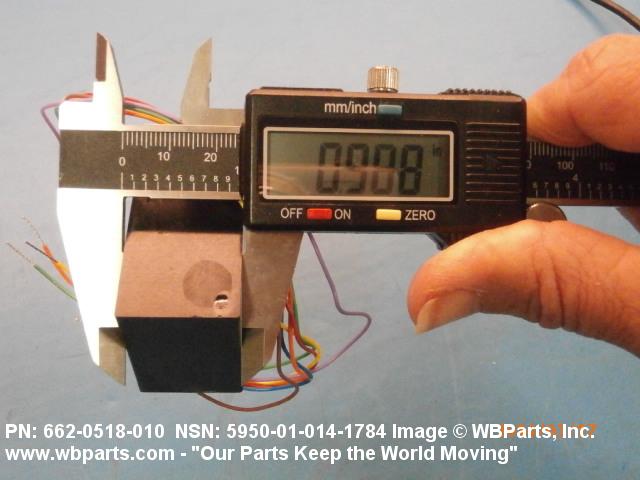

| BODY WIDTH | 0.938 INCHES NOMINAL |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 662-0518-010 |
Restrictions/Controls & Freight Information | NSN 5950-01-014-1784
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
