NSN 5950-01-016-6080 BE12112001, BE12112-001, 12428
Product Details | REACTOR

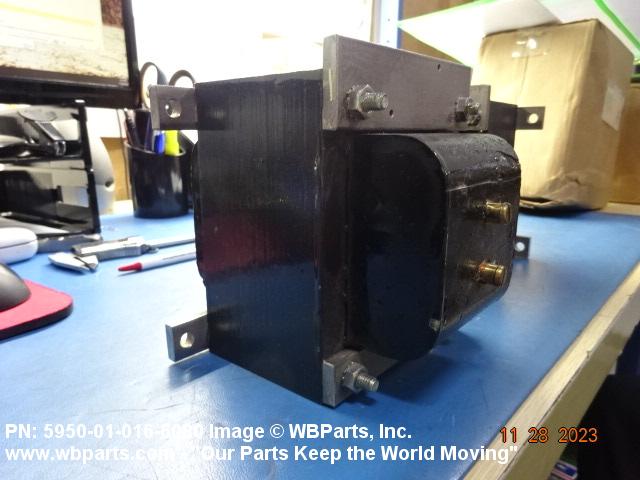

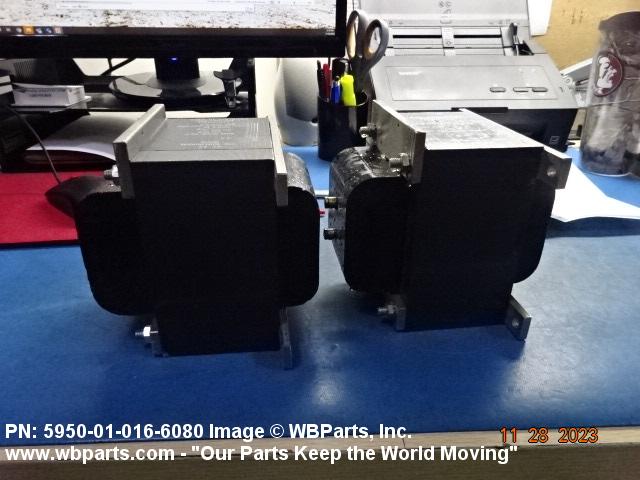

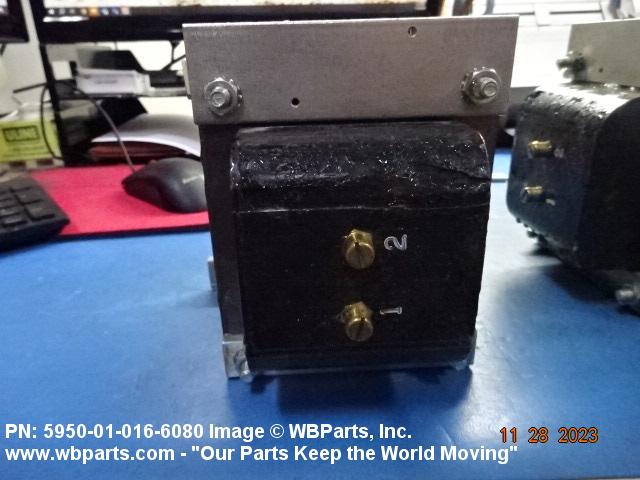

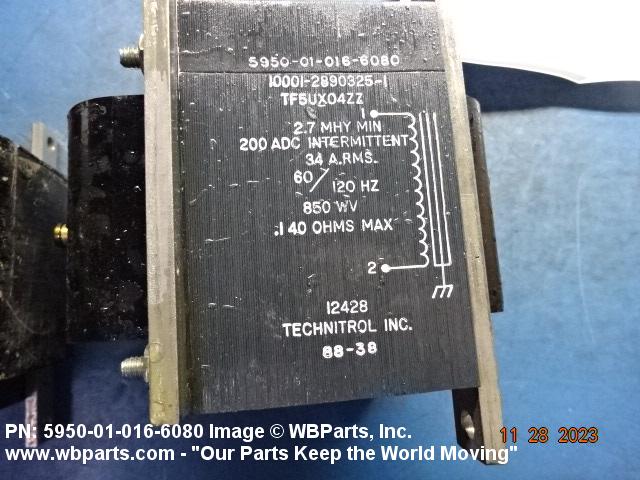

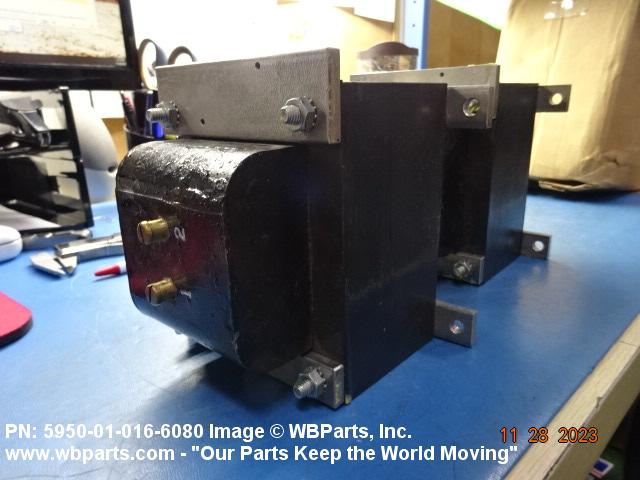

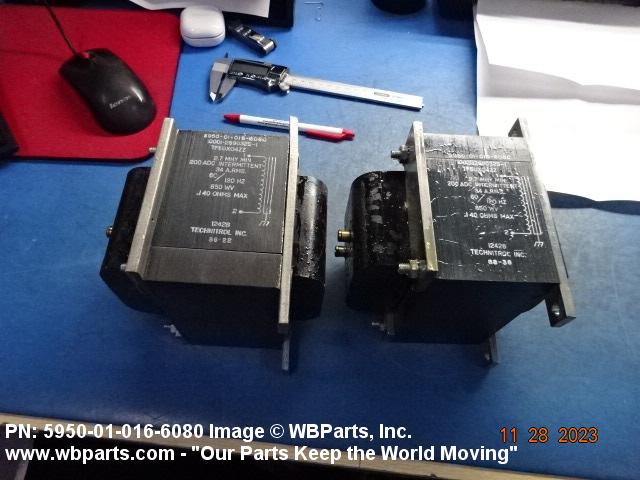

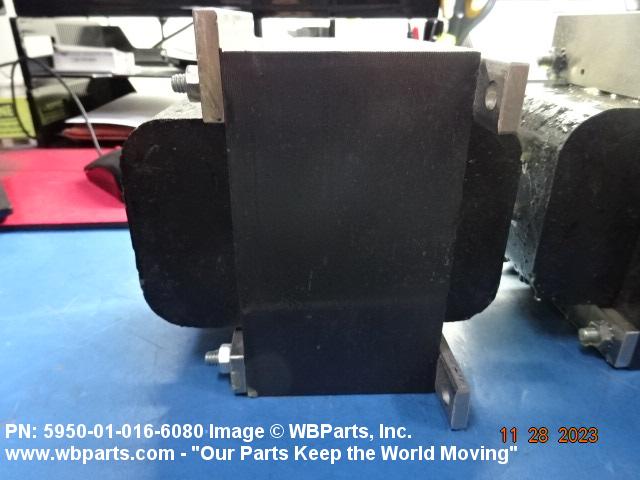

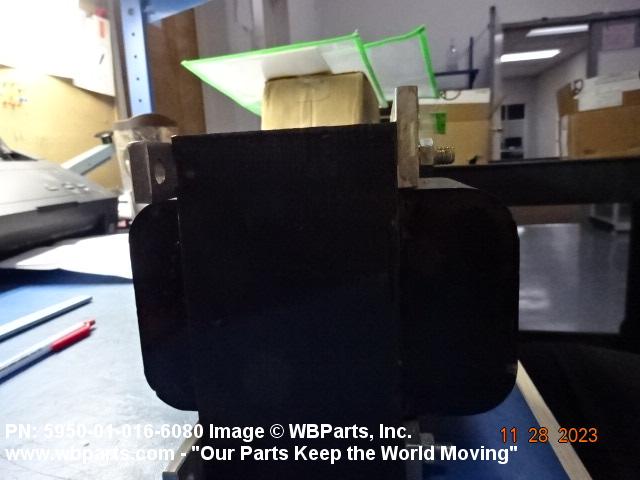

5950-01-016-6080 A coil or coils usually constructed with cores having low magnetic reluctance, whose primary purpose is to furnish an inductive impedance in power or audio frequency circuit ranging from zero to 20 kilohertz (kilocycles). Includes audio frequency and power filter chokes, audio reactors and swinging chokes. Does not include transformers or coils used above audio frequency range. Excludes SATURABLE REACTOR. For reactors with air cores, see COIL (as modified).
Part Alternates: BE12112001, BE12112-001, 12428, 28903251, 2890325-1, 5950-01-016-6080, 01-016-6080, 5950010166080, 010166080
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 FEB 1976 | 01-016-6080 | 00724 ( REACTOR ) |

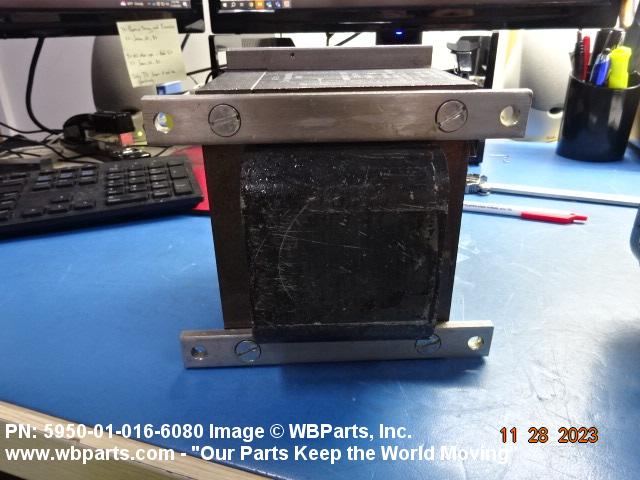

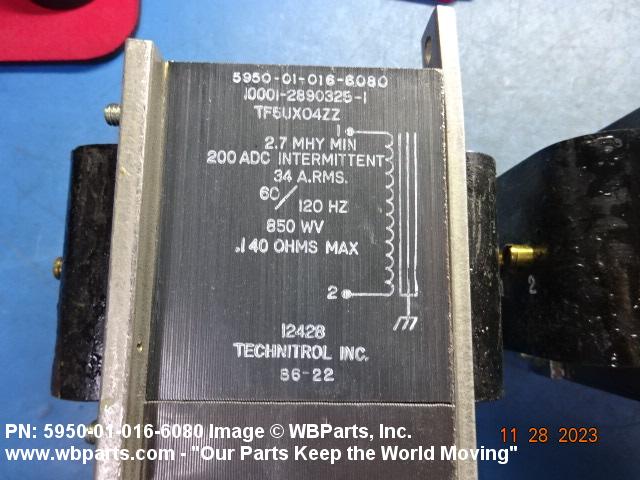

Drawings & Photos | NSN 5950-01-016-6080
Demand History | NSN 5950-01-016-6080
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5950-01-016-6080 | 2024-07-184 | 20 | United States |
| 5950-01-016-6080 | 2024-06-178 | 20 | United States |
| 5950-01-016-6080 | 2024-06-163 | 20 | United States |
| 5950-01-016-6080 | 2024-03-67 | 20 | United States |
| 5950-01-016-6080 | 2024-01-08 | 20 | United States |
| 5950-01-016-6080 | 2023-10-297 | 24 | United States |
| 12428 | 2022-03-76 | 18 | DIBBS |
| 12428 | 2021-10-290 | 34 | DIBBS |
| 12428 | 2021-09-256 | 140 | DIBBS |
| 12428 | 2021-08-242 | 100 | DIBBS |
| 12428 | 2021-08-236 | 17 | DIBBS |
