NSN 5950-01-017-8925 9T21Y5656, 9T22B4311, 01-017-8925
Product Details | POWER TRANSFORMER
5950-01-017-8925 A transformer consisting of one or more primary winding(s) and one or more secondary winding(s). It may be designed for direct connection to an alternating current source for purposes of changing the secondary volts and amperes or designed to eliminate metallic interconnection between circuits in an overall one to one voltage ratio, with or without additional output windings, or items designed to automatically maintain a constant output voltage within specified limits under varying input or load conditions. Also includes items having a provision for mechanically changing the turns ratio or inductive coupling in progressive increments by means of voltage taps, ratio adjuster, or devices oe similar design. For transformers having winding(s) common to both input and output circuits, see TRANSFORMER (1), POWER, AUTOTRANSFORMER. Excludes TRANSFORMER (1), PULSE.20259500022Coils and Transformers61200044Transformers: Distribution and Power Station
Part Alternates: 9T21Y5656, 9T22B4311, 5950-01-017-8925, 01-017-8925, 5950010178925, 010178925
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 MAR 1976 | 01-017-8925 | 32496 ( TRANSFORMER, POWER ) |

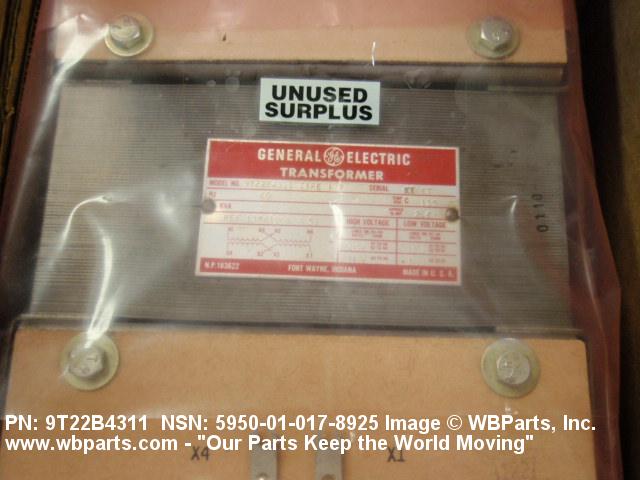

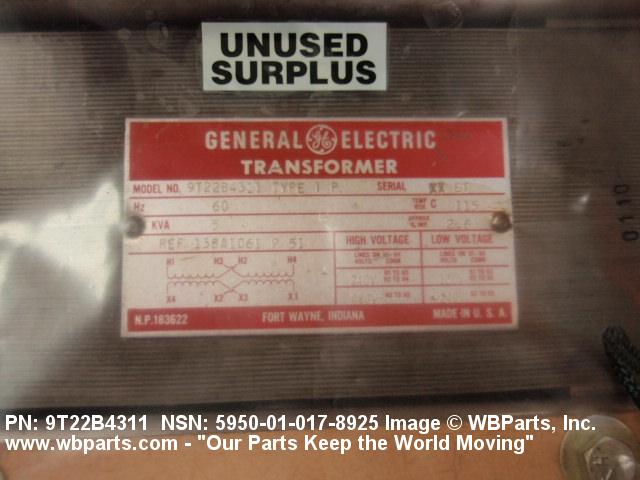

Drawings & Photos | NSN 5950-01-017-8925
Demand History | NSN 5950-01-017-8925
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5950-01-017-8925 | 2010-01-12 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5950-01-017-8925
Technical Data | NSN 5950-01-017-8925
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 8 THREADED STUD |
| WINDING OPERATING VOLTAGE | 240.00 AC VOLTS MINIMUM AND 480.00 AC VOLTS MAXIMUM SINGLE COMPONENT ALL PRIMARY 120.00 AC VOLTS MINIMUM AND 240.00 AC VOLTS MAXIMUM SINGLE COMPONENT ALL SECONDARY |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL SINGLE COMPONENT |
| MAXIMUM TRANSFORMER POWER RATING | 5.0 KILOVOLT-AMPERE SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 2 PRIMARY AND 2 SECONDARY SINGLE COMPONENT |
| INPUT-OUTPUT PHASE RELATIONSHIP | SINGLE PHASE TO SINGLE PHASE SINGLE COMPONENT |
| MOUNTING METHOD | FLANGE AND SLOT SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 4 SINGLE GROUP |
| MOUNTING SLOT WIDTH | 0.363 INCHES MAXIMUM SINGLE GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.624 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 5.980 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| INCLOSURE TYPE | OPEN |
| BODY LENGTH | 8.500 INCHES NOMINAL |
| BODY HEIGHT | 4.000 INCHES NOMINAL |
| BODY WIDTH | 6.000 INCHES NOMINAL |
| OVERALL LENGTH | 10.800 INCHES MAXIMUM |
| OVERALL HEIGHT | 7.750 INCHES MAXIMUM |
| OVERALL WIDTH | 8.660 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5950-01-017-8925
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
