NSN 5950-01-310-7240 K7089, 16VE3450023, 16VE345002-3

Product Details | POWER AUTOTRANSFORMER TRANSFORMER

5950-01-310-7240 A transformer which incorporates the primary and secondary functions into a single winding, which is common to both input and output circuits, and is designed to change the relationship of volts and amperes between the entire winding and its taps. Includes multiple winding transformers of like design and items in which a variation of the turns ratio or inductive ratio of inductive coupling is accomplished by connection to fixed terminals. Also, includes items having a provision for mechanically changing the turns ratio in progressive increments, by means of a shaft, voltage taps, ratio adjuster, or devices of similar design. Excludes TRANSFORMER (1), POWER; TRANSFORMER (1), PULSE.20259500022Coils and Transformers61200044Transformers: Distribution and Power Station

Part Alternates: K7089, 16VE3450023, 16VE345002-3, 5800783, 58-0078-3, 5950-01-310-7240, 01-310-7240, 5950013107240, 013107240

Electrical and Electronic Equipment Components | Coils and Transformers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	12 NOV 1989	01-310-7240	36166 ( TRANSFORMER, POWER AUTOTRANSFORMER )

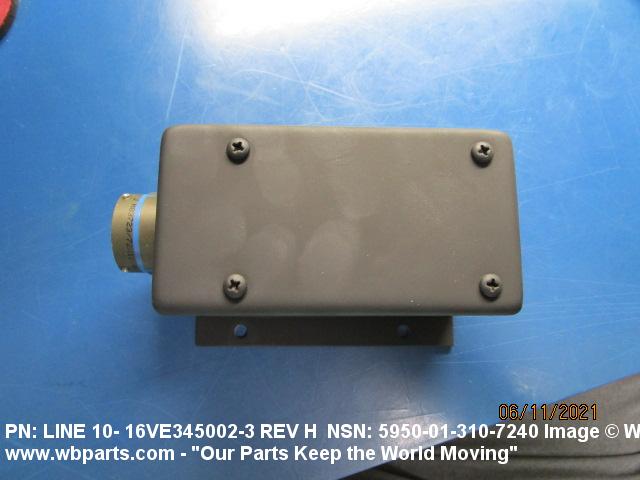

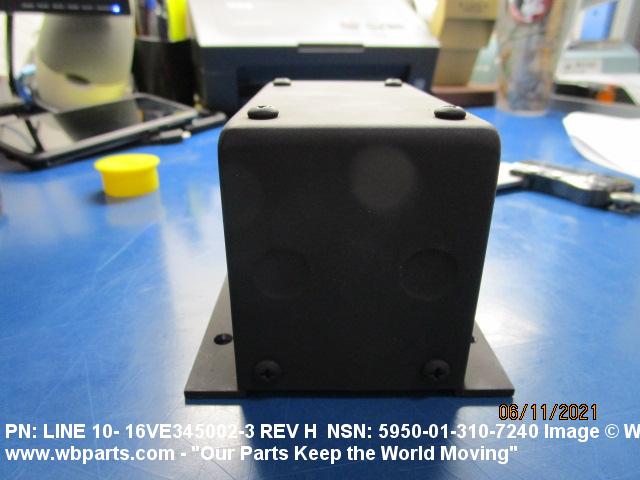

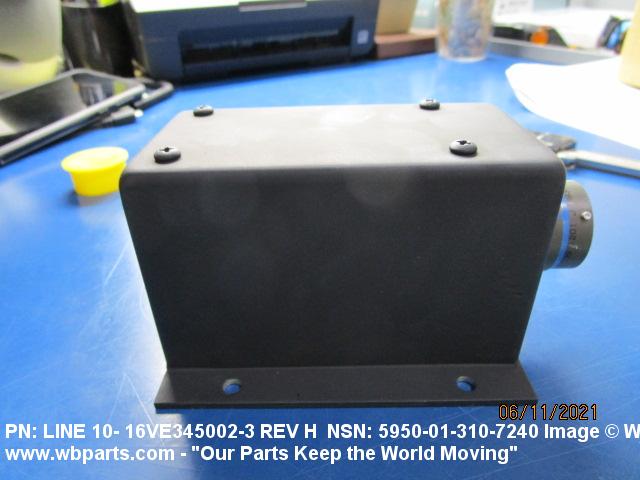

Drawings & Photos | NSN 5950-01-310-7240

Part Number	Request Date	QTY	Origin
5950-01-310-7240	2021-05-146	3	United States
5950-01-310-7240	2021-04-116	3	United States
16VE3450023	2017-08-237	1	TH
5950-01-310-7240	2017-08-236	1	TH
5950-01-310-7240	2011-12-363	6	United States
5950-01-310-7240	2011-02-49	1	PT
5950-01-310-7240	2009-09-244	20	DIBBS
5950-01-310-7240	2009-01-30	107	DIBBS
5950-01-310-7240	2008-12-347	94	DIBBS
5950-01-310-7240	2008-11-316	114	DIBBS
5950-01-310-7240	2008-10-283	94	DIBBS
5950-01-310-7240	2007-11-332	150	DIBBS
5950-01-310-7240	2007-09-261	70	DIBBS
5950-01-310-7240	2007-09-256	30	DIBBS
5950-01-310-7240	2007-06-180	3	DIBBS
5950-01-310-7240	2007-01-24	3	DIBBS

Cross Reference | NSN 5950-01-310-7240

Part Number	Cage Code	Manufacturer
16VE345002-3	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

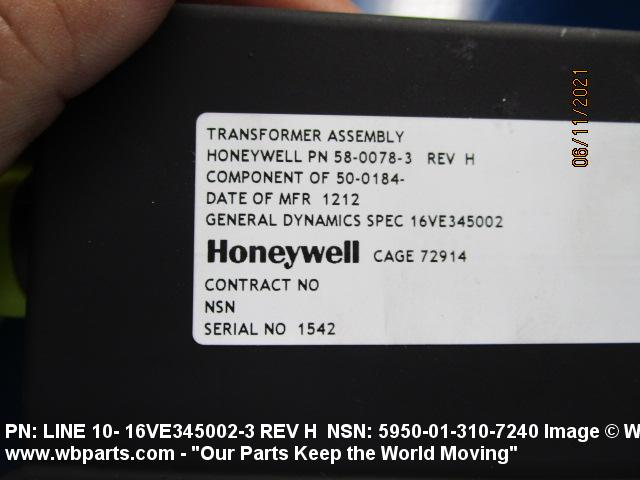

58-0078-3	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
K7089	51181	KEYTRONICS, INC. DIV API TECHNOLOGIES - EIS DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5950-01-310-7240

Compare

Related Products | NSN 5950-01-310-7240

5950-01-310-7255, 5950-01-310-7259, 5950-01-310-7262, 5950-01-310-7263, 5950-01-310-7264

Technical Data | NSN 5950-01-310-7240

Characteristic	Specifications

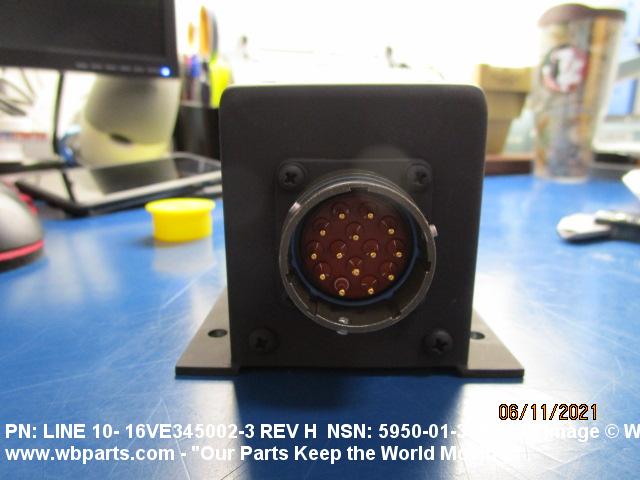

TERMINAL TYPE AND QUANTITY	1 CONNECTOR, RECEPTACLE
WINDING OPERATING VOLTAGE	115.00 AC VOLTS NOMINAL SINGLE COMPONENT ALL PRIMARY INPUT 29.00 AC VOLTS NOMINAL SINGLE COMPONENT ALL PRIMARY OUTPUT
WINDING OPERATING CURRENT	8.9 AMPERES AC NOMINAL SINGLE COMPONENT ALL PRIMARY OUTPUT
WINDING POWER RATING	258.1 VOLTS-AMPERES SINGLE COMPONENT ALL PRIMARY OUTPUT
FREQUENCY RATING	400.0 HERTZ NOMINAL SINGLE COMPONENT
WINDING SHIELDING METHOD	INTERNAL SHIELD GROUNDED TO INCLOSURE SINGLE COMPONENT
WINDING FUNCTION AND QUANTITY	2 PRIMARY, FIXED AUTOTRANSFORMER TYPE SINGLE COMPONENT
INPUT-OUTPUT PHASE RELATIONSHIP	SINGLE PHASE TO SINGLE PHASE SINGLE COMPONENT

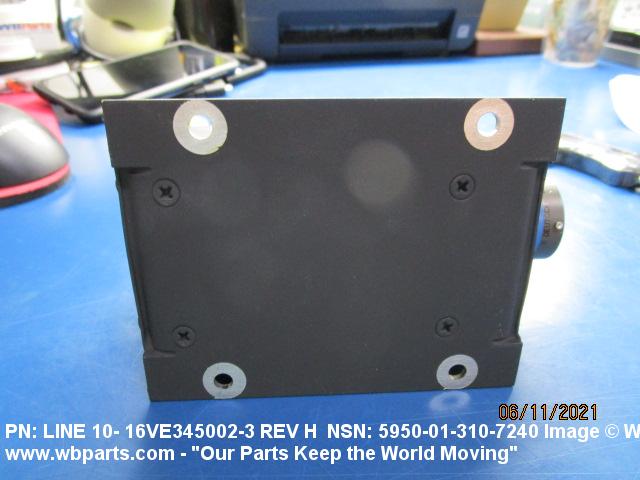

MOUNTING METHOD	UNTHREADED HOLE SINGLE GROUP
MOUNTING FACILITY QUANTITY	4 SINGLE GROUP

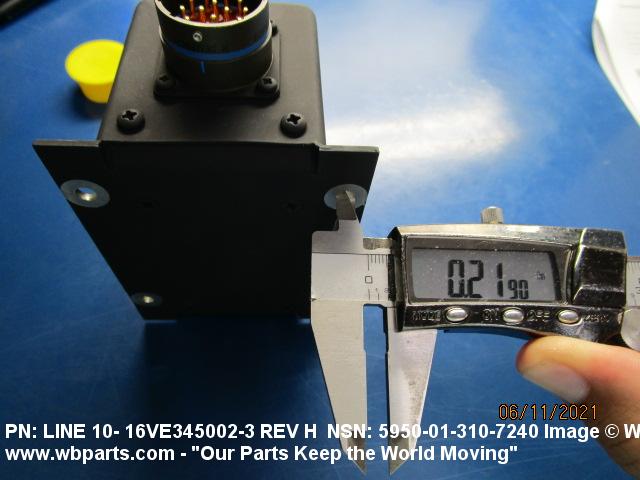

MOUNTING HOLE DIAMETER	0.216 INCHES MINIMUM AND 0.226 INCHES MAXIMUM SINGLE GROUP

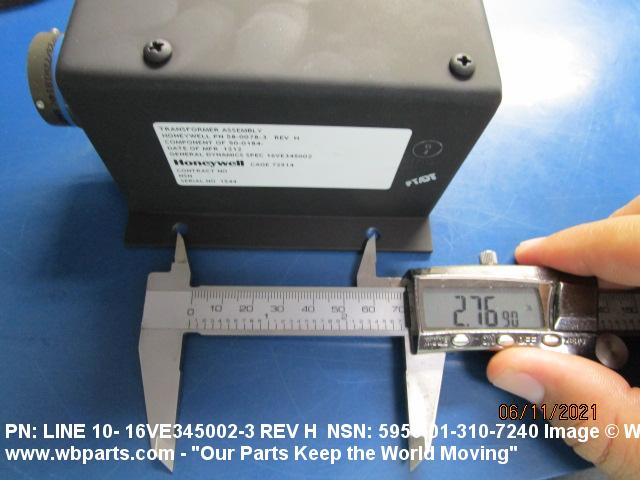

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	2.740 INCHES MINIMUM AND 2.760 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP

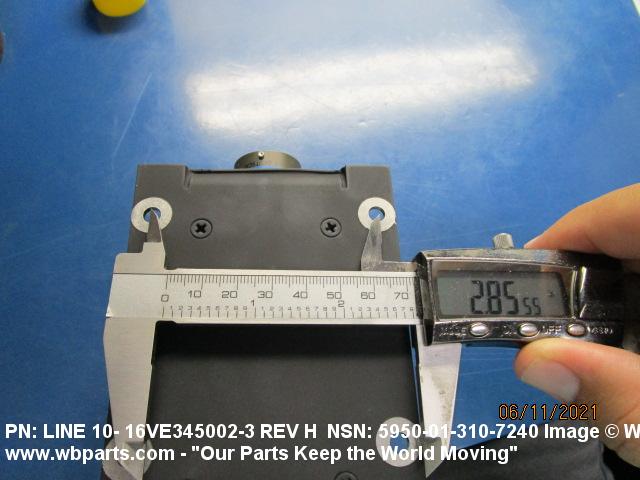

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	2.850 INCHES MINIMUM AND 2.870 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP
INCLOSURE TYPE	FULLY INCLOSED

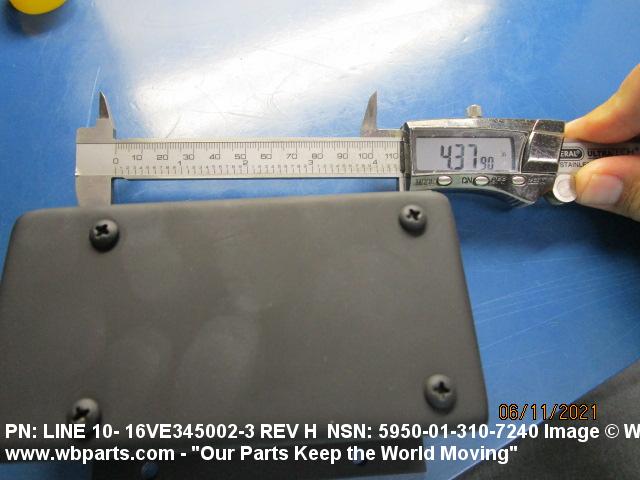

BODY LENGTH	4.450 INCHES MAXIMUM

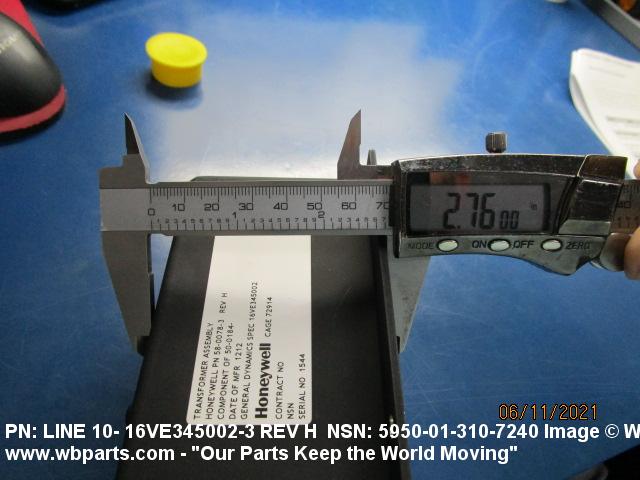

BODY HEIGHT	2.720 INCHES MINIMUM AND 2.780 INCHES MAXIMUM

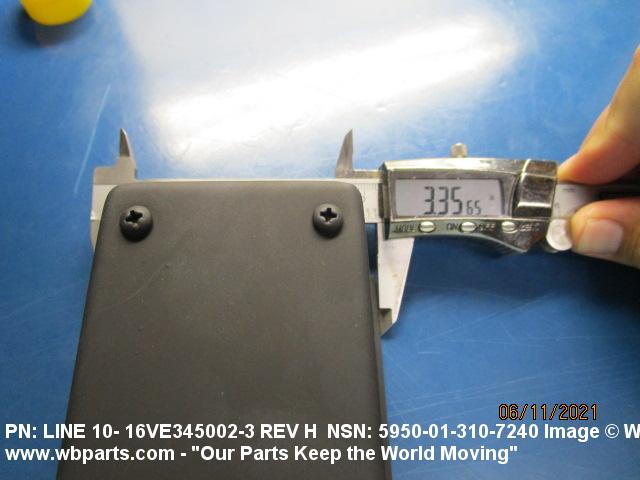

OVERALL WIDTH	3.330 INCHES MINIMUM AND 3.390 INCHES MAXIMUM
RELIABILITY INDICATOR	NOT ESTABLISHED
(NON-CORE DATA) UNPACKAGED UNIT WEIGHT	4.100 POUNDS

Restrictions/Controls & Freight Information | NSN 5950-01-310-7240

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	063420	TRANSFORMERS,NOI,OR TRANSFORMER PAR
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	595	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5950-01-310-7240

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
