NSN 5955-00-063-2584 149K, 00-063-2584, 000632584
Product Details | QUARTZ CRYSTAL UNIT
5955-00-063-2584 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: 149K, 5955-00-063-2584, 00-063-2584, 5955000632584, 000632584
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-063-2584 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-00-063-2584
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-00-063-2584
Related Products | NSN 5955-00-063-2584
Technical Data | NSN 5955-00-063-2584
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| SPECIFIED FREQUENCY | 504.750 KILOHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.002 TO 0.002 |
| OPERATING TEMP RANGE | -40.0 TO 70.0 DEG CELSIUS |

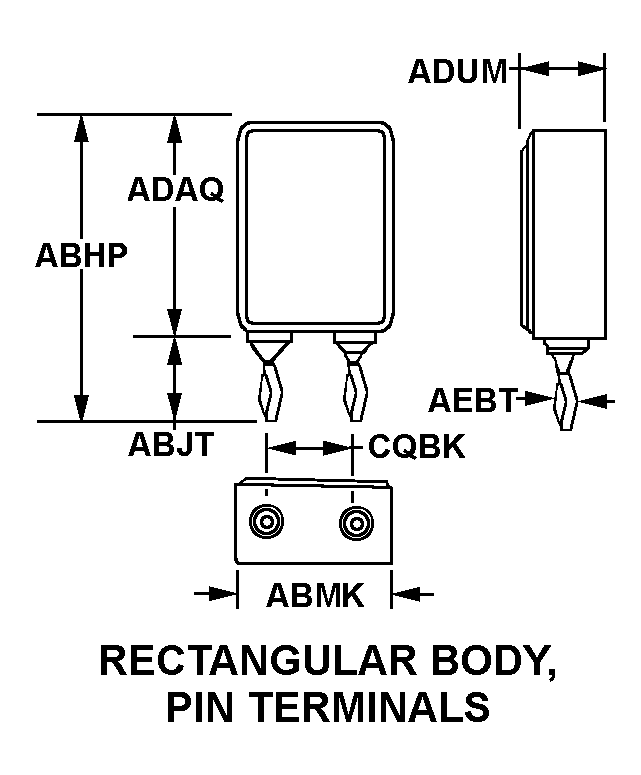

| STYLE DESIGNATOR | 21 RECTANGULAR BODY, PIN TERMINALS |
| OVERALL LENGTH | 1.023 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.248 INCHES MAXIMUM |
| OVERALL WIDTH | 0.757 INCHES MAXIMUM |
| BODY LENGTH | 0.775 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.352 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.486 INCHES NOMINAL |
