NSN 5955-00-125-9322 16759876001, 16759876-001, 759876-001
Product Details | ELECTRICAL-ELECTRONIC COMPONENTS OVEN
5955-00-125-9322 An electrically heated compartment designed to accommodate and maintain at an essentially constant temperature, one or more components, such as, CRYSTAL UNIT(S), QUARTZ; tuned circuits; integrated circuit devices; and semiconductors. It prevents frequency drift and changes in teperature.20259550038Oscillators and Piezoelectric Crystals59990050Miscellaneous Electrical and Electronic Components
Part Alternates: 16759876001, 16759876-001, 759876-001, 5955-00-125-9322, 00-125-9322, 5955001259322, 001259322, 759876001
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 NOV 1968 | 00-125-9322 | 41012 ( OVEN, ELECTRICAL-ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5955-00-125-9322
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-00-125-9322
Related Products | NSN 5955-00-125-9322
Technical Data | NSN 5955-00-125-9322
| Characteristic | Specifications |
|---|---|

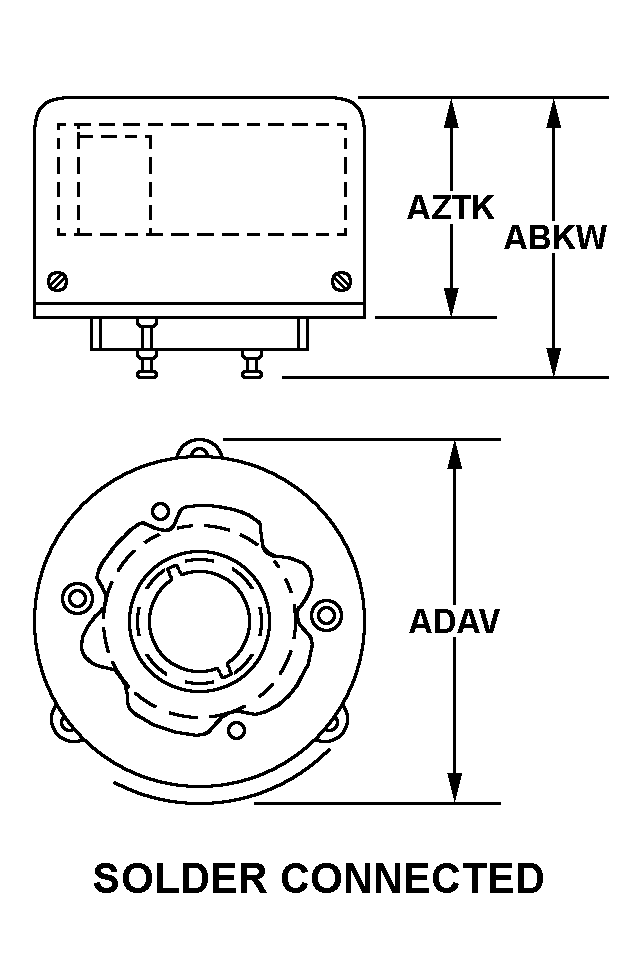

| STYLE DESIGNATOR | 8A SOLDER CONNECTED |
| OVERALL HEIGHT | 1.340 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 1.750 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.280 INCHES MINIMUM AND 1.340 INCHES MAXIMUM |
| BODY OVERALL HEIGHT | 1.310 INCHES NOMINAL |
| COMPONENT TYPE AND QUANTITY ACCOMMODATED | 2 CRYSTAL |
| CRYSTAL HOLDER DESIGNATOR | HC-6/U |
| INCLOSURE TYPE | INCLOSED |
| MAINTAINED OVEN CAVITY TEMP RATING | 75.0 DEG CELSIUS |
| MAINTAINED TEMP TOLERANCE RATING | -2.5 TO 2.5 DEG CELSIUS |
| HEATER ELEMENT OPERATING VOLTAGE RATING IN VOLTS AND TYPE | 24.0 AC MINIMUM AND 28.0 AC MAXIMUM AND 24.0 DC MINIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.135 INCHES MINIMUM AND 0.165 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.365 INCHES MINIMUM AND 1.385 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 7 WIRE LEAD |
| WIRE LEAD LENGTH | 3.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 28009 |
| DESIGN CONTROL REFERENCE | 16759876-001 |
Restrictions/Controls & Freight Information | NSN 5955-00-125-9322
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
