NSN 5955-00-132-7335 K7870215, 00-132-7335, 001327335

5955-00-132-7335 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.

Part Alternates: K7870215, 5955-00-132-7335, 00-132-7335, 5955001327335, 001327335

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59		00-132-7335	00196 ( CRYSTAL UNIT, QUARTZ )

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5955-00-132-7335

Compare

5955-00-132-7341, 5955-00-132-7343, 5955-00-132-7344, 5955-00-132-7345, 5955-00-132-7346

Characteristic	Specifications
MODE OF OSCILLATION	FUNDAMENTAL
SPECIFIED FREQUENCY	2.716 MEGAHERTZ
FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT	-0.050 TO 0.050
OPERATING TEMP RANGE	10.0 TO 65.0 DEG CELSIUS

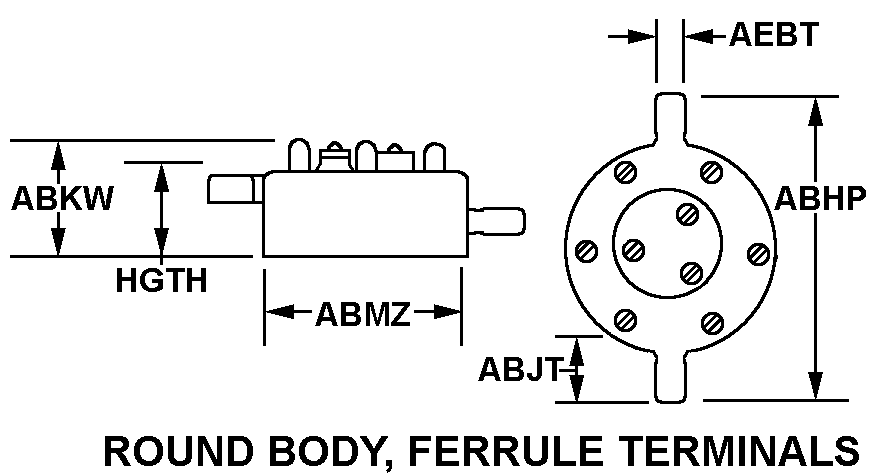

STYLE DESIGNATOR	22 ROUND BODY, FERRULE TERMINALS
OVERALL LENGTH	2.500 INCHES NOMINAL
TERMINAL LENGTH	0.281 INCHES NOMINAL
OVERALL HEIGHT	0.875 INCHES NOMINAL
DIAMETER	1.875 INCHES NOMINAL
TERMINAL DIAMETER	0.188 INCHES NOMINAL
HEIGHT	0.875 INCHES NOMINAL
HOLDER COVER MATERIAL	PLASTIC

Category	Code	Description
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
