NSN 5955-00-948-0207 BG93A, XT17TC, XT-17-TC
Product Details | QUARTZ CRYSTAL UNIT
5955-00-948-0207 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: BG93A, XT17TC, XT-17-TC, 5955-00-948-0207, 00-948-0207, 5955009480207, 009480207
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 APR 1966 | 00-948-0207 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-00-948-0207
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-00-948-0207
Related Products | NSN 5955-00-948-0207
Technical Data | NSN 5955-00-948-0207
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| CIRCUIT RESONANCE | ANTIRESONANCE |
| LOAD CAPACITANCE IN PICOFARADS | 100.0 NOMINAL |
| SPECIFIED FREQUENCY | 1.000 MEGAHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.0005 TO 0.0005 |
| OPERATING TEMP RANGE | 73.0 TO 77.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | 20.0 NOMINAL |
| DRIVE LEVEL RATING | 0.1 MILLIWATTS NOMINAL |

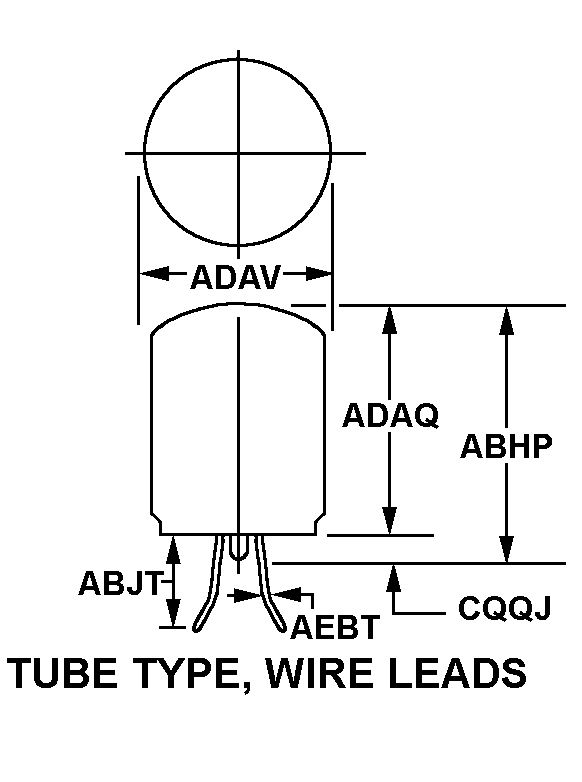

| STYLE DESIGNATOR | 23 TUBE TYPE, WIRE LEADS |
| OVERALL LENGTH | 2.563 INCHES NOMINAL |
| TERMINAL LENGTH | 2.000 INCHES NOMINAL |
| BODY LENGTH | 2.375 INCHES NOMINAL |
| OVERALL DIAMETER | 1.125 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.050 INCHES NOMINAL |
| SEAL-OFF TIP LENGTH | 0.188 INCHES NOMINAL |
| HOLDER COVER MATERIAL | GLASS |
